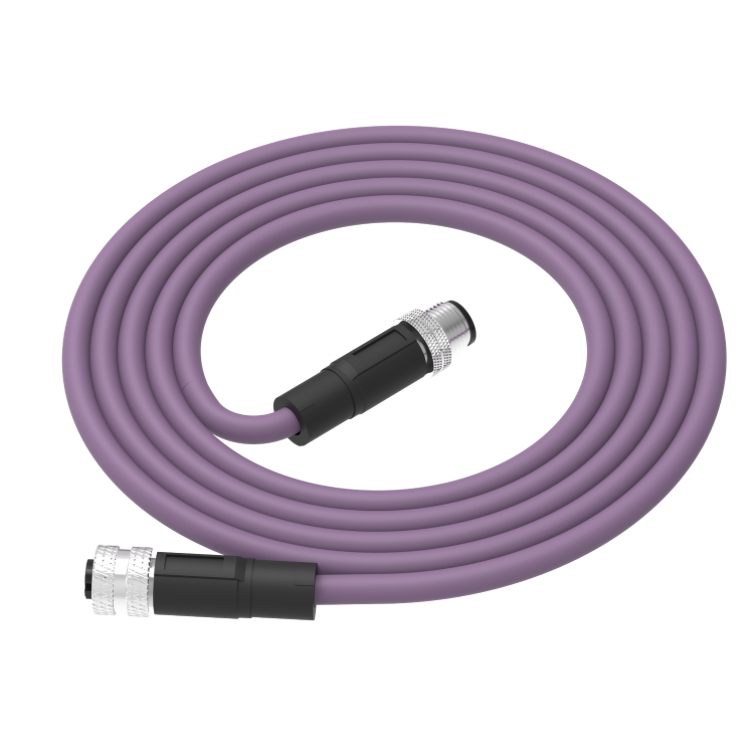

This M12 B-coded male-to-female straight 5-pin sensor cable assembly is designed for reliable signal and data transmission in industrial fieldbus and automation environments. The cable features full shielding with 360-degree EMI protection, ensuring stable performance in electrically noisy industrial applications.

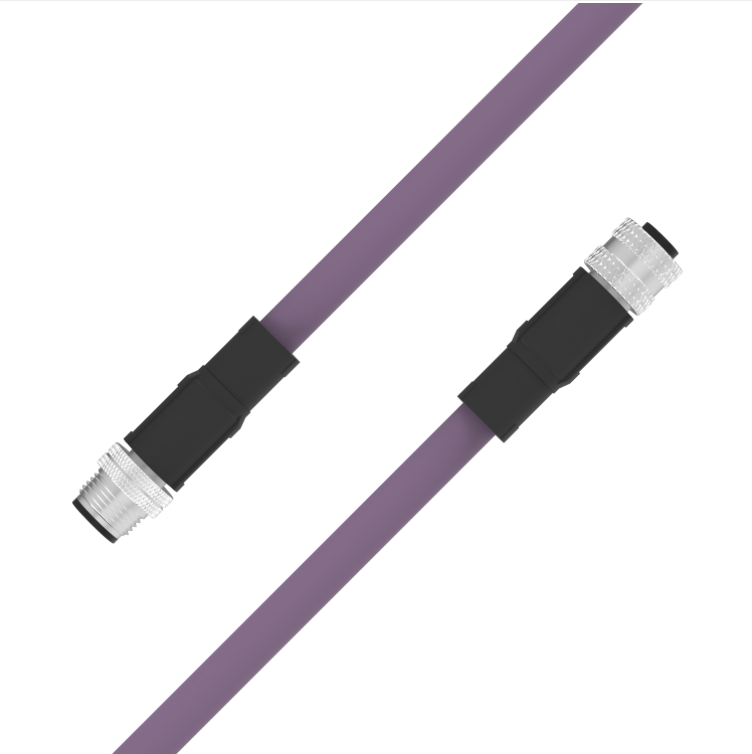

The assembly is fitted with a straight M12 B-coded male connector on one end and a straight M12 B-coded female connector on the other, both overmoulded for durability and rated IP67 to protect against dust and water ingress. The halogen-free PUR jacket provides excellent resistance to oils, abrasion and mechanical stress, making the cable suitable for continuous movement in drag-chain and torsional applications.
Manufactured in accordance with UL AWM 20549, this cable supports common industrial communication systems including Profibus, DeviceNet and CC-Link. Typical applications include industrial automation, robotics, process control systems, production equipment, machine tools and material handling installations.
Key technical highlights
-

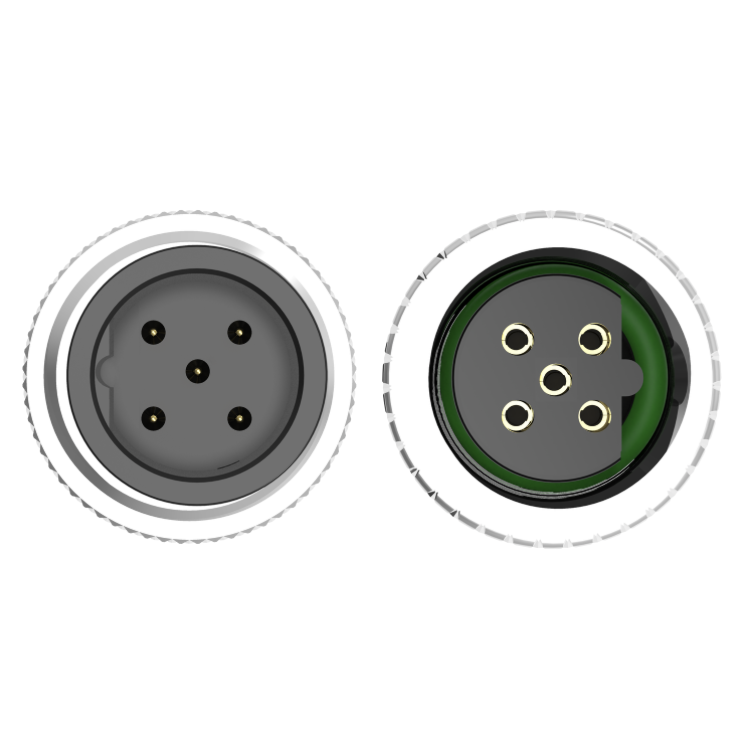

Connector type: M12 B-coded male to female
-
Connector orientation: straight to straight
-
Pins: 5 positions
-
Shielded cable with 360° EMI protection
-
PUR jacket, halogen-free and flame-resistant
-
Suitable for drag chain and continuous flexing
-
IP67 rated connectors
-
UL AWM 20549 approved
-
RoHS 2.0 compliant
This industrial grade product is supplied subject to minimum order quantities (MOQ). For wholesale pricing, volume discounts and lead times, please contact us with required lengths, colours and quantities, we will issue a formal quotation with our best available pricing.
