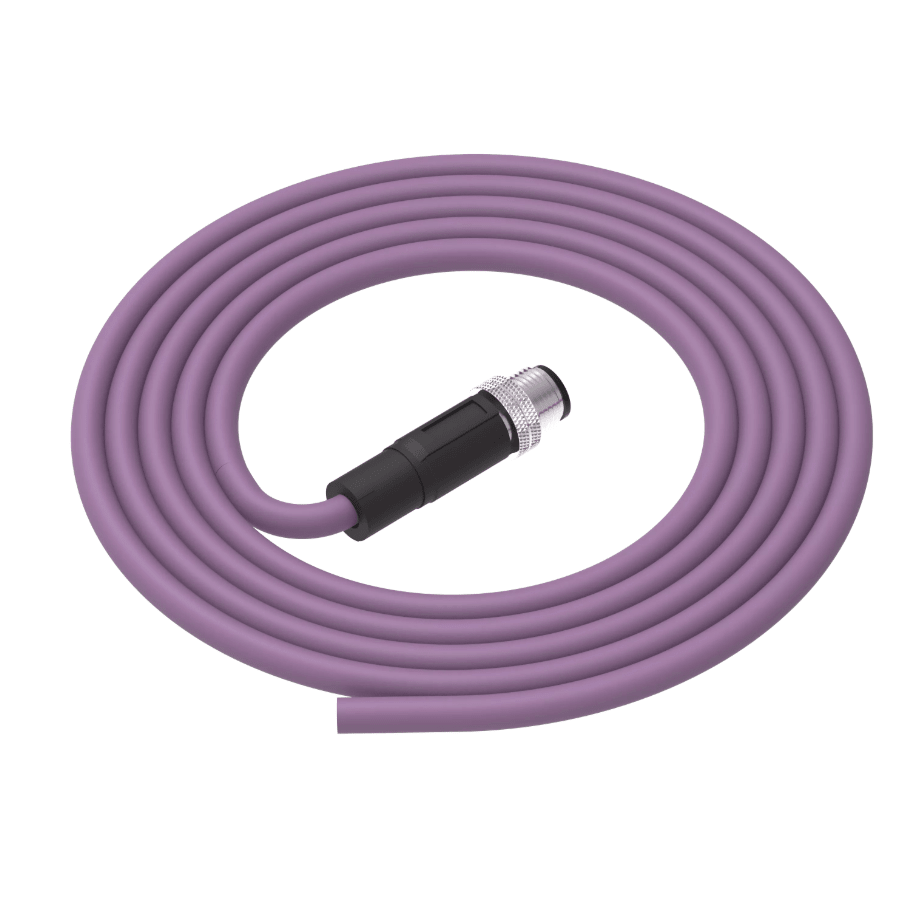

Industrial M12 B-Coded 5-Pin Fieldbus Cable for Profibus and DeviceNet
This M12 B-Coded male straight to open 5-position cable assembly is designed for industrial fieldbus and communication systems including Profibus, DeviceNet and CC-Link networks.
The straight M12 B-coded male connector provides secure and reliable connectivity in industrial automation, control systems and process environments. The open cable end allows flexible termination into PLCs, control cabinets or custom harness assemblies.
Built with shielded AWG23 conductors and full 360° EMI protection, this cable ensures stable signal and data transmission in electrically demanding environments. The overmoulded M12 connector is IP67 rated for protection against dust and temporary water immersion.
The halogen-free PUR outer jacket makes the cable suitable for drag chain and torsional stress applications, offering high resistance to oil, abrasion and mechanical wear.
Key Features
-

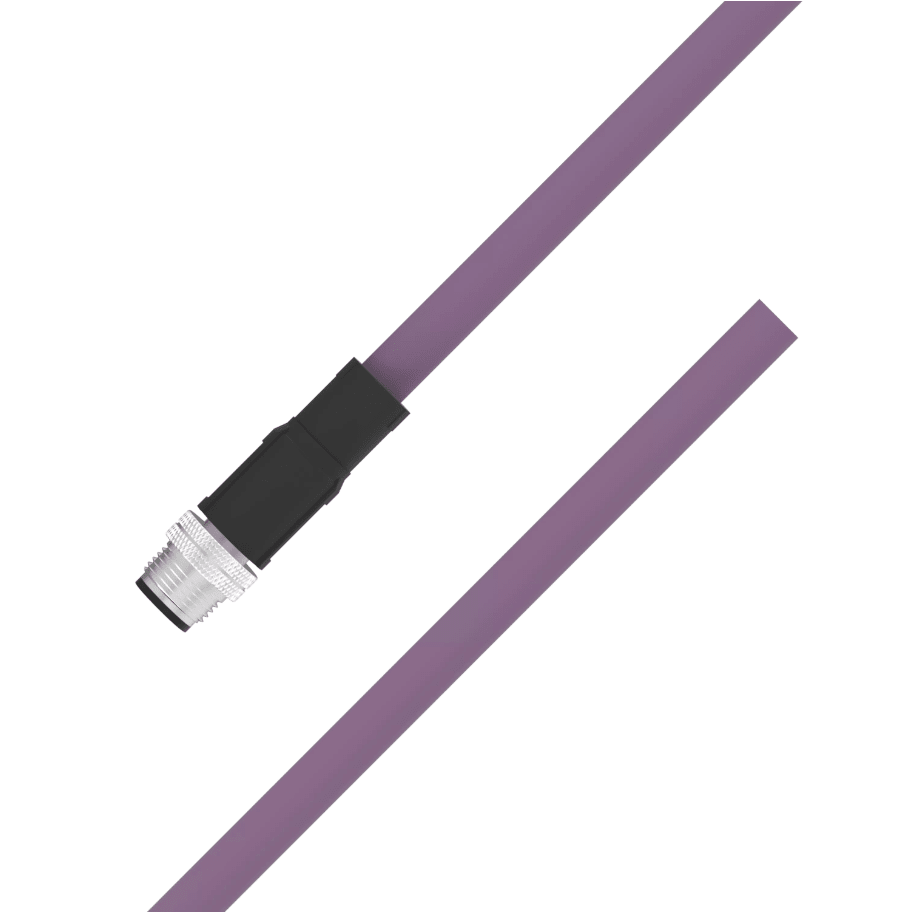

M12 B-Coded male straight connector
-
Open cable end for field termination
-
5-pin configuration
-
Shielded cable with full EMI protection
-
Rated up to 250V
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain suitability
-
Halogen-free construction
-
Compatible with Profibus, DeviceNet and CC-Link

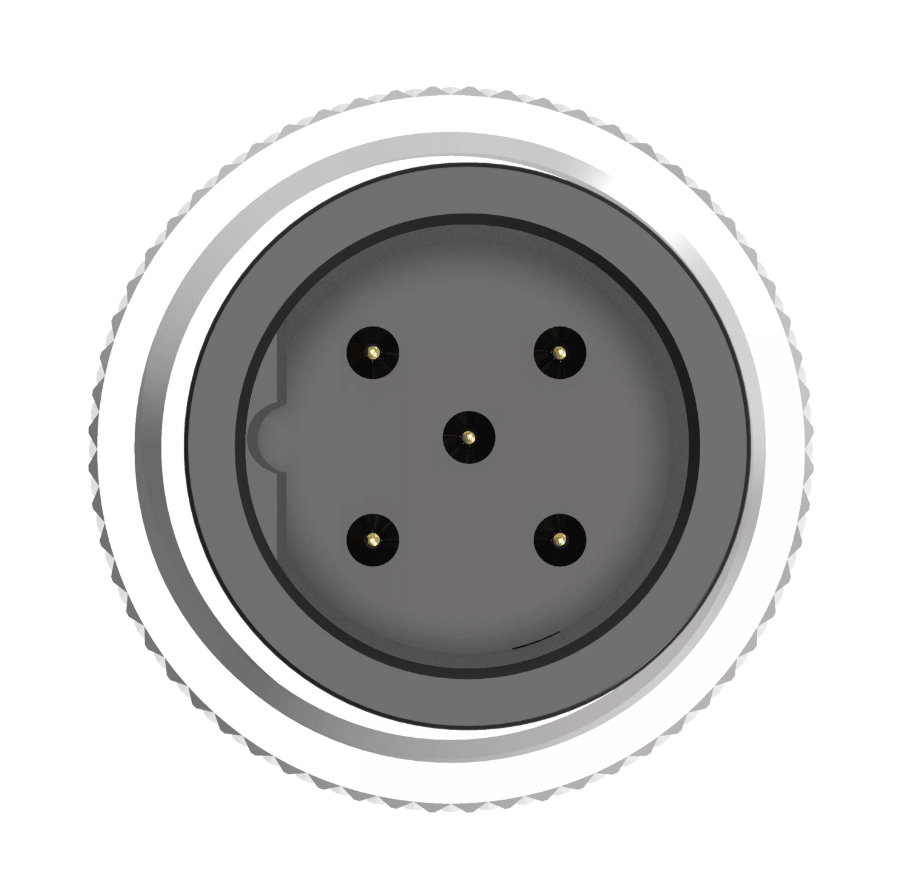

Connector Specifications
Connector A
Connection: M12 B-Coded
Gender: Male
Orientation: Straight
Poles: 5
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 5
Cable Specifications
Shield Type: Shielded
Conductor Structure: AWG23
Jacket Material: PUR
Cable Colour: Red lilac (RAL 4001)
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Rated Voltage: 250V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 10 mΩ
Insulation Resistance: Max. 10 mΩ
Typical Applications
-
Profibus networks
-
DeviceNet communication systems
-
CC-Link industrial communication
-
Industrial automation equipment
-
Robotics and material handling
-
Production and process control systems
