Industrial M12 B-Coded Female Fieldbus Cable for Profibus and DeviceNet

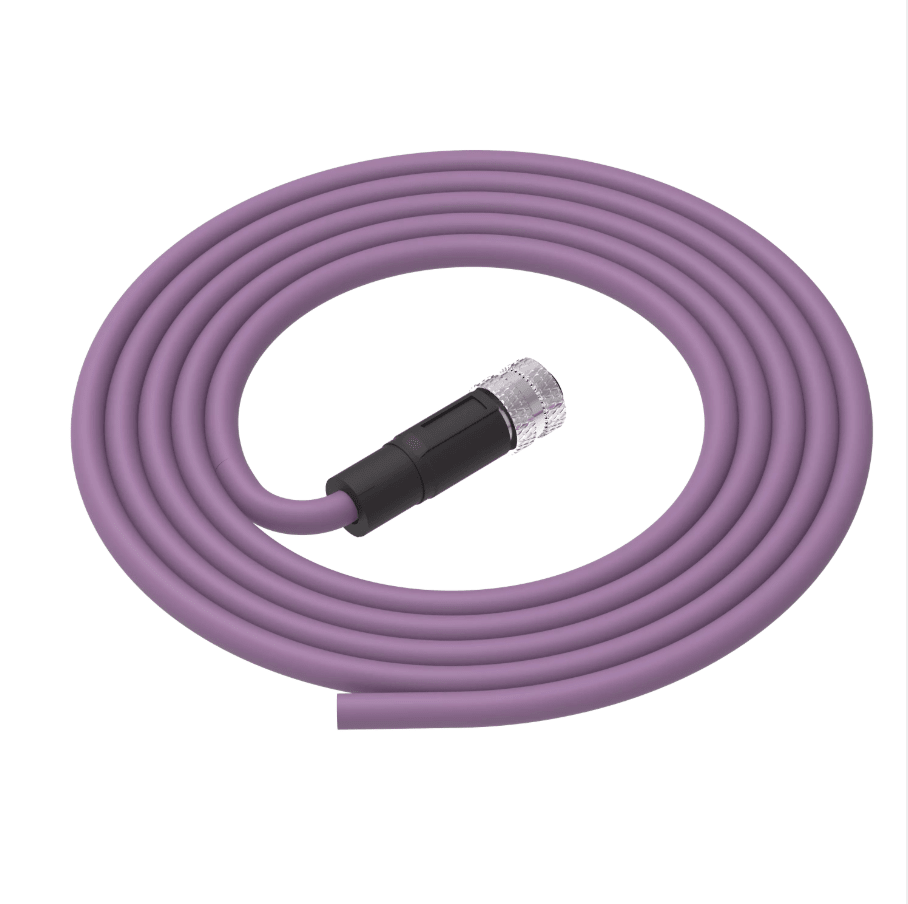

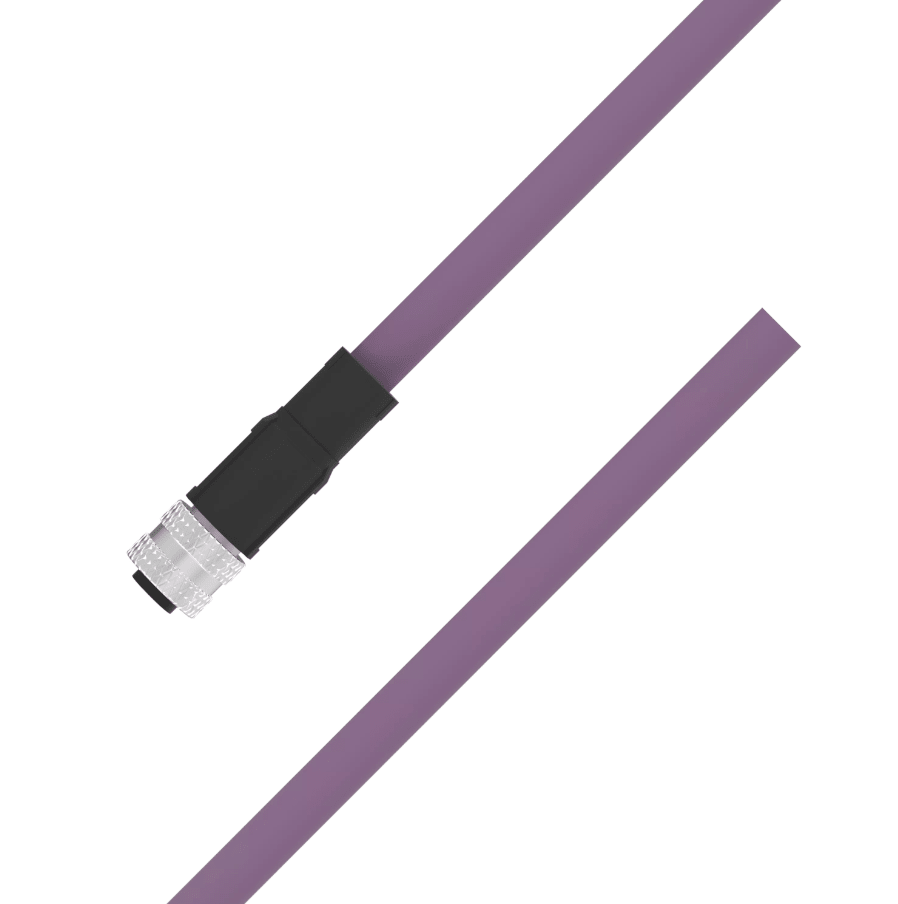

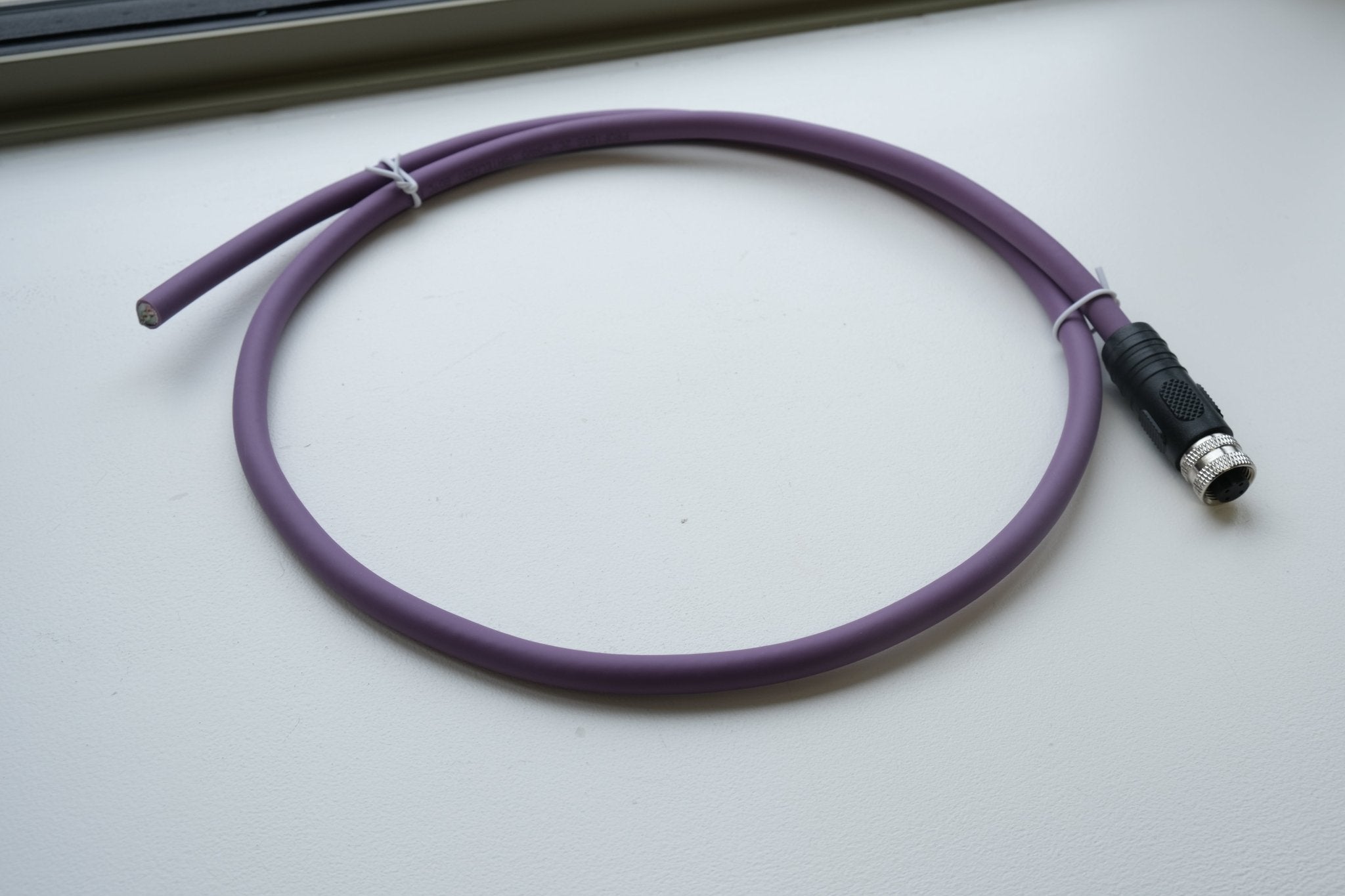

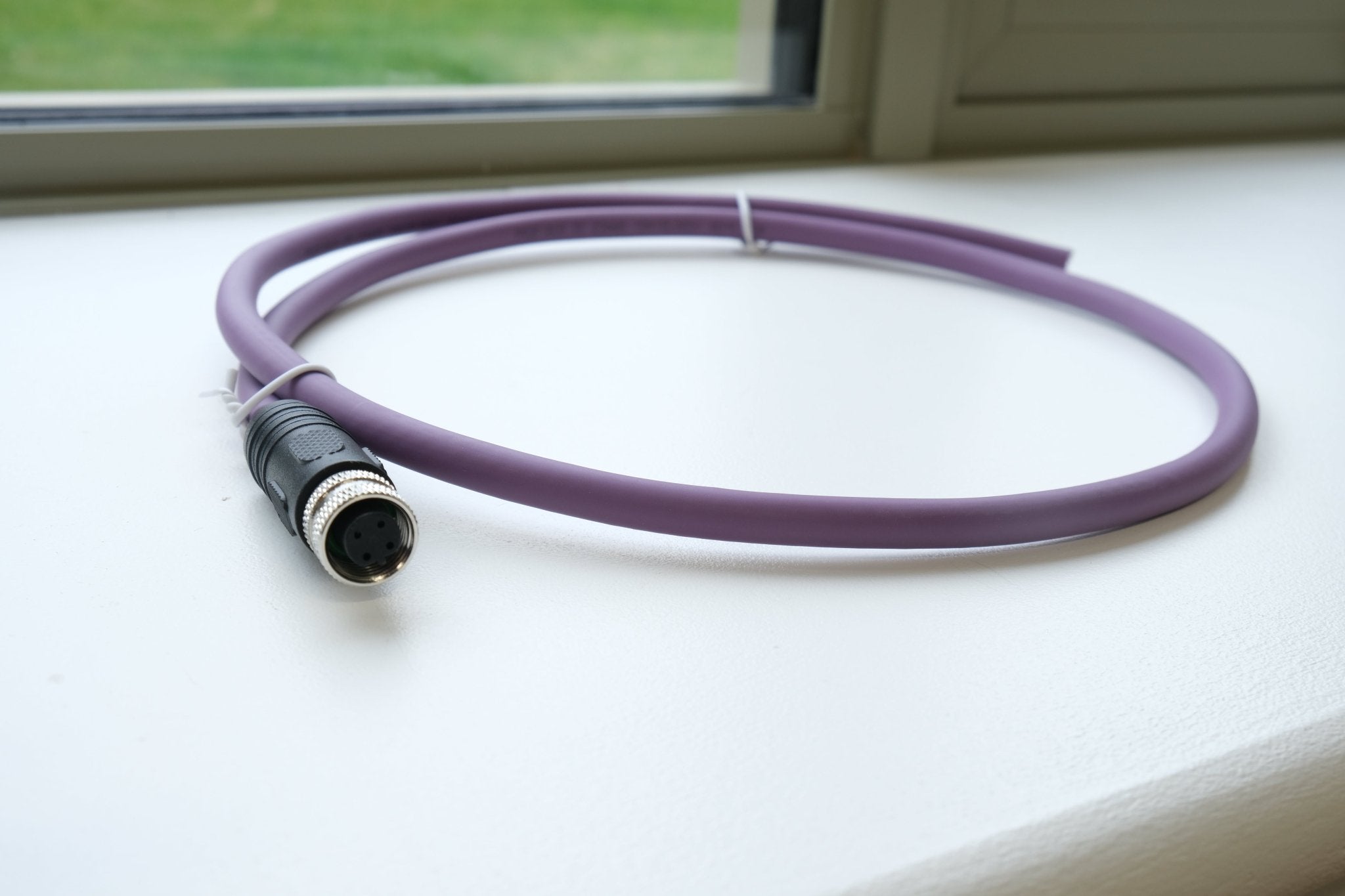

This M12 B-Coded female straight to open 4-position cable assembly is designed for industrial fieldbus and communication systems including Profibus, DeviceNet and CC-Link networks.
The straight M12 B-coded female connector enables secure and reliable integration with industrial sensors, controllers and communication devices. The open cable end allows flexible field termination into PLCs, control cabinets or custom harness assemblies.
Constructed with shielded AWG23 conductors and full 360° EMI protection, this cable ensures stable signal and data transmission in electrically demanding environments. The overmoulded M12 connector is IP67 rated for protection against dust and temporary immersion in water.
The halogen-free PUR outer jacket makes this cable suitable for drag chain and torsional stress applications, providing excellent resistance to oil, abrasion and mechanical wear in harsh industrial environments.
Key Features
-
M12 B-Coded female straight connector
-
Open cable end for flexible termination
-
4-pin configuration
-
Shielded cable with full EMI protection
-
Rated up to 250V
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain use
-
Halogen-free construction
-
Compatible with Profibus, DeviceNet and CC-Link

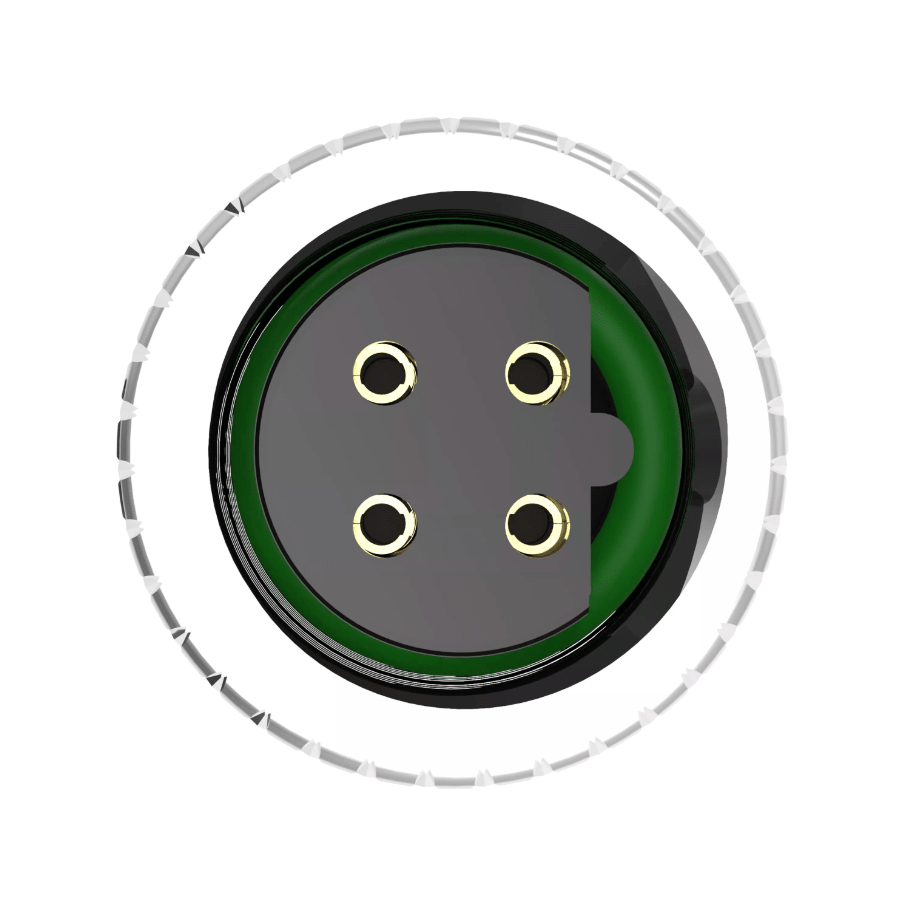

Connector Specifications
Connector A
Connection: M12 B-Coded
Gender: Female
Orientation: Straight
Poles: 4
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 4
Cable Specifications
Shield Type: Shielded
Conductor Structure: AWG23
Jacket Material: PUR
Cable Colour: Red lilac (RAL 4001)
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Rated Voltage: 250V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 10 mΩ
Insulation Resistance: Max. 10 mΩ
