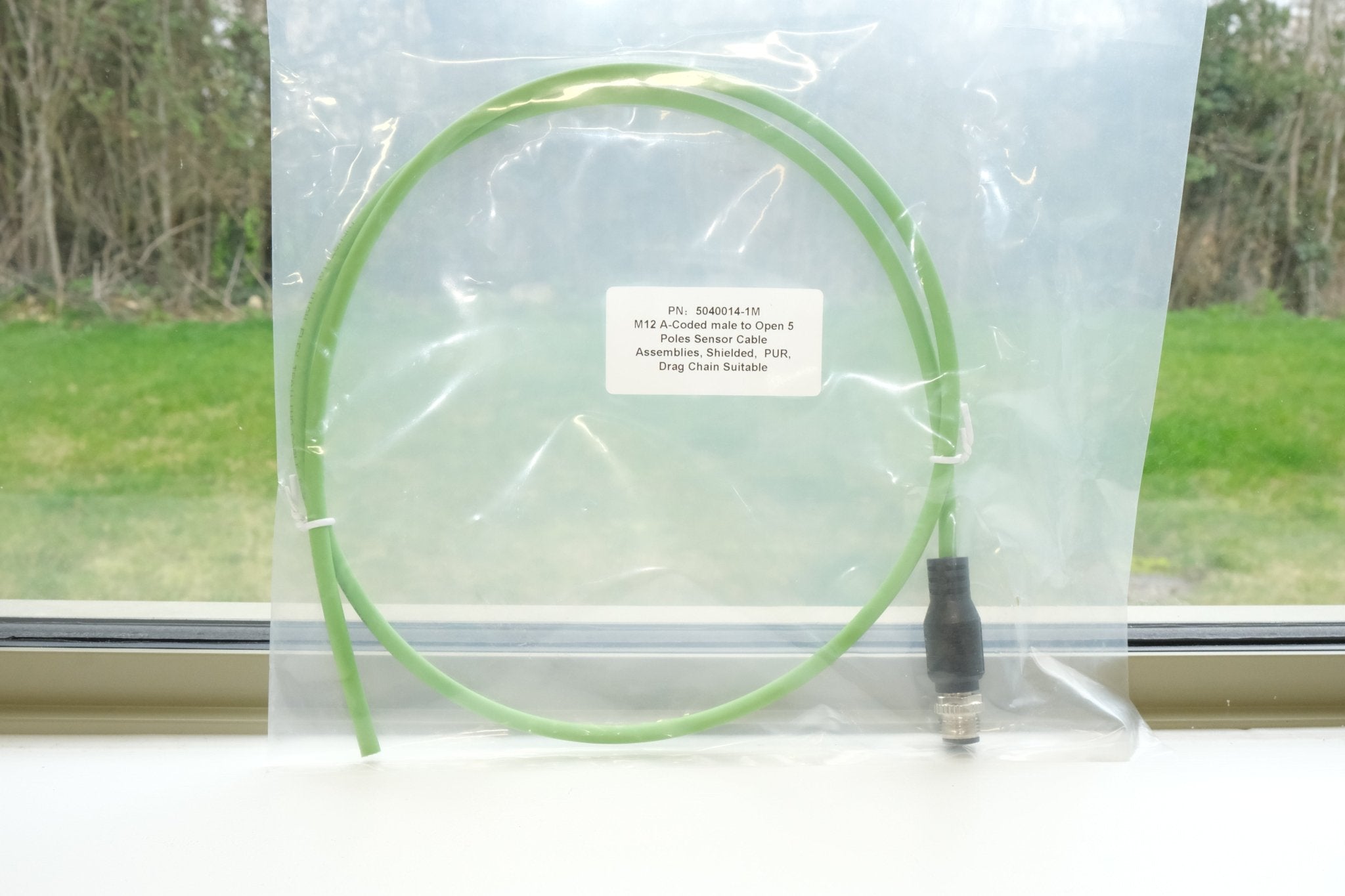

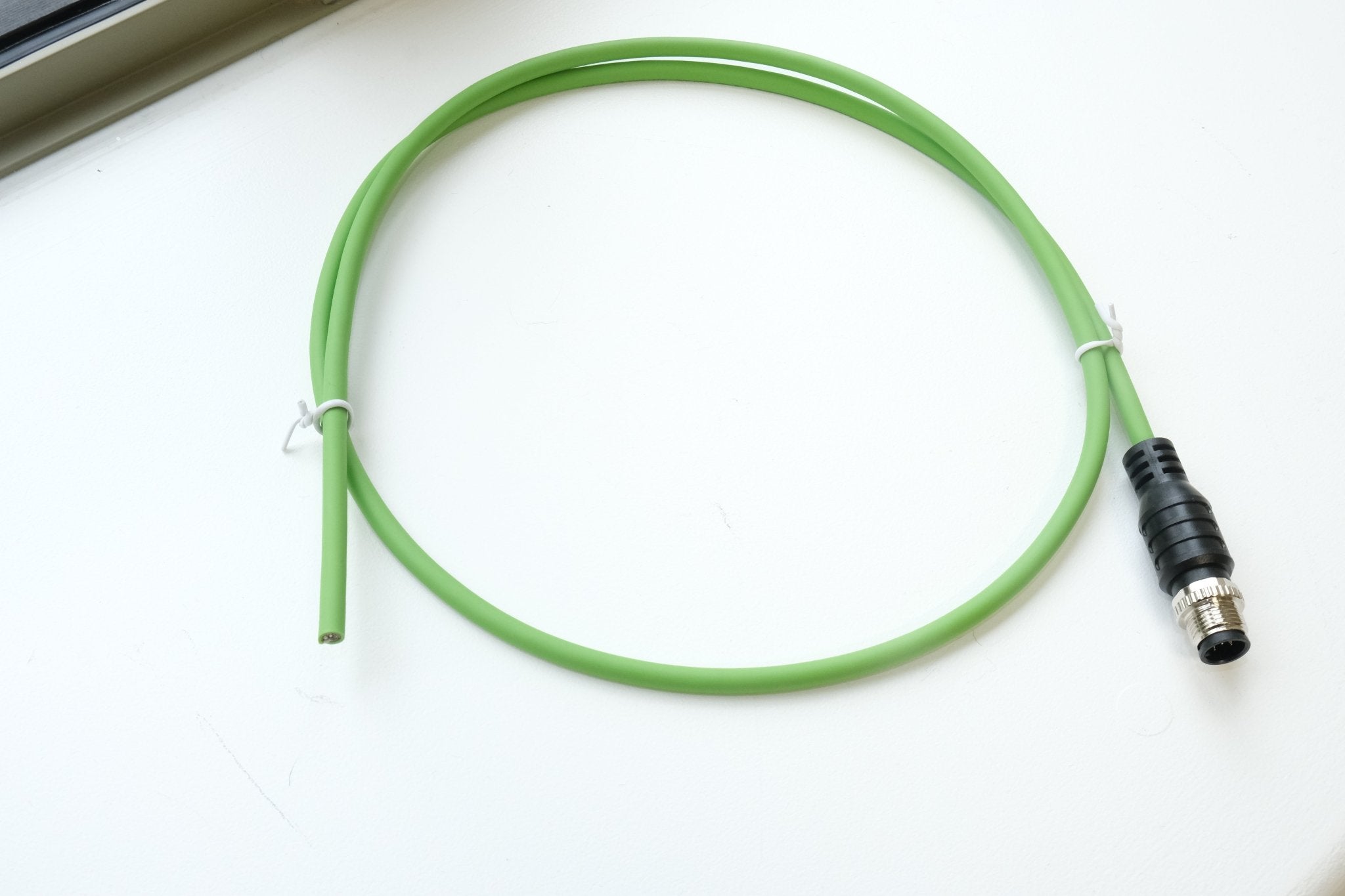

Industrial M12 A-Coded 5-Pin Sensor Cable for Automation Systems
This M12 A-Coded male to open 5-pole cable assembly is designed for industrial sensor and actuator applications requiring reliable signal transmission in demanding environments.

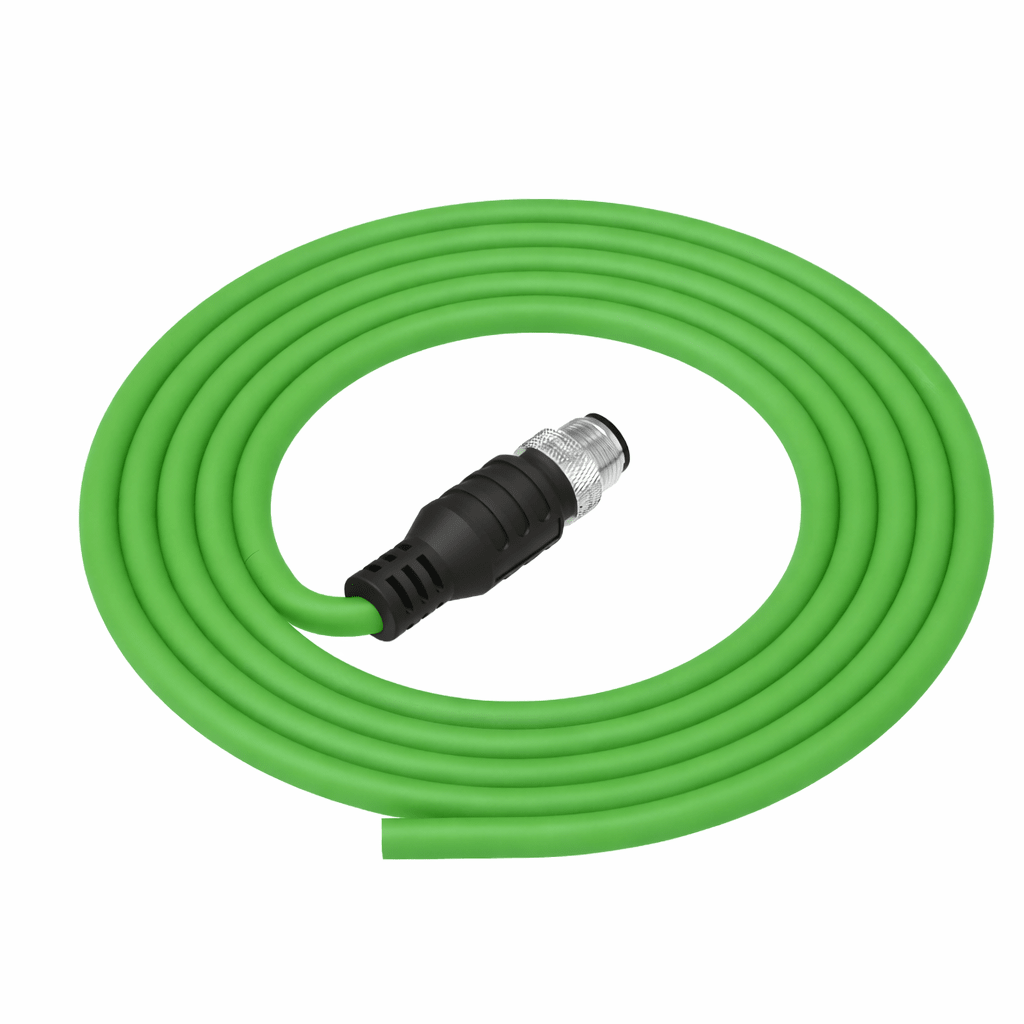

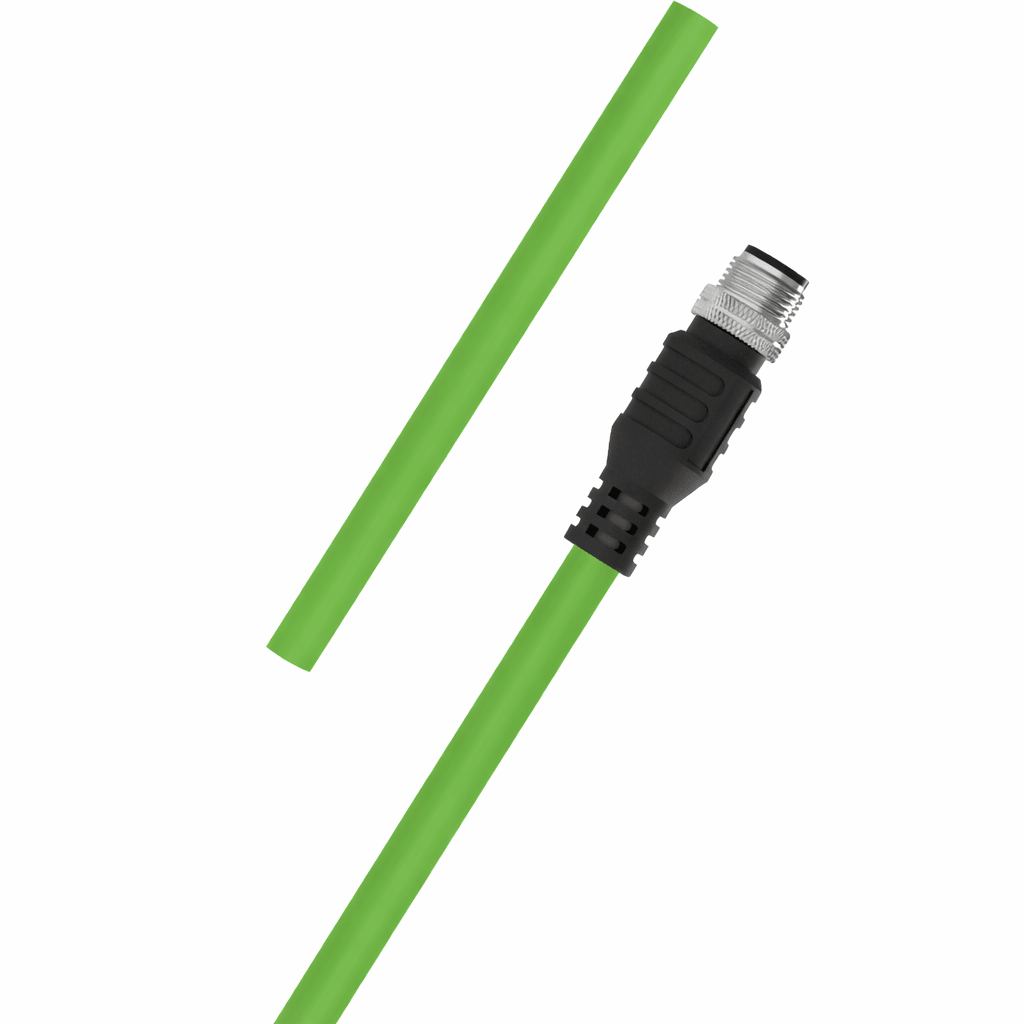

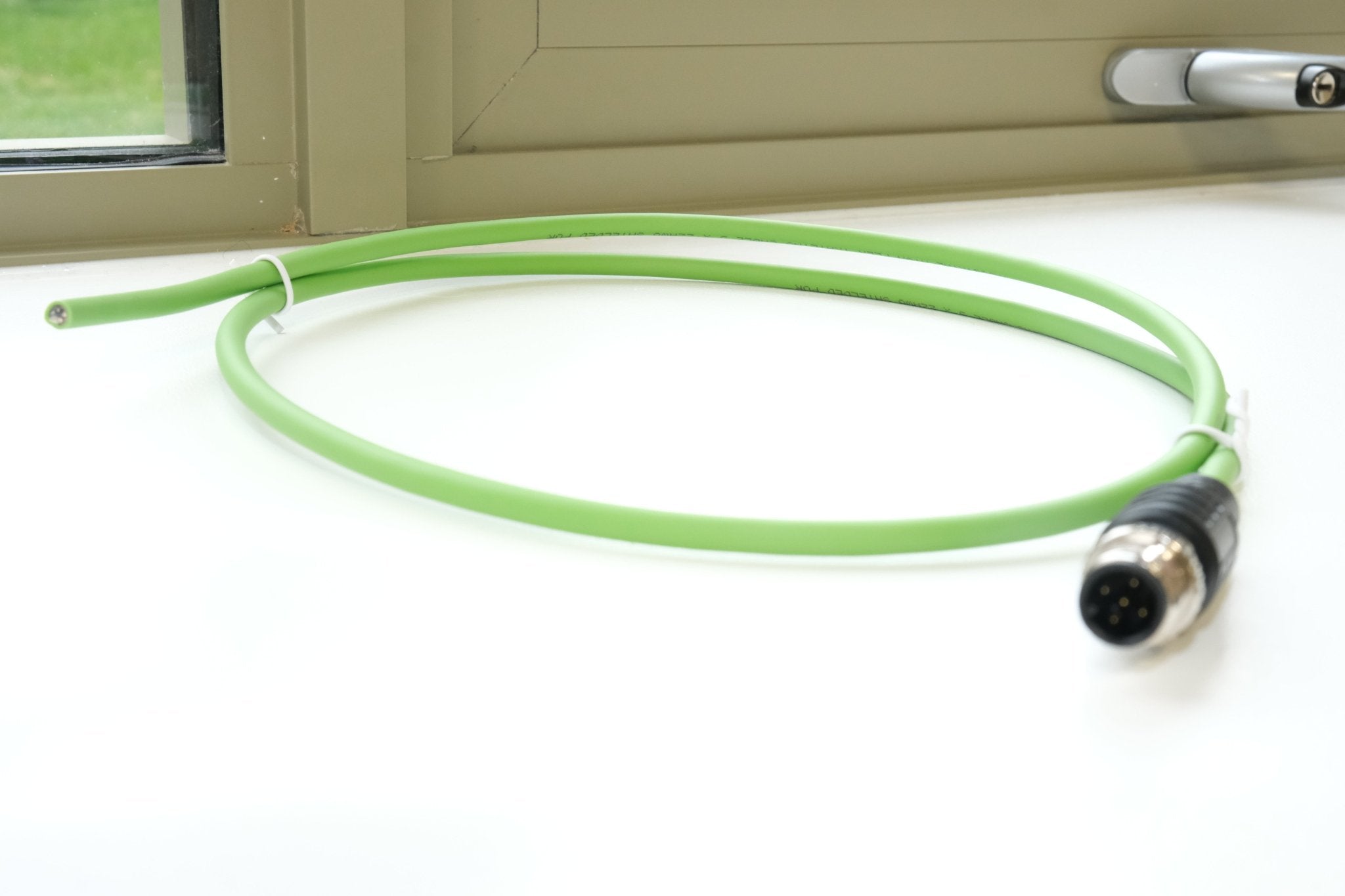

Featuring a straight M12 A-coded male connector and open cable end, this assembly enables flexible field termination into PLCs, control panels and custom wiring harnesses. The 5-pin configuration supports sensor, actuator and control signal applications across industrial automation systems.
Constructed with shielded AWG22 conductors and 360° EMI protection, this cable ensures stable signal integrity in electrically noisy industrial environments. The overmoulded M12 connector provides IP67 ingress protection against dust and temporary water immersion.
The halogen-free PUR jacket makes this cable suitable for drag chain and torsional stress applications, offering resistance to oil, abrasion and mechanical wear in continuous motion systems.
Key Features
-
M12 A-Coded male straight connector
-
Open cable end for flexible termination
-
5-pin sensor configuration
-
Shielded construction with EMI protection
-
Operating voltage up to 60V DC
-
Nominal voltage 300V
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain use
-
Suitable for industrial automation and control systems
Connector Specifications
Connector A

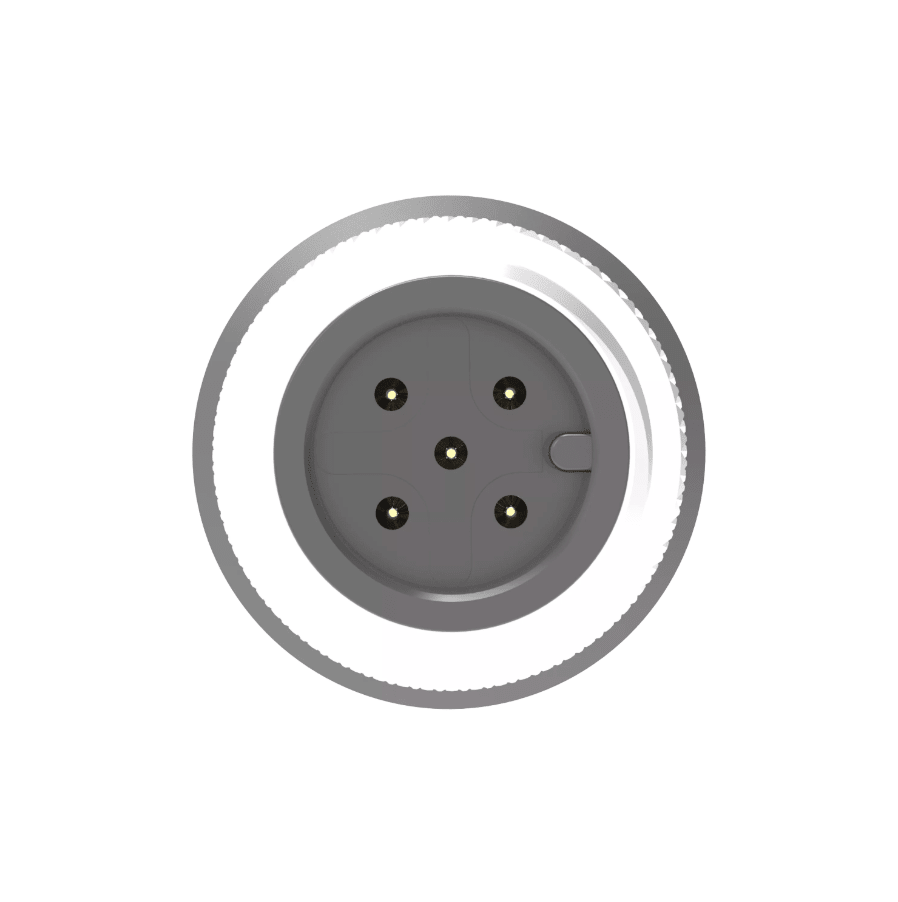

Connection: M12 A-Coded
Gender: Male
Orientation: Straight
Poles: 5
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 5
Cable Specifications
Shield Type: Shielded
Conductor Structure: AWG22
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 30 mΩ
Typical Applications
-
Industrial sensors and actuators
-
PLC I/O wiring
-
Robotics and automation systems
-
Machine tools and production equipment
-
Process control installations
-
Material handling systems
