Industrial M12 A-Coded 3-Pin Sensor Cable for Automation Applications
This M12 A-Coded male to open 3-pole cable assembly is designed for industrial sensor and actuator wiring where mechanical durability and installation flexibility are essential.

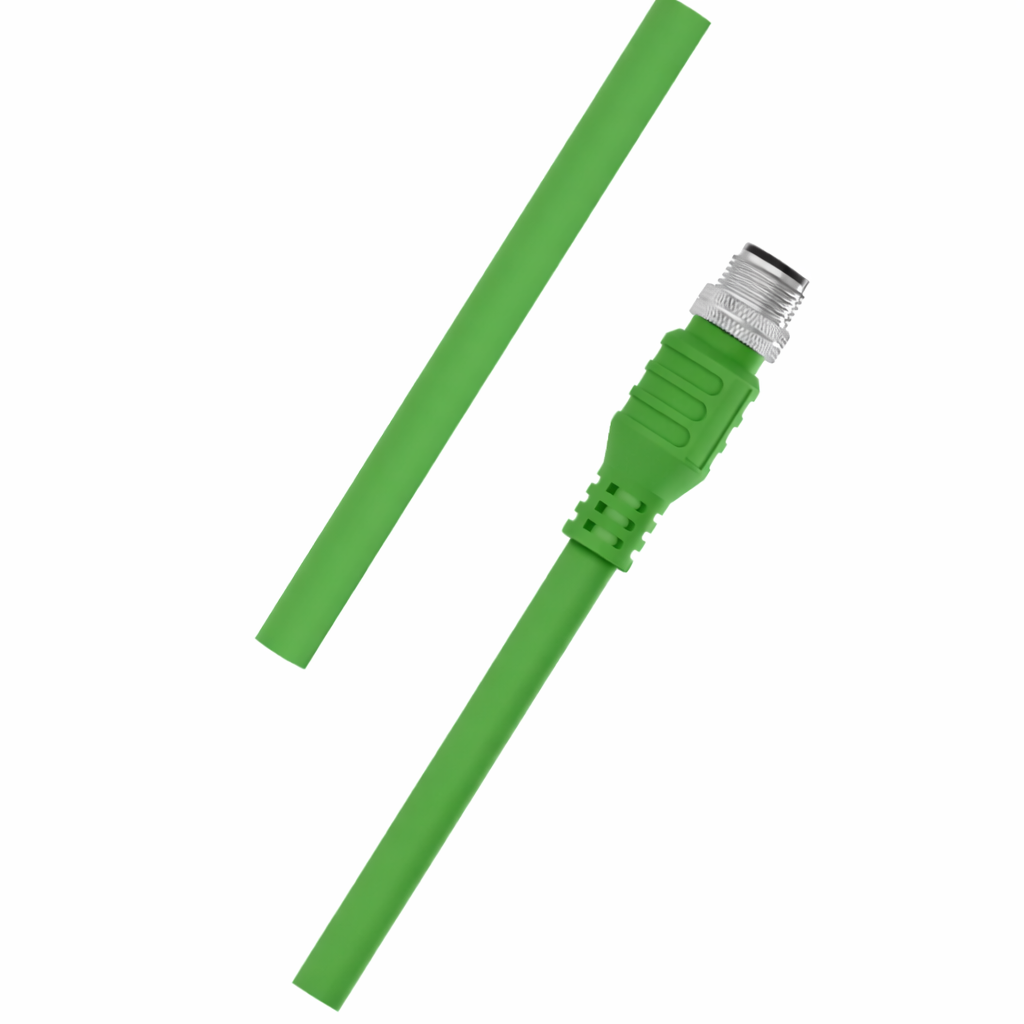

Featuring a straight M12 A-coded male connector and open cable end, this assembly allows easy integration into PLCs, control panels and machine wiring systems. The 3-pin configuration is widely used for standard sensor and actuator connections in automation environments.

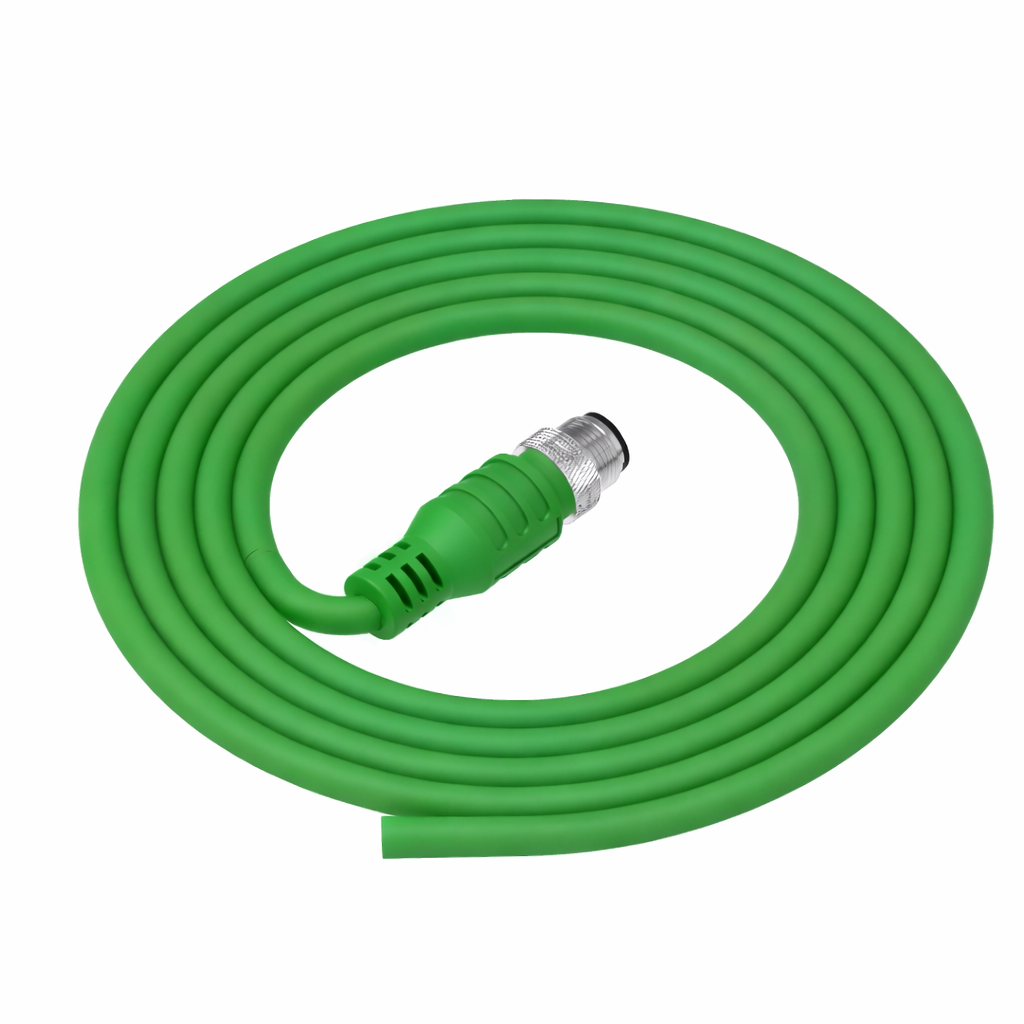

The overmoulded M12 connector is IP67 rated, providing protection against dust and temporary water immersion. The halogen-free PUR jacket makes the cable suitable for drag chain and torsional stress applications, offering resistance to oil, abrasion and continuous flexing in demanding industrial conditions.
This unshielded version is ideal for standard signal installations where EMI protection is not critical.
Key Features
-

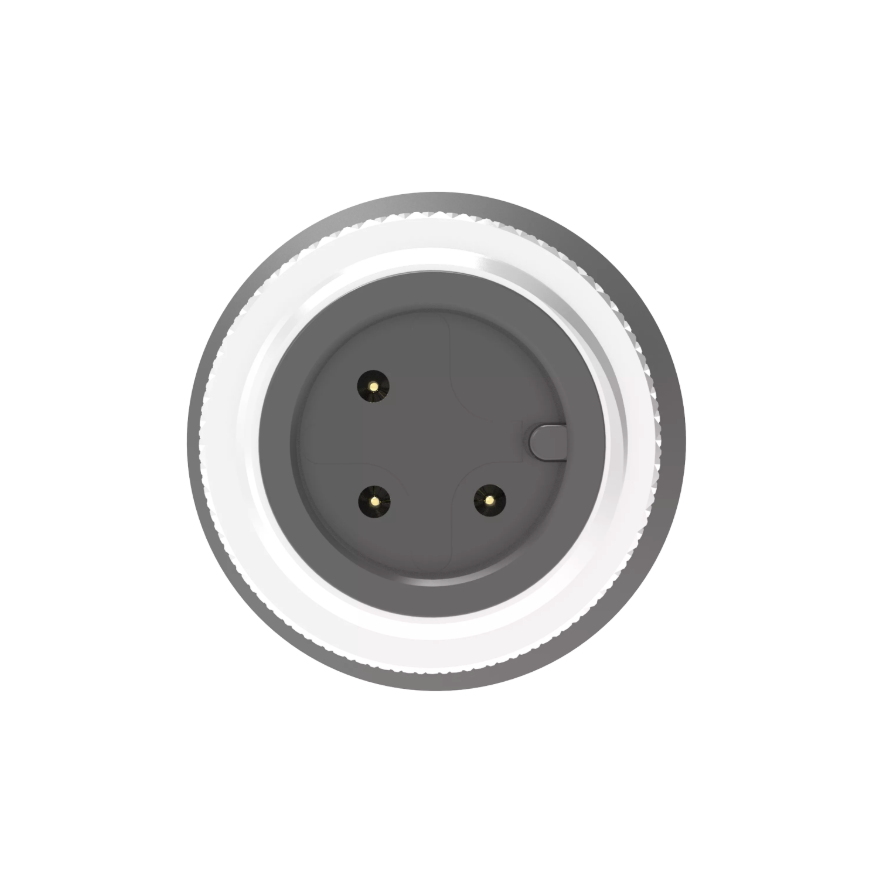

M12 A-Coded male straight connector
-
Open cable end for field termination
-
3-pin configuration
-
Unshielded cable construction
-
Operating voltage up to 60V DC
-
Nominal voltage 300V
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain suitability
-
Designed for industrial automation and control systems
Connector Specifications
Connector A
Connection: M12 A-Coded
Gender: Male
Orientation: Straight
Poles: 3
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 3
Cable Specifications
Shield Type: Unshielded
Conductor Structure: AWG22 (typical for series)
Jacket Material: PUR
Cable Colour: Black
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
