ndustrial M12 A-Coded 3-Pin Shielded Sensor Cable for Automation Systems
This M12 A-Coded male to open 3-pole cable assembly is designed for industrial sensor and actuator applications requiring enhanced EMI protection and reliable signal transmission.

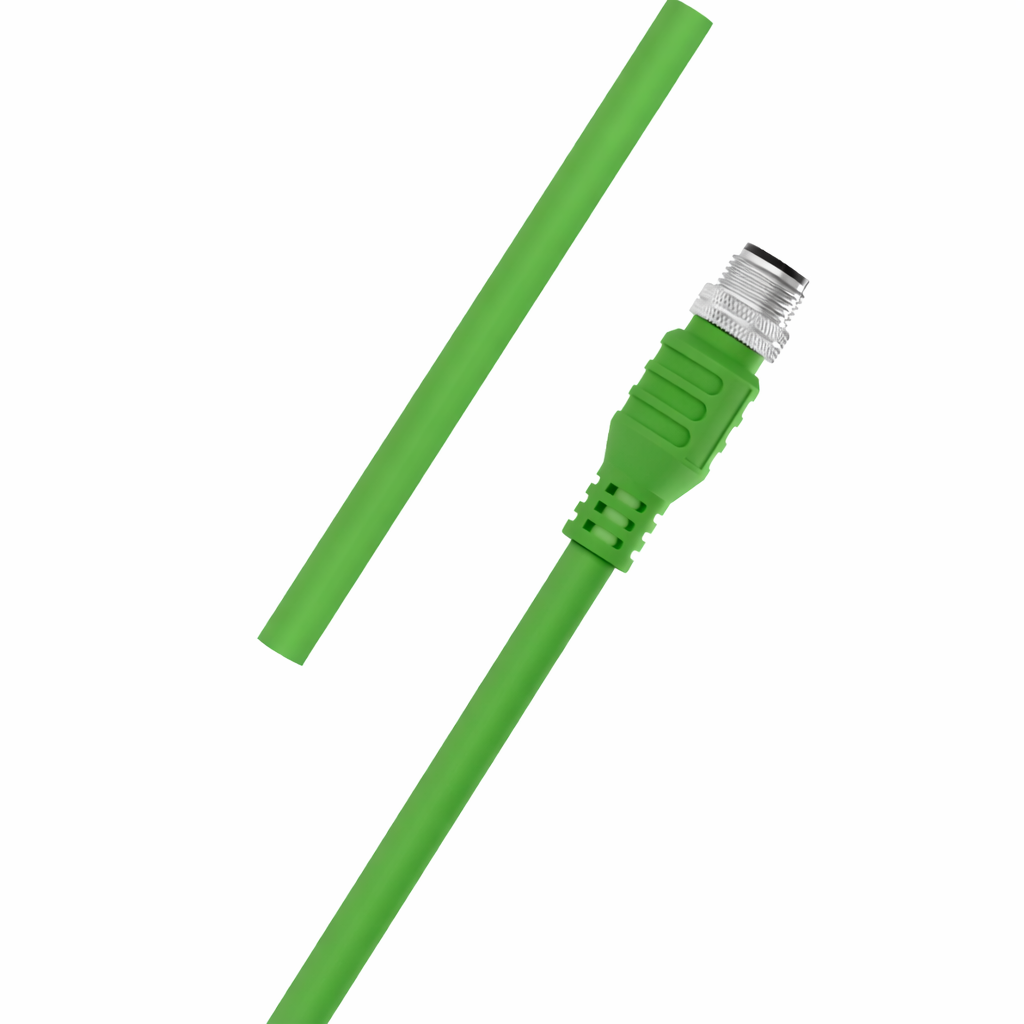

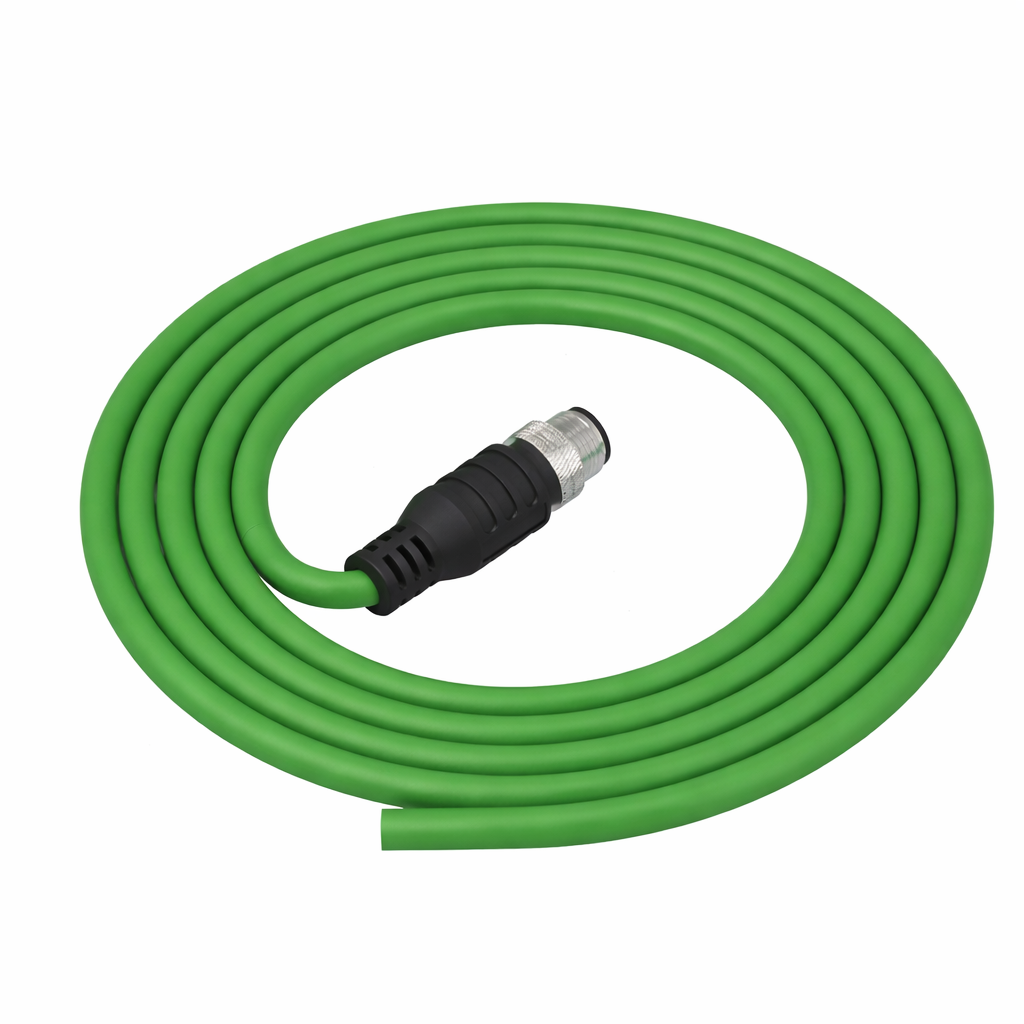

Featuring a straight M12 A-coded male connector and open cable end, this assembly enables flexible field termination into PLCs, control cabinets and machine wiring systems. The 3-pin configuration is widely used for standard sensor and actuator connections across industrial automation environments.
Constructed with shielded conductors and 360° EMI protection, this cable ensures stable signal integrity in electrically noisy installations. The overmoulded M12 connector is IP67 rated for protection against dust and temporary water immersion.
The halogen-free PUR jacket makes this cable suitable for drag chain and torsional stress applications, providing resistance to oil, abrasion and continuous flexing in demanding industrial environments.
Key Features
-
M12 A-Coded male straight connector
-
Open cable end for field termination
-
3-pin configuration
-
Shielded construction with EMI protection
-
Operating voltage up to 60V DC
-
Nominal voltage 300V
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain use
-
Designed for industrial automation and control systems
Connector Specifications
Connector A
Connection: M12 A-Coded
Gender: Male
Orientation: Straight
Poles: 3
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 3
Cable Specifications
Shield Type: Shielded
Conductor Structure: AWG22 (typical for series)
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 30 mΩ
