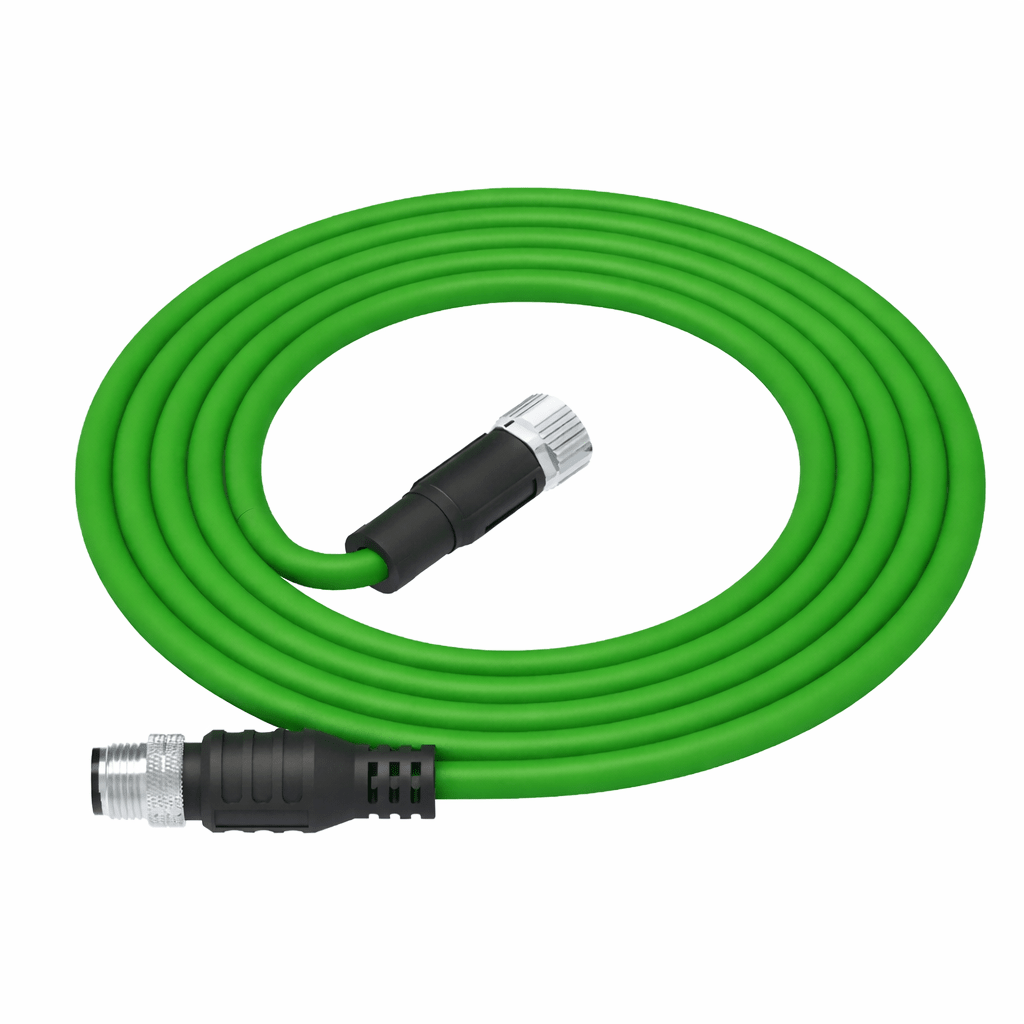

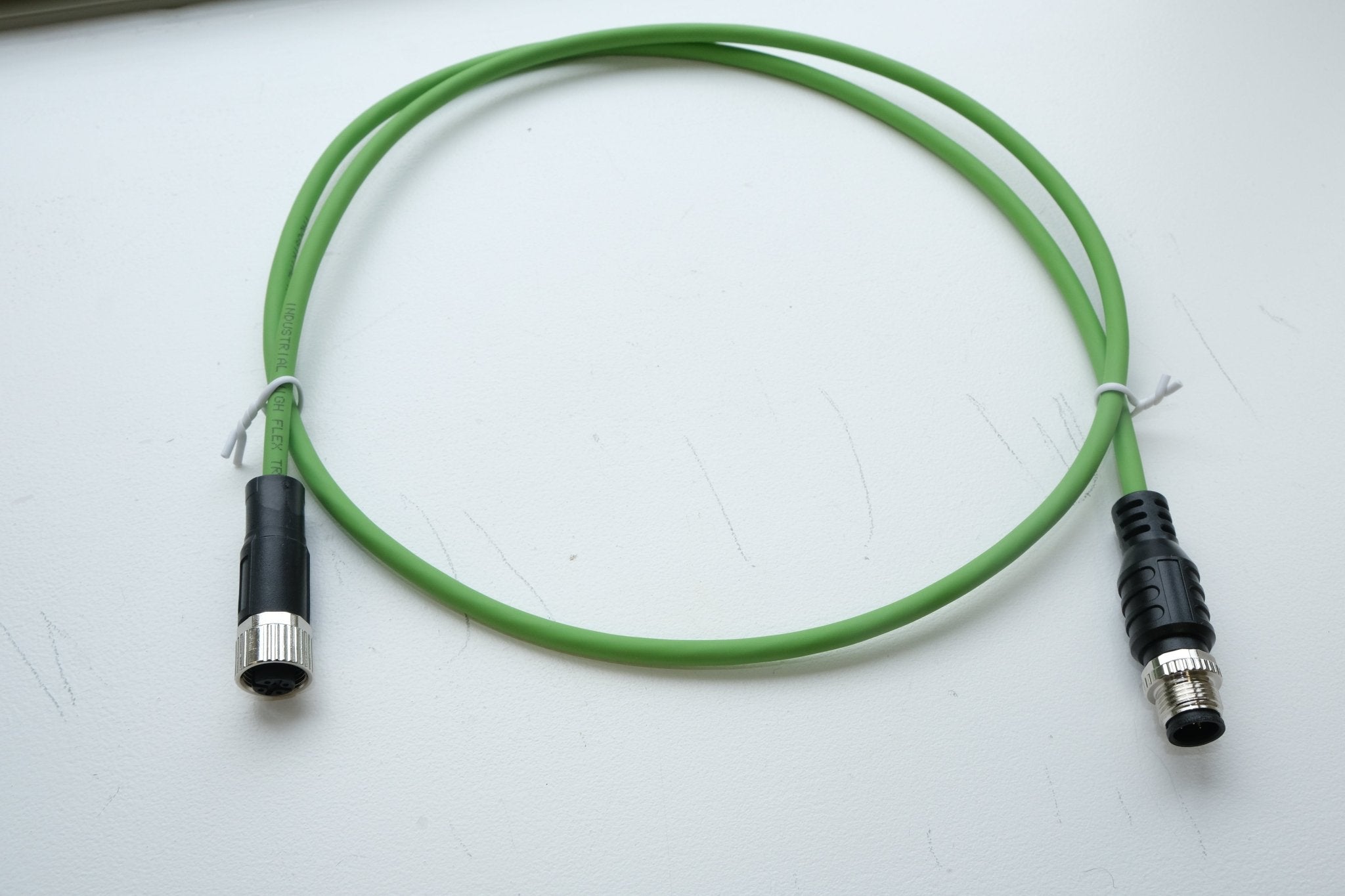

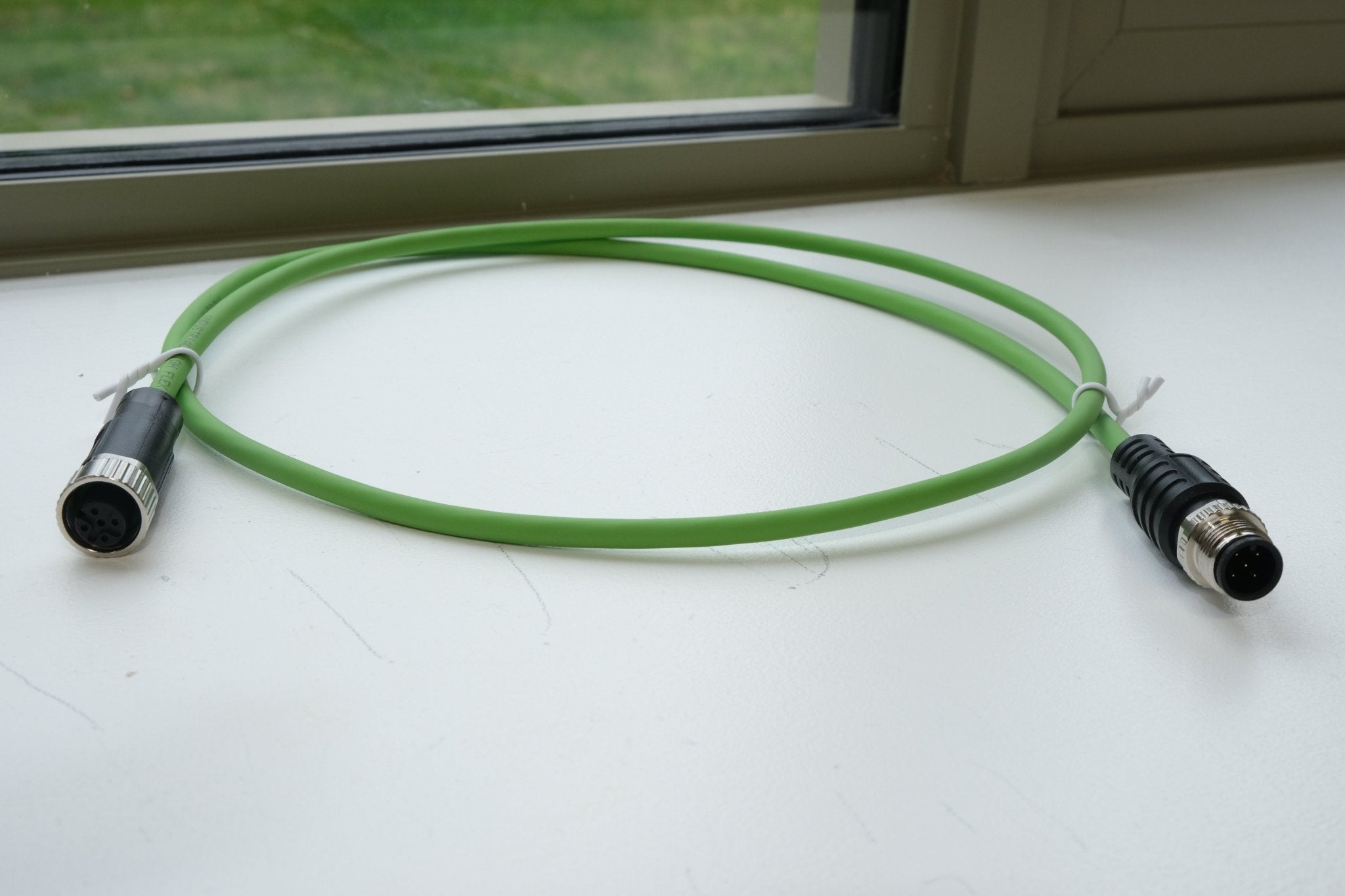

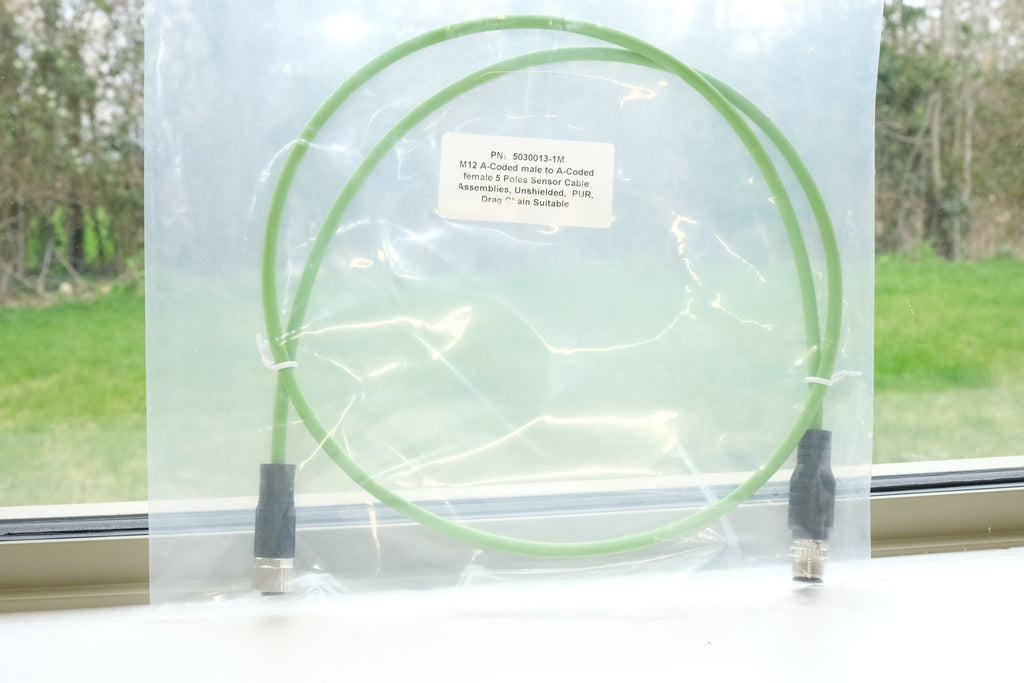

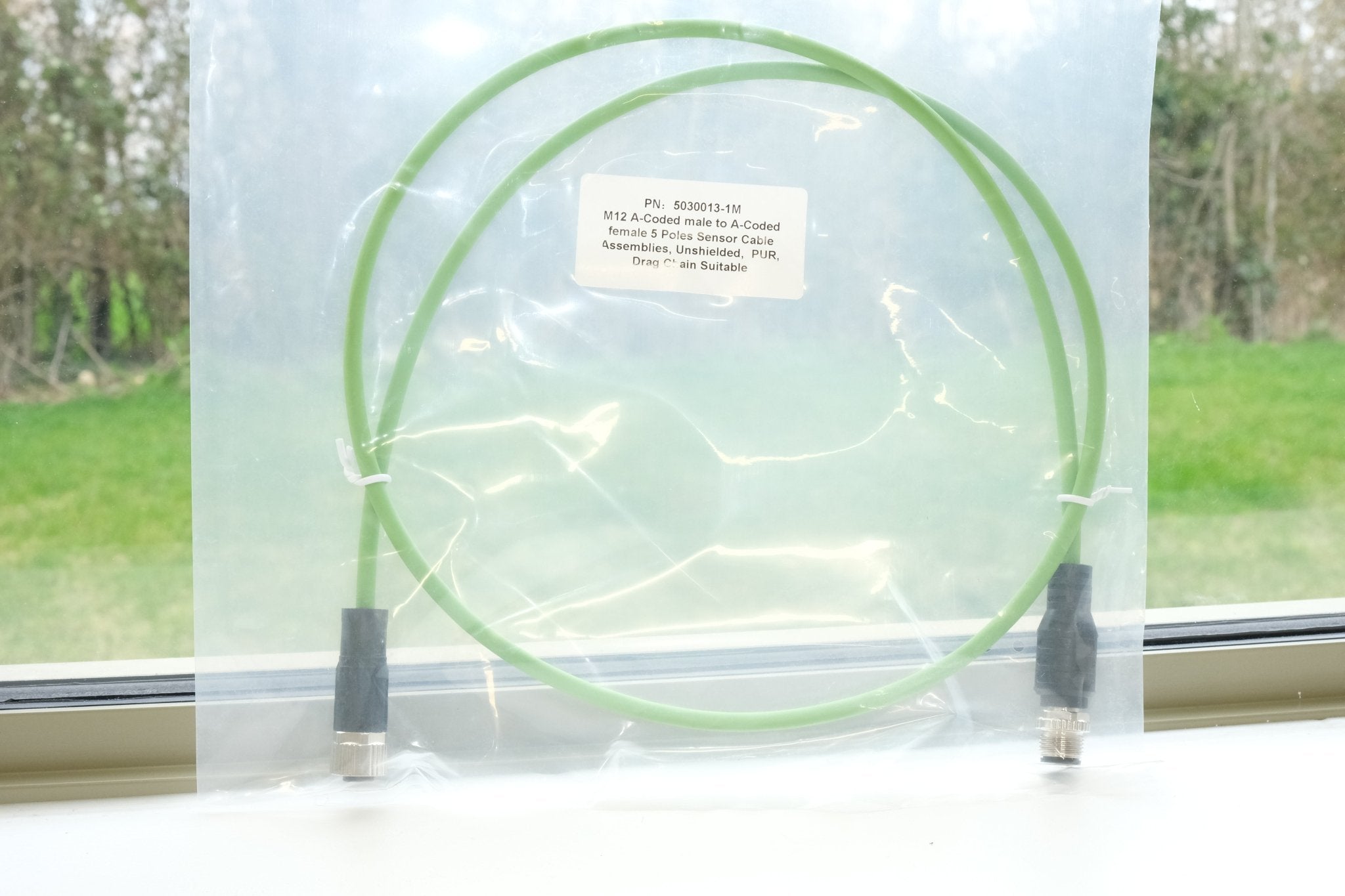

Industrial M12 A-Coded 5-Pin Sensor Extension Cable for Automation Systems
This M12 A-Coded male to female 5-pole cable assembly is designed for industrial sensor and actuator connections where flexibility, durability and secure connectivity are essential.

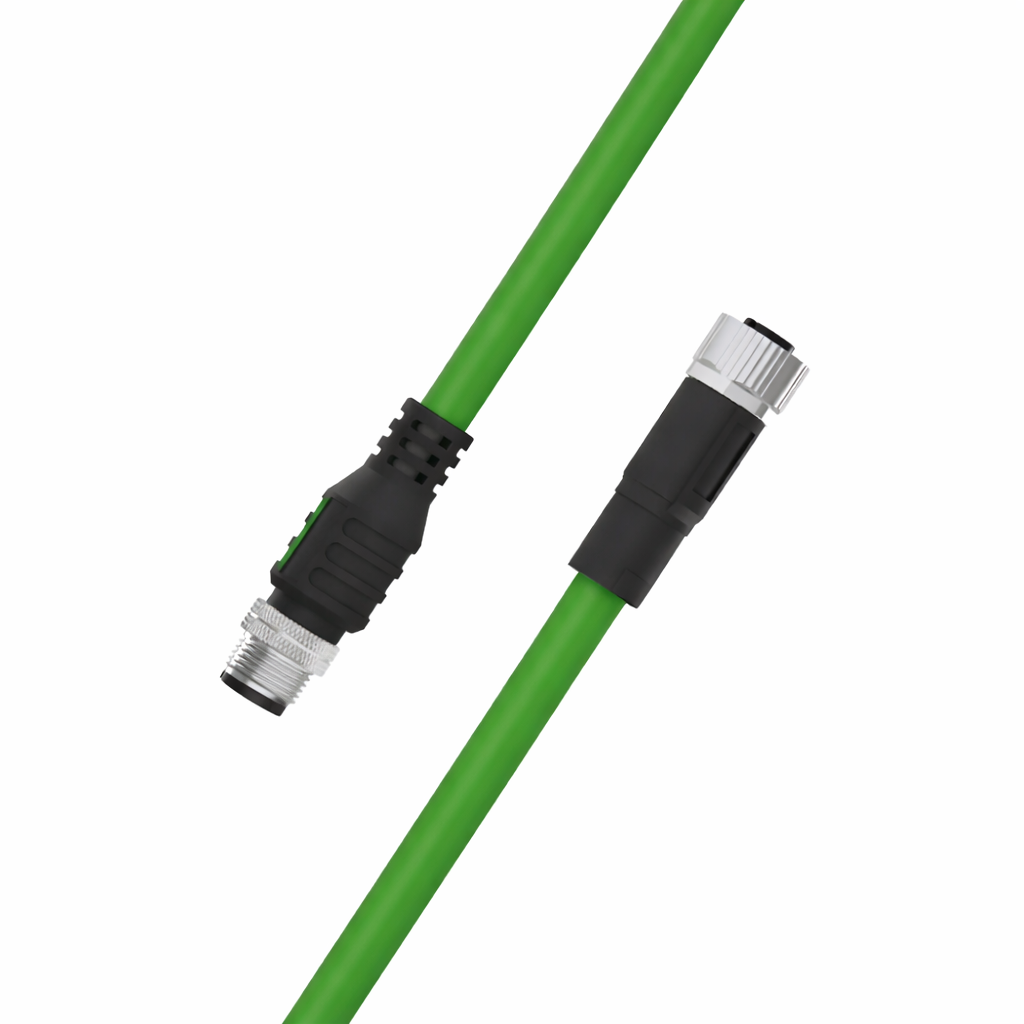

Featuring straight M12 A-coded male and female connectors, this fully assembled cable provides reliable plug-and-play extension between sensors, actuators and control equipment. The 5-pin configuration supports sensor power, signal and auxiliary functions commonly used in industrial automation environments.
Both connectors are overmoulded and IP67 rated, providing protection against dust and temporary water immersion. The halogen-free PUR outer jacket makes this cable suitable for drag chain and torsional stress applications, offering resistance to oil, abrasion and continuous flexing in demanding industrial conditions.
This unshielded version is ideal for standard installations where EMI protection is not required.
Key Features
-
M12 A-Coded male to female straight connectors
-
5-pin configuration
-
Unshielded construction
-
Operating voltage up to 60V DC
-
Nominal voltage 300V
-
Maximum 4A per contact
-
IP67 rated connectors
-
PUR jacket for drag chain applications
-
Suitable for industrial automation systems

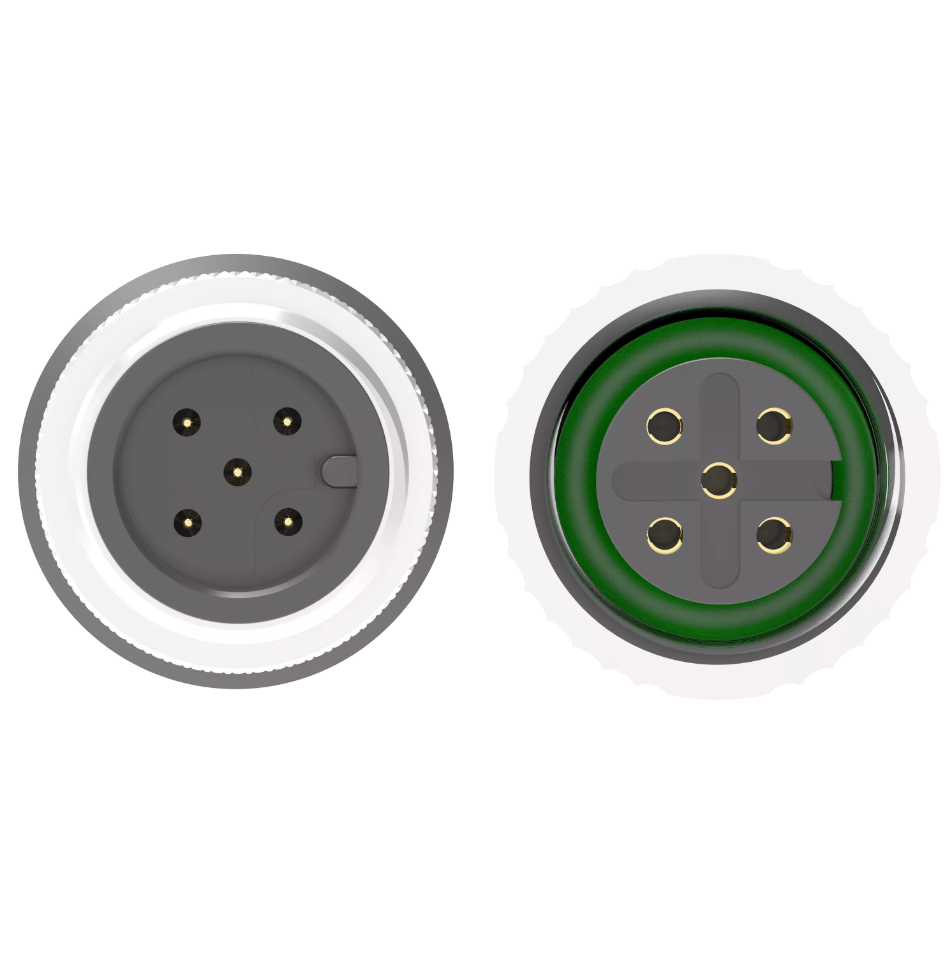

Connector Specifications
Connector A
Connection: M12 A-Coded
Gender: Male
Orientation: Straight
Poles: 5
Ingress Protection: IP67
Connector B
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 5
Ingress Protection: IP67
Cable Specifications
Shield Type: Unshielded
Conductor Structure: AWG22 (series typical)
Jacket Material: PUR
Cable Colour: Black
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Typical Applications
-
Industrial sensors and actuators
-
PLC I/O connections
-
Robotics and automation systems
-
Machine tools
-
Production equipment
-
Material handling systems
