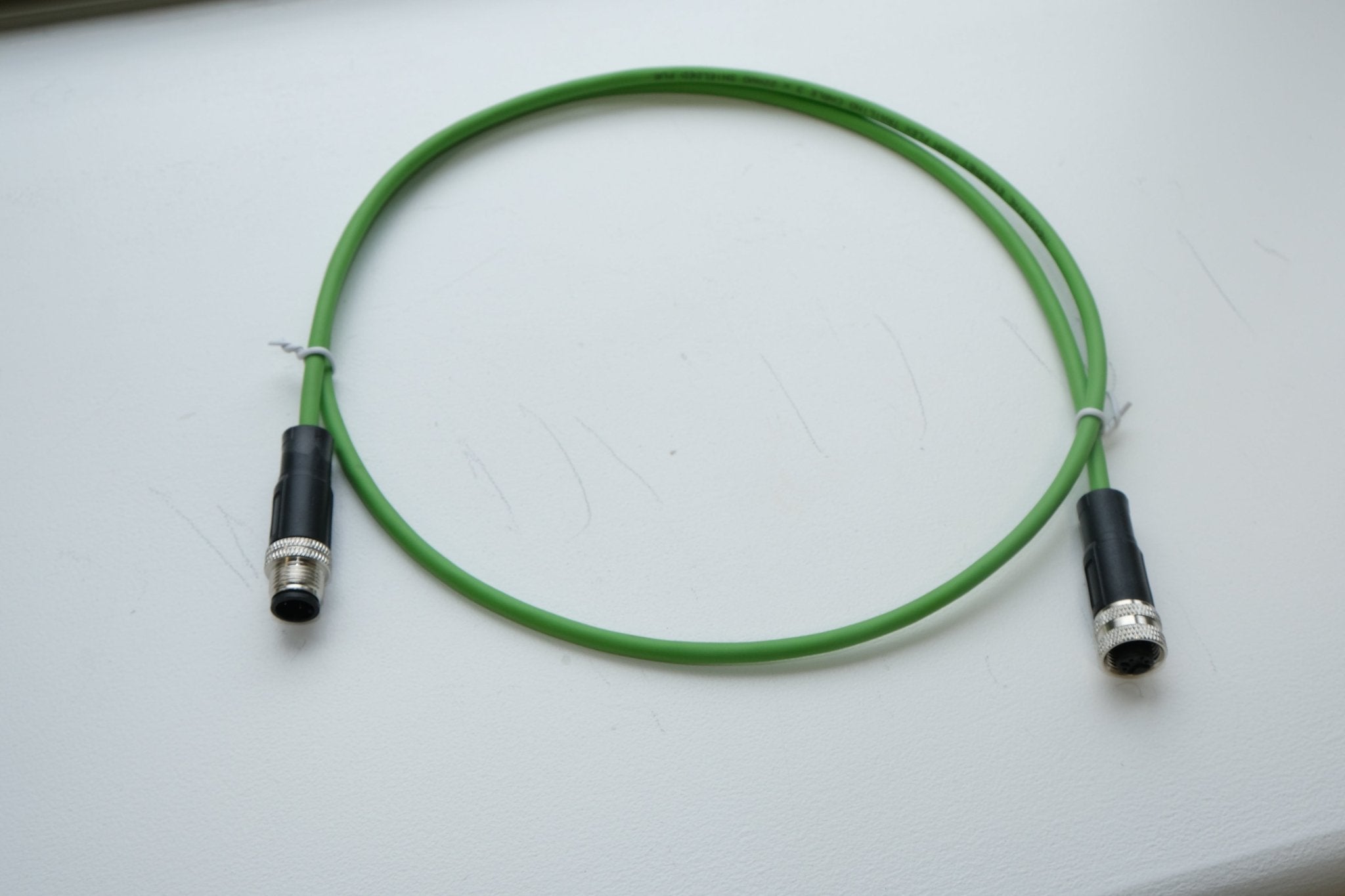

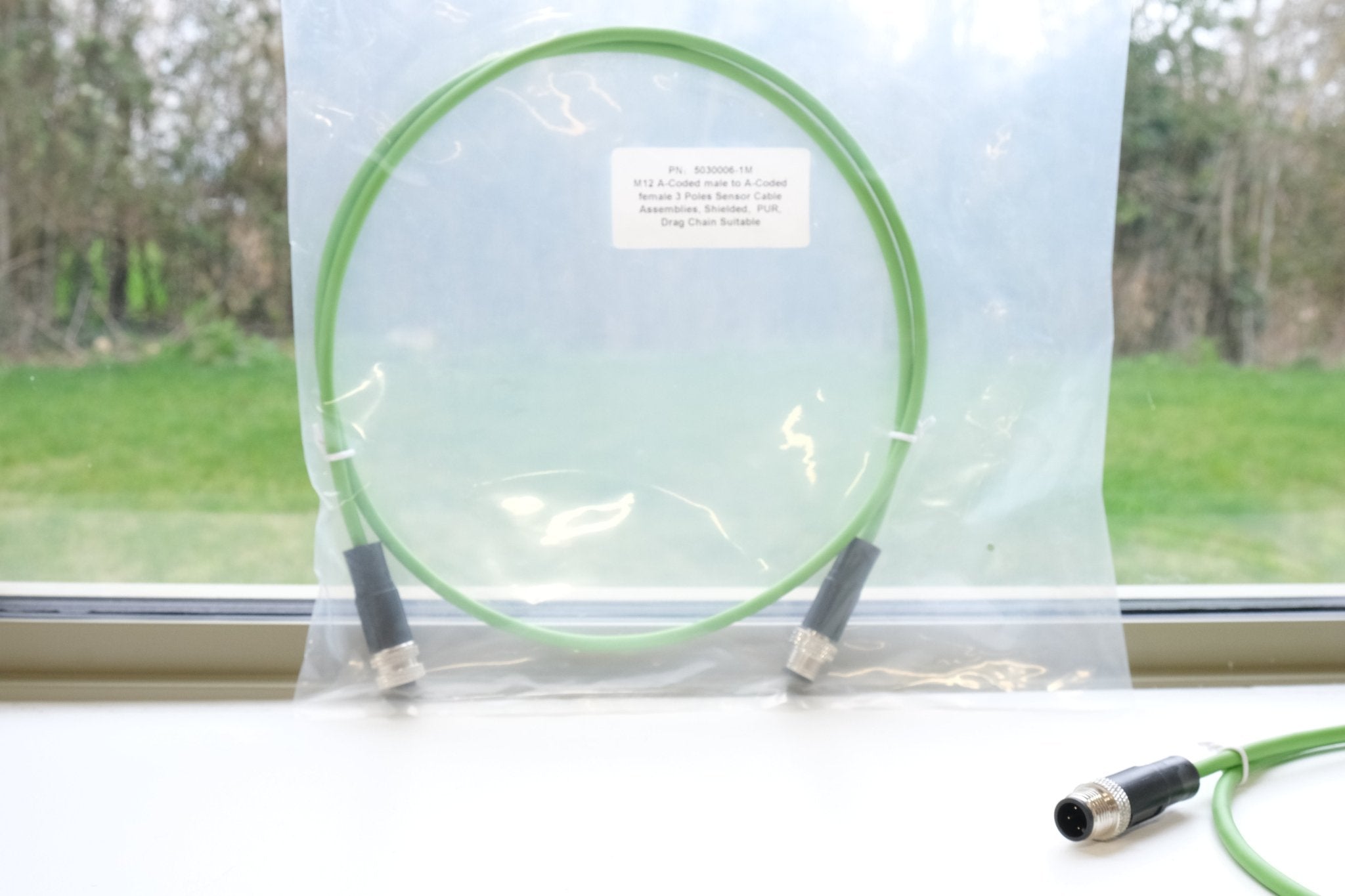

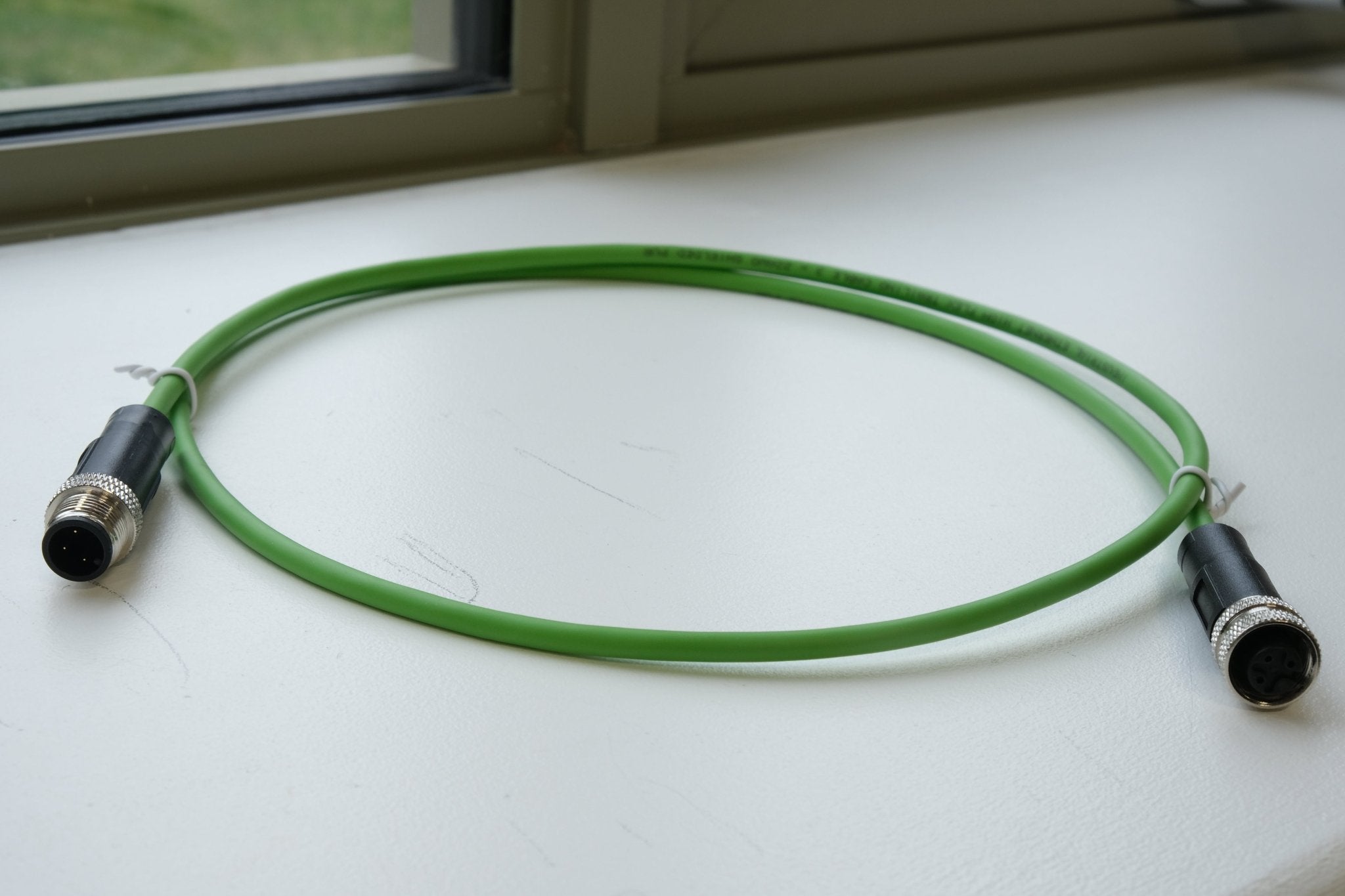

Industrial M12 A-Coded 3-Pin Shielded Sensor Cable for Automation Systems
This M12 A-Coded male to female 3-pole cable assembly is designed for industrial sensor and actuator applications requiring reliable signal transmission and EMI protection in demanding environments.

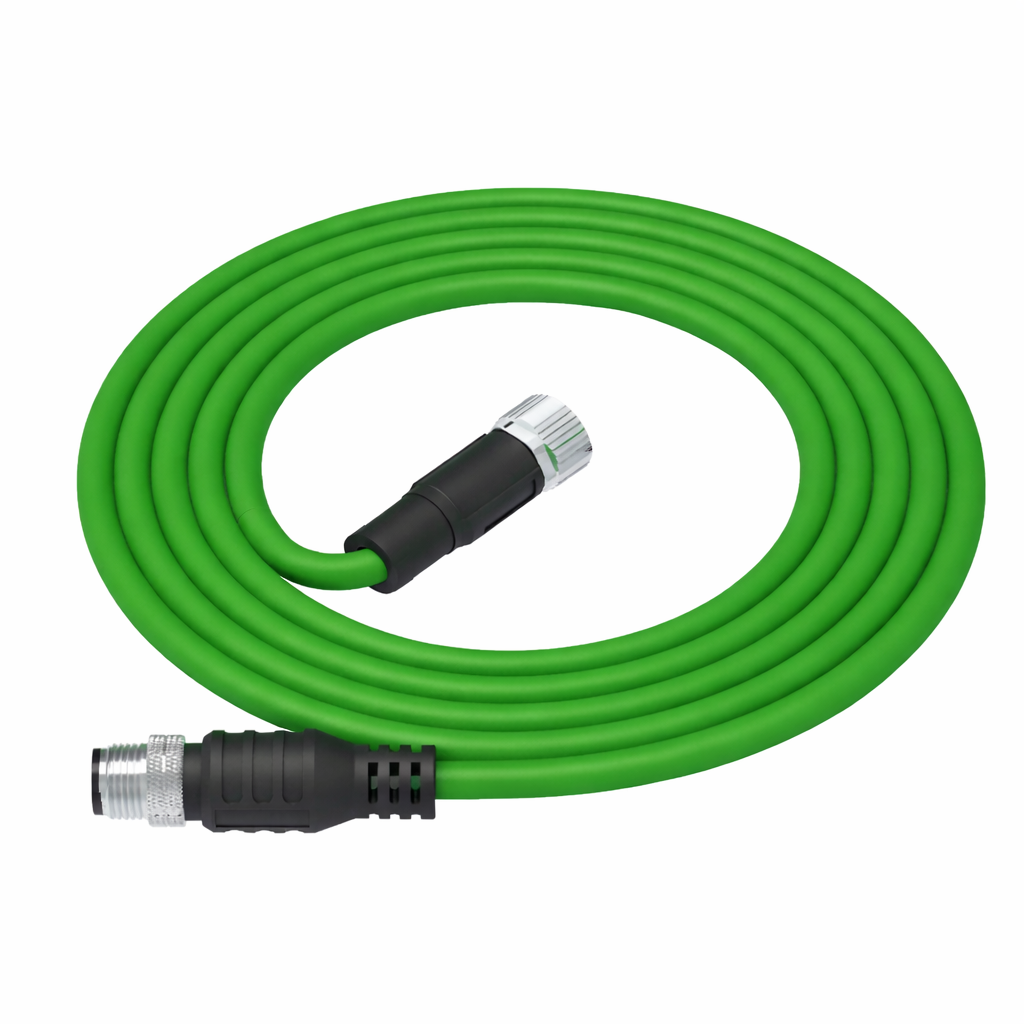

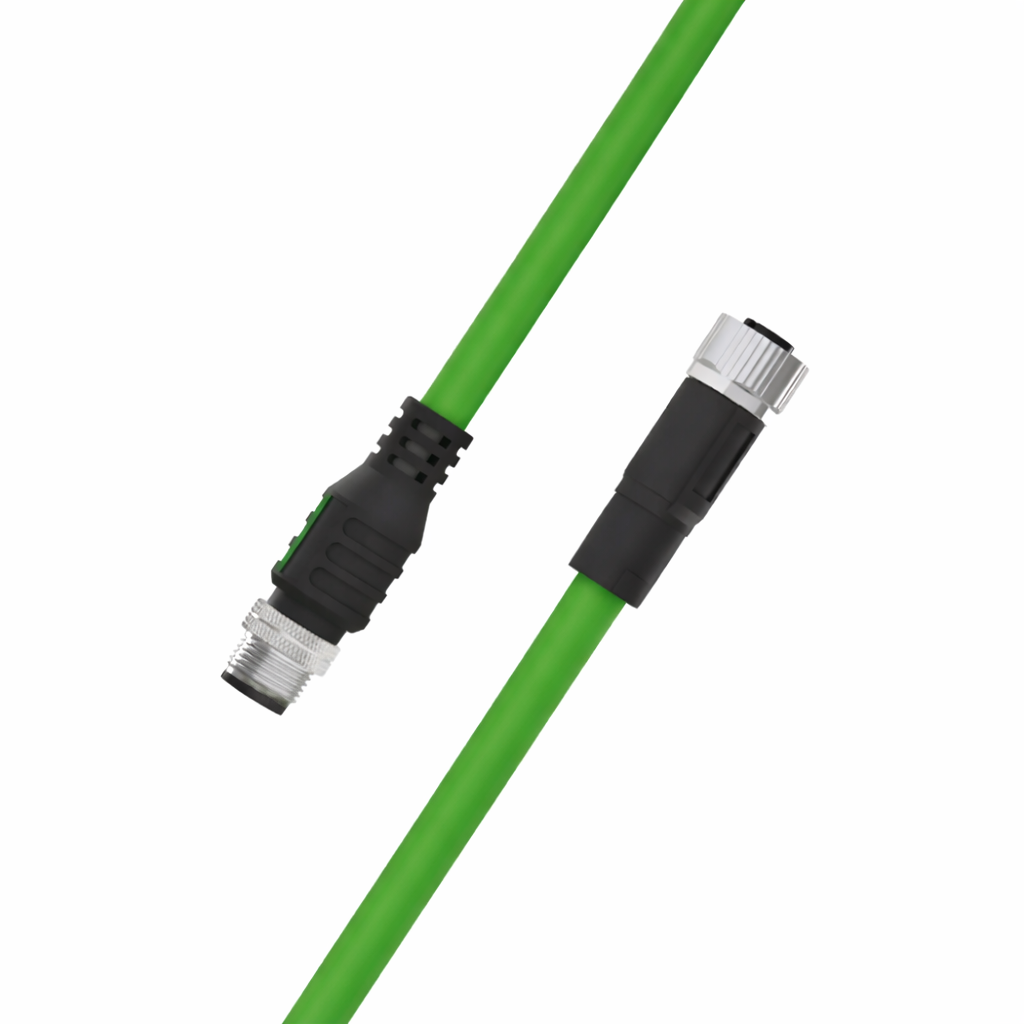

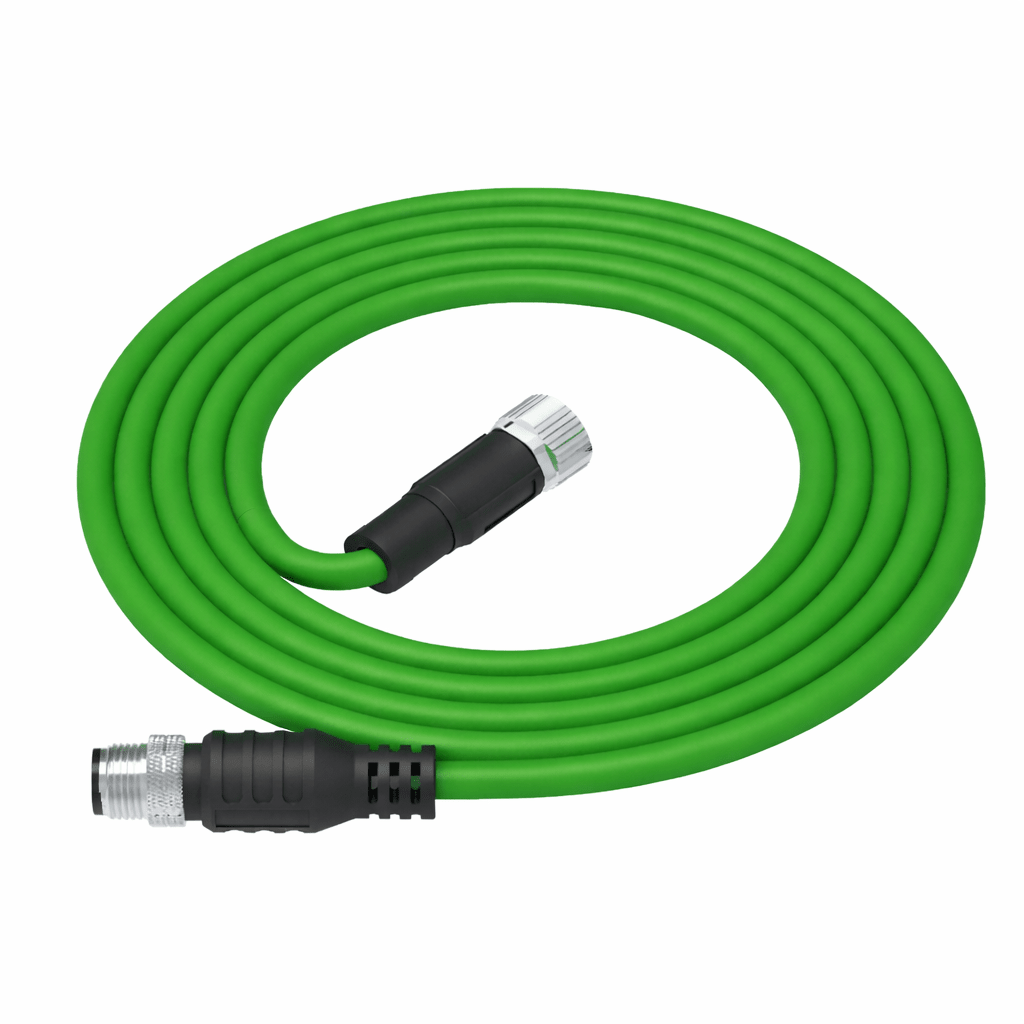

Featuring straight M12 A-coded male and female connectors, this fully assembled cable provides secure plug-and-play connectivity between sensors, actuators and control equipment. The 3-pin configuration is commonly used for standard sensor power and signal connections in automation systems.
Constructed with shielded conductors and 360° EMI protection, this cable ensures stable signal integrity in electrically noisy installations. Both overmoulded M12 connectors are IP67 rated, offering protection against dust and temporary water immersion.
The halogen-free PUR jacket makes this assembly suitable for drag chain and torsional stress applications, delivering resistance to oil, abrasion and continuous flexing in harsh industrial environments.
Key Features
-
M12 A-Coded male to female straight connectors
-

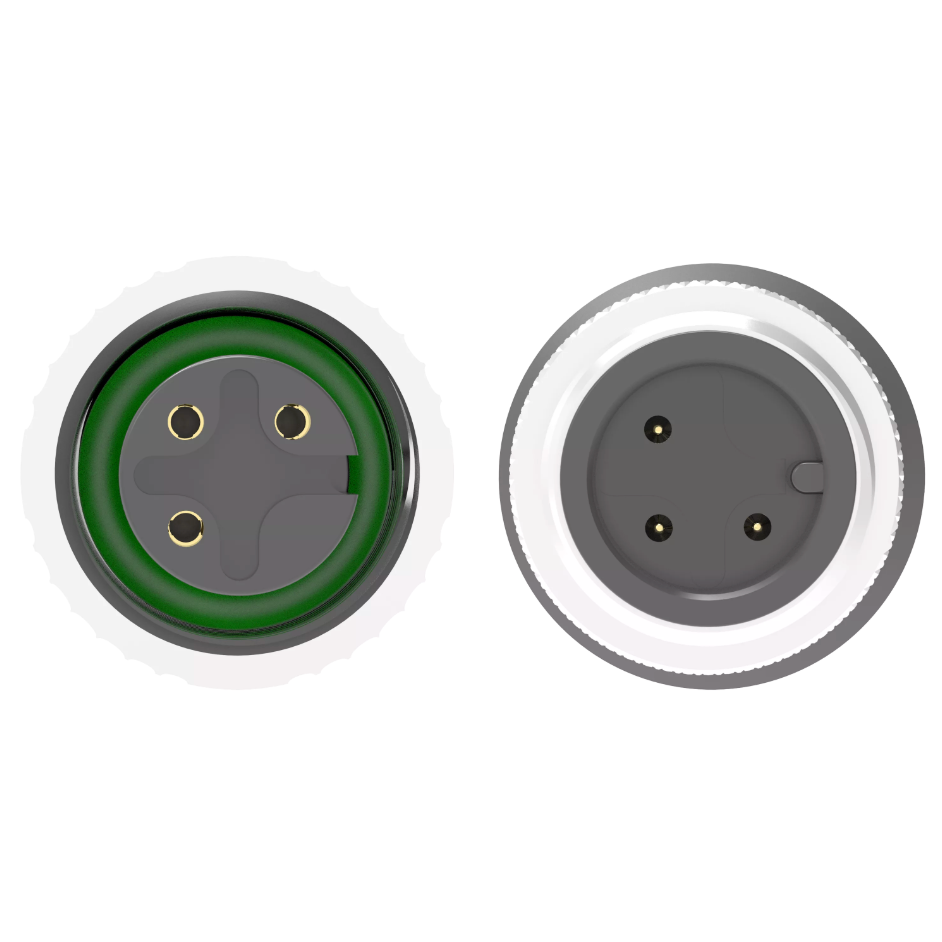

3-pin configuration
-
Shielded construction with EMI protection
-
Operating voltage up to 60V DC
-
Nominal voltage 300V
-
Maximum 4A per contact
-
IP67 rated connectors
-
PUR jacket for drag chain use
-
Suitable for industrial automation systems
Connector Specifications
Connector A
Connection: M12 A-Coded
Gender: Male
Orientation: Straight
Poles: 3
Ingress Protection: IP67
Connector B
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 3
Ingress Protection: IP67
Cable Specifications
Shield Type: Shielded
Conductor Structure: AWG22 (series typical)
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 30 mΩ
