Industrial M12 A-Coded 5-Pin Sensor Cable for Automation and Control
This M12 A-Coded female to open 5-pole cable assembly is designed for industrial sensor and actuator applications requiring reliable signal transmission in demanding environments.

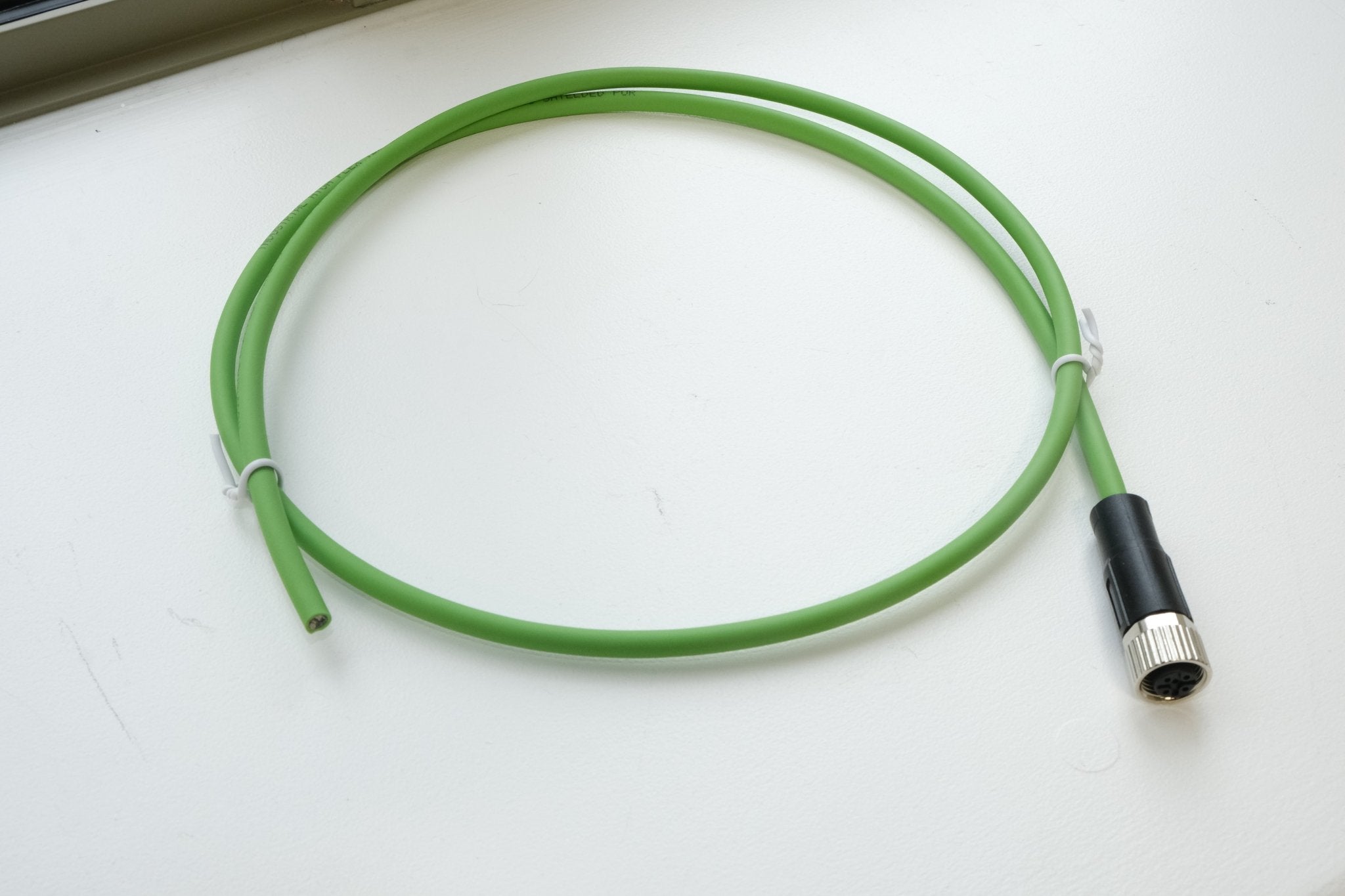

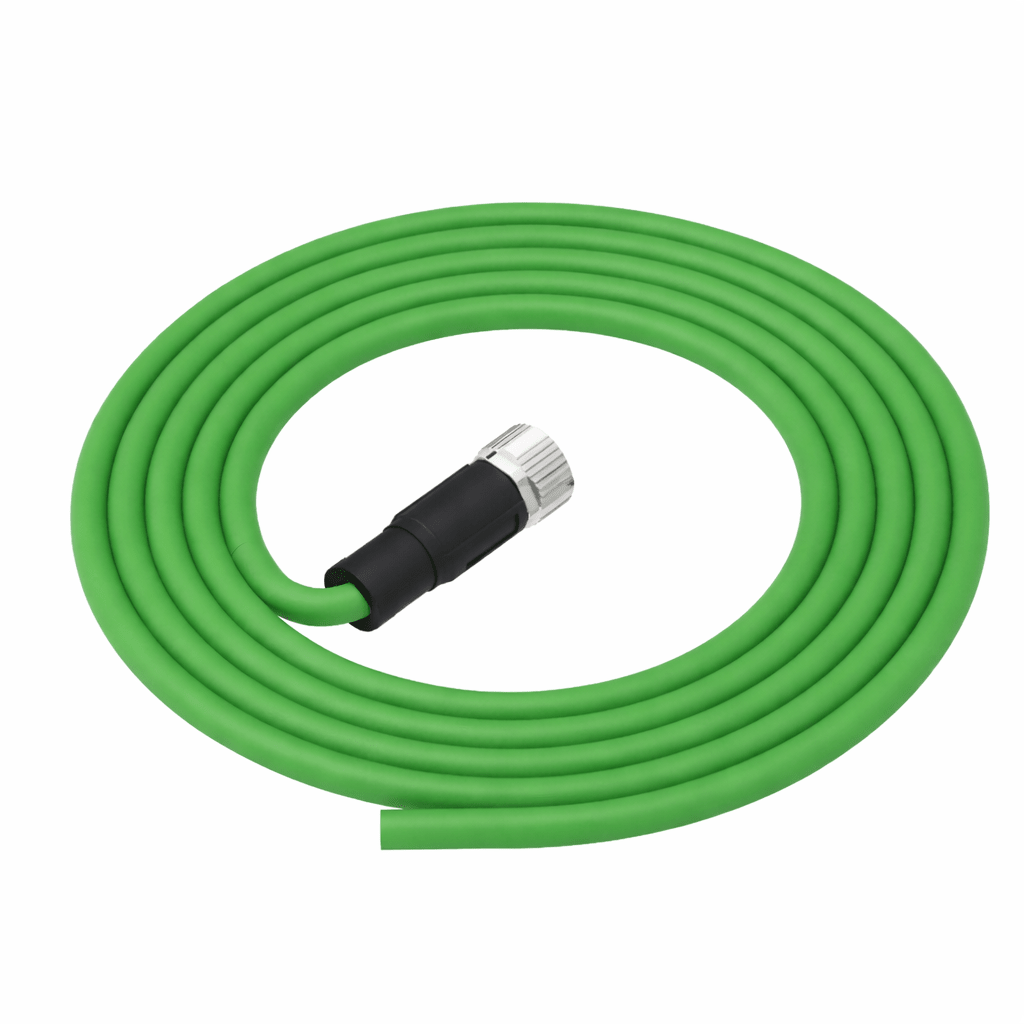

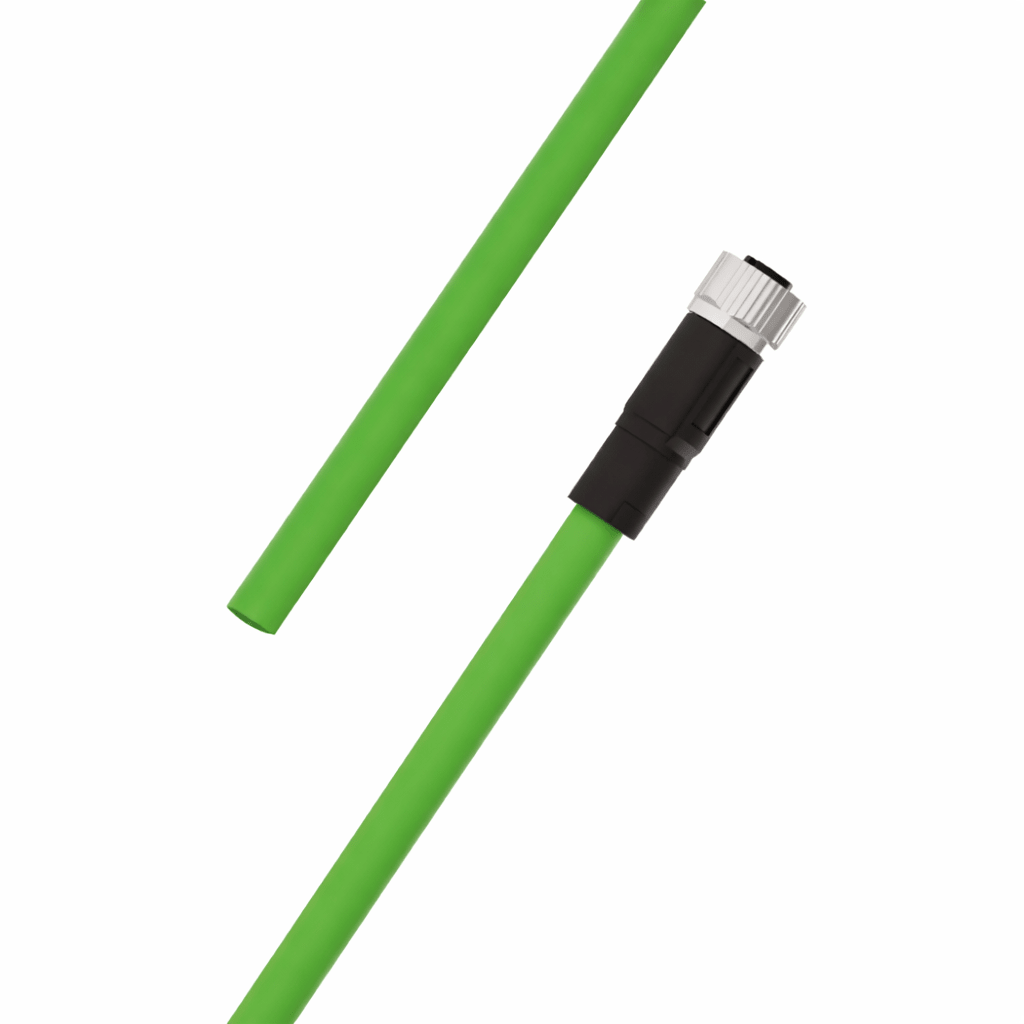

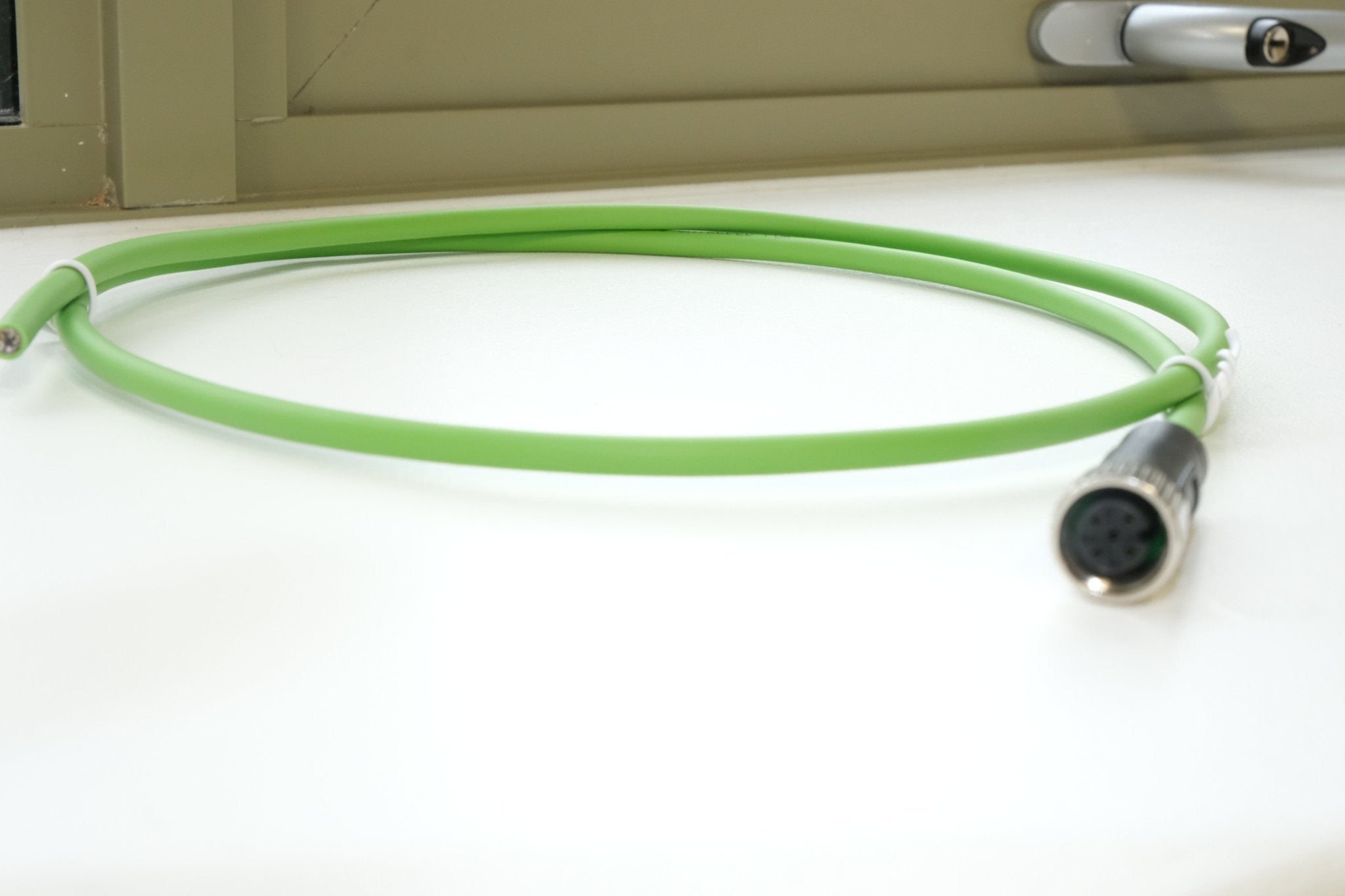

Featuring a straight M12 A-coded female connector and open cable end, this assembly allows flexible field termination into PLCs, control cabinets and custom wiring systems. The 5-pin configuration supports sensor, actuator and control signals across industrial automation equipment.
Constructed with shielded AWG22 conductors and 360° EMI protection, this cable ensures stable signal performance in electrically noisy environments. The overmoulded M12 connector is IP67 rated for protection against dust and temporary water immersion.
The halogen-free PUR jacket makes this cable suitable for drag chain and torsional stress applications, offering excellent resistance to oil, abrasion and mechanical wear.
Key Features
-
M12 A-Coded female straight connector
-
Open cable end for flexible termination
-

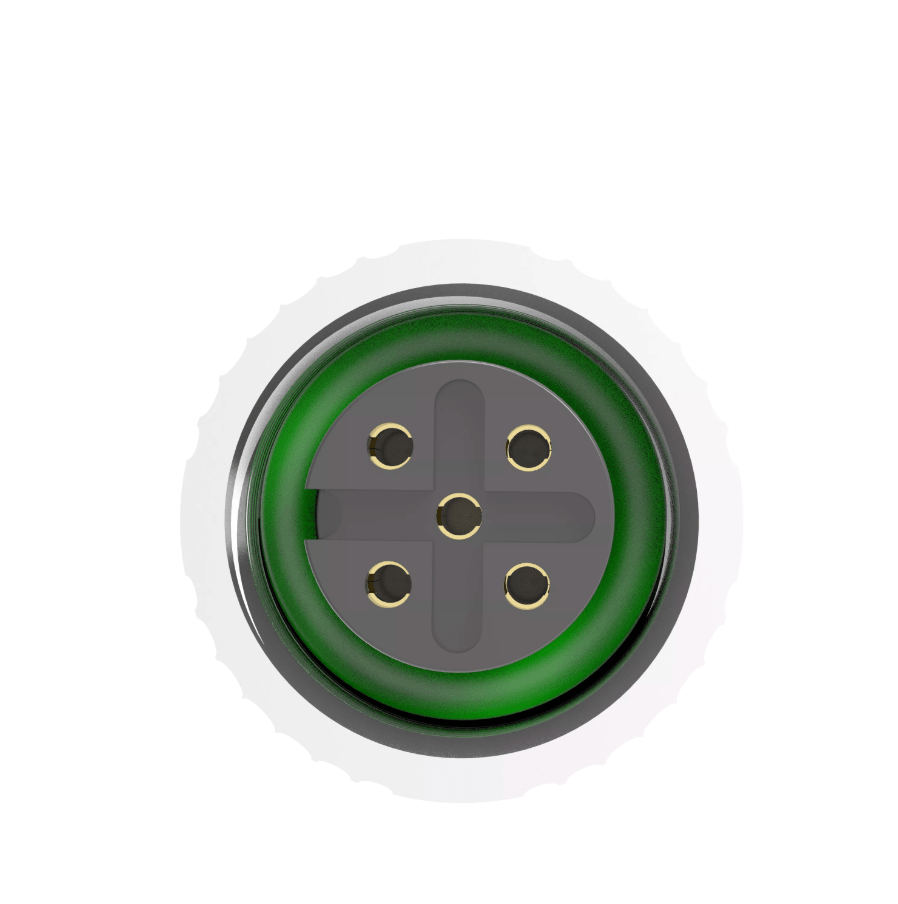

5-pin sensor configuration
-
Shielded cable for EMI protection
-
Rated up to 300V (60V DC operating)
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain use
-
Halogen-free construction
-
Suitable for industrial automation and control systems
Connector Specifications
Connector A
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 5
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 5
Cable Specifications
Shield Type: Shielded
Conductor Structure: AWG22
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 30 mΩ
Typical Applications
-
Industrial sensors and actuators
-
PLC input/output connections
-
Robotics and automation systems
-
Machine tools and production equipment
-
Process control systems
-
Material handling systems
