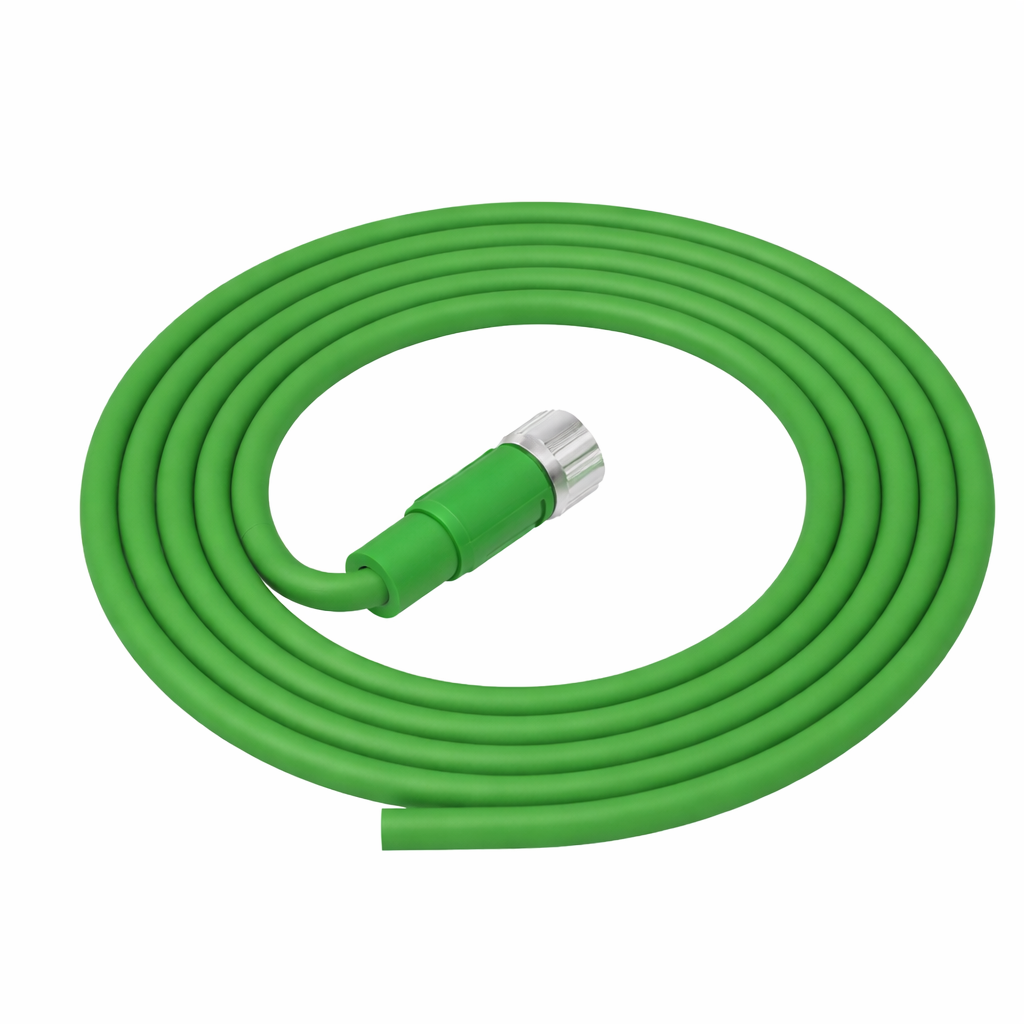

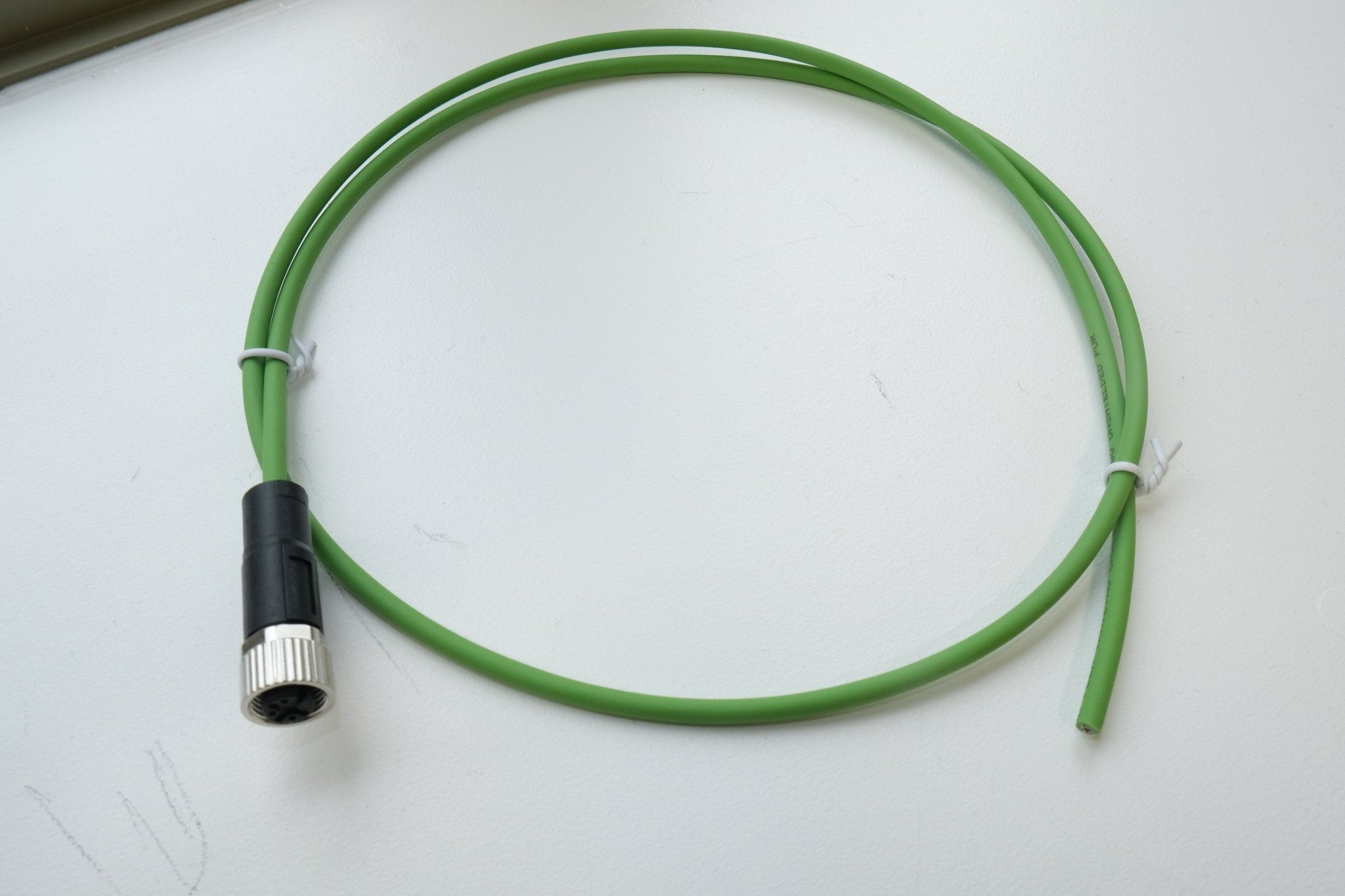

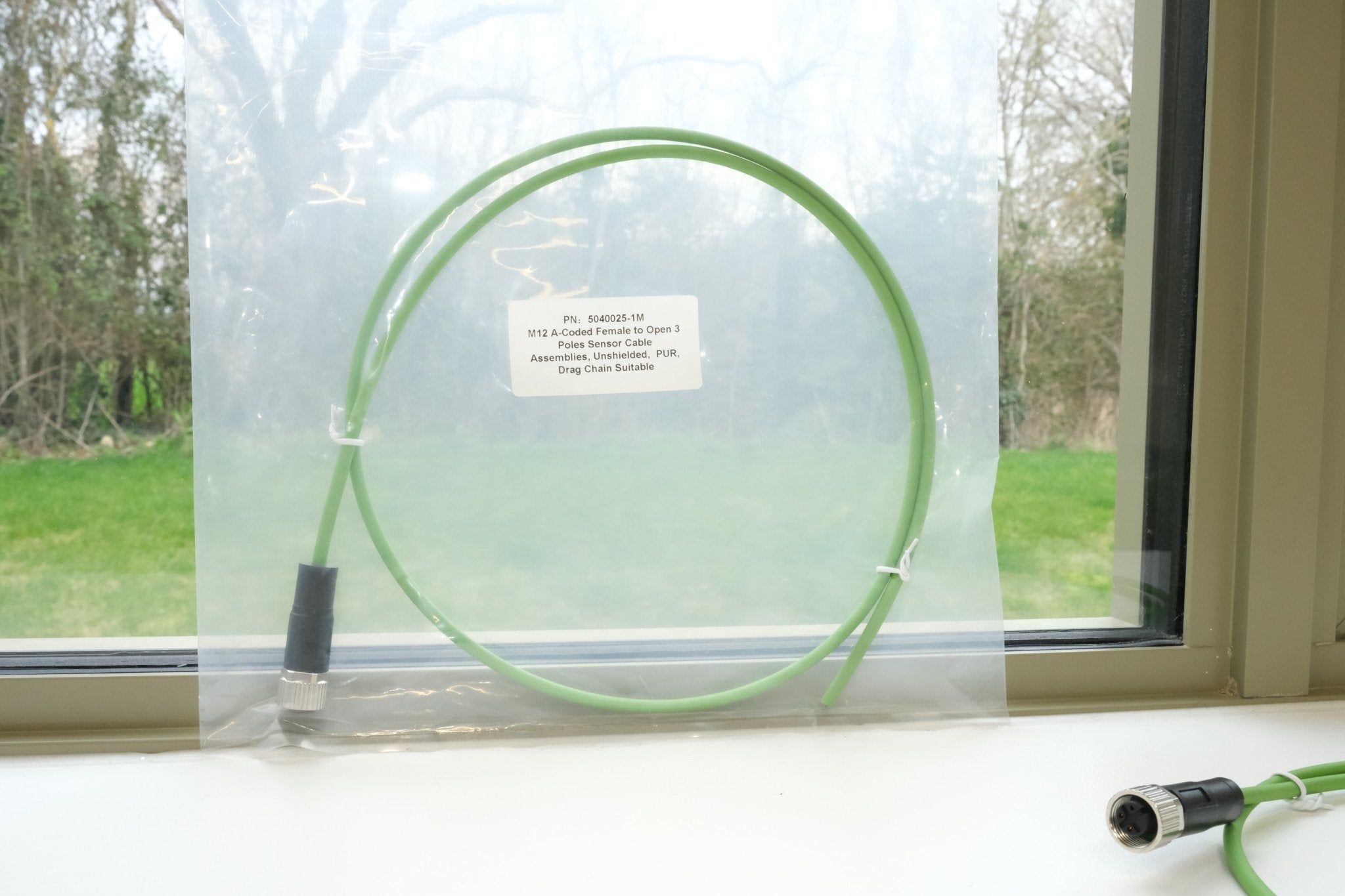

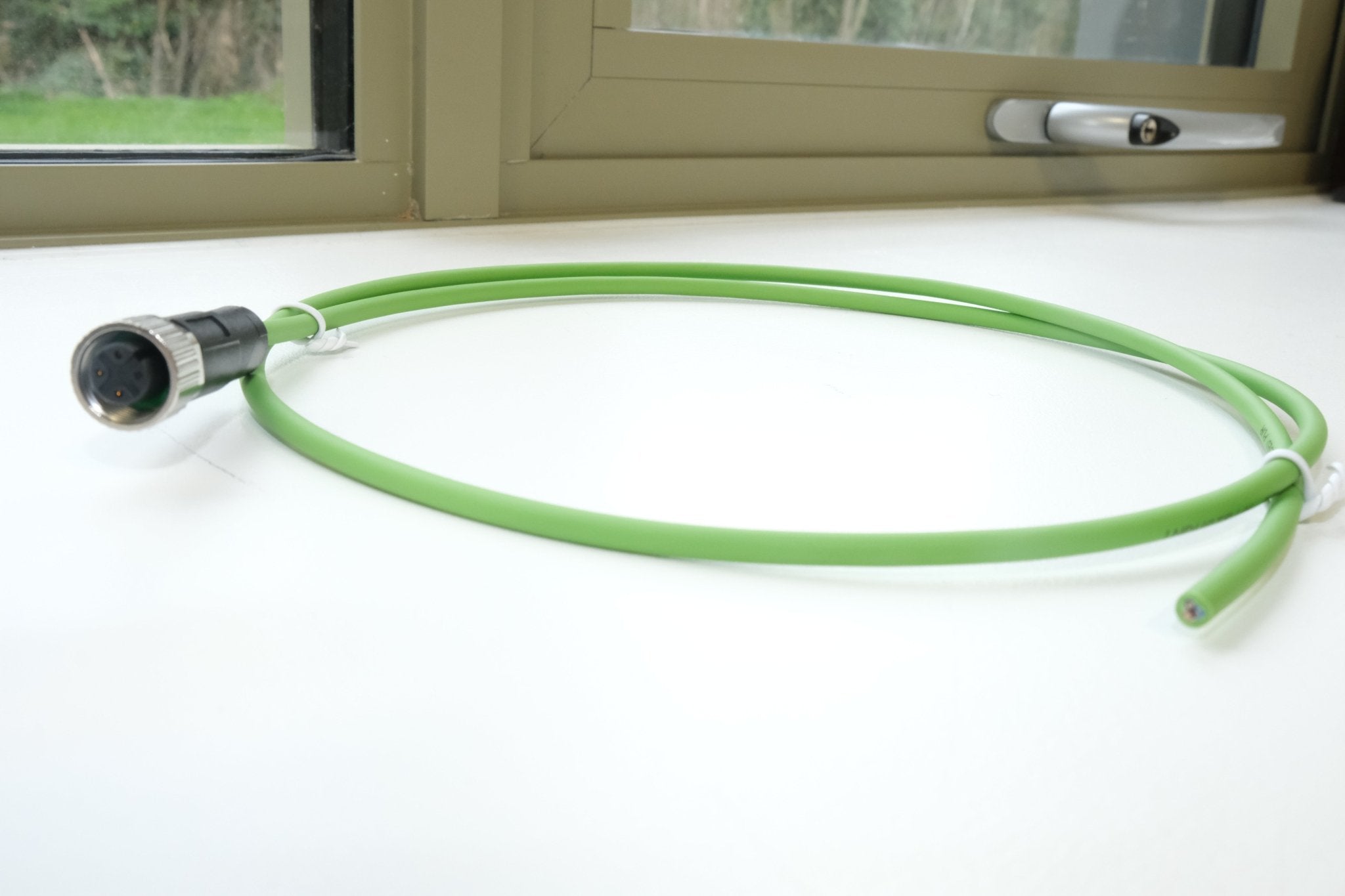

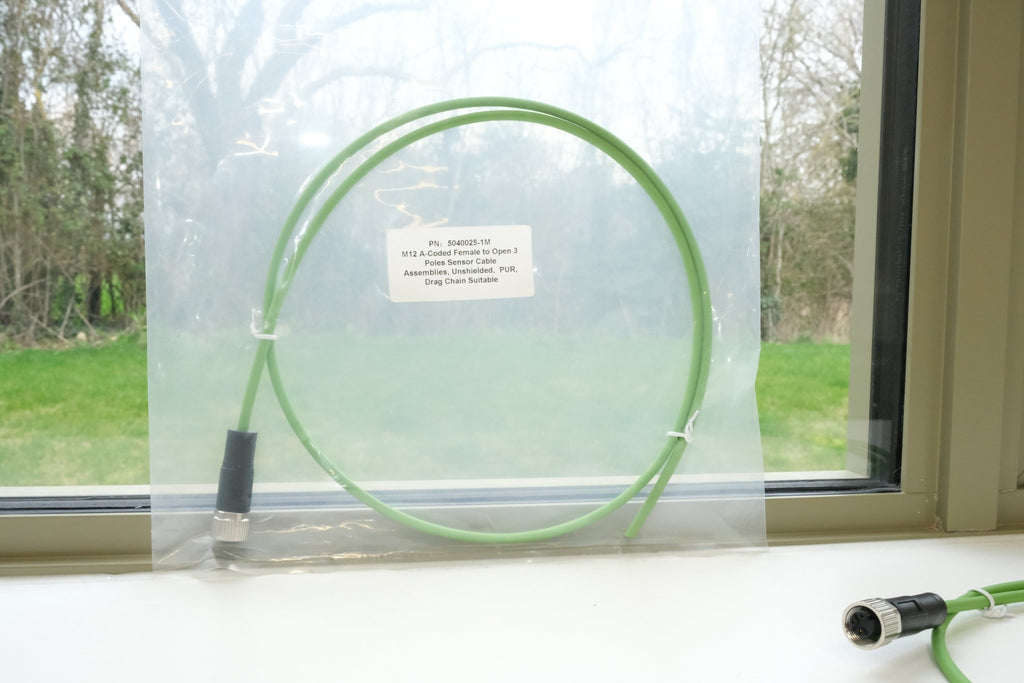

Industrial M12 A-Coded 3-Pin Sensor Cable for Automation Applications

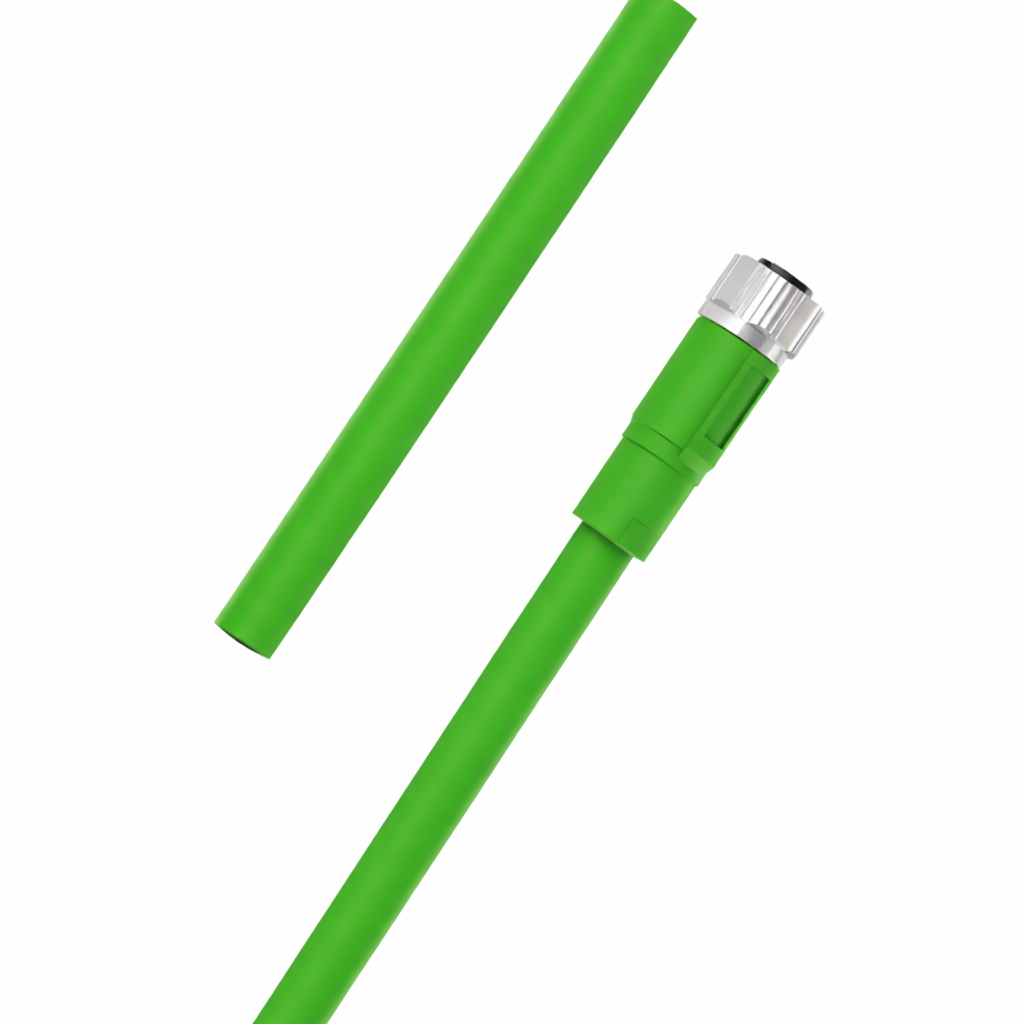

This M12 A-Coded female to open 3-pole cable assembly is designed for industrial sensor and actuator installations requiring reliable connectivity and mechanical durability.
The straight M12 A-coded female connector provides secure mating with sensors and control devices, while the open cable end allows flexible termination into PLCs, terminal blocks or custom wiring assemblies. The 3-pin configuration is commonly used for standard sensor power and signal applications in automation systems.
The overmoulded M12 connector is IP67 rated for protection against dust and temporary water immersion. Manufactured with a halogen-free PUR jacket, this cable is suitable for drag chain and torsional stress environments, offering resistance to oil, abrasion and continuous flexing.
This unshielded version is ideal for general sensor wiring where EMI protection is not required.
Key Features
-

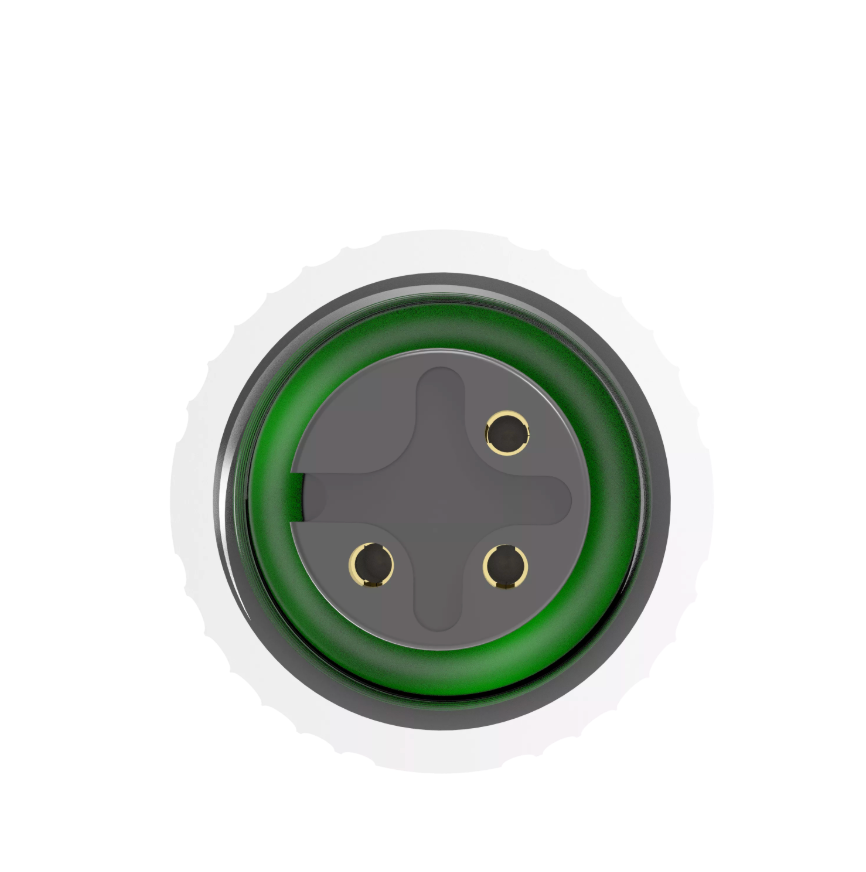

M12 A-Coded female straight connector
-
Open cable end for field termination
-
3-pin configuration
-
Unshielded construction
-
Operating voltage up to 60V DC
-
Nominal voltage 300V
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain use
-
Designed for industrial automation systems
Connector Specifications
Connector A
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 3
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 3
Cable Specifications
Shield Type: Unshielded
Conductor Structure: AWG22 (series typical)
Jacket Material: PUR
Cable Colour: Black
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
