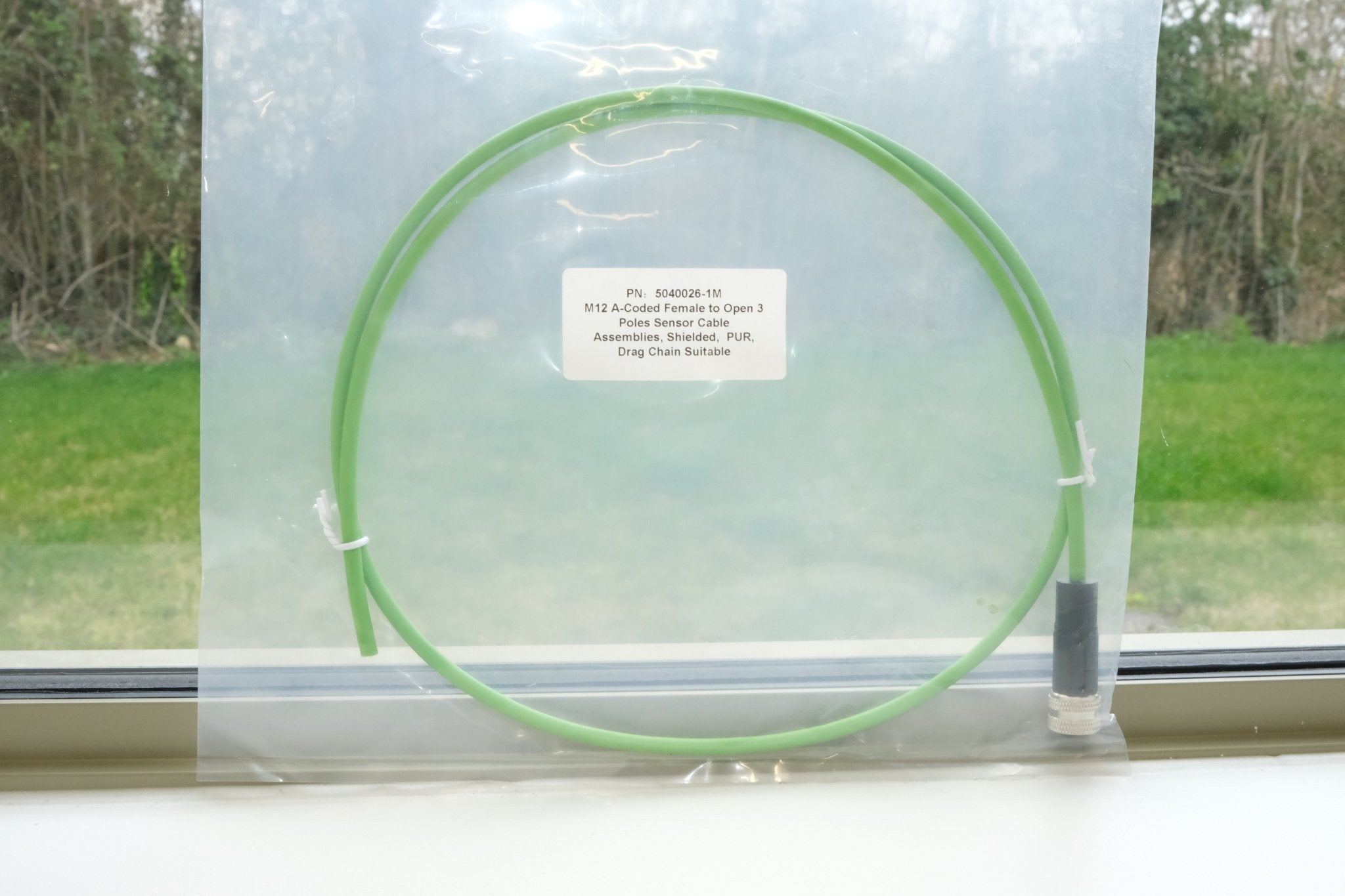

Industrial M12 A-Coded 3-Pin Sensor Cable for Automation Applications
This M12 A-Coded female to open 3-pole cable assembly is designed for industrial sensor and actuator wiring where reliable signal transmission and mechanical durability are essential.

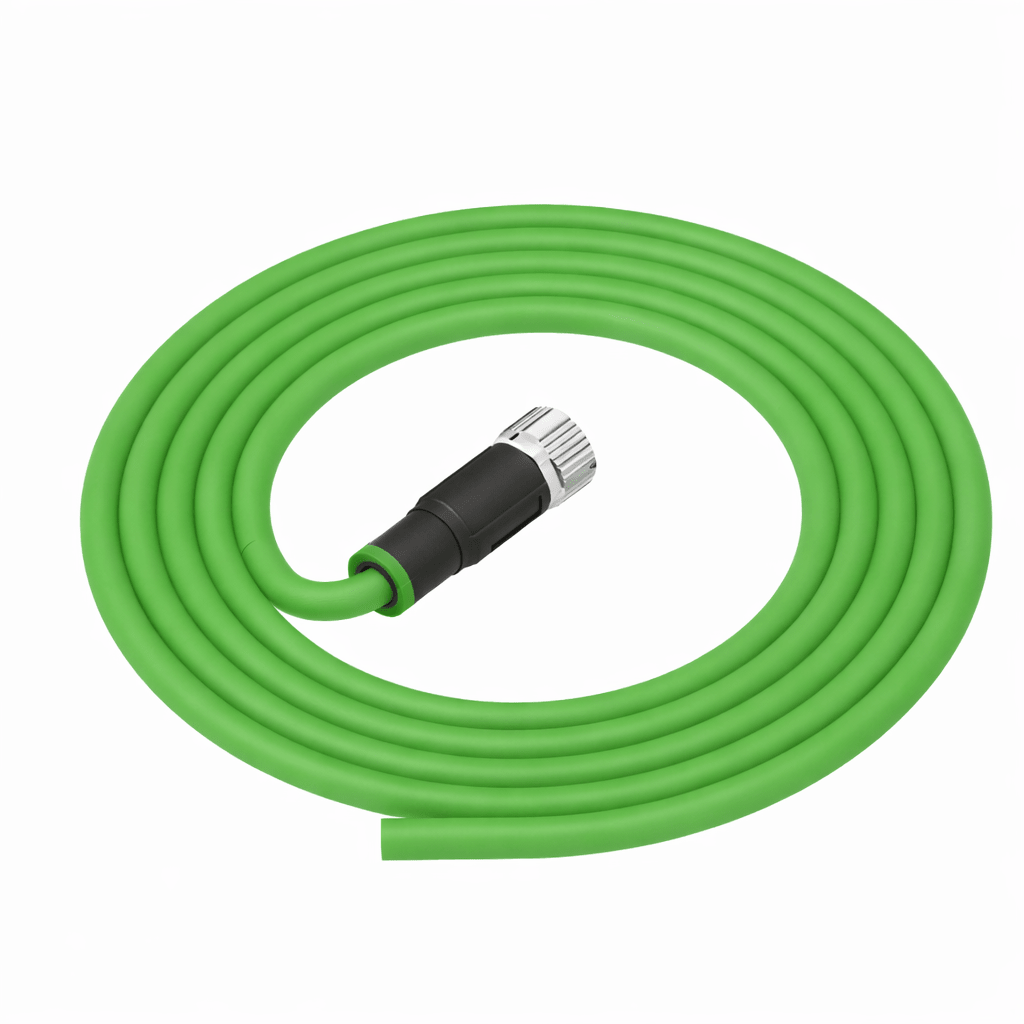

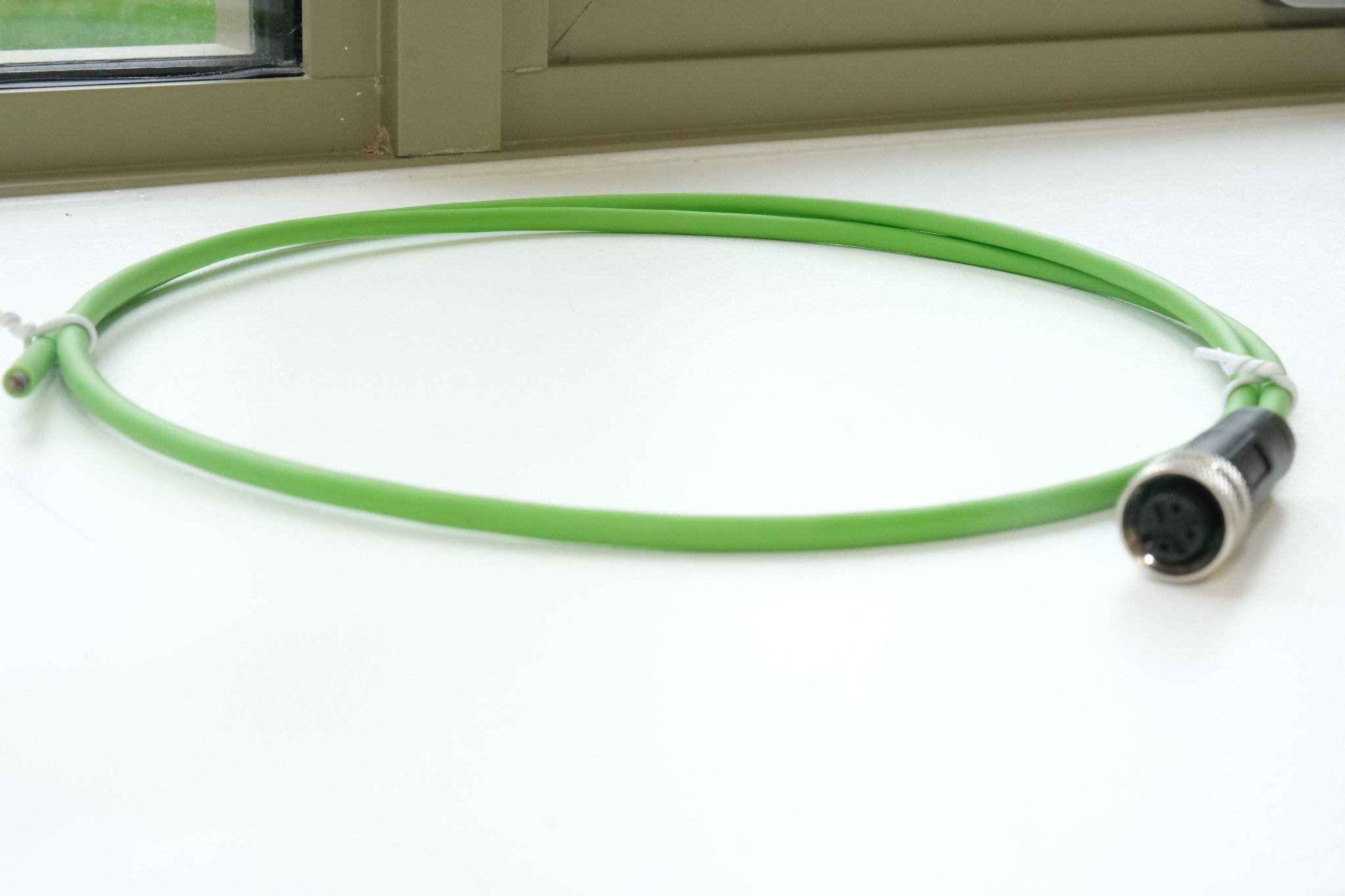

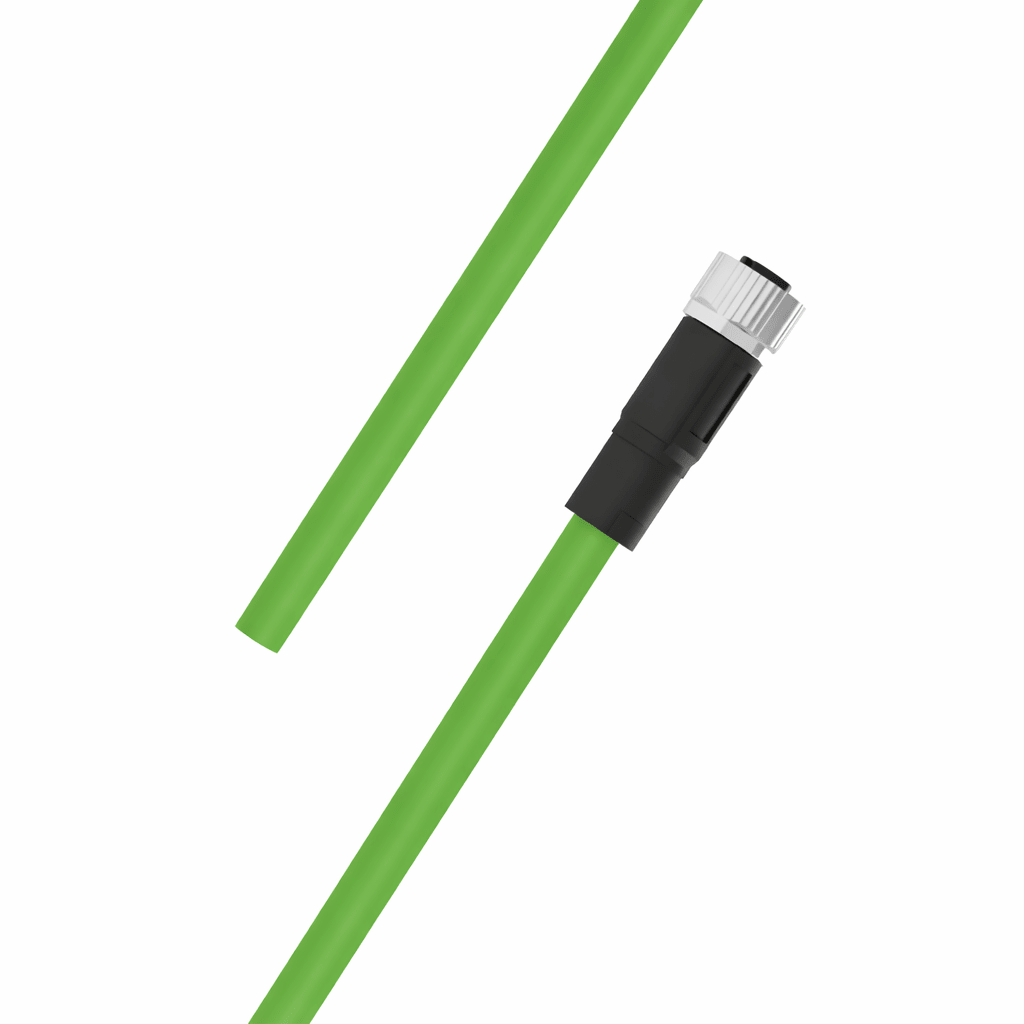

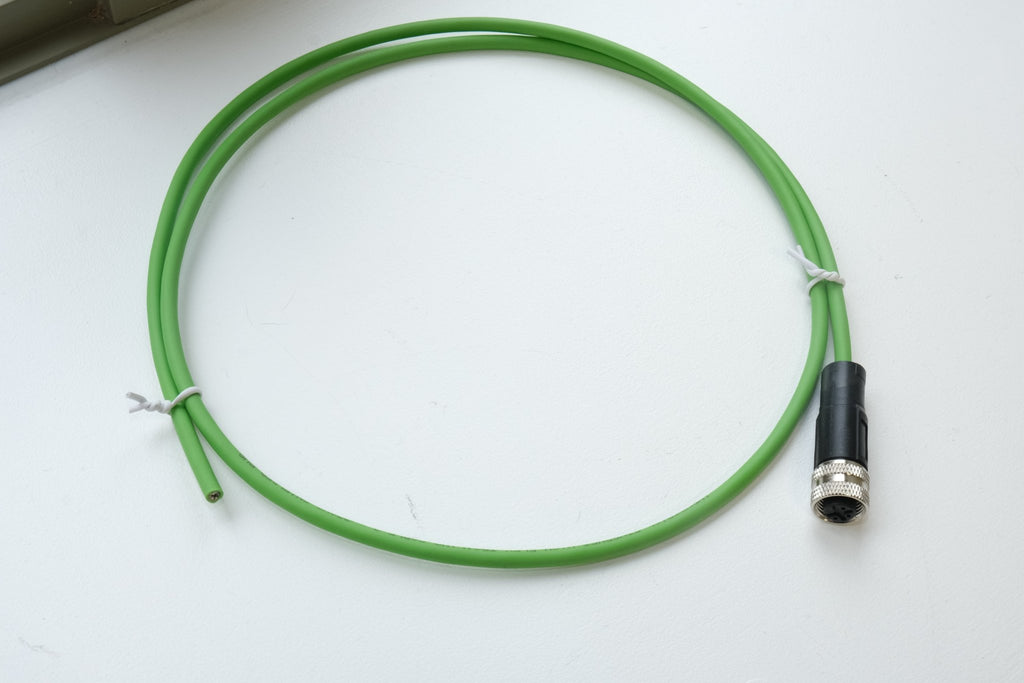

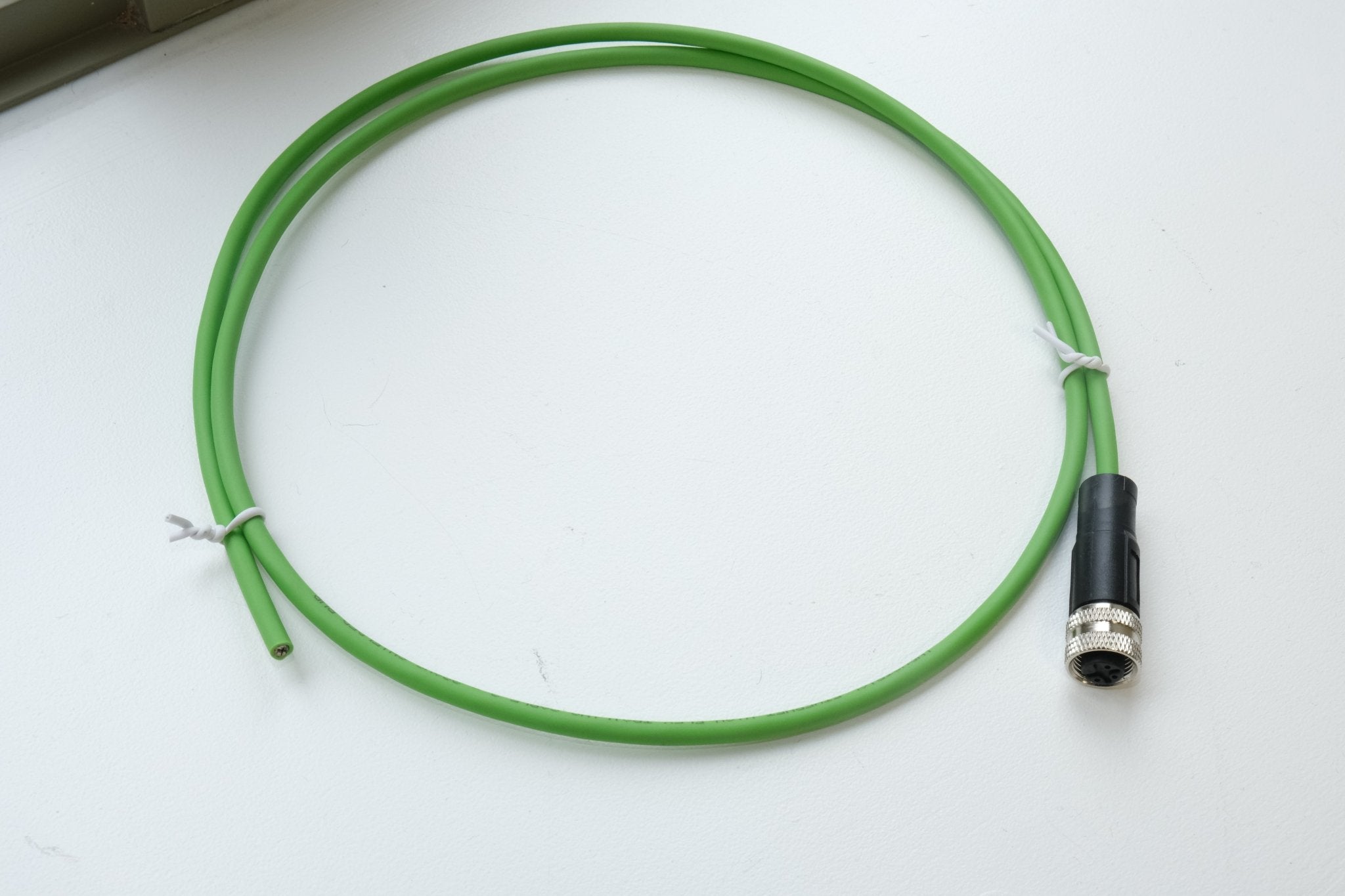

Featuring a straight M12 A-coded female connector and open cable end, this assembly enables flexible field termination into PLCs, control cabinets and machine wiring systems. The 3-pin configuration is commonly used for standard sensor and actuator connections in automation environments.
Constructed with shielded conductors and full 360° EMI protection, this cable ensures stable performance in electrically noisy industrial settings. The overmoulded M12 connector is IP67 rated, providing protection against dust and temporary water immersion.
The halogen-free PUR jacket makes this cable suitable for drag chain and torsional stress applications, delivering resistance to oil, abrasion and mechanical wear in continuous motion systems.
Key Features
-
M12 A-Coded female straight connector
-
Open cable end for field termination
-
3-pin sensor configuration
-
Shielded cable for EMI protection
-
Operating voltage up to 60V DC
-
Nominal voltage 300V
-
Maximum 4A per contact
-
IP67 rated connector
-
PUR jacket for drag chain use
-
Suitable for industrial automation and control systems

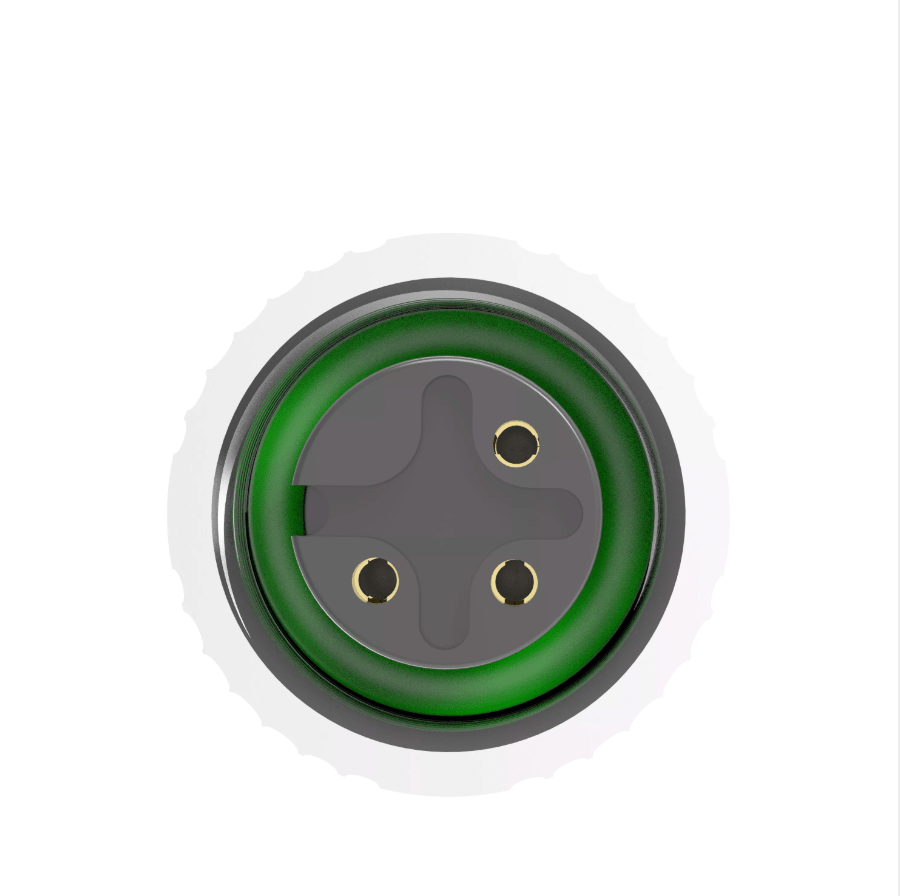

Connector Specifications
Connector A
Connection: M12 A-Coded
Gender: Female
Orientation: Straight
Poles: 3
Ingress Protection: IP67
Connector B
Connection: Open cable end
Positions: 3
Cable Specifications
Shield Type: Shielded
Conductor Structure: AWG22 (as per series)
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 20m
Electrical Data
Operating Voltage: Max. 60V DC
Nominal Voltage: 300V
Operating Current per Contact: Max. 4A
Contact Resistance: Max. 30 mΩ
