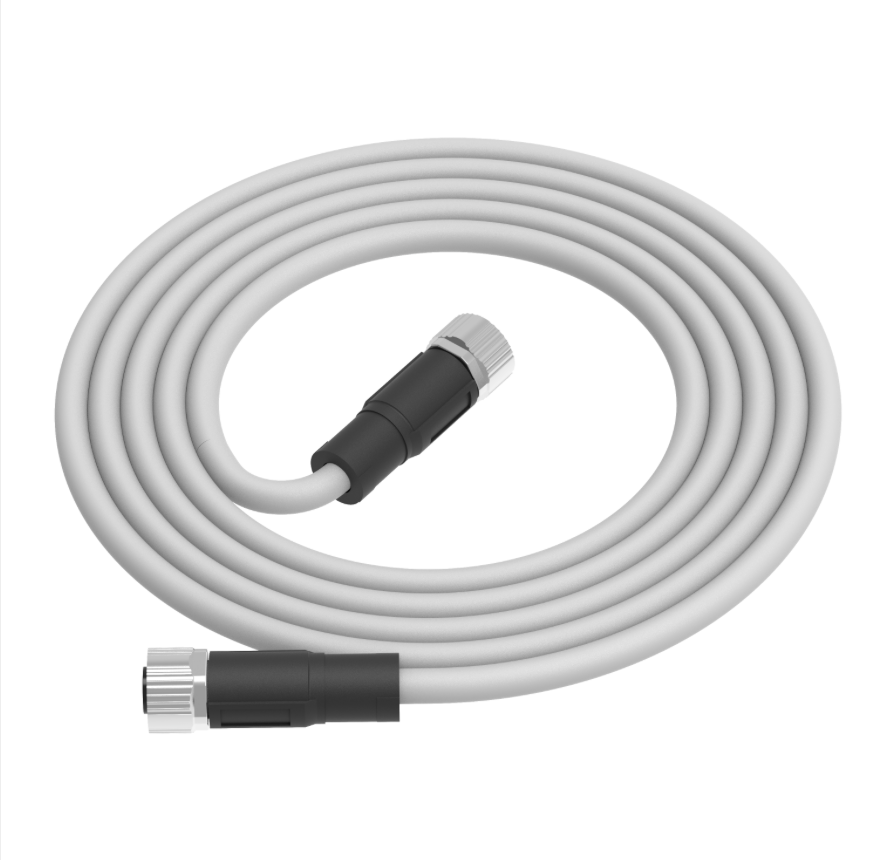

This M12 A-coded female-to-female 8-pin sensor cable assembly is designed for reliable industrial signal and data transmission in harsh environments. The cable is fully shielded to provide 360° EMI protection and is overmoulded with a halogen-free PUR jacket for durability, oil resistance and suitability in continuous drag-chain applications. Both connectors are straight M12 A-coded female plugs with IP67 protection for dust and water resistance. The assembly is compatible with common industrial fieldbus protocols such as Profibus, DeviceNet and CC-Link, and is approved to UL AWM 20549.
Typical applications
Factory automation, robotics, process control, machine tooling, material handling and other industrial systems requiring rugged, plug-and-play M12 connectivity.
Key technical highlights
-

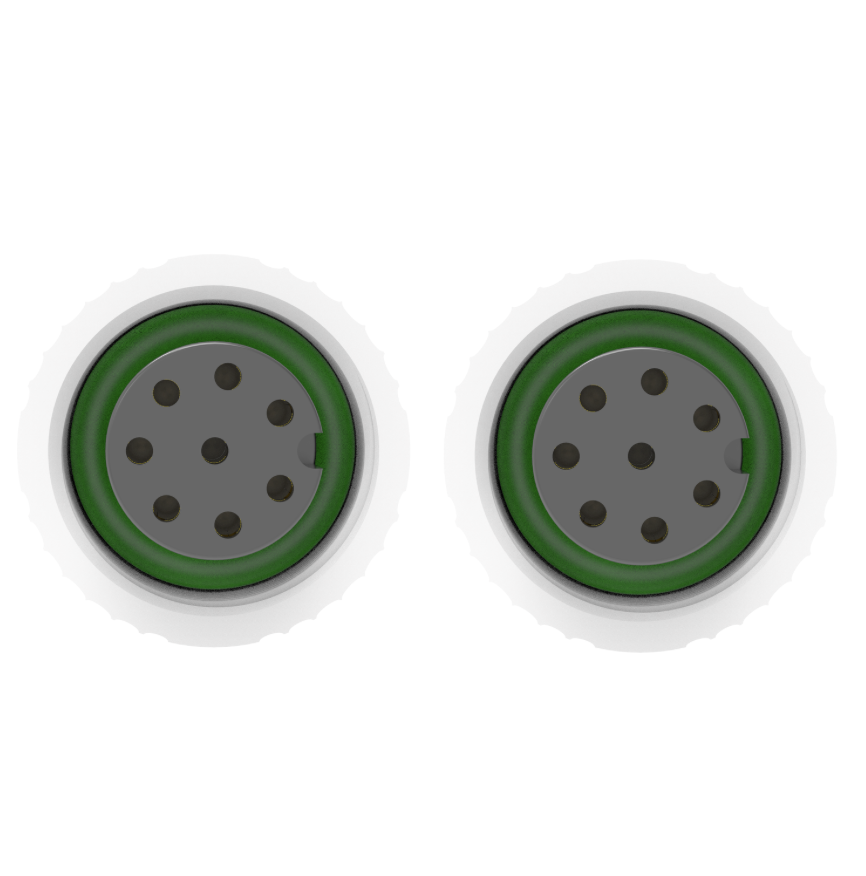

Connector: M12 A-coded, female to female, straight
-
Pins: 8 positions
-
Shielding: Yes (360° EMI protection)
-
Jacket material: PUR, halogen-free, drag-chain capable
-
Conductor: AWG24
-
Cable lengths available: 0.3 m — 20 m
-
Protection rating: IP67 (connectors)
-
Operating voltage: max. 60 V DC (nominal voltage listed as 300 V)
-
Current rating: max. 4 A per contact
-
Temperature range: moving: −30 °C to +70 °C; fixed: −40 °C to +80 °C
-
Standards / ratings: UL AWM 20549; IEC burning/oil/halogen standards referenced
This industrial grade product is supplied subject to minimum order quantities (MOQ). For wholesale pricing, volume discounts and lead times, please contact us with required lengths, colours and quantities, we will issue a formal quotation with our best available pricing.
