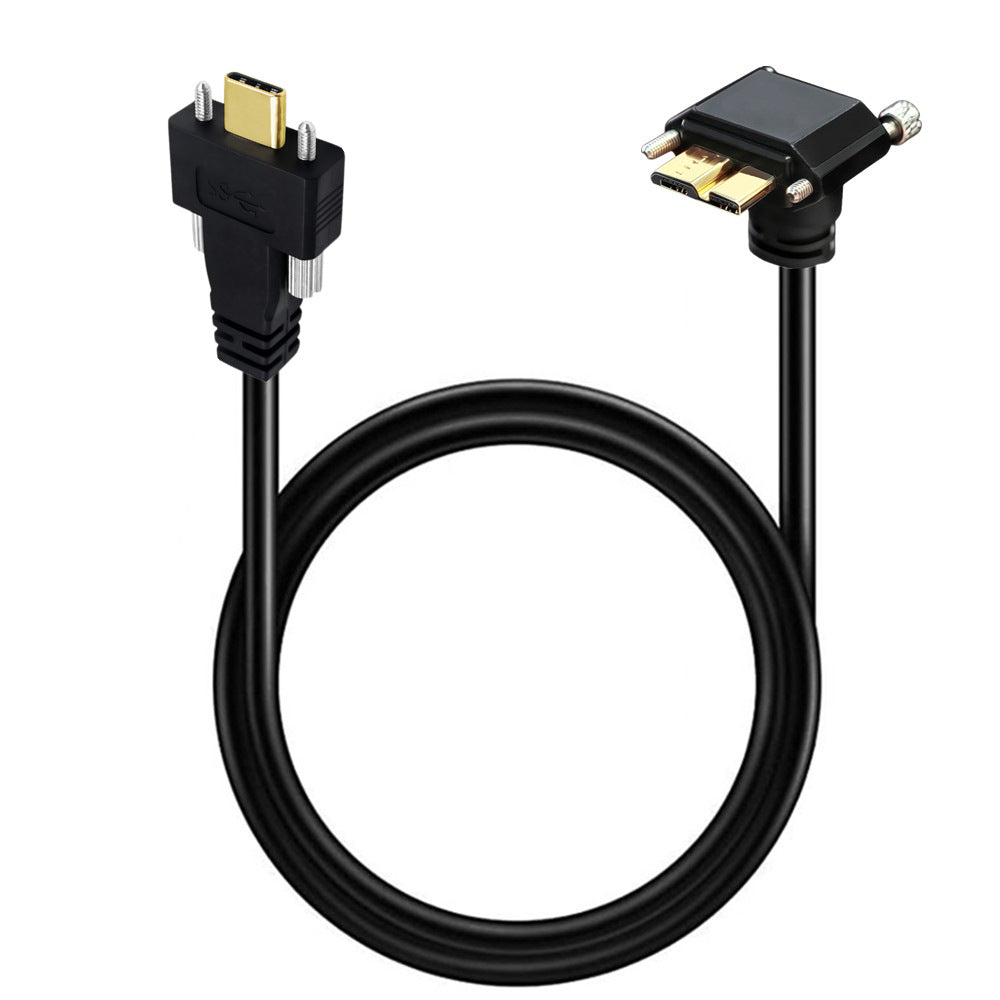

Create a secure USB 3.0 data connection in compact industrial equipment with this locking USB-C male to up-angle Micro USB 3.0 Type-B male cable.

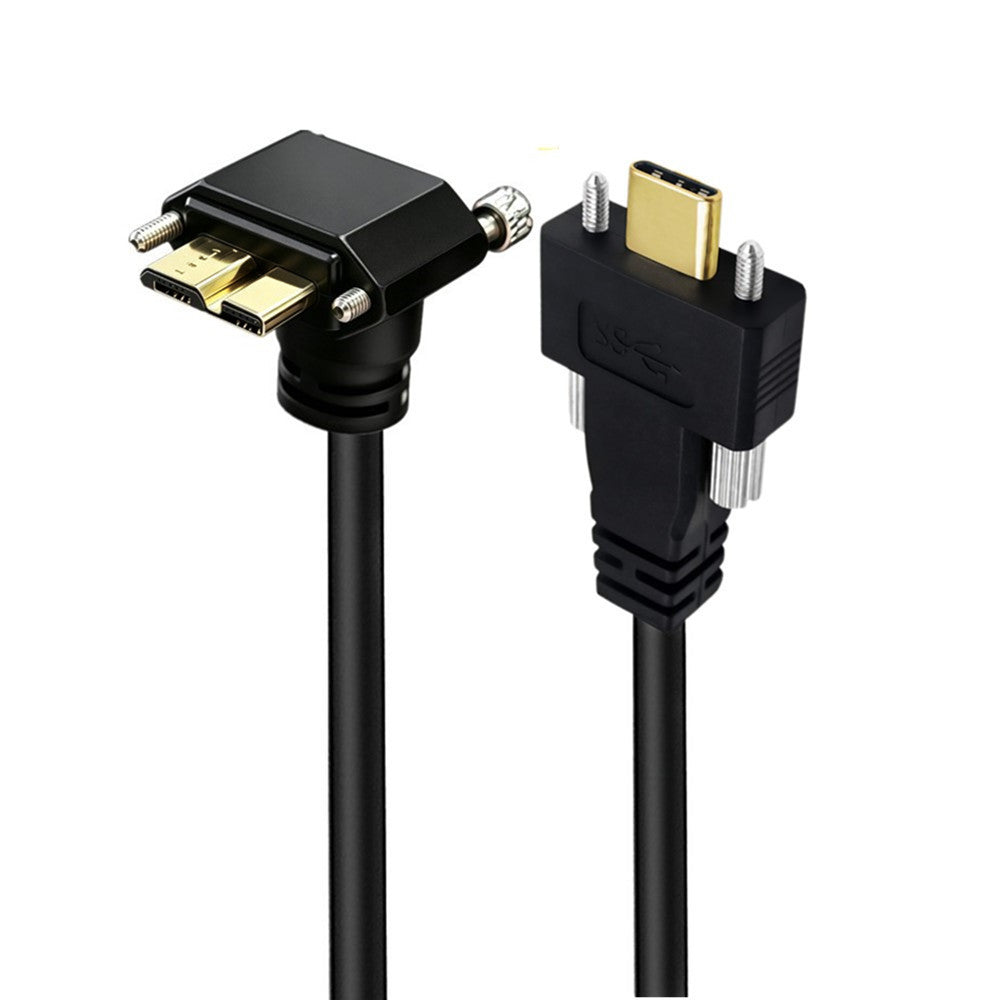

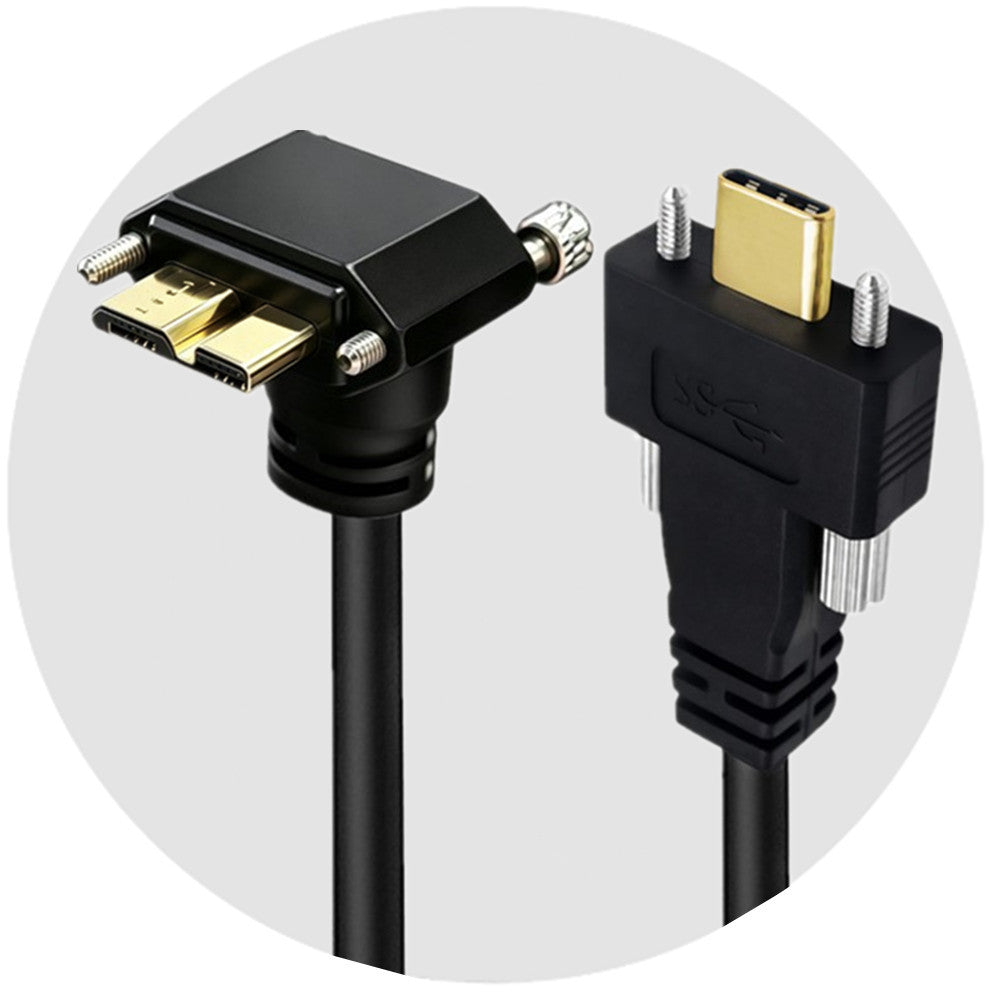

The USB-C connector features a dual-screw locking design, while the Micro USB 3.0 Type-B connector uses a 90-degree up-angle housing with screw retention. The locking hardware helps prevent accidental disconnection caused by equipment vibration, movement or repeated operation.
The up-angle Micro USB connector directs the cable upwards from the connected equipment, reducing the clearance required behind the port and helping prevent excessive bending at the cable entry point.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male cable
• Straight USB-C connector with dual locking screws
• 90-degree up-angle Micro USB 3.0 Type-B connector
• Screw-locking retention at both ends
• Supports USB 3.0 Gen 1 data transfer up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Up-angle design supports compact equipment installations
• Helps reduce cable strain and sharp bending
• Suitable for industrial cameras and machine-vision equipment
• Shielded construction helps reduce electromagnetic interference
• Available in 0.6m and 1m lengths
• Data communication cable
• Does not support DisplayPort video output or USB Power Delivery fast charging
Connector Configuration:
USB-C End:
• 1 x USB Type-C male connector
• Straight connector orientation
• Dual locking screws
• Designed for compatible screw-locking USB-C ports
Micro USB End:
• 1 x Micro USB 3.0 Type-B male connector
• 90-degree up-angle orientation
• Screw-locking retention
• Designed for compatible industrial cameras and equipment ports
Up-Angle Installation Advantage:
The 90-degree Micro USB connector routes the cable upwards from the equipment port.
This can help:
• Reduce rear clearance requirements
• Prevent the cable from pressing against enclosure walls
• Reduce stress at the connector and cable entry point
• Improve routing inside compact equipment
• Keep industrial camera installations secure and tidy
• Protect the port from excessive cable leverage
Industrial Applications:
• Industrial vision cameras
• Machine-vision inspection systems
• Image-acquisition equipment
• Factory automation systems
• Data-acquisition devices
• Embedded industrial computers
• Laboratory testing instruments
• Medical equipment
• Self-service terminals
• Automated retail equipment
• Vehicle-mounted industrial systems
• Compact control cabinets
• Custom equipment enclosures
Secure Screw-Locking Design:
The locking screws secure the connectors to compatible threaded mounting points, helping reduce temporary disconnection and data loss in vibration-prone environments.
The screw-retention system is only compatible with equipment featuring the correct screw spacing and thread size. Please confirm the connector dimensions before ordering.
USB 3.0 Performance:
The cable supports USB 3.0 Gen 1 transfer speeds up to 5Gbps when connected to compatible USB 3.0 equipment.
Actual transfer speeds depend on the connected devices, USB controller, operating system, cable length and installation environment.
Shielded Cable Construction:
The shielded cable structure helps reduce interference from motors, power supplies and other electrical equipment commonly found in industrial environments.
Customised versions with ferrite cores may be available for installations with particularly high electromagnetic interference.
Installation:
1. Switch off the connected equipment before installation.
2. Insert the USB-C connector into the compatible USB-C port.
3. Tighten both USB-C locking screws evenly.
4. Insert the up-angle Micro USB 3.0 Type-B plug into the compatible device.
5. Tighten the Micro USB locking screw without overtightening.
6. Route the cable without crushing, excessive tension or sharp bends.
7. Restore power and confirm that the connected device is detected correctly.
Important Compatibility Information:
• Both connectors are male.
• The USB-C end requires a compatible female USB-C port.
• The Micro USB end requires a Micro USB 3.0 Type-B female port.
• Matching threaded mounting points are required for the locking screws.
• Confirm the locking-screw spacing and thread size before ordering.
• Confirm that the up-angle cable exit matches the orientation of your equipment port.
• Angle direction may appear different depending on the viewing position.
• Micro USB 3.0 Type-B is wider than a standard Micro USB 2.0 connector.
• This cable is intended primarily for USB data communication.
• It does not support USB-C DisplayPort Alternate Mode.
• It does not support USB Power Delivery fast charging.
• High-power USB devices may require a powered USB hub or separate power supply.
Available Lengths:
• 0.6m
• 1m
Custom Options:
• Alternative cable lengths
• Down-angle Micro USB connector
• Left-angle or right-angle connector options
• Alternative USB-C connector angles
• Custom screw spacing
• Ferrite core installation
• OEM production
• Custom connector moulding
What’s Included:
• 1 x Locking USB-C male to up-angle Micro USB 3.0 Type-B male industrial cable
