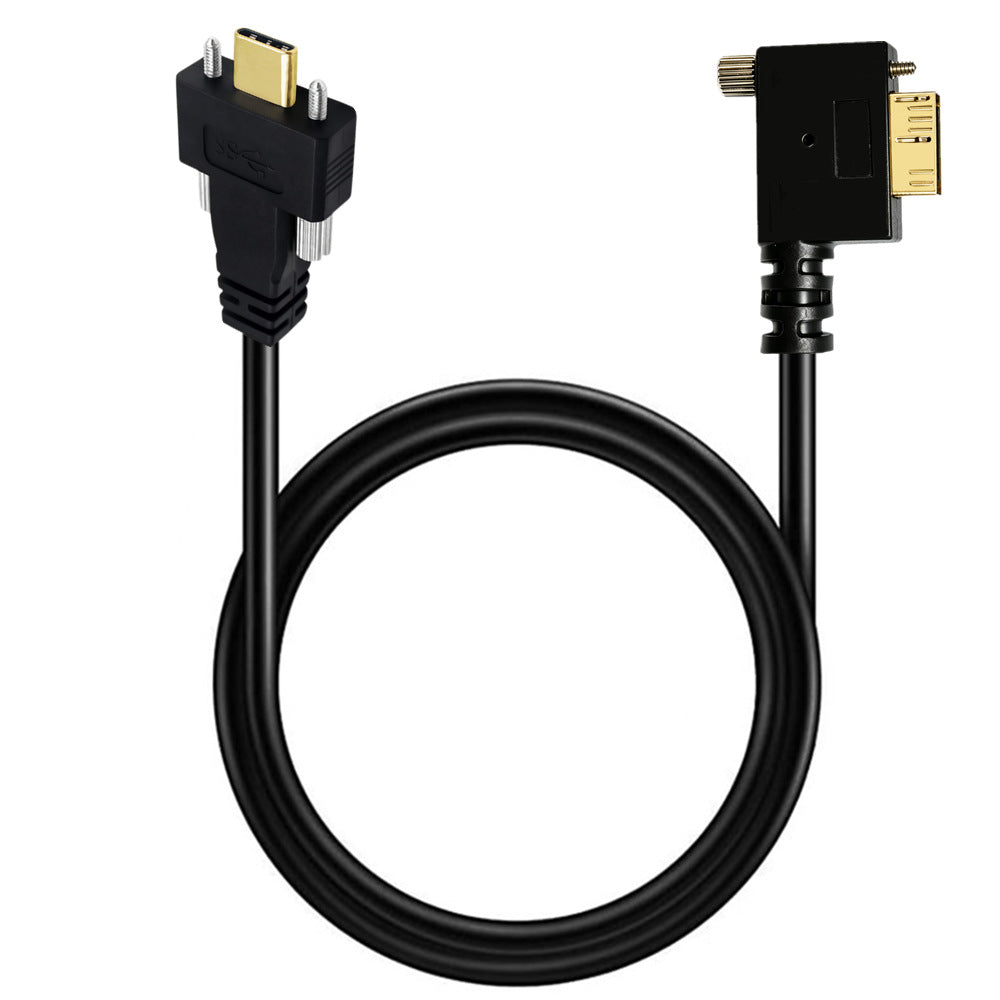

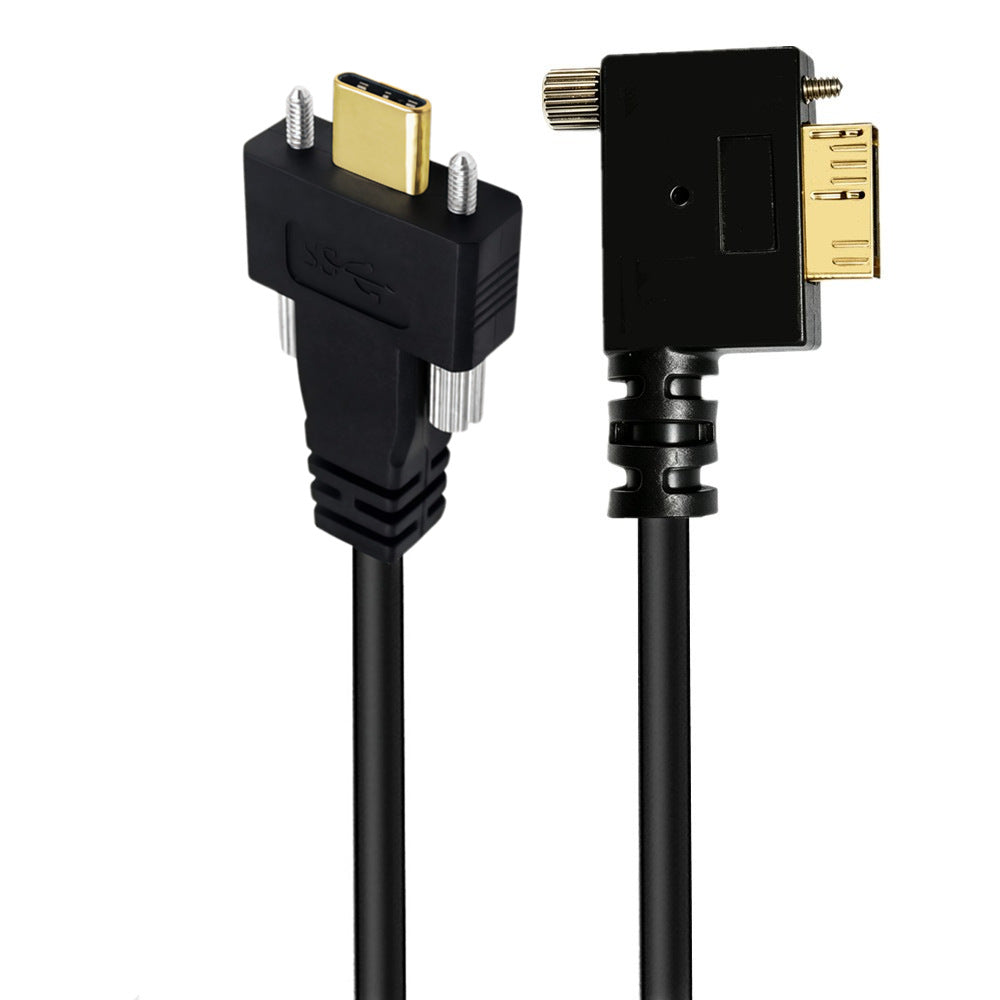

Create a secure USB 3.0 connection between industrial equipment with this locking USB-C male to Micro USB 3.0 Type-B male cable.
Both connectors feature screw-locking hardware to help prevent accidental disconnection caused by vibration, movement or repeated equipment use. It is suitable for industrial cameras, machine-vision systems, data-acquisition equipment, embedded computers, medical instruments and automated terminals.
The USB-C connector is available in straight and multiple 90° angled configurations, making it easier to route the cable inside compact equipment, control cabinets and restricted installation spaces.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male cable
• Screw-locking hardware on both connectors
• Designed for secure industrial equipment connections
• Available with straight or 90° angled USB-C connectors
• Angle options include up, down, left and right
• Supports USB 3.0 Gen 1 data transfer up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Shielded construction helps reduce electromagnetic interference
• Suitable for industrial cameras and machine-vision equipment
• Helps prevent loose connections in vibration-prone environments
• Available in 0.6m and 1m lengths
• Data connection only
• Does not support DisplayPort video output or USB Power Delivery charging
Connector Configuration:
USB-C End:
• 1 x USB Type-C male connector
• Screw-locking retention system
• Straight or 90° angled versions available
Micro USB End:
• 1 x Micro USB 3.0 Type-B male connector
• Dual screw-locking retention system
• Designed for compatible industrial camera and equipment ports
Available USB-C Connector Directions:
• Straight
• Up angle
• Down angle
• Left angle
• Right angle
Important Angle Information:
USB-C is reversible, but the physical cable exit direction depends on the orientation of the equipment port and the viewing position.
Please check the connector orientation and installation space carefully before selecting an angled version.
Industrial Applications:
• Machine-vision cameras
• Industrial USB cameras
• Image-acquisition systems
• Factory automation equipment
• Embedded industrial computers
• Data-acquisition devices
• Laboratory testing instruments
• Medical equipment
• Automated retail terminals
• Self-service kiosks
• Vehicle-mounted industrial systems
• Custom equipment panels and enclosures

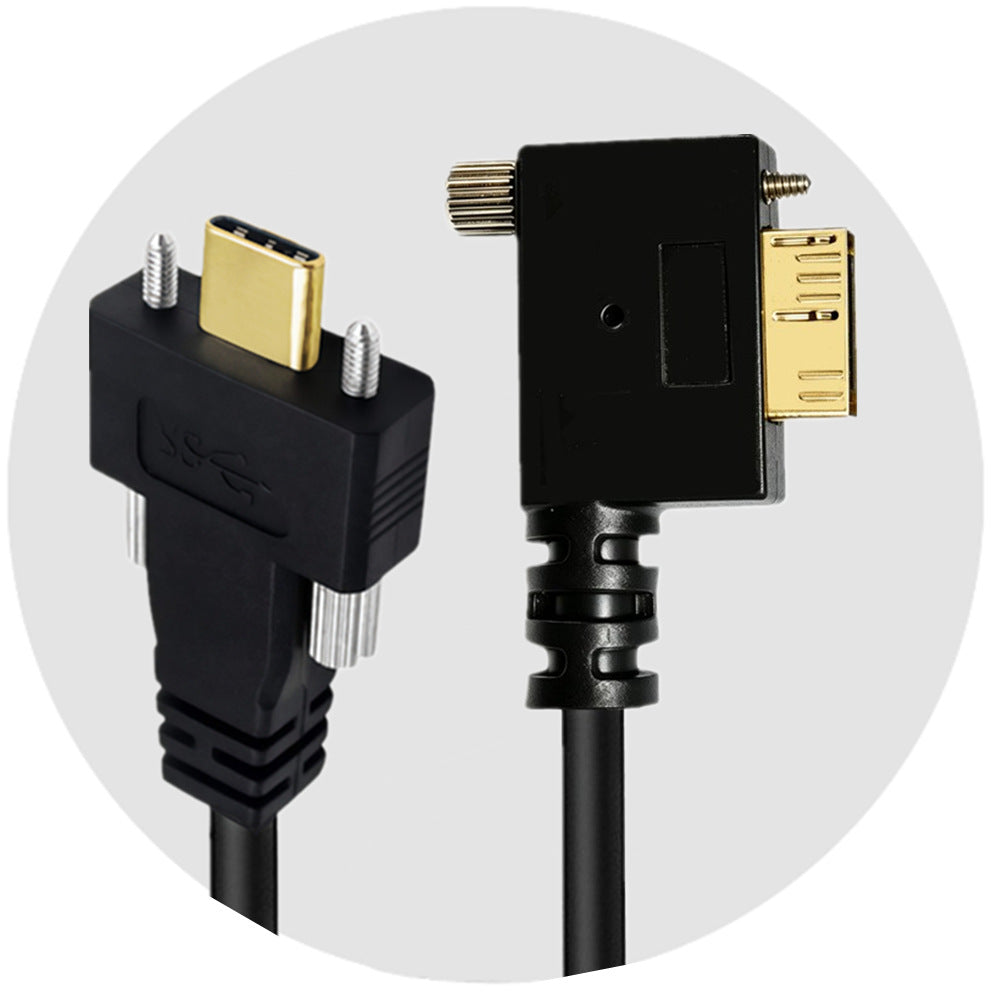

Secure Screw-Locking Design:
The locking screws help retain both connectors after installation. This reduces the risk of disconnection in equipment exposed to movement, vibration or regular maintenance.
The locking system is only compatible with equipment featuring the correct threaded mounting points. Check the screw spacing and connector orientation before ordering.
USB 3.0 Performance:
The cable supports USB 3.0 Gen 1 data transfer at up to 5Gbps when used with compatible USB 3.0 equipment.
Actual transfer speed depends on the connected devices, controller, cable length, operating system and overall installation environment.
Shielded Cable Construction:
The internal shielding helps reduce interference from motors, power supplies and other electrical equipment commonly found in industrial environments.
For installations with particularly high electromagnetic interference, a customised version with ferrite cores may be available.
Installation:
1. Switch off the connected equipment before installation.
2. Align the USB-C connector with the compatible equipment port.
3. Insert the connector fully without forcing it.
4. Tighten the USB-C locking screw evenly.
5. Connect the Micro USB 3.0 Type-B plug to the compatible device.
6. Tighten both Micro USB locking screws evenly.
7. Route the cable without excessive tension or sharp bends.
8. Restore power and confirm that the connected device is detected correctly.
Important Compatibility Information:
• Both ends are male connectors.
• The USB-C end requires a compatible female USB-C port.
• The Micro USB end requires a Micro USB 3.0 Type-B female port.
• The locking screws require matching threaded mounting points on the equipment.
• Locking screw dimensions and spacing should be checked before ordering.
• This cable is intended primarily for USB data communication.
• It does not support USB-C DisplayPort Alternate Mode video output.
• It does not support USB Power Delivery fast charging.
• High-power devices may require a separately powered USB hub or independent power supply.
• Micro USB 3.0 Type-B is different from the smaller Micro USB 2.0 connector.
Available Lengths:
• 0.6m
• 1m
Custom Options:
• Alternative cable lengths
• Different USB-C exit directions
• Ferrite core installation
• Custom screw spacing
• Alternative connector moulding
• OEM production for industrial equipment
What’s Included:
• 1 x Locking USB-C male to Micro USB 3.0 Type-B male industrial cable
