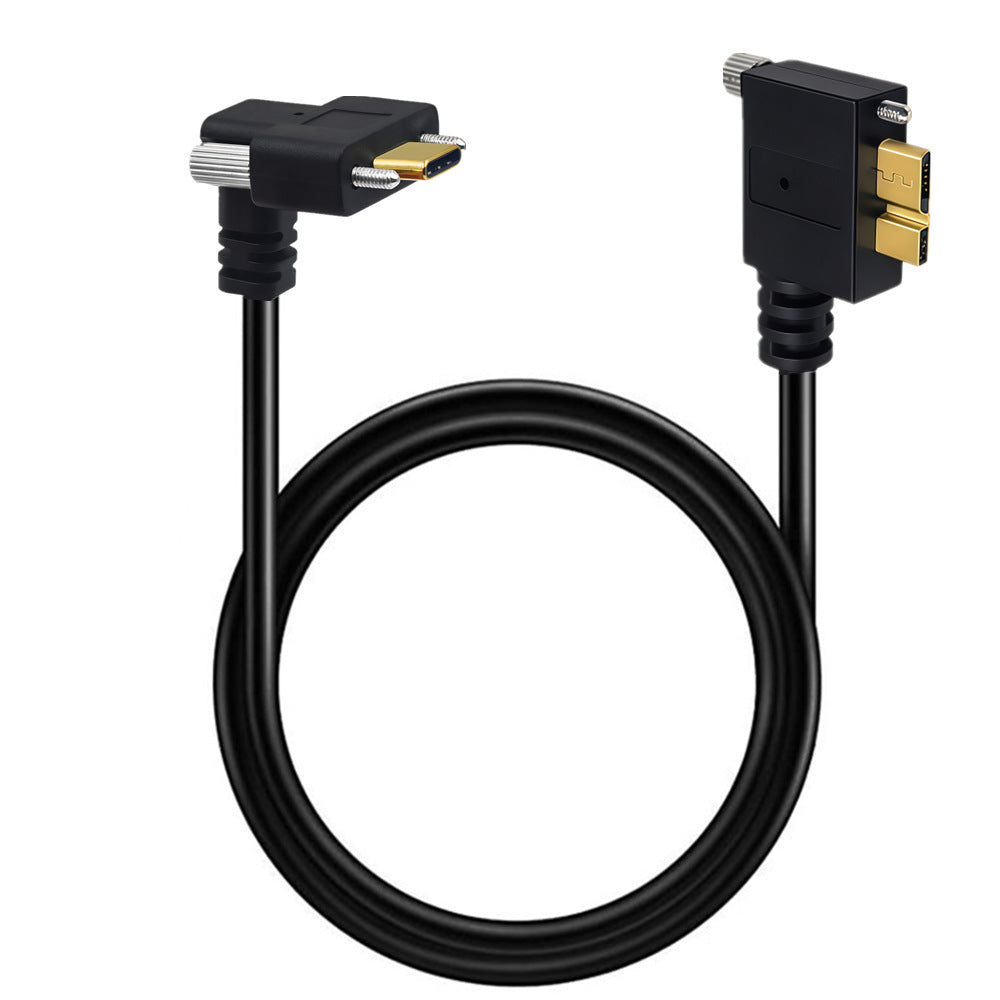

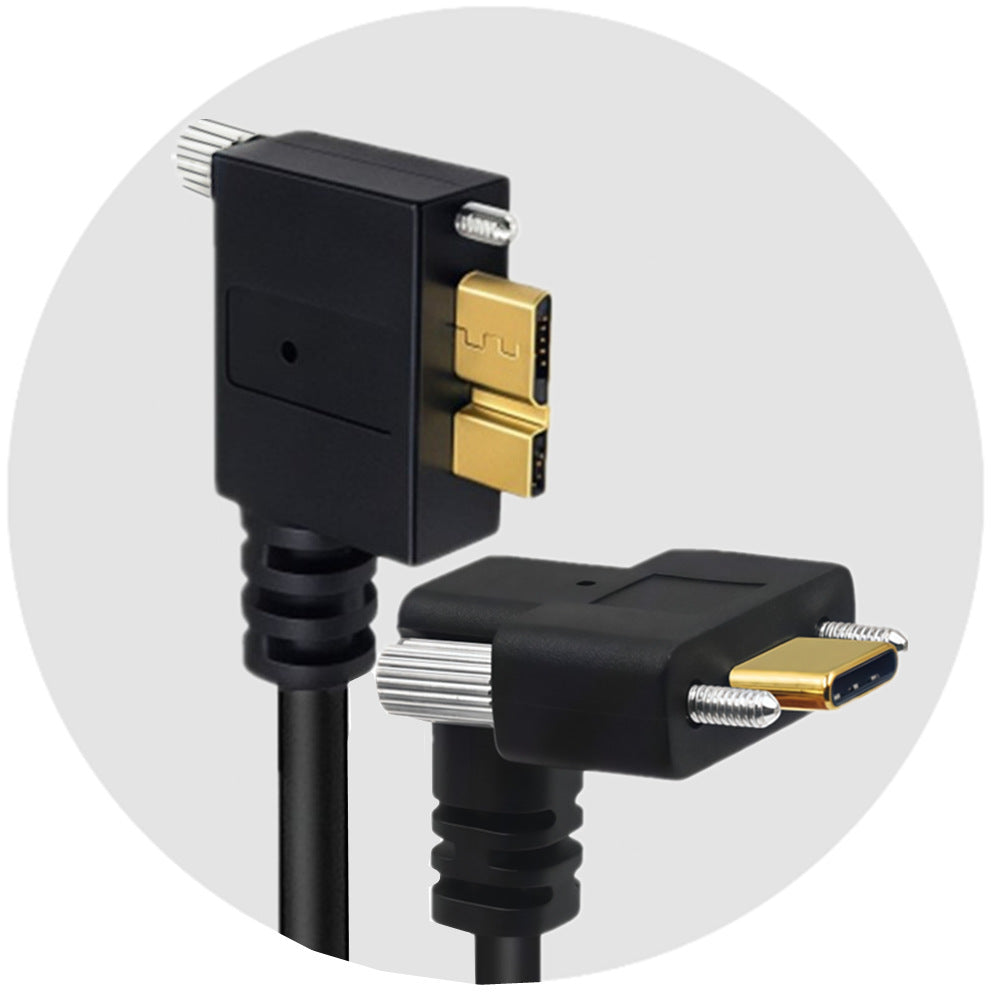

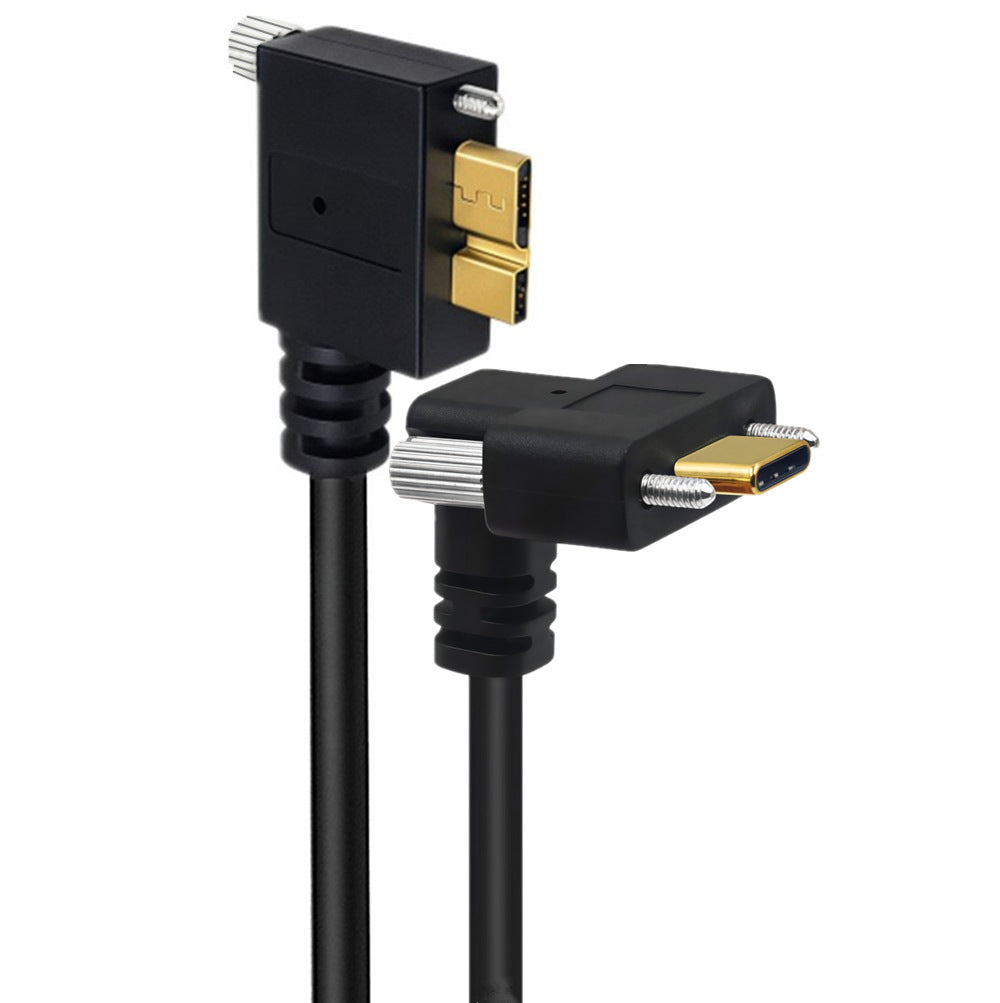

Create a secure USB 3.0 data connection in compact industrial equipment with this dual screw-locking up-angle USB-C male to left-angle Micro USB 3.0 Type-B male cable.
Both connectors feature screw-locking retention for compatible industrial equipment ports. The 90-degree up-angle USB-C connector and 90-degree left-angle Micro USB 3.0 connector help reduce installation clearance, improve cable routing and prevent accidental disconnection in vibration-prone environments.
This cable is suitable for industrial cameras, machine-vision systems, embedded computers, data-acquisition equipment, medical instruments, self-service terminals and other professional USB installations.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male cable
• 90-degree up-angle USB-C connector
• 90-degree left-angle Micro USB 3.0 Type-B connector
• Dual screw-locking retention at both ends
• Supports USB 3.0 Gen 1 data transfer up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Angled design for restricted installation spaces
• Helps reduce cable strain and connector movement
• Secure connection for vibration-prone equipment
• Shielded construction helps reduce electromagnetic interference
• Suitable for industrial cameras and machine-vision equipment
• Available in 0.6m and 1m lengths
• USB data connection only
• Does not support DisplayPort video output
• Does not support USB Power Delivery fast charging
Connector Configuration:
USB-C End:
• 1 x USB Type-C male connector
• 90-degree up-angle orientation
• Dual screw-locking retention
• Designed for compatible locking USB-C equipment ports
Micro USB End:
• 1 x Micro USB 3.0 Type-B male connector
• 90-degree left-angle orientation
• Dual screw-locking retention
• Designed for compatible industrial camera and equipment ports
Space-Saving Angled Design:
The angled connectors route the cable away from nearby components, equipment walls and restricted spaces.
This configuration can help:
• Reduce rear and side clearance requirements
• Improve internal cable routing
• Prevent excessive bending near the connector
• Reduce strain on equipment ports
• Avoid interference with neighbouring connectors
• Keep industrial installations tidy and secure
Industrial Applications:
• Industrial vision cameras
• Machine-vision inspection systems
• Image-acquisition equipment
• Factory automation systems
• Embedded industrial computers
• Data-acquisition devices
• Laboratory testing instruments
• Medical equipment
• Self-service terminals
• Automated retail systems
• Vehicle-mounted industrial equipment
• Compact control cabinets
• Custom equipment enclosures
Secure Screw-Locking Connection:
The locking screws help retain both connectors after installation, reducing the risk of temporary disconnection, signal interruption or data loss caused by vibration and equipment movement.
The connected equipment must feature compatible threaded mounting points. Confirm the screw spacing, thread dimensions and connector orientation before ordering.
USB 3.0 Performance:
The cable supports USB 3.0 Gen 1 transfer speeds up to 5Gbps when used with compatible USB 3.0 equipment.
Actual transfer speed depends on the connected devices, USB controller, operating system, cable length and installation environment.
Shielded Cable Construction:
The shielded cable structure helps reduce interference from motors, power supplies and other electrical equipment commonly found in industrial environments.
Customised versions with ferrite cores may be available for installations with high electromagnetic interference.
Installation:
1. Switch off the connected equipment before installation.
2. Align the up-angle USB-C plug with the compatible USB-C port.
3. Insert the connector fully without forcing it.
4. Tighten both USB-C locking screws evenly.
5. Insert the left-angle Micro USB 3.0 Type-B connector into the compatible equipment port.
6. Tighten both Micro USB locking screws evenly without overtightening.
7. Route the cable without excessive tension, crushing or sharp bends.
8. Restore power and confirm that the connected equipment is detected correctly.
Important Compatibility Information:
• Both connectors are male.
• The USB-C end requires a compatible female USB-C port.
• The Micro USB end requires a Micro USB 3.0 Type-B female port.
• Matching threaded mounting points are required at both ends.
• Confirm the locking-screw spacing and thread size before ordering.
• Confirm that both cable-exit directions match your installation.
• Angle descriptions depend on the viewing position and equipment-port orientation.
• Micro USB 3.0 Type-B is different from Micro USB 2.0.
• This cable is intended primarily for USB data communication.
• It does not support USB-C DisplayPort Alternate Mode.
• It does not support USB Power Delivery fast charging.
• High-power USB devices may require a powered USB hub or separate power supply.
Available Lengths:
• 0.6m
• 1m
Custom Options:
• Alternative cable lengths
• Different USB-C connector directions
• Different Micro USB connector directions
• Custom locking-screw spacing
• Ferrite core installation
• Custom connector moulding
• OEM cable production
What’s Included:
• 1 x Dual screw-locking up-angle USB-C male to left-angle Micro USB 3.0 Type-B male industrial cable
