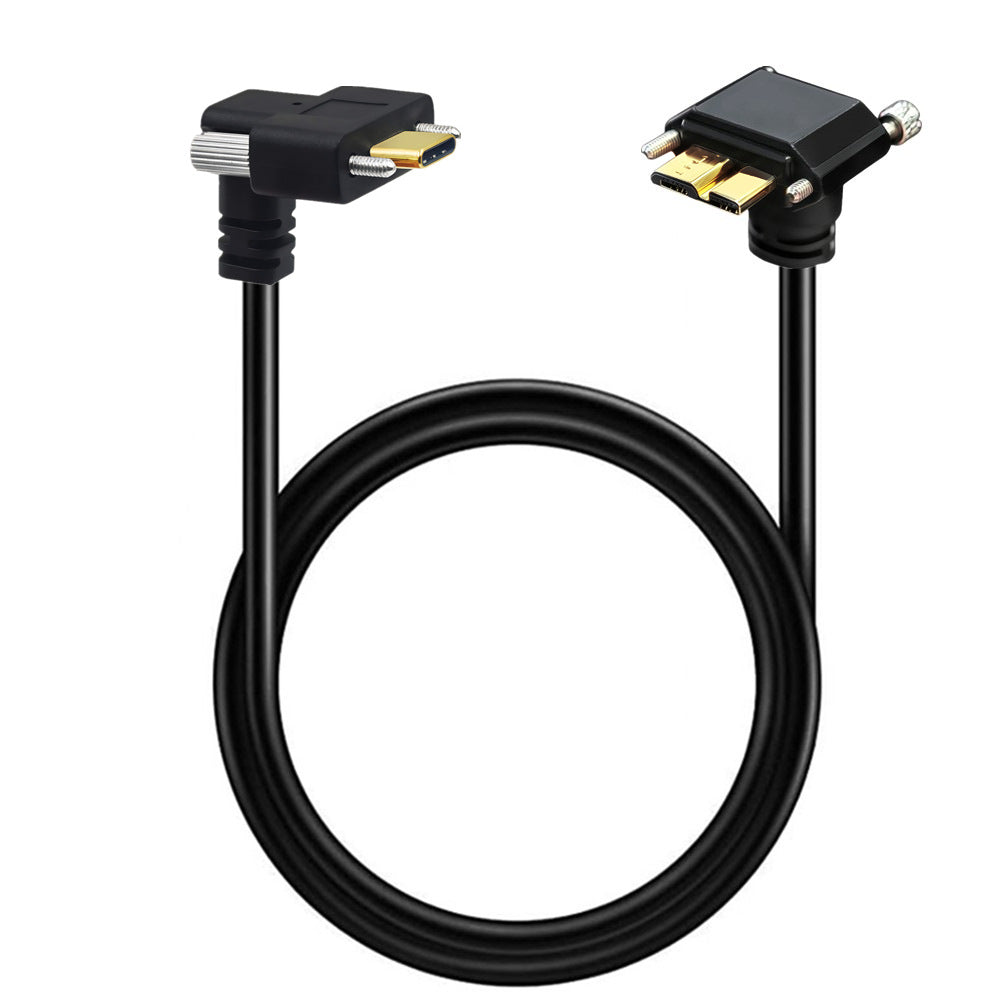

Create a secure USB 3.0 data connection in compact industrial installations with this locking up-angle USB-C male to up-angle Micro USB 3.0 Type-B male cable.

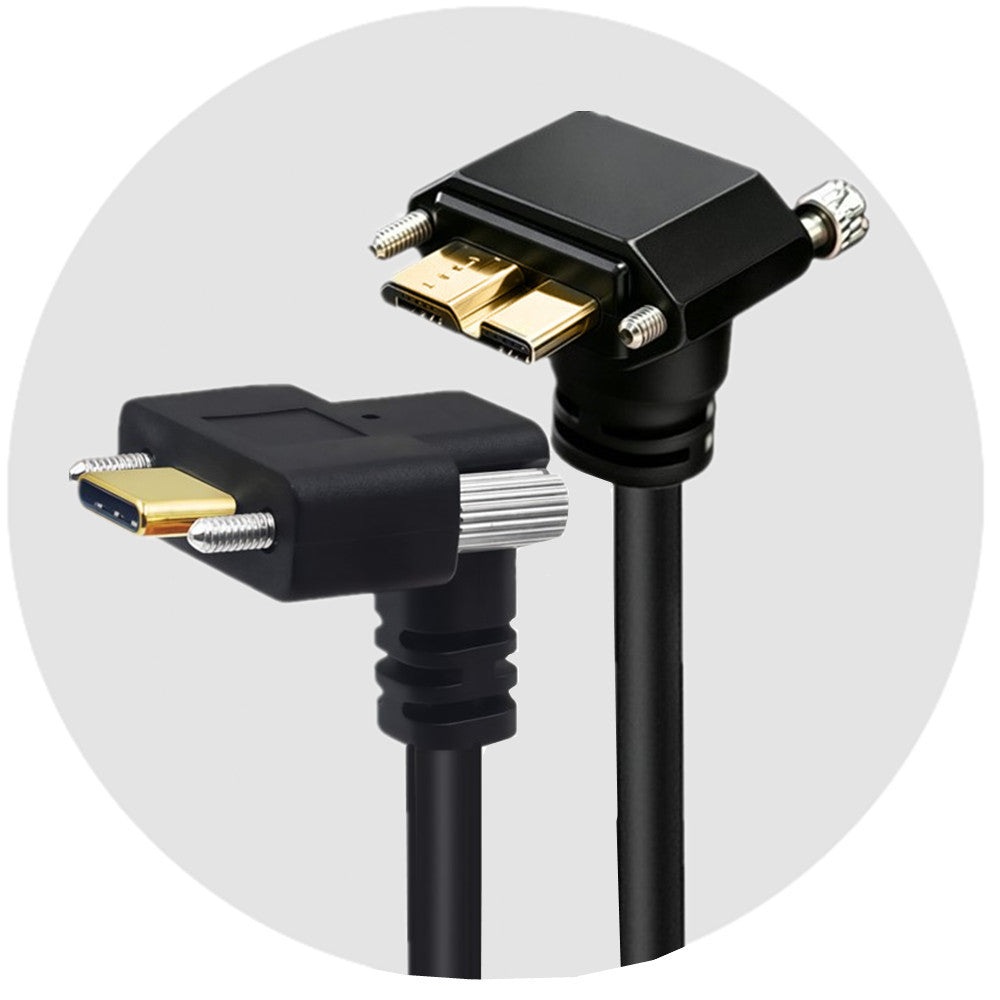

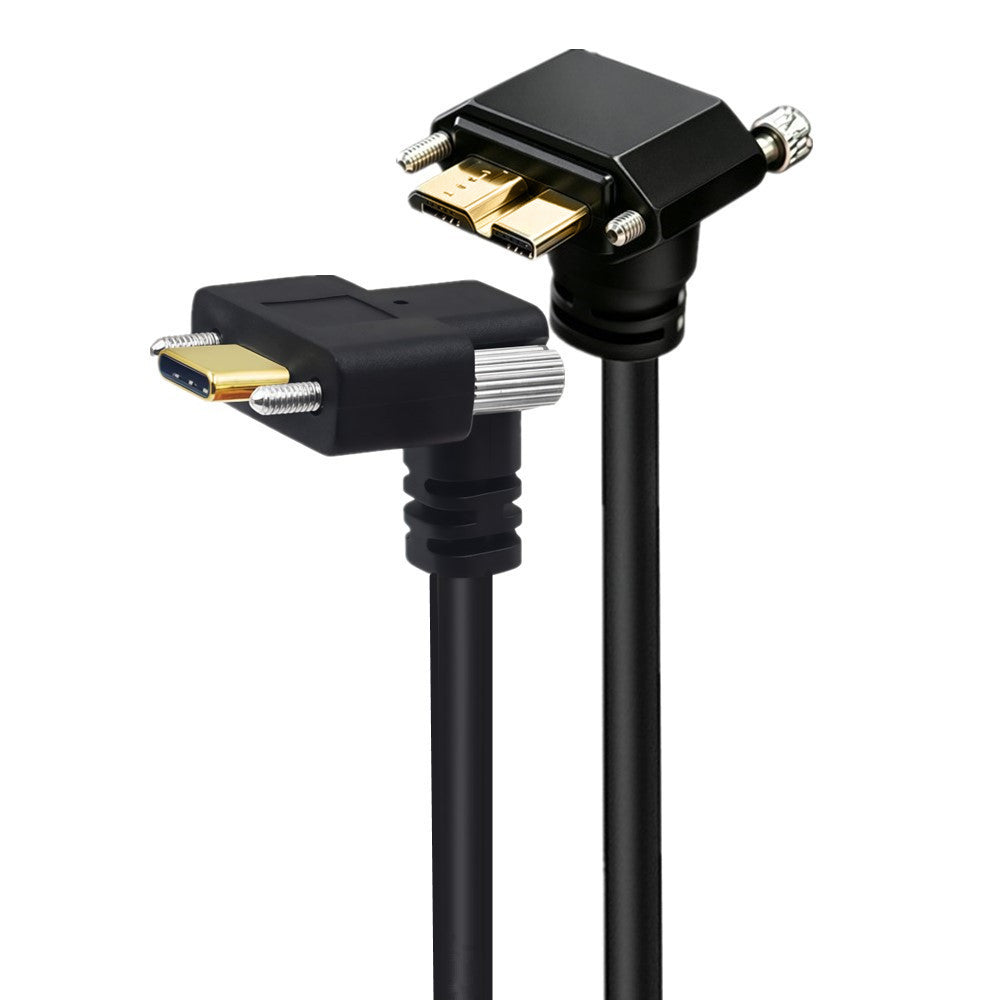

Both connectors feature a 90-degree angled design and screw-locking retention. The USB-C connector uses dual locking screws, while the Micro USB 3.0 Type-B connector includes screw retention for compatible industrial equipment.
The angled connectors reduce the space required behind connected devices and help minimise cable strain, making this cable suitable for industrial cameras, machine-vision systems, embedded computers, data-acquisition equipment and self-service terminals.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male cable
• 90-degree up-angle USB-C connector
• 90-degree up-angle Micro USB 3.0 Type-B connector
• Screw-locking retention at both ends
• Designed for industrial and vibration-prone installations
• Supports USB 3.0 Gen 1 data transfer up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Angled connectors reduce installation clearance
• Helps prevent sharp bending at the connector ends
• Shielded construction helps reduce electromagnetic interference
• Suitable for industrial cameras and machine-vision equipment
• Available in 0.6m and 1m lengths
• Intended for USB data communication
• Does not support DisplayPort video output
• Does not support USB Power Delivery fast charging
Connector Configuration:
USB-C End:
• 1 x USB Type-C male connector
• 90-degree up-angle orientation
• Dual locking screws
• Designed for compatible screw-locking USB-C ports

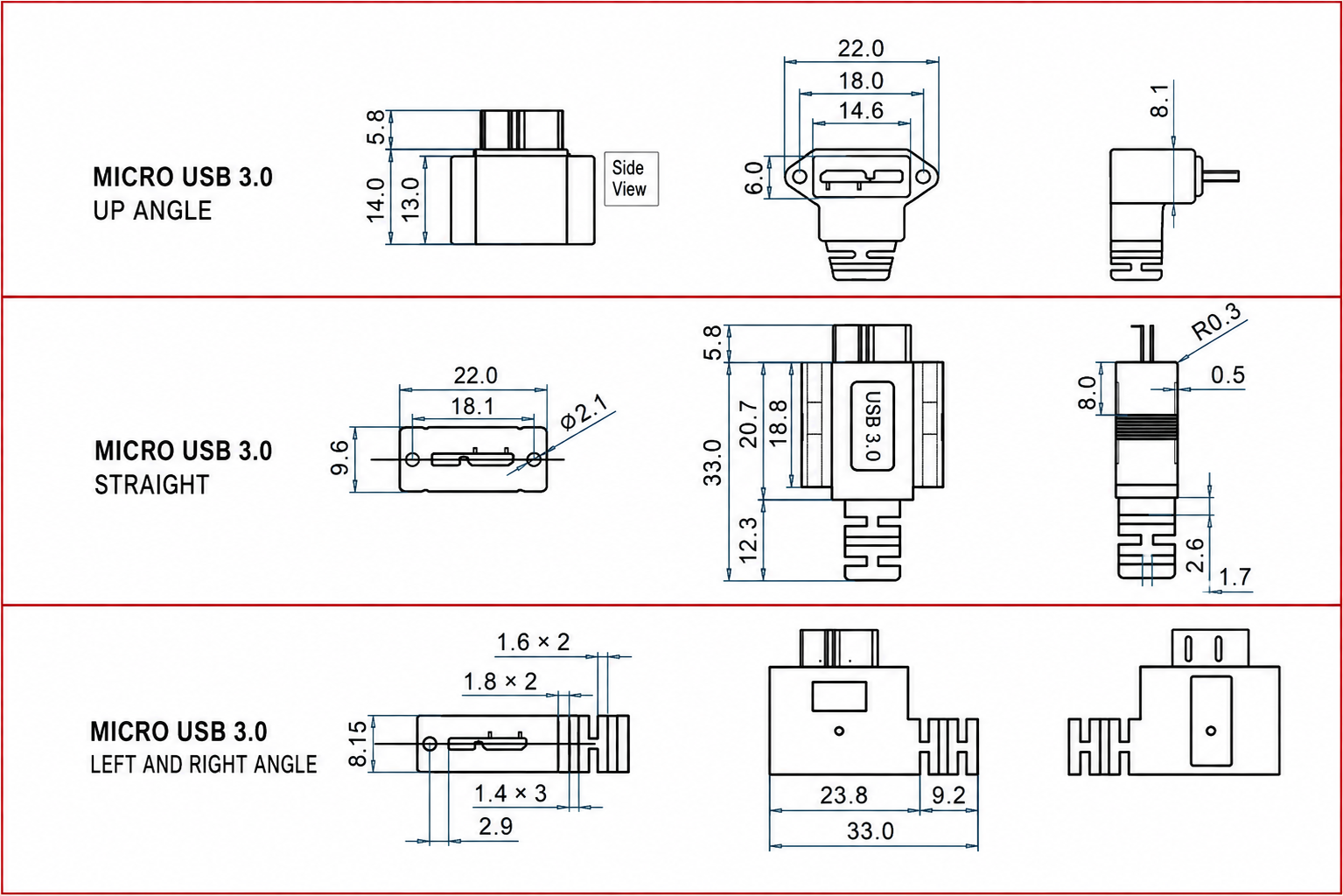

Micro USB End:
• 1 x Micro USB 3.0 Type-B male connector
• 90-degree up-angle orientation
• Screw-locking retention
• Designed for compatible industrial camera and equipment ports
Up-Angle Installation Advantages:
Both connectors direct the cable upwards from the connected equipment ports.
This configuration can help:
• Reduce rear clearance requirements
• Route the cable neatly above connected equipment
• Prevent the cable from pressing against enclosure walls
• Reduce leverage and strain on equipment ports
• Avoid excessive bending near the connector mouldings
• Improve cable management in compact installations
Industrial Applications:
• Industrial vision cameras
• Machine-vision inspection systems
• Image-acquisition equipment
• Factory automation equipment
• Embedded industrial computers
• Data-acquisition devices
• Laboratory testing instruments
• Medical equipment
• Self-service terminals and kiosks
• Automated retail systems
• Vehicle-mounted industrial equipment
• Compact control cabinets
• Custom equipment enclosures
Secure Screw-Locking Design:
The locking screws secure both connectors to compatible threaded mounting points. This helps reduce accidental disconnection and intermittent data loss in equipment exposed to vibration, movement or repeated use.
The locking hardware requires compatible ports with matching screw spacing and thread dimensions. Check the equipment specifications before ordering.
USB 3.0 Performance:
The cable supports USB 3.0 Gen 1 data transfer rates up to 5Gbps when connected to compatible USB 3.0 equipment.
Actual performance depends on the connected devices, USB controller, operating system, cable length and installation environment.
Shielded Cable Construction:
The shielded cable structure helps reduce interference from motors, power supplies and other electrical equipment commonly found in industrial environments.
Customised versions with ferrite cores may be available for installations with high electromagnetic interference.
Installation:
1. Switch off the connected equipment before installation.
2. Align the up-angle USB-C plug with the compatible USB-C port.
3. Insert the connector fully without forcing it.
4. Tighten both USB-C locking screws evenly.
5. Insert the up-angle Micro USB 3.0 Type-B connector into the compatible equipment port.
6. Tighten the Micro USB locking screws evenly without overtightening.
7. Route the cable without crushing, excessive tension or sharp bends.
8. Restore power and confirm that the connected equipment is detected correctly.
Important Compatibility Information:
• Both connectors are male.
• The USB-C end requires a compatible female USB-C port.
• The Micro USB end requires a Micro USB 3.0 Type-B female port.
• Matching threaded mounting points are required for the locking screws.
• Confirm the screw spacing and thread size before ordering.
• Confirm that both up-angle cable-exit directions suit the installation.
• Angle direction may appear reversed depending on the viewing position and port orientation.
• Micro USB 3.0 Type-B is different from Micro USB 2.0.
• This cable is intended primarily for USB data communication.
• It does not support USB-C DisplayPort Alternate Mode.
• It does not support USB Power Delivery fast charging.
• High-power USB devices may require a powered USB hub or separate power supply.
Available Lengths:
• 0.6m
• 1m
Custom Options:
• Alternative cable lengths
• Different USB-C connector directions
• Different Micro USB connector directions
• Custom locking-screw spacing
• Ferrite core installation
• Custom connector moulding
• OEM cable production
What’s Included:
• 1 x Locking up-angle USB-C male to up-angle Micro USB 3.0 Type-B male industrial cable
