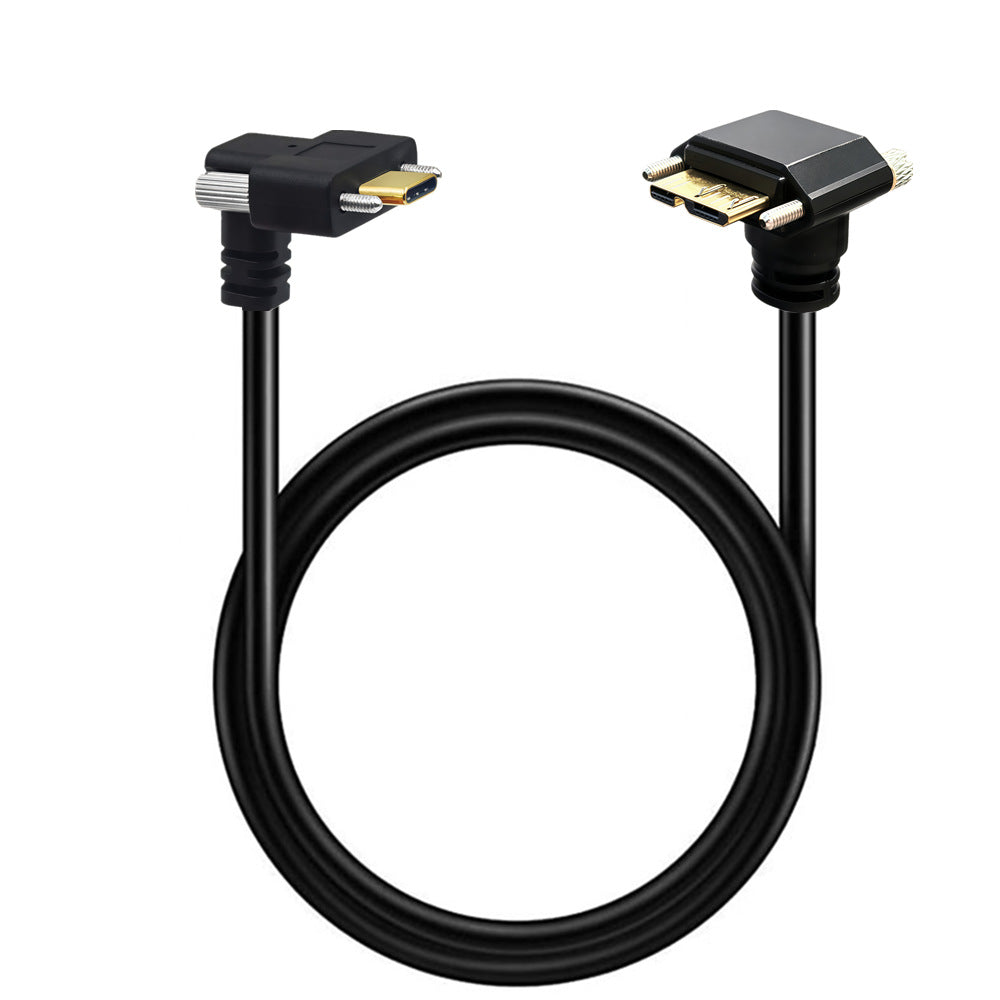

Create a secure USB 3.0 data connection in restricted equipment spaces with this locking up-angle USB-C male to down-angle Micro USB 3.0 Type-B male cable.

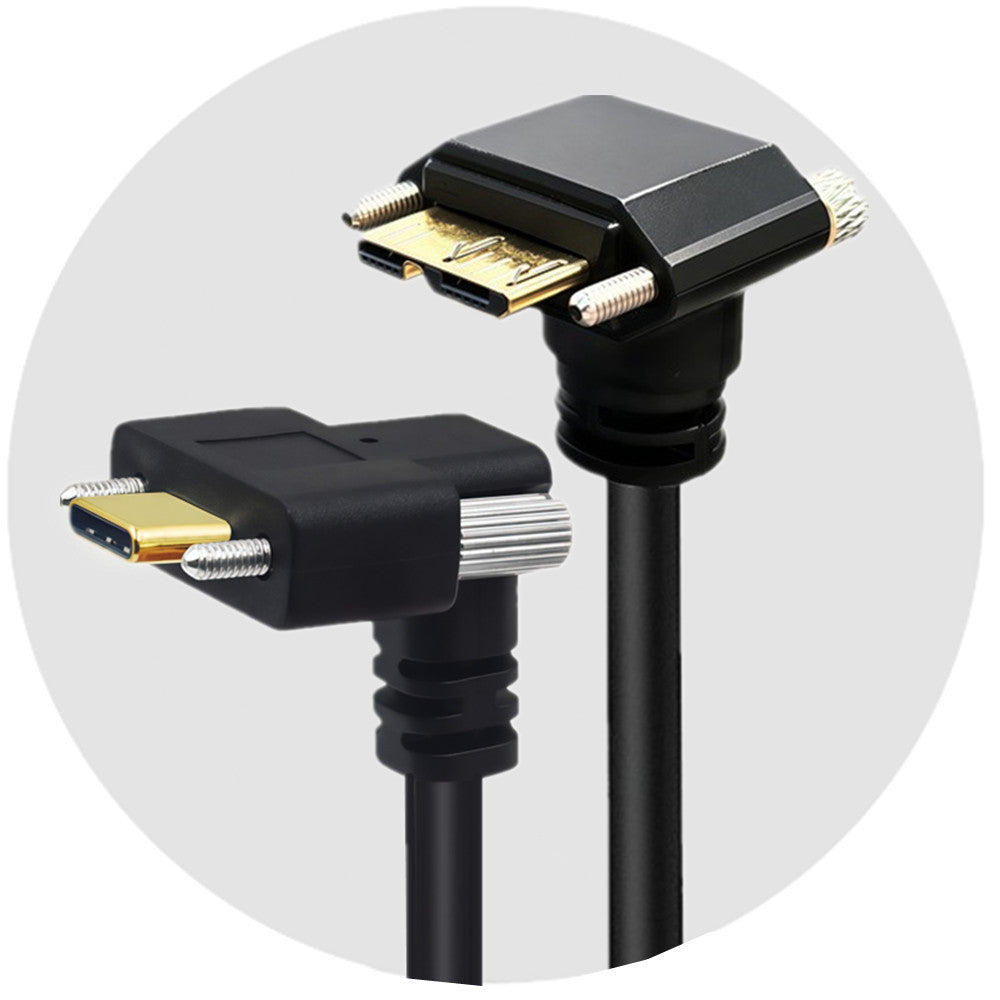

The USB-C connector uses a 90-degree up-angle design with dual locking screws. The Micro USB 3.0 Type-B connector uses a 90-degree down-angle design with screw retention. Both connectors can be secured to compatible threaded equipment ports, helping prevent accidental disconnection caused by vibration, movement or repeated use.

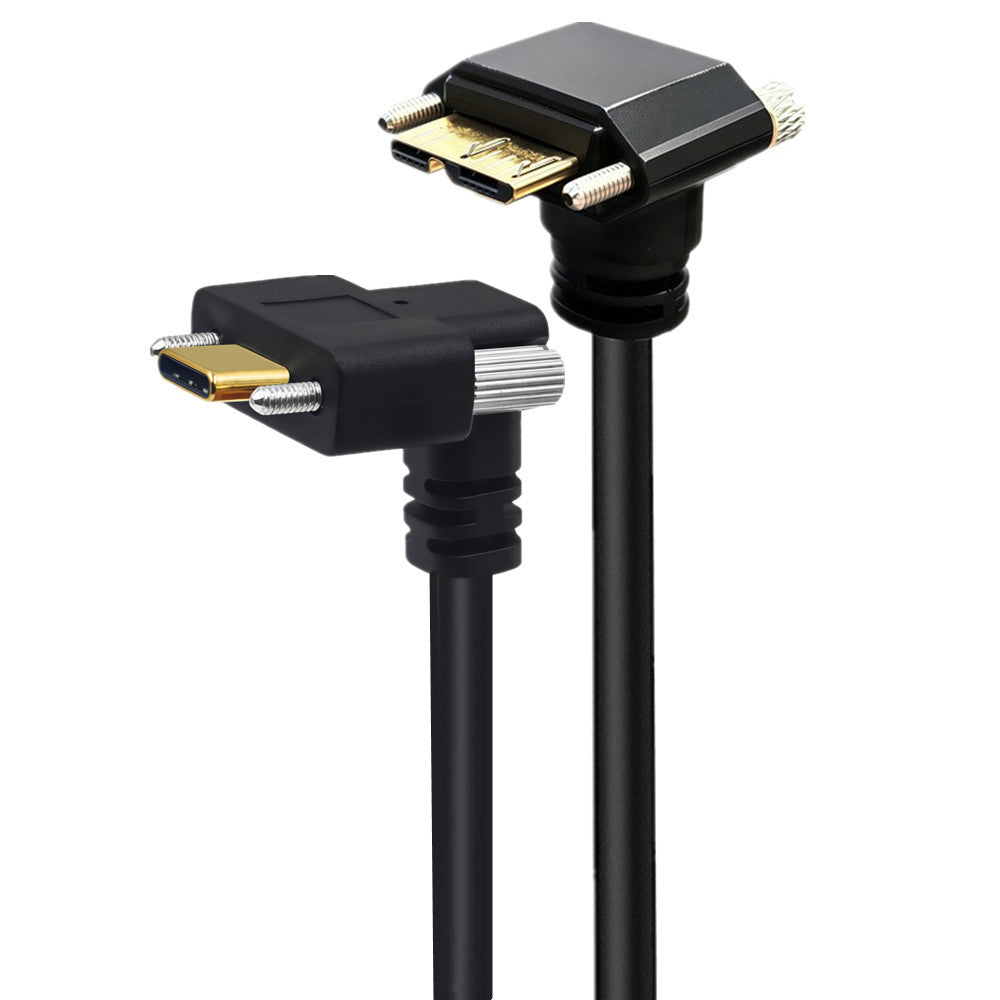

The opposing angled connectors support neat cable routing inside embedded computers, industrial cameras, control cabinets, self-service terminals and other compact equipment installations.
Key Features:
• USB-C male to Micro USB 3.0 Type-B male cable
• 90-degree up-angle USB-C connector
• 90-degree down-angle Micro USB 3.0 Type-B connector
• Screw-locking retention at both ends
• Designed for vibration-prone industrial installations
• Supports USB 3.0 Gen 1 data transfer up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Angled connectors reduce rear clearance requirements
• Helps minimise cable strain and sharp bending
• Shielded construction helps reduce electromagnetic interference
• Suitable for industrial cameras and machine-vision systems
• Available in 0.6m and 1m lengths
• Intended for USB data communication
• Does not support DisplayPort video output
• Does not support USB Power Delivery fast charging
Connector Configuration:
USB-C End:
• 1 x USB Type-C male connector
• 90-degree up-angle orientation
• Dual locking screws
• Designed for compatible screw-locking USB-C ports
Micro USB End:
• 1 x Micro USB 3.0 Type-B male connector
• 90-degree down-angle orientation
• Screw-locking retention
• Designed for compatible industrial cameras and equipment ports
Angled Installation Advantages:
The USB-C connector routes the cable upwards, while the Micro USB 3.0 connector routes the cable downwards.
This configuration can help:
• Reduce installation space behind connected equipment
• Route the cable neatly around internal components
• Prevent cables from pressing against enclosure walls
• Reduce leverage and strain on equipment ports
• Avoid excessive bending near the connector mouldings
• Improve cable management inside compact enclosures
Industrial Applications:
• Industrial vision cameras
• Machine-vision inspection systems
• Image-acquisition equipment
• Factory automation systems
• Embedded industrial computers
• Data-acquisition devices
• Laboratory testing instruments
• Medical equipment
• Self-service terminals and kiosks
• Automated retail equipment
• Vehicle-mounted industrial systems
• Compact control cabinets
• Custom equipment enclosures
Secure Screw-Locking Design:
The locking screws secure the connectors to compatible threaded mounting points, helping reduce temporary disconnection and data loss in equipment exposed to movement or vibration.
The screw-locking system requires compatible equipment ports with matching screw spacing and thread dimensions. Please check the equipment specifications before ordering.
USB 3.0 Performance:
The cable supports USB 3.0 Gen 1 data transfer rates up to 5Gbps when connected to compatible USB 3.0 equipment.
Actual transfer speed depends on the connected equipment, USB controller, operating system, cable length and installation environment.
Shielded Cable Construction:
The shielded cable construction helps reduce interference from motors, power supplies and other electrical equipment commonly found in industrial environments.
Customised versions with ferrite cores may be available for installations with high levels of electromagnetic interference.
Installation:
1. Switch off the connected equipment before installation.
2. Align the up-angle USB-C plug with the compatible USB-C port.
3. Insert the connector fully without forcing it.
4. Tighten both USB-C locking screws evenly.
5. Insert the down-angle Micro USB 3.0 Type-B connector into the compatible equipment port.
6. Tighten the Micro USB locking screws evenly without overtightening.
7. Route the cable without crushing, excessive tension or sharp bends.
8. Restore power and confirm that the connected equipment is detected correctly.
Important Compatibility Information:
• Both connectors are male.
• The USB-C end requires a compatible female USB-C port.
• The Micro USB end requires a Micro USB 3.0 Type-B female port.
• Matching threaded mounting points are required for the locking screws.
• Confirm the screw spacing and thread size before ordering.
• Confirm that both cable-exit directions suit the equipment installation.
• Angle direction may appear reversed depending on the viewing position and port orientation.
• Micro USB 3.0 Type-B is different from Micro USB 2.0.
• This cable is intended primarily for USB data communication.
• It does not support USB-C DisplayPort Alternate Mode.
• It does not support USB Power Delivery fast charging.
• High-power USB devices may require a powered USB hub or separate power supply.
Available Lengths:
• 0.6m
• 1m
Custom Options:
• Alternative cable lengths
• Different USB-C connector directions
• Different Micro USB connector directions
• Custom locking-screw spacing
• Ferrite core installation
• Custom connector moulding
• OEM production
What’s Included:
• 1 x Locking up-angle USB-C male to down-angle Micro USB 3.0 Type-B male industrial cable
