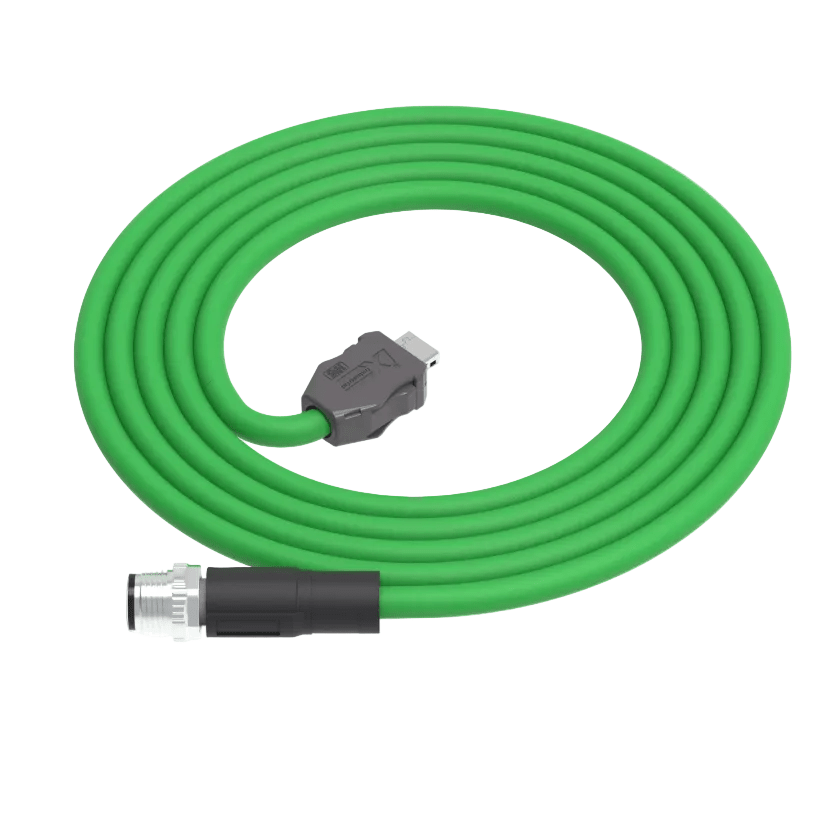

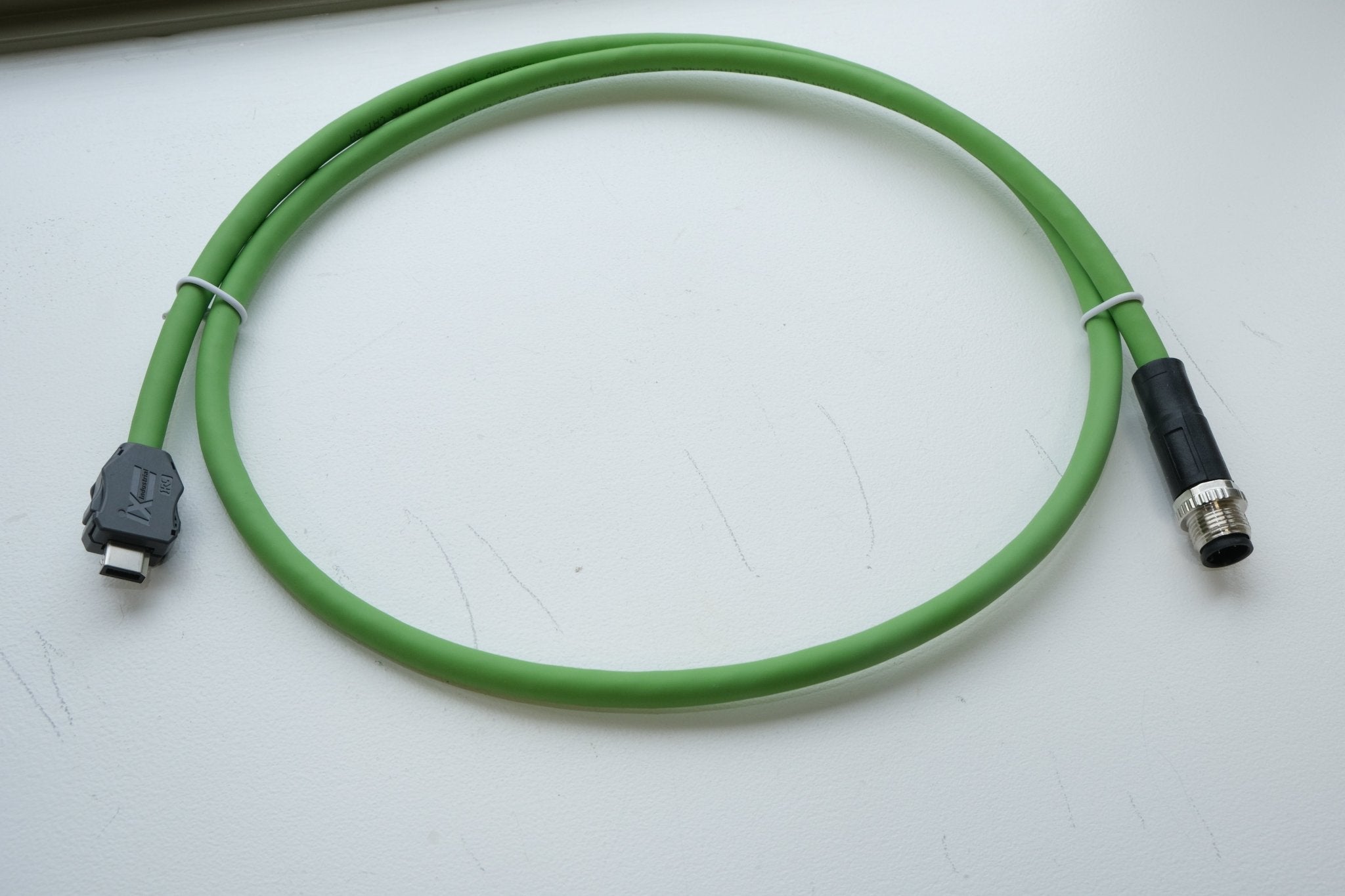

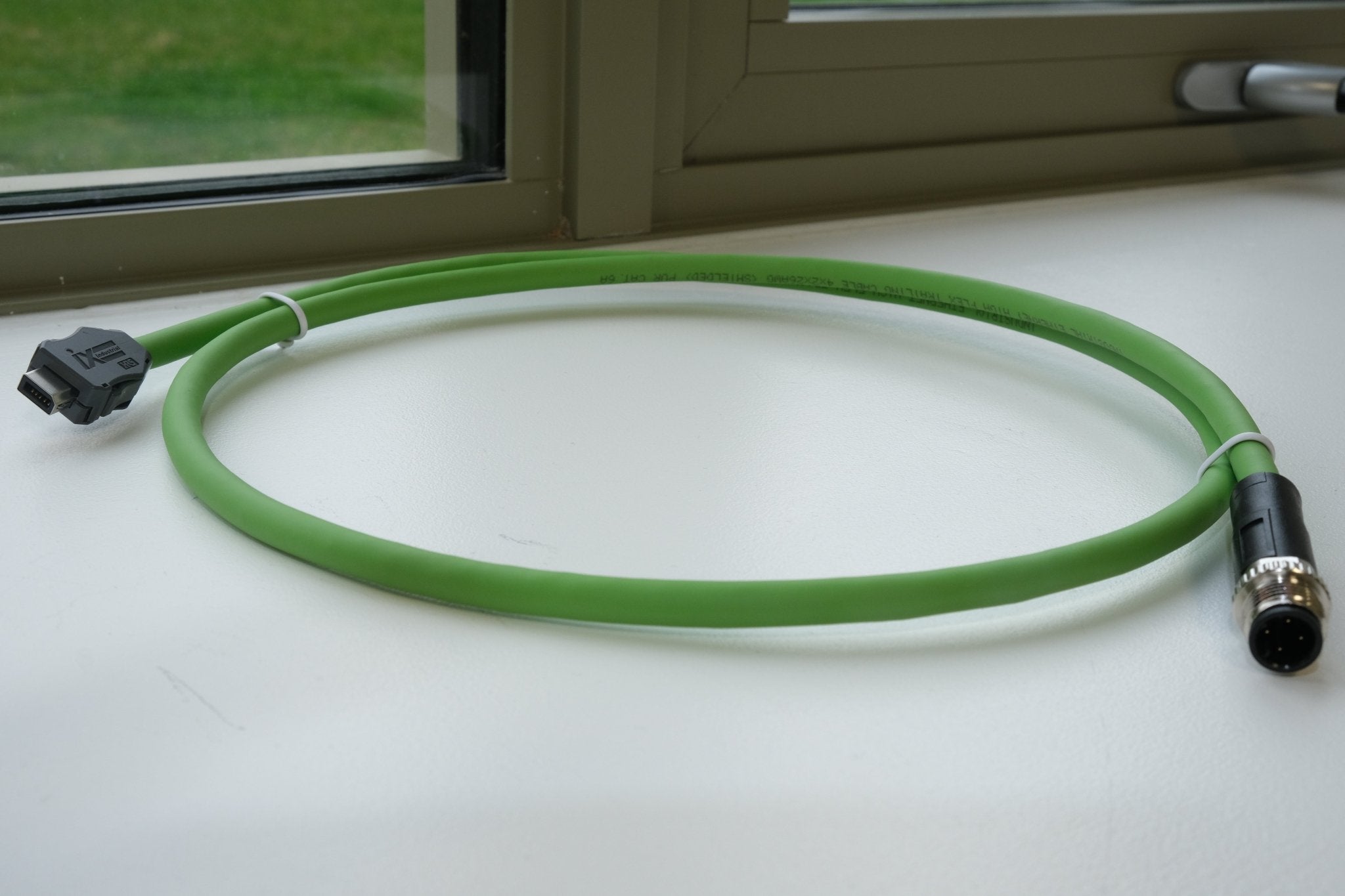

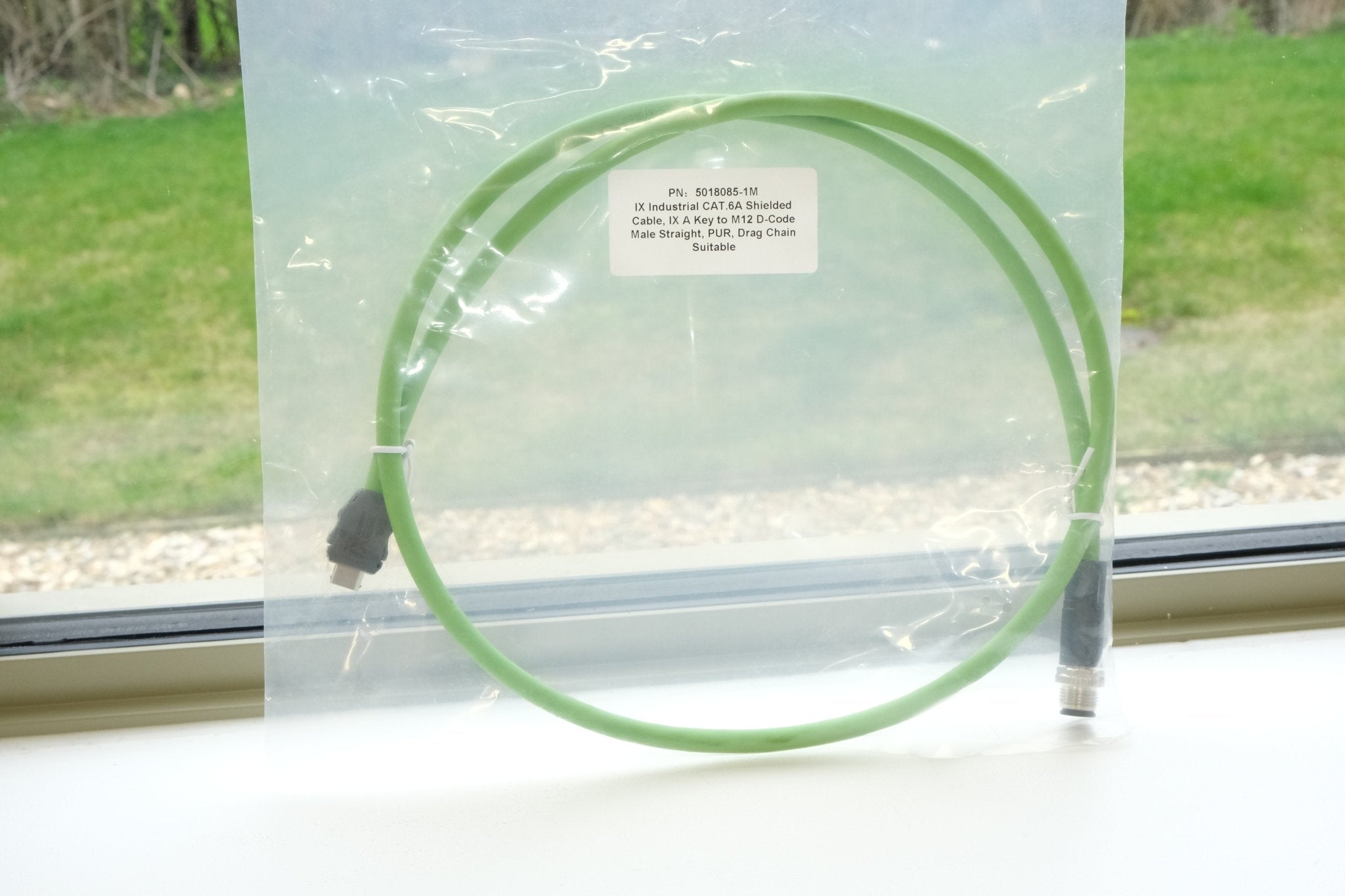

IX Industrial CAT6A Cable – IX A Key Male to M12 D-Code Male Straight, PUR Drag Chain

This IX Industrial A Key to M12 D-Code male cable assembly is designed for space-constrained industrial Ethernet installations where robustness and reliability are critical. Offering a compact alternative to traditional RJ45 connectors, the ix interface reduces footprint by up to 75%, making it ideal for dense control panels, robotics, and automation systems.

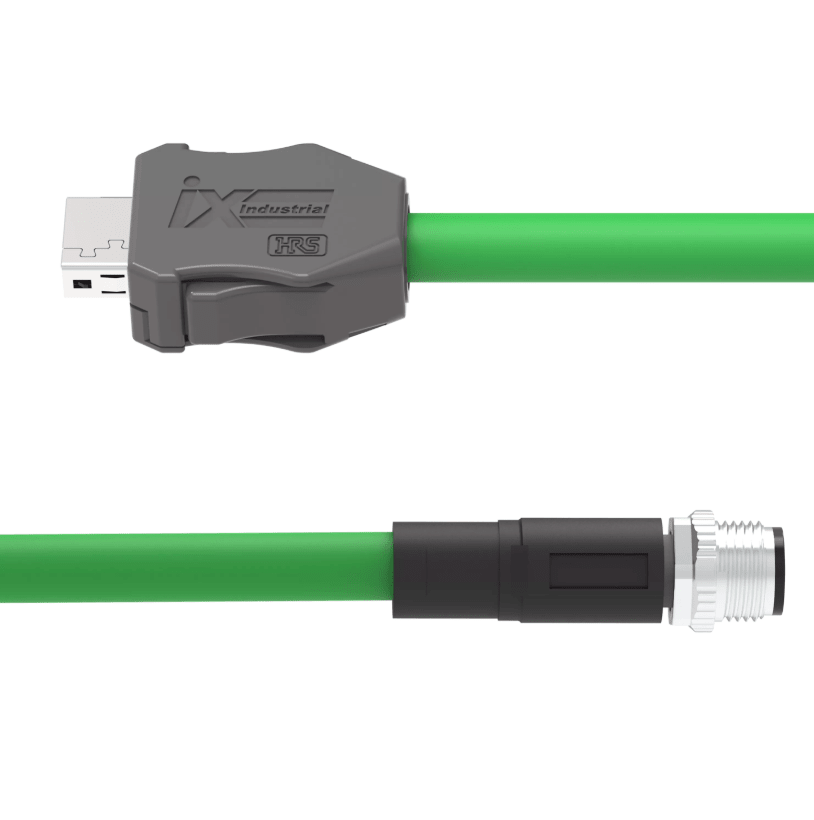

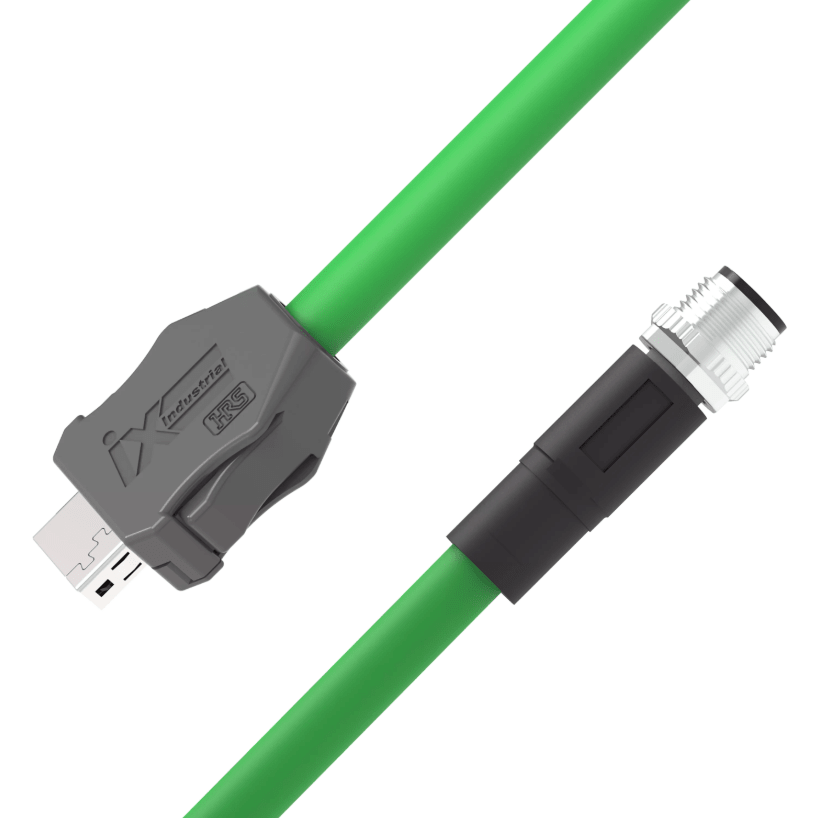

The cable features an IX A Key male connector to an M12 D-Code male straight connector. While constructed with CAT6A cable for high performance and EMC stability, the M12 D-Code interface supports Fast Ethernet (100 Mbps) industrial network applications.

Engineered with a PUR jacket and rated for drag chain use, this assembly withstands continuous motion, vibration, torsion, and mechanical stress. The M12 connector provides IP67 ingress protection, ensuring dependable performance in harsh factory environments.

Key Features

• IX A Key male to M12 D-Code male

• CAT6A cable construction

• Suitable for Fast Ethernet (100 Mbps) networks

• 75% smaller than traditional RJ45 connectors

• PUR outer jacket for drag chain applications

• Approx. 10 million bending cycles (C-track)

• Approx. 3 million torsion cycles

• IP67 protection on M12 connector

• IEC 61076-3-124 compliant IX interface

• Halogen free and oil resistant

• Lengths available from 0.3m to 10m

Connector Specifications

Connector A
Connection: IX A Key
Gender: Male
Poles: 10P
Angle: Straight
Degree of Protection: IP20

Connector B
Connection: M12 D-Code
Gender: Male
Poles: 4P
Angle: Straight
Degree of Protection: IP67

Cable Specifications

Cable Type: CAT6A
Shield Type: SF/UTP
Conductor Material: Copper
Conductor Structure: AWG26 (30 x 0.08mm)
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 10m

Environmental Conditions

Moving Temperature: -30°C to +70°C
Fixed Temperature: -40°C to +80°C
Oil Resistant: IEC 60811-404
Halogen Free: IEC 60754-1
Drag Chain Capable: Yes

Typical Applications

• Industrial automation systems

• Robotics and motion platforms

• Compact control cabinets

• Industrial Ethernet switches

• Factory networking
