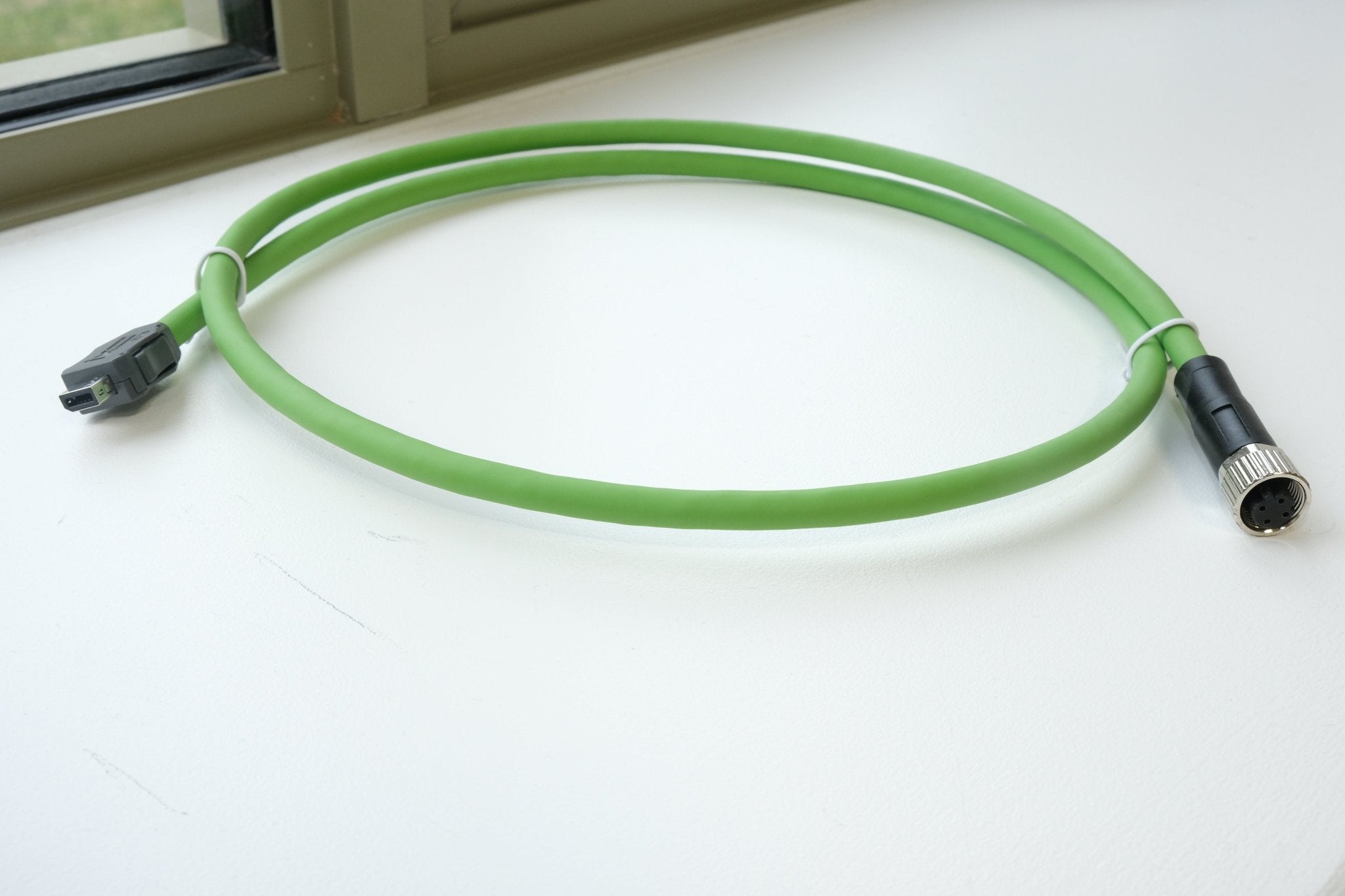

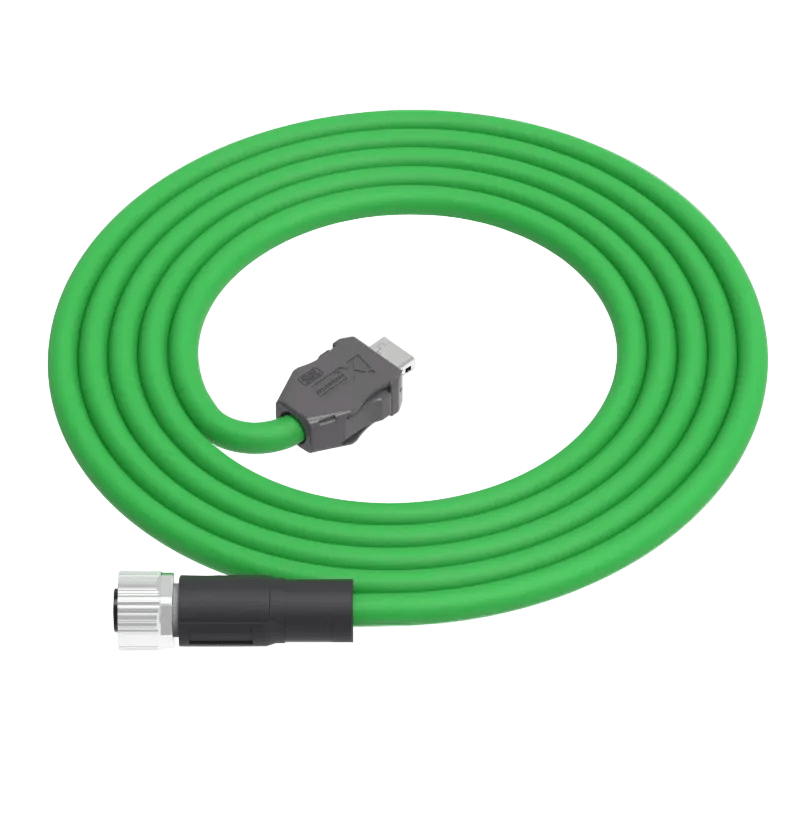

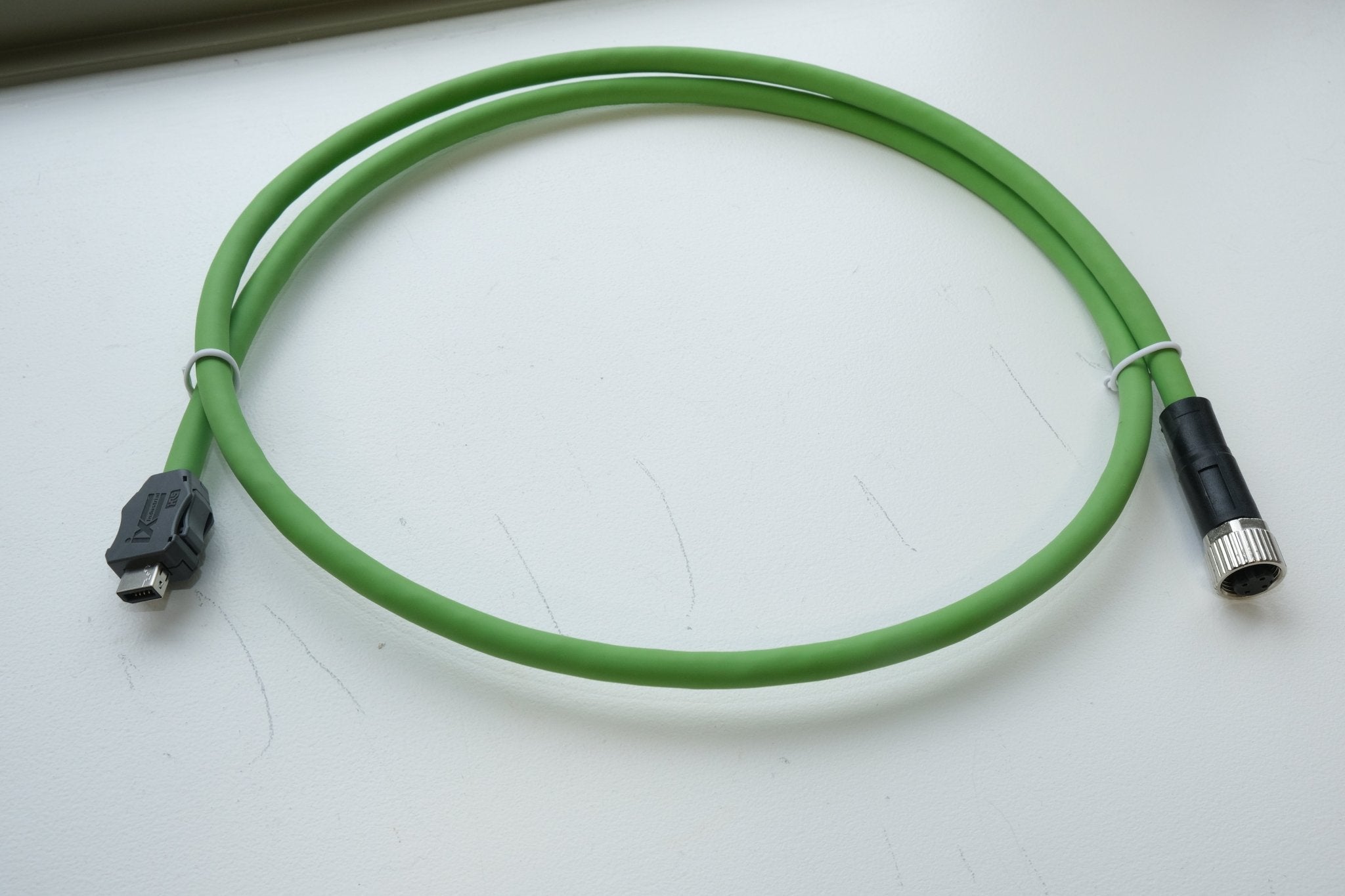

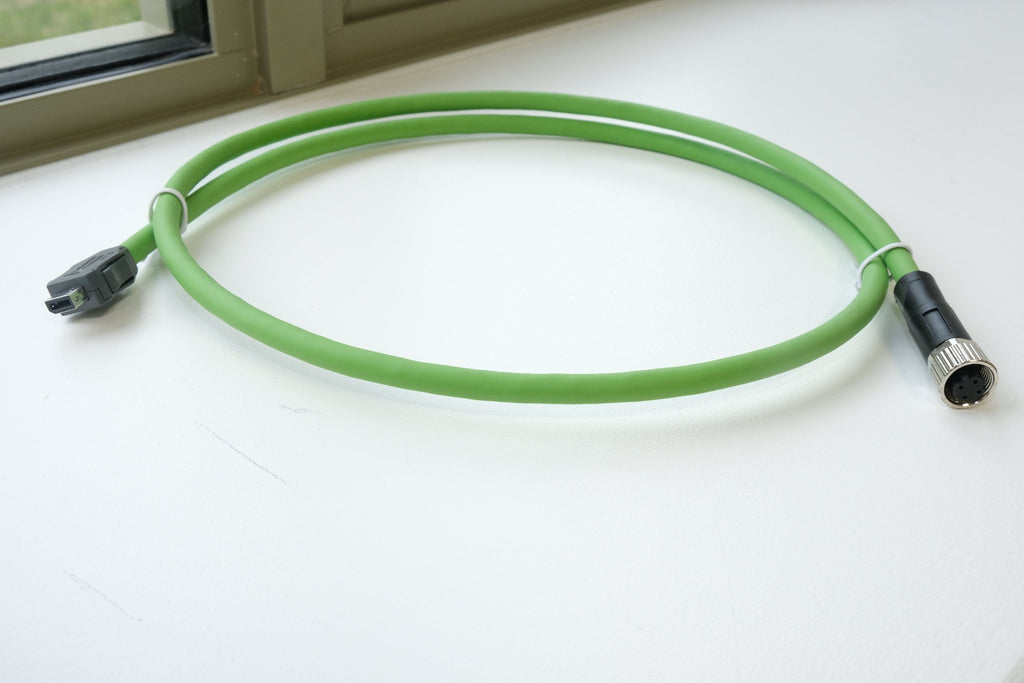

This ix Industrial A Key to M12 D-Code female cable assembly provides a compact, robust alternative to traditional RJ45 industrial Ethernet connections. Designed for space-constrained machinery and control cabinets, the ix interface delivers up to 75% space savings compared to RJ45 while maintaining Cat6A performance capability.
The cable features an ix A Key male connector to an M12 D-Code female straight connector, making it ideal for Fast Ethernet (100 Mbps) industrial networks in factory automation, robotics, machine vision support systems, and industrial switching environments.
Built with a PUR outer jacket and engineered for drag chain use, this assembly supports continuous motion applications with high resistance to oil, vibration, torsion, and mechanical stress. The M12 side provides IP67 protection for secure operation in harsh industrial conditions.
Key Features
-

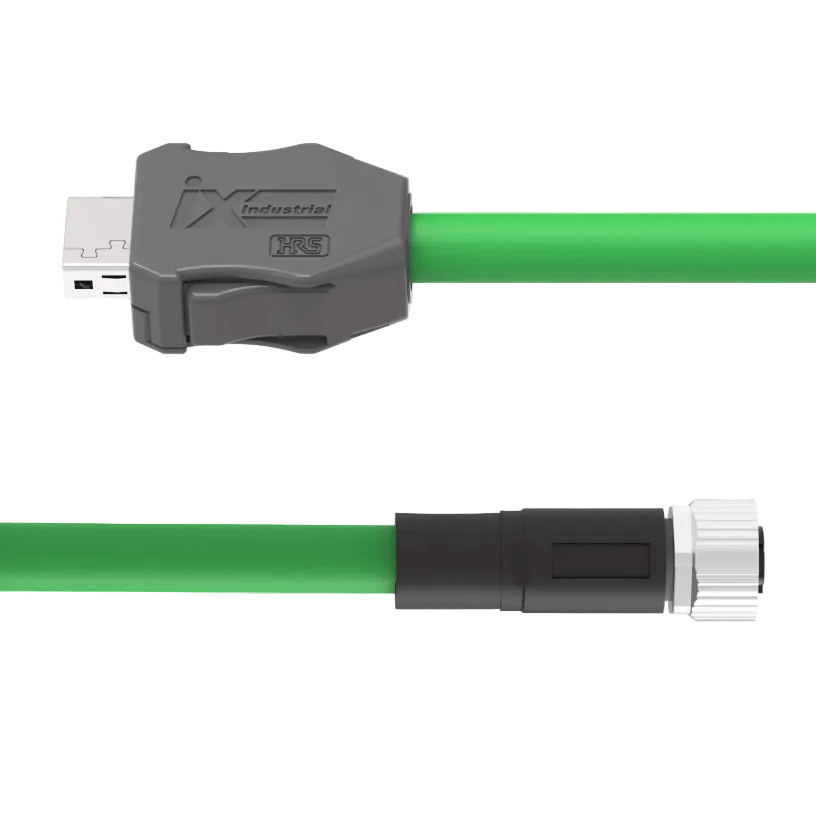

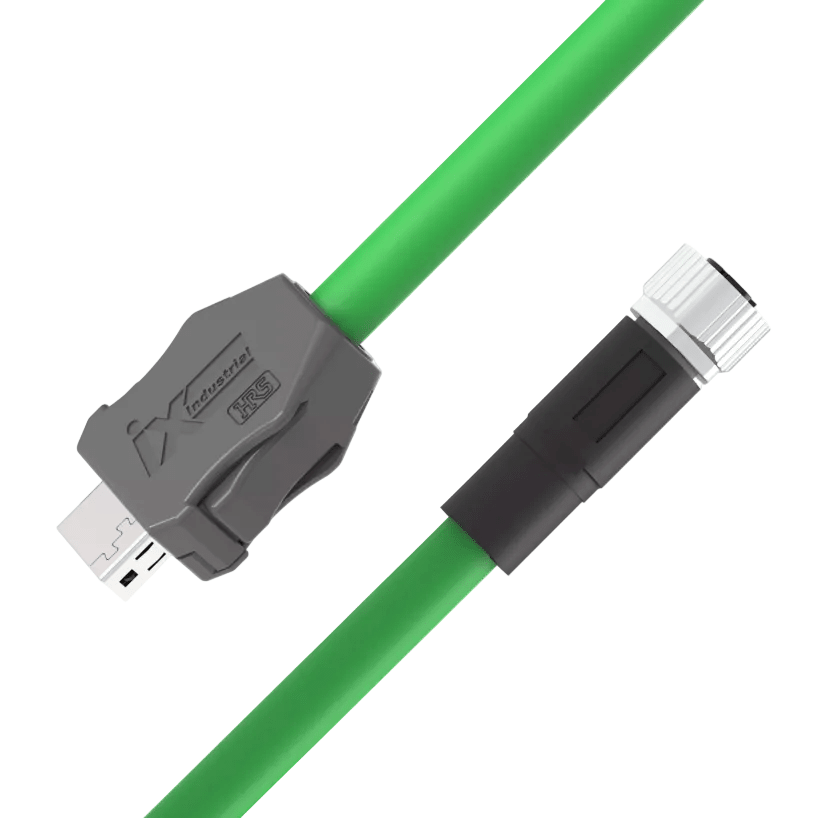

ix Industrial A Key male to M12 D-Code female
-
CAT6A cable construction
-
Suitable for Fast Ethernet (100 Mbps) industrial networks
-
75% smaller footprint than RJ45
-
PUR jacket for drag chain and continuous flex applications
-
Approx. 10 million bending cycles (C-track)
-
Approx. 3 million torsion cycles
-
IP67 protection on M12 connector
-
IEC 61076-3-124 compliant ix interface
-
Halogen free and oil resistant
-
Lengths available: 0.3m to 10m
Connector Specifications
Connector A
Connection: ix A Key
Gender: Male
Poles: 10P
Angle: Straight
Protection: IP20
Connector B
Connection: M12 D-Code
Gender: Female
Poles: 4P
Angle: Straight
Protection: IP67
Cable Specifications
Cable Type: CAT6A
Shield Type: SF/UTP
Conductor Material: Copper
Conductor Structure: AWG26 (30 x 0.08mm)
Jacket Material: PUR
Cable Colour: Green
UL Type: UL AWM 20549
Length Range: 0.3m – 10m
Environmental
Moving Temperature: -30°C to +70°C
Fixed Temperature: -40°C to +80°C
Oil Resistant: IEC 60811-404
Halogen Free: IEC 60754-1
Drag Chain Capable: Yes
Typical Applications
-
Industrial automation systems
-
Compact control cabinets
-
Robotics and motion systems
-
Industrial switches
-
Machine integration Ethernet links
