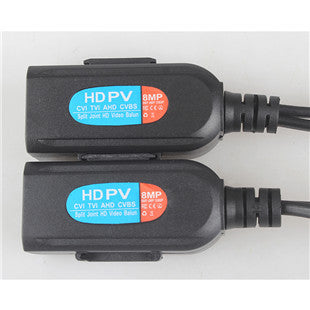

The HD216PV 8MP CCTV video and power balun pair is designed to transmit analogue HD video and DC power over a single Cat5e twisted-pair cable.

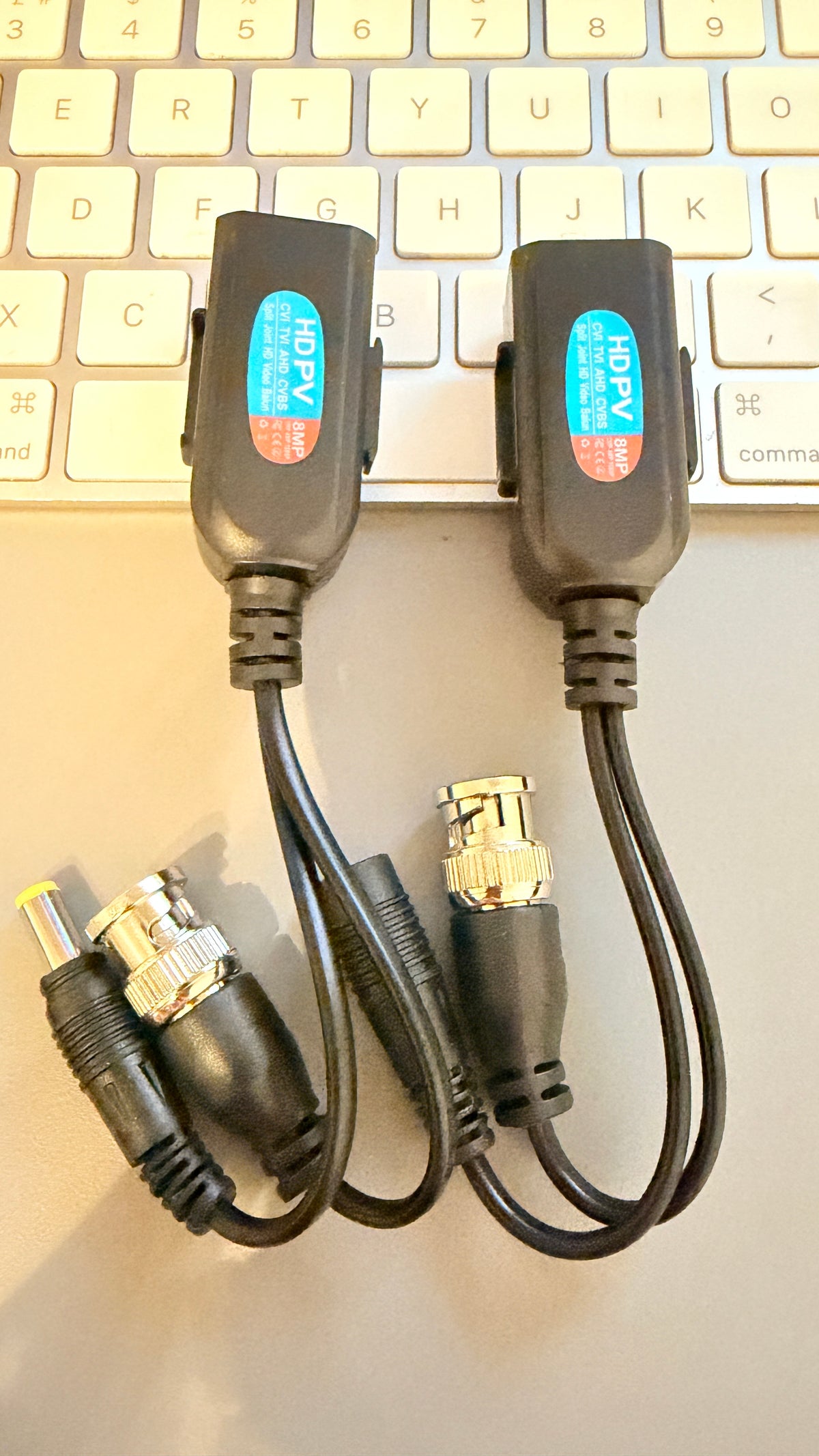

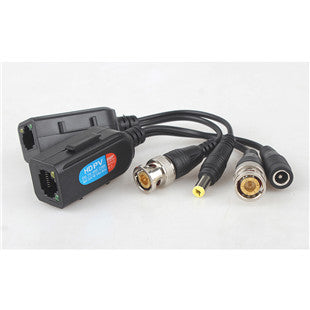

Each passive transceiver features an RJ45 socket, BNC video connector and DC power connection, allowing one network cable to carry both the camera video signal and power between the CCTV camera and DVR side. It supports HD-TVI, HD-CVI and AHD systems with resolutions up to 8MP according to the manufacturer specification.
Key Features
• HD216PV passive CCTV video and power balun pair
• Supports HD-TVI, HD-CVI and AHD analogue HD video
• Supports resolutions up to 8MP
• BNC male video connectors
• DC male and female power connectors

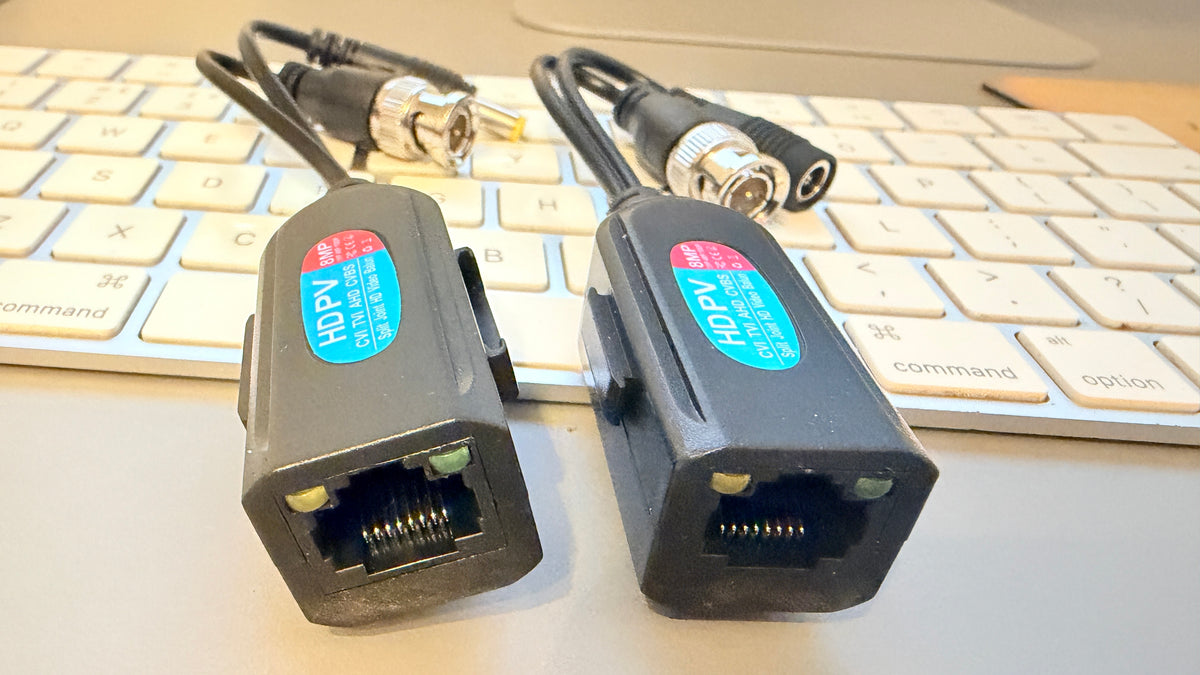

• RJ45 connection for Cat5e twisted-pair cable
• Carries video and DC power over one cable run
• Passive operation – no power required for the baluns themselves
• Video signal bandwidth: 250MHz (-3dB)
• Video balance bandwidth: 0–65MHz
• Suggested maximum current: 1.5A
• 2kV common-mode and differential-mode surge protection

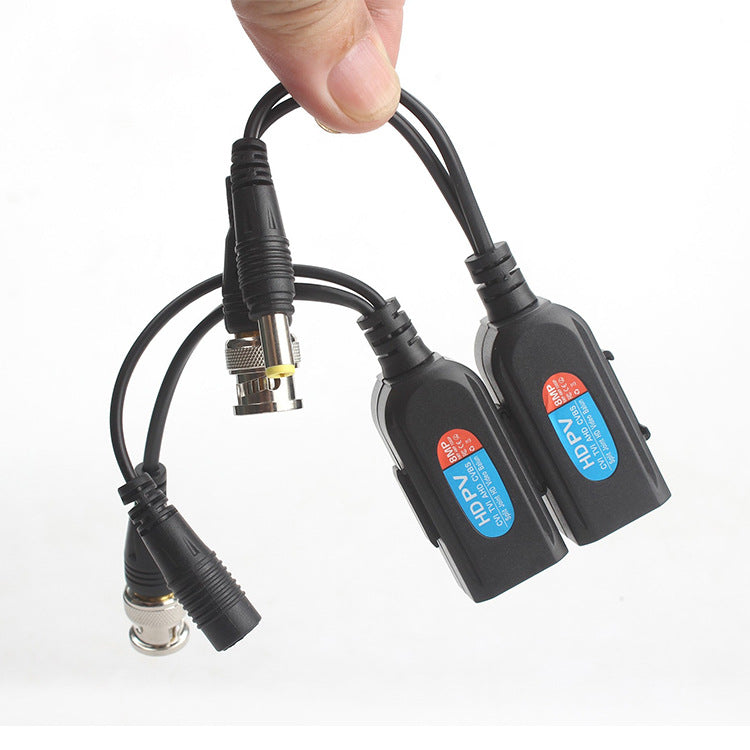

• Compact pigtail design for camera and DVR installations
Manufacturer-Rated Transmission Distances
HD-CVI:
• 720P – up to 400m
• 1080P – up to 250m
• 4MP / 5MP / 8MP – up to 200m
HD-TVI:
• 720P / 1080P – up to 250m
• 4MP / 5MP / 8MP – up to 200m
AHD:
• 720P – up to 350m
• 1080P – up to 250m
• 4MP / 5MP / 8MP – up to 200m
Ideal For
• HD-TVI CCTV cameras
• HD-CVI surveillance systems
• AHD security cameras
• DVR CCTV installations
• Commercial and industrial surveillance systems
• CCTV installations using Cat5e twisted-pair cabling
• Long-distance camera video and power runs

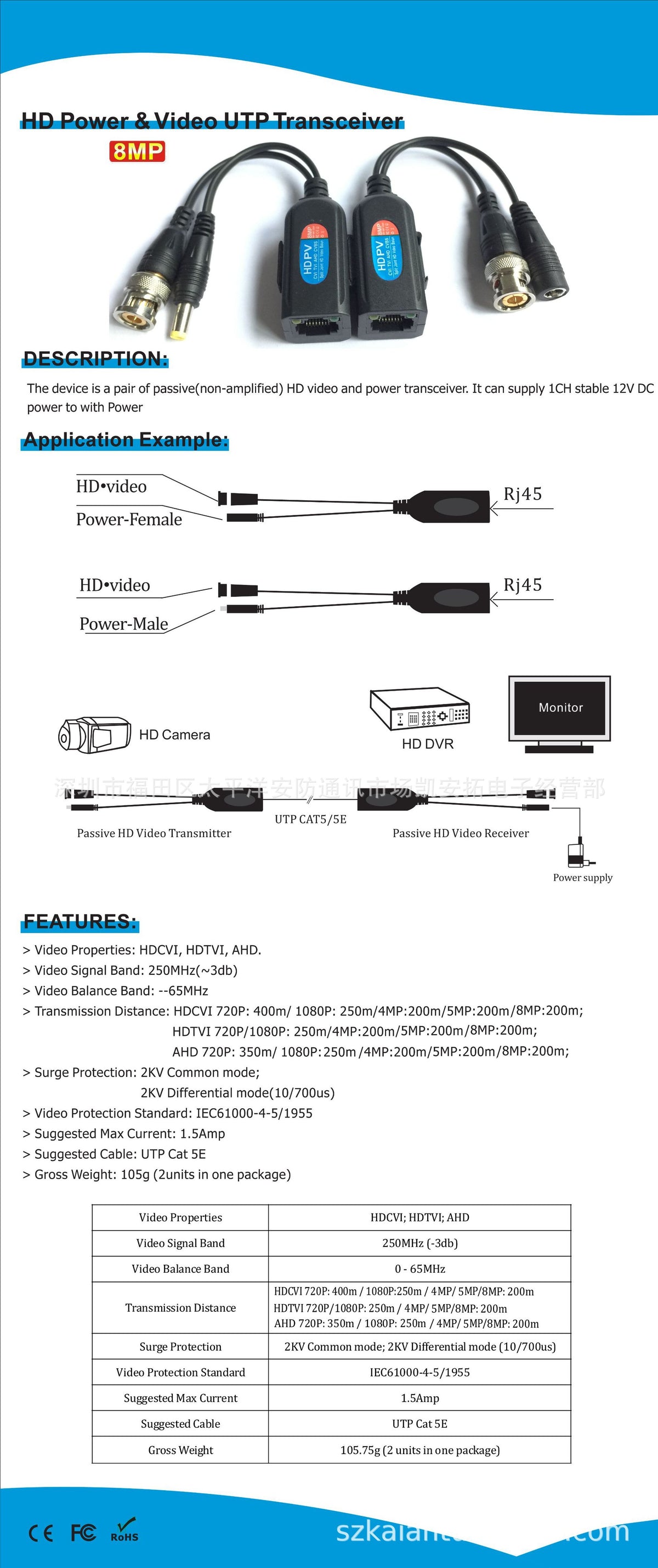

Specifications
Model: HD216PV
Video Connection: BNC Male
Power Connections: DC Male + DC Female
Cable Connection: RJ45
Video Formats: HD-TVI / HD-CVI / AHD
Maximum Rated Resolution: 8MP
Suggested Cable: UTP Cat5e
Suggested Maximum Current: 1.5A
Type: Passive Video & Power Transceiver
Quantity: 1 Pair
Compatibility Note
This product is designed for analogue HD CCTV video and DC power transmission over twisted-pair cabling. It is not an Ethernet adapter and does not convert an analogue CCTV camera into an IP camera.
It is not a standard PoE converter. Please confirm the camera voltage, polarity and current requirements before installation.
Maximum distance and supported resolution depend on the camera system, DVR, cable quality and installation environment.
Package Contents
1 × HD216PV Video & Power Transmitter
1 × HD216PV Video & Power Receiver
