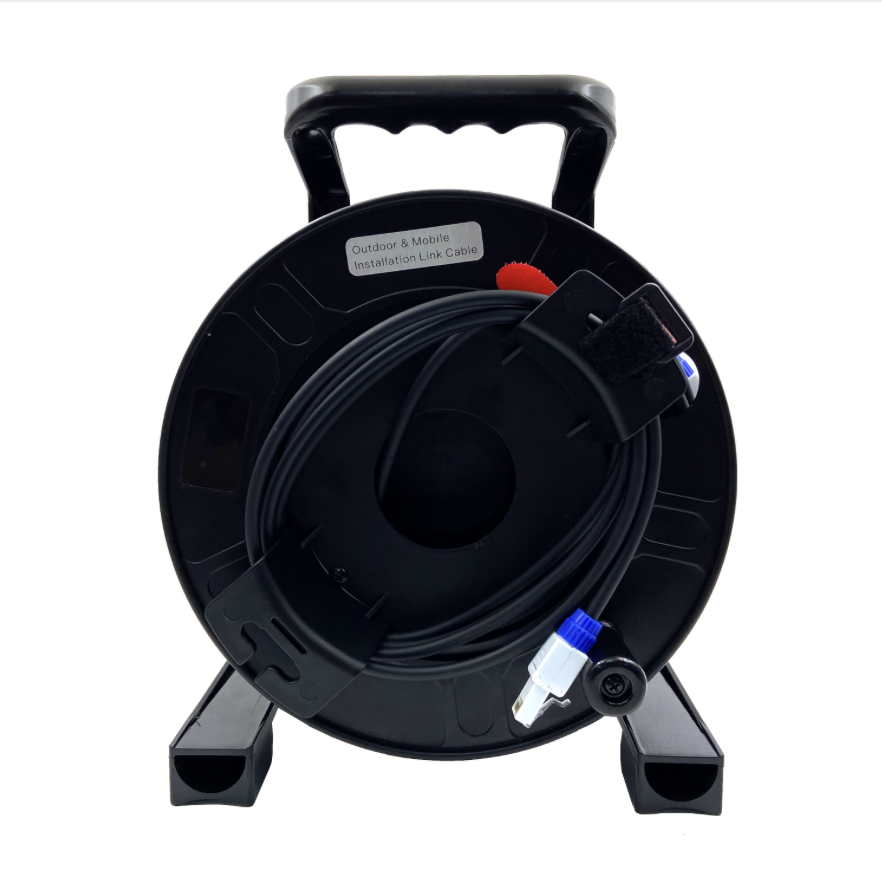

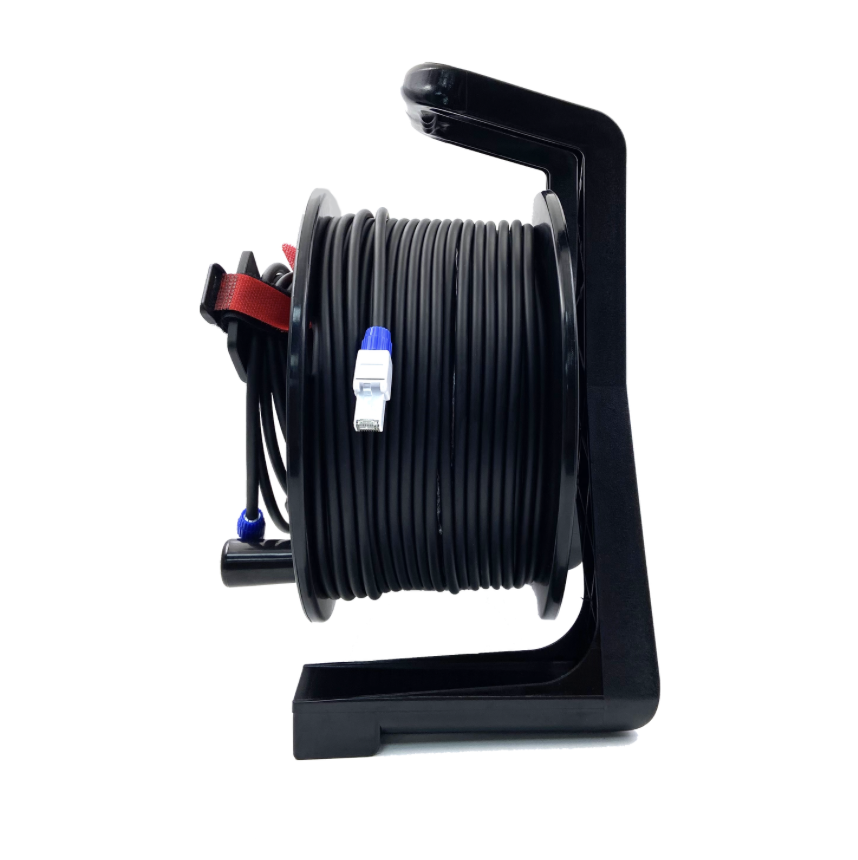

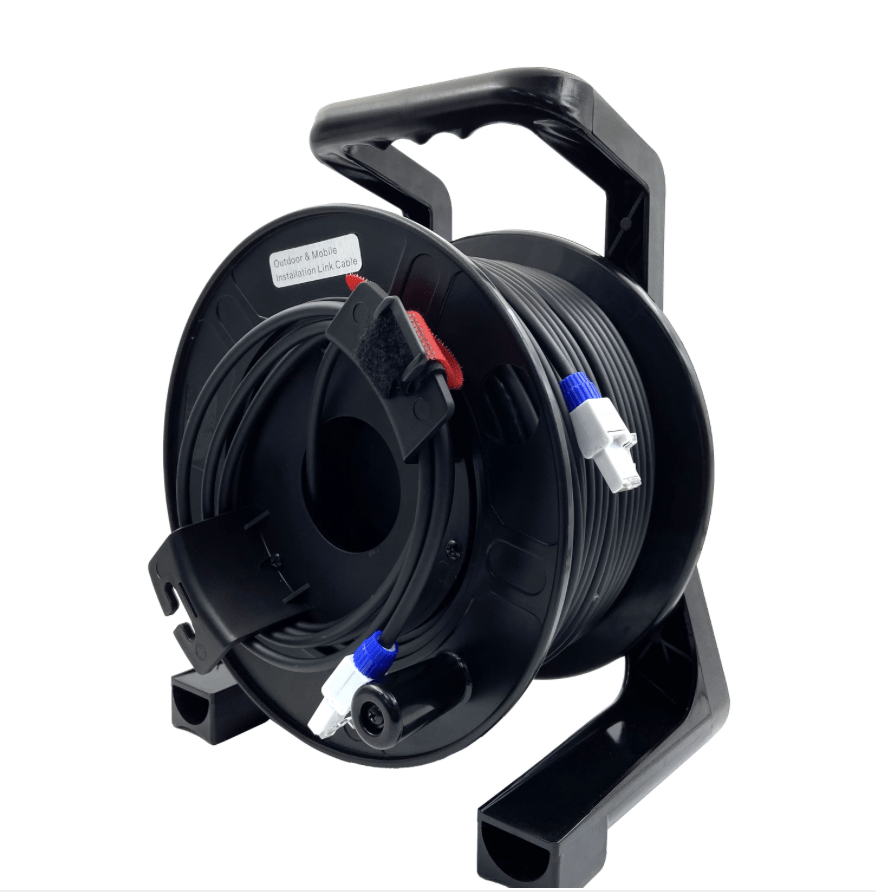

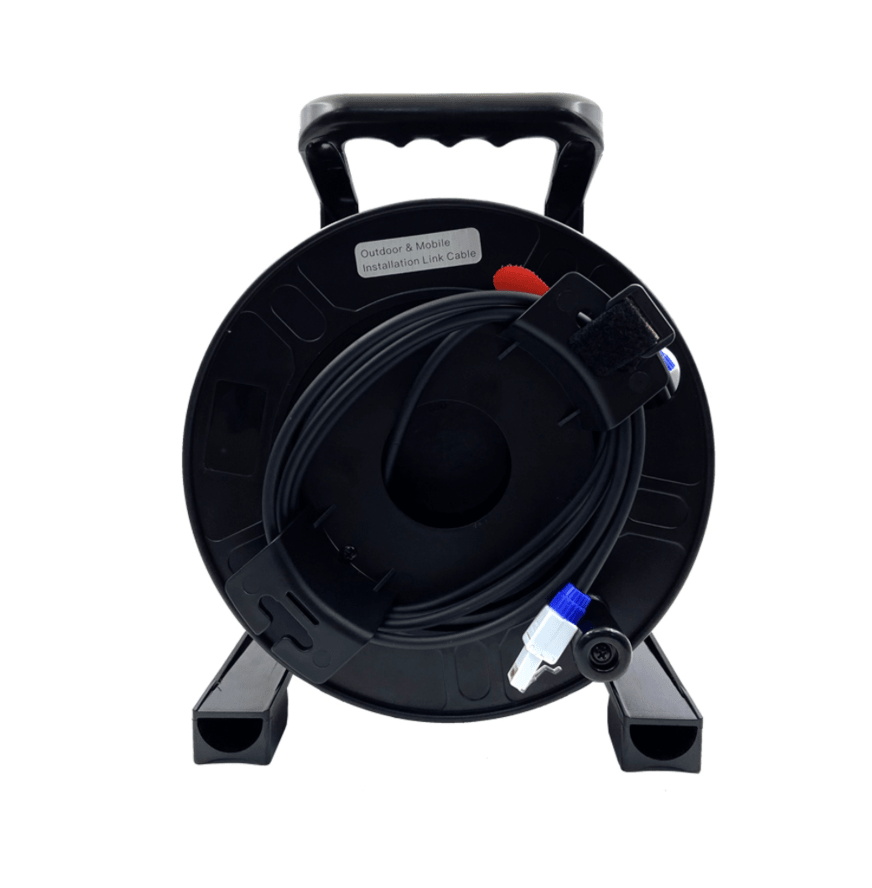

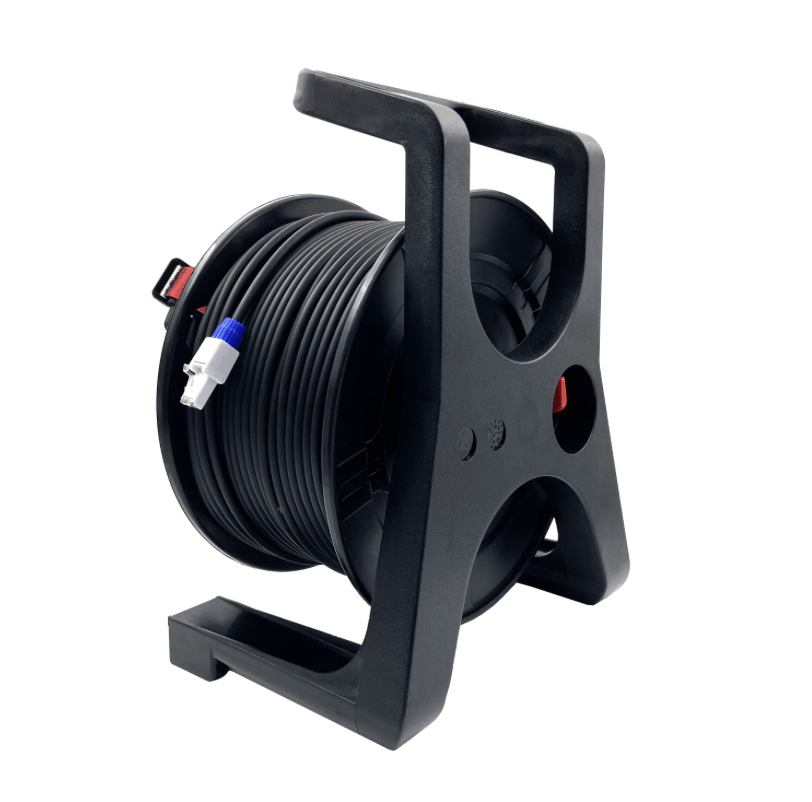

Heavy-duty CAT6A Ethernet cable supplied on a rugged portable reel, designed for reliable temporary or mobile network deployments. Ideal for exhibitions, events, broadcast environments, training rooms, control rooms, and emergency or field installations where durability and repeat use are essential.
The cable features a triple-jacket construction with steel armouring for enhanced protection while remaining flexible enough for repeated deployment and retrieval. RJ45 field-terminated plugs on both ends allow direct connection without additional adapters.
Key features
-
CAT6A Ethernet cable on a robust portable reel
-
Triple jacket construction: rigid PVC, stainless steel armouring, rubber PVC outer layer
-
Designed for frequent deployment in demanding environments
-
Supplied with RJ45 connectors on both cable ends
-
Flexible yet highly durable cable construction
-
Lightweight but rugged reel for transport and storage
Technical specifications
-
Cable category: CAT6A
-
Shielding: U/UTP (unshielded)
-
Conductor material: bare copper
-
Conductor type: solid
-
Wire gauge: 28 AWG
-
Length: 25 m
-
Cable outer diameter: 6.8 mm
-
Connector type (A & B): CAT6A field-terminated RJ45 plugs
-
Connector plating: nickel
-
Contact plating: gold
-
Wiring scheme: T568B, straight-through
-
Twisted pairs: 4 pairs
Environmental specifications
-
Operating temperature: -20°C to +60°C
-
Installation temperature: 0°C to +50°C
-
Operating humidity: 0% to 90% RH, non-condensing
-
Storage humidity: 0% to 90% RH, non-condensing
-
IP rating (connectors): IP20
Reel details
Applications
Suitable for live events, stage and entertainment setups, exhibitions, training environments, broadcast vehicles, temporary networks, and other professional networking applications requiring reliability and durability.
