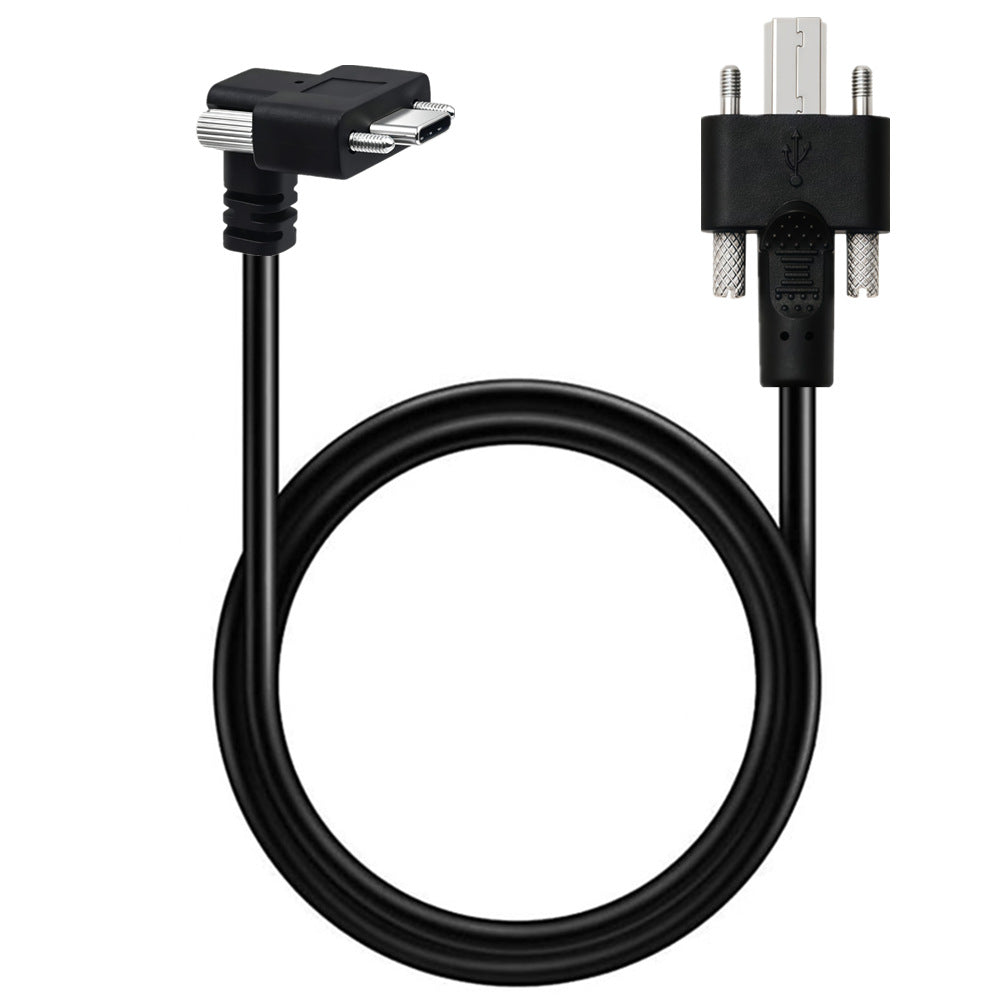

Create a secure and space-saving USB connection for industrial equipment with this 90-Degree USB-C Dual-Screw Locking to USB 3.0 Type-B Male Panel Mount Cable.

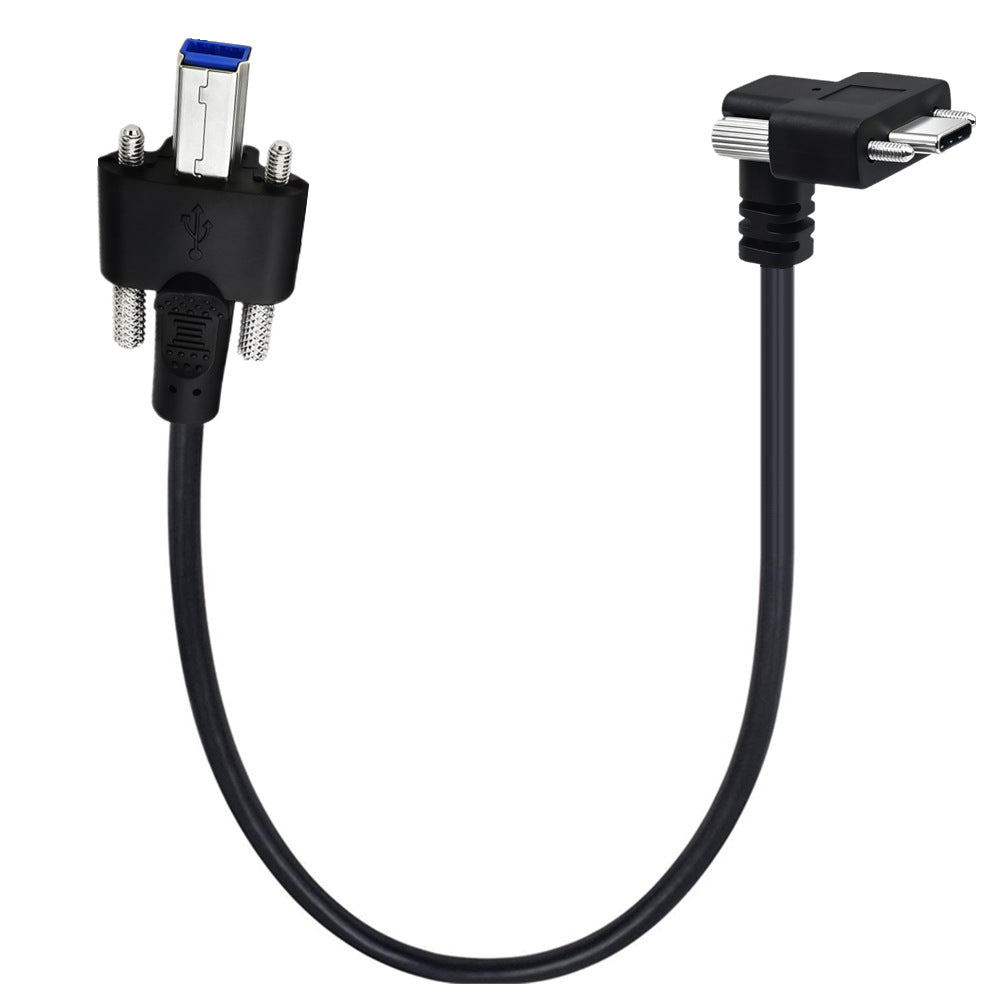

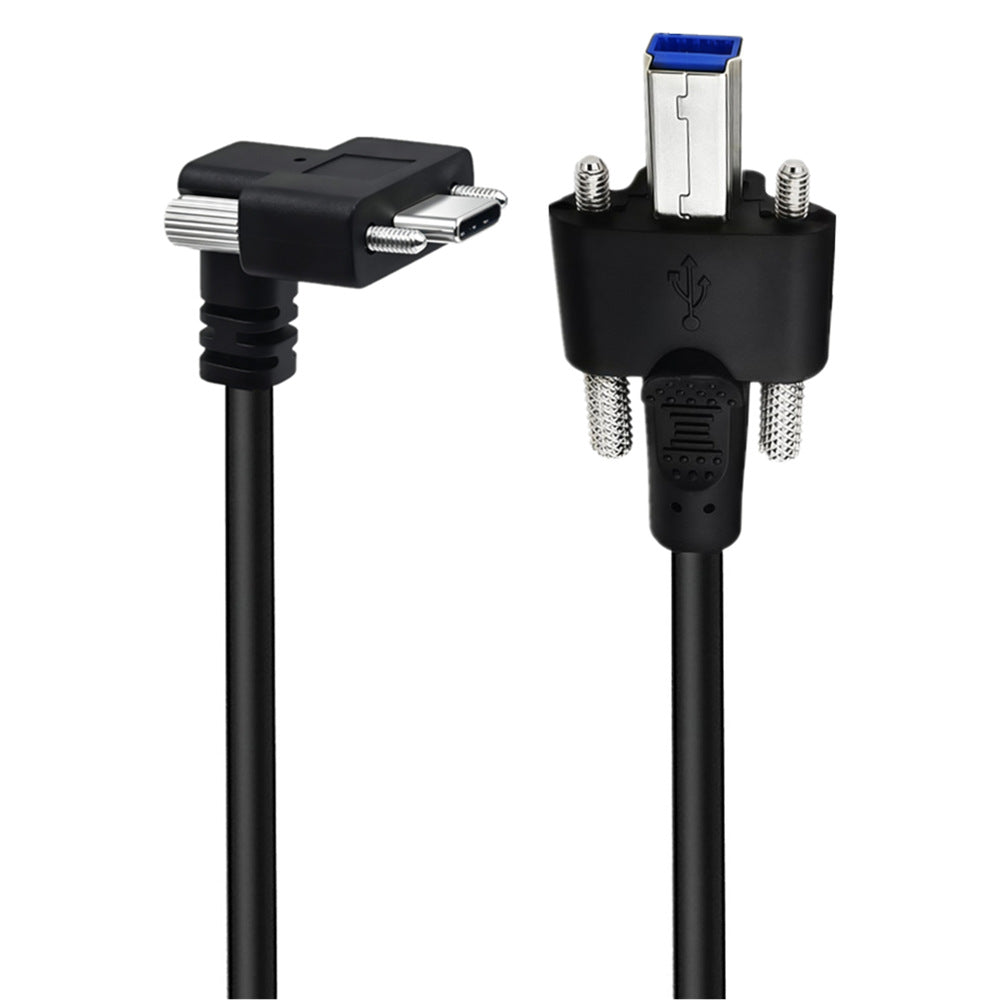

The cable features a 90-degree USB-C male connector with two locking screws at one end and a straight USB 3.0 Type-B male connector with two securing screws at the other. Both connectors can be fixed to compatible threaded equipment ports, helping prevent accidental disconnection caused by vibration, movement or continuous operation.
The low-profile right-angle USB-C connector directs the cable away from the connected port, reducing installation depth and strain on the connector. This makes it suitable for compact equipment enclosures, crowded control panels, wall-mounted devices and installations where a straight USB-C plug would extend too far from the equipment.
The USB 3.0 Type-B connector features a blue insert and supports data-transfer speeds of up to 5Gbps when connected to compatible USB 3.0 equipment.
Key Features:
• 90-degree USB-C male to USB 3.0 Type-B male cable
• Dual-screw locking USB-C connector
• Dual-screw locking USB 3.0 Type-B connector
• Secure screw-locking connection at both ends
• Low-profile right-angle USB-C design
• Reduces cable strain and installation depth
• Helps prevent accidental disconnection
• Suitable for vibration-prone installations
• USB 3.0 data-transfer speeds up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1 equipment
• Shielded construction for stable data transmission
• Durable black PVC outer jacket
• Reinforced moulded connector housings
• Plug-and-play operation
Suitable Applications:
• Industrial computers and control systems
• Embedded computers and equipment panels
• Medical and laboratory instruments
• Self-service kiosks and ticket machines
• Point-of-sale terminals
• Industrial cameras and barcode scanners
• Data-acquisition systems
• Test and measurement equipment
• Server and equipment enclosures
• Vehicle-mounted industrial equipment
• Compact and wall-mounted installations
Installation:
1. Insert the 90-degree USB-C connector into the compatible USB-C port.
2. Tighten both USB-C securing screws evenly by hand.
3. Insert the USB 3.0 Type-B male connector into the matching female port.
4. Tighten both Type-B securing screws evenly.
5. Avoid overtightening, as excessive force may damage the connector housing or equipment threads.
Compatibility Information:
The screw spacing and threaded mounting points on both connectors must match the connected equipment.
The locking function cannot be used with standard USB-C or USB Type-B ports that do not have compatible threaded mounting holes.
Please check the required USB-C angle direction before ordering. The angle direction should be identified while looking directly into the equipment’s USB-C port.
This cable is designed primarily for USB data transfer and standard USB bus power. It does not support DisplayPort Alt Mode video output or USB Power Delivery fast charging.
Maximum transfer speed depends on the USB standard supported by both connected devices.
