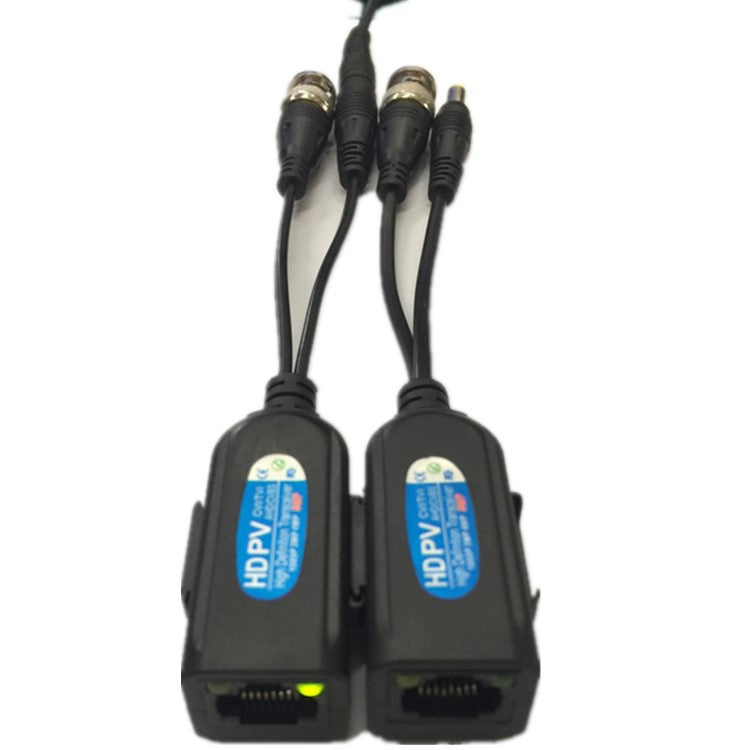

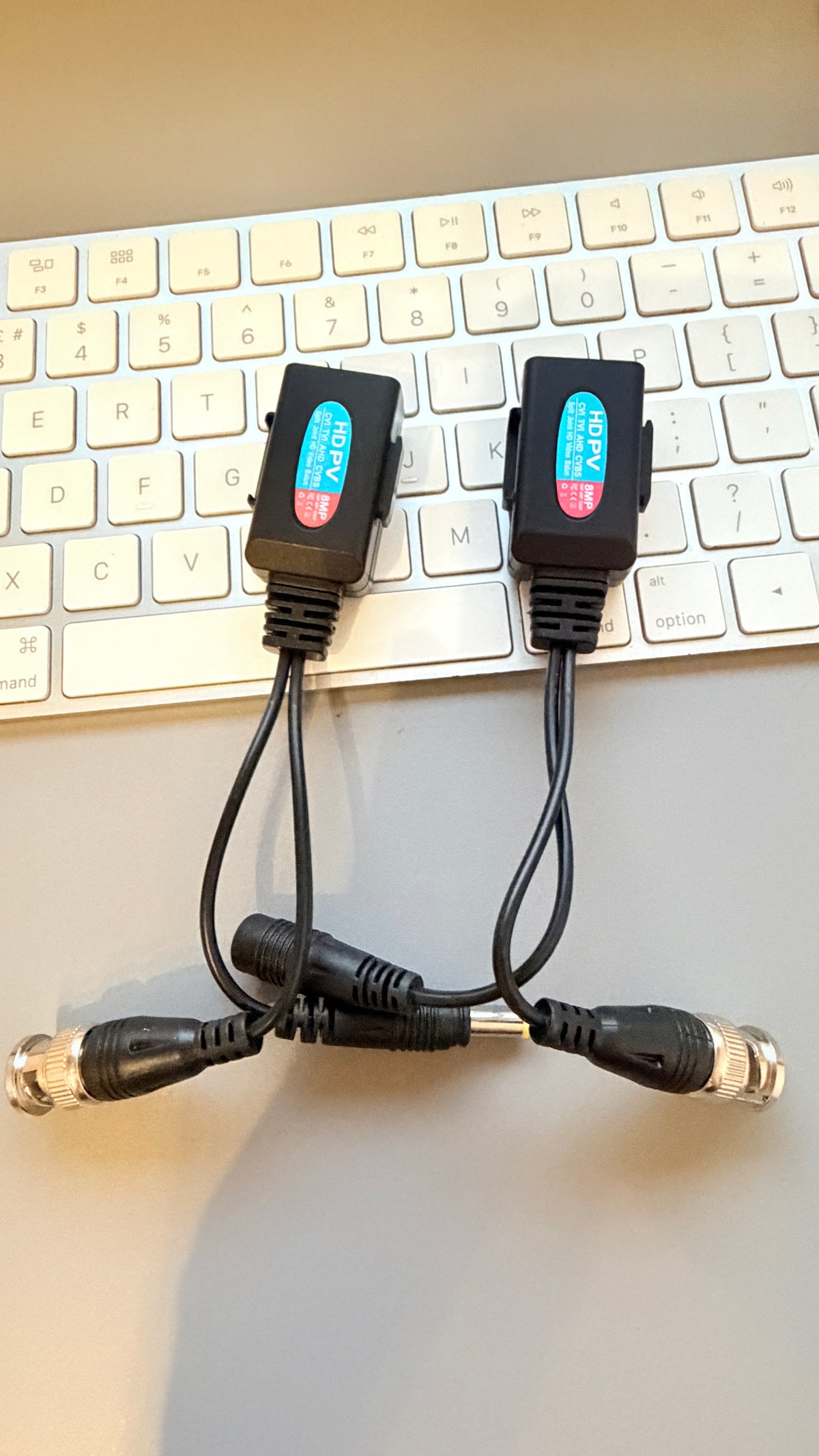

This 8MP CCTV video and power balun pair allows analogue HD CCTV video and DC power to be carried over a single Cat5e or Cat6 twisted-pair cable, helping simplify CCTV installations and reduce separate cabling.

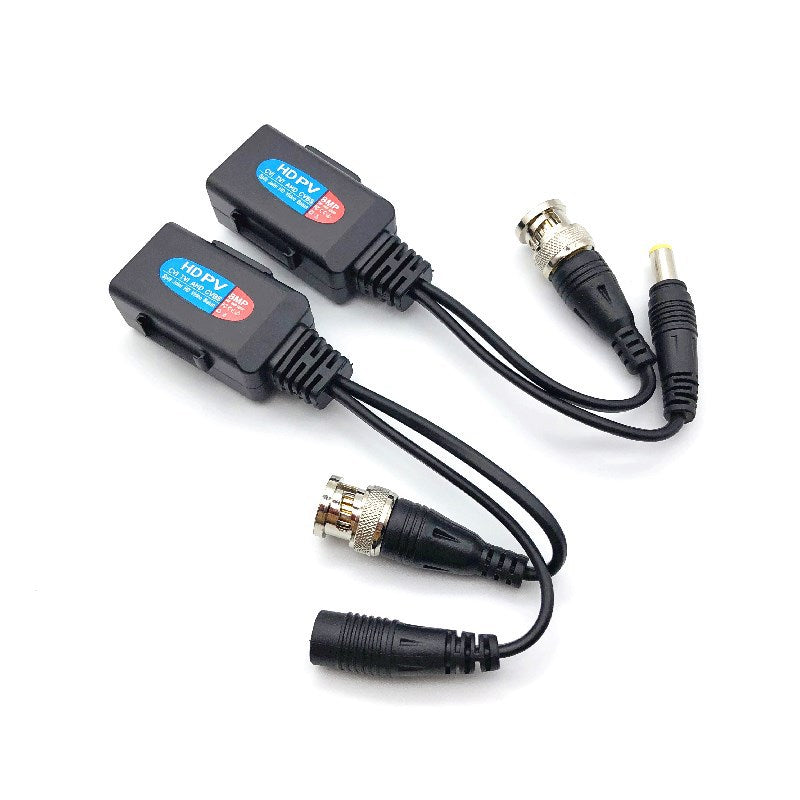

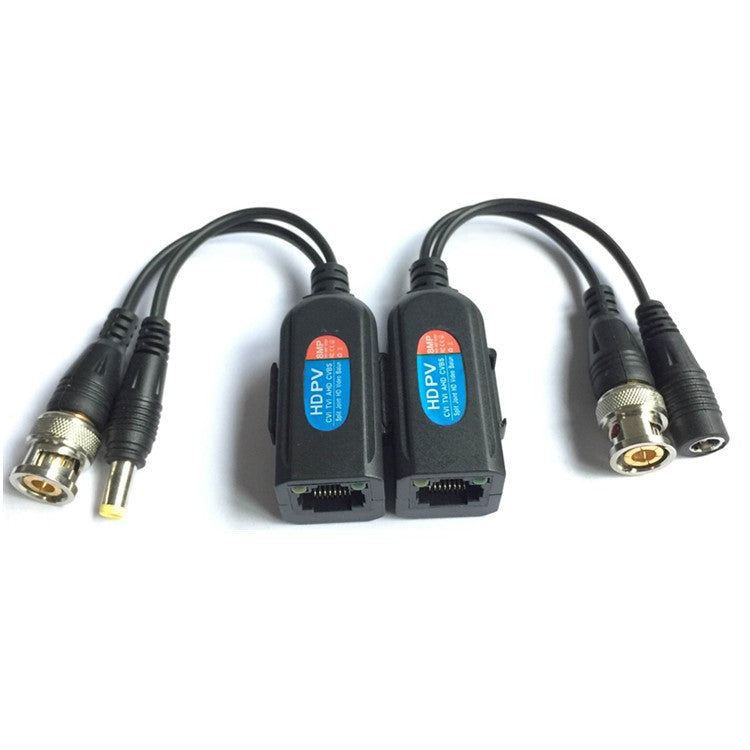

Each passive balun features an RJ45 socket together with BNC video and DC power connectors. The pair is designed for HD-TVI, HD-CVI, AHD and CVBS analogue CCTV systems with resolutions up to 8MP according to the product specification.
Key Features
• CCTV video and power balun transmitter / receiver pair
• Carries video and DC power over one twisted-pair network cable
• Supports resolutions up to 8MP
• Compatible with HD-TVI, HD-CVI, AHD and CVBS
• BNC male connector for CCTV video
• DC power connector for camera power connection
• RJ45 socket for Cat5e / Cat6 twisted-pair cable
• Passive design – no power required for the baluns themselves
• Compact pigtail design reduces strain on camera and DVR connections
• Ideal for CCTV installations where video and power need to share one cable run
Ideal For
• HD-TVI CCTV cameras
• HD-CVI surveillance systems
• AHD security cameras
• CVBS analogue CCTV systems
• DVR camera installations
• CCTV installations using Cat5e or Cat6 cable
• Commercial and industrial surveillance systems
• Retrofit CCTV installations where simplified cabling is required

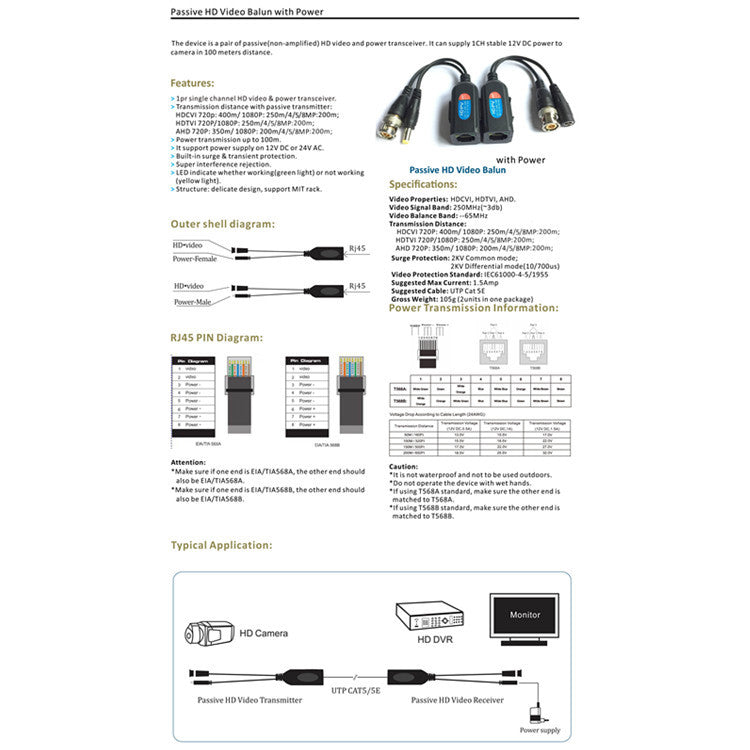

Specifications
Video Connector: BNC Male
Power Connection: DC Barrel Connector
Cable Connection: RJ45
Video Formats: HD-TVI / HD-CVI / AHD / CVBS
Maximum Rated Resolution: 8MP
Transmission Cable: Cat5e / Cat6 twisted pair
Type: Passive Video & Power Balun
Quantity: 1 Pair
Compatibility Note
This product carries analogue CCTV video and DC power over twisted-pair cabling. It is not a network Ethernet adapter and does not convert an analogue CCTV camera into an IP camera.
It is also not a PoE converter. Please ensure the camera power supply voltage, polarity and current requirements are correct before connection.
Maximum transmission distance and supported resolution depend on the camera system, power requirements, cable quality, cable length and installation environment.

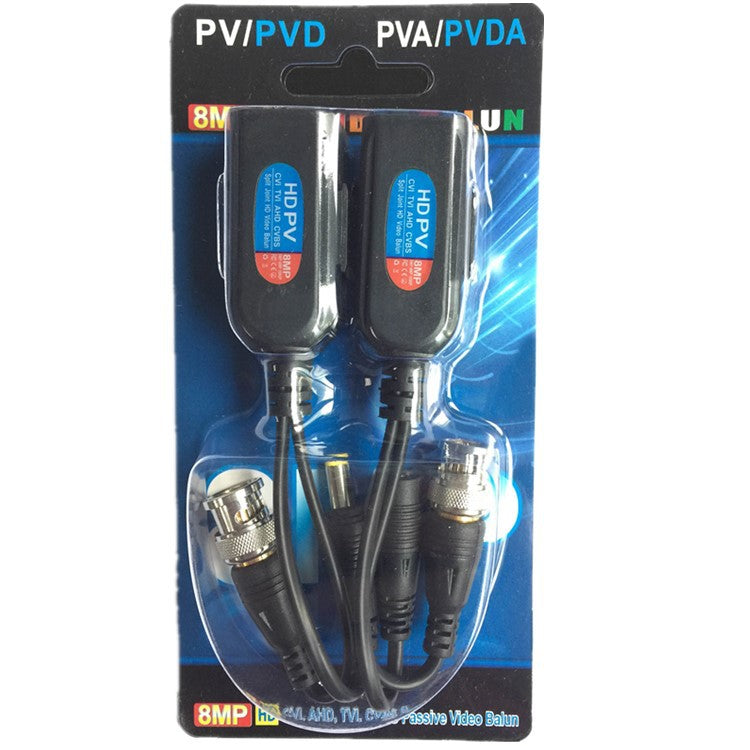

Package Contents
1 × CCTV Video & Power Balun Transmitter
1 × CCTV Video & Power Balun Receiver
