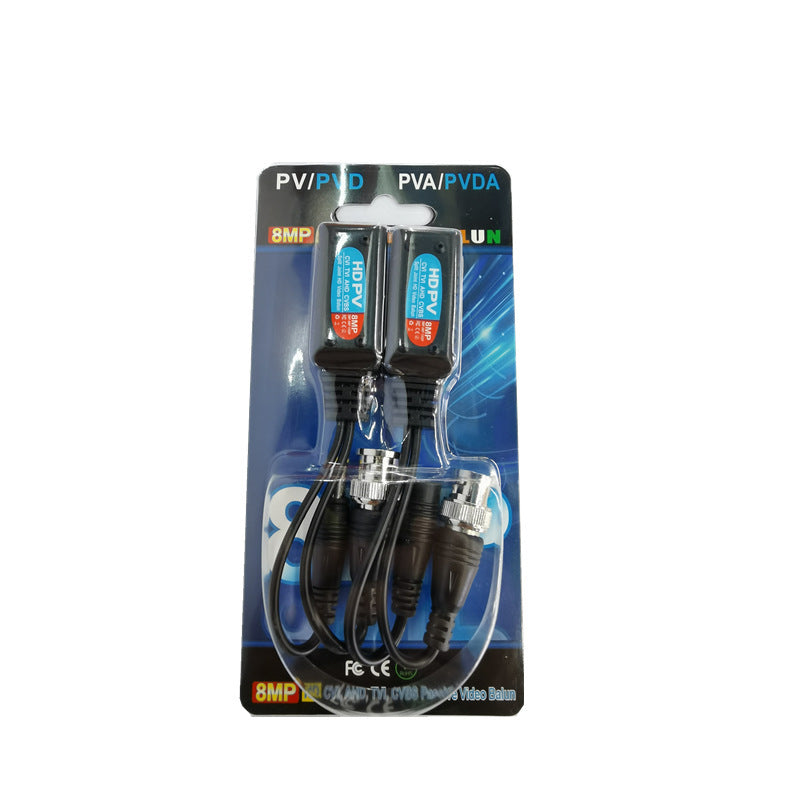

This 8MP CCTV video and power balun pair is designed to carry analogue HD video and DC power over a single Cat5e or Cat6 twisted-pair cable, helping simplify CCTV installations and reduce the need for separate video and power cabling.

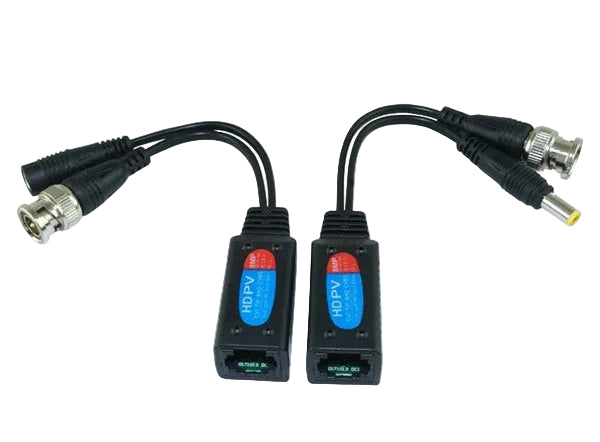

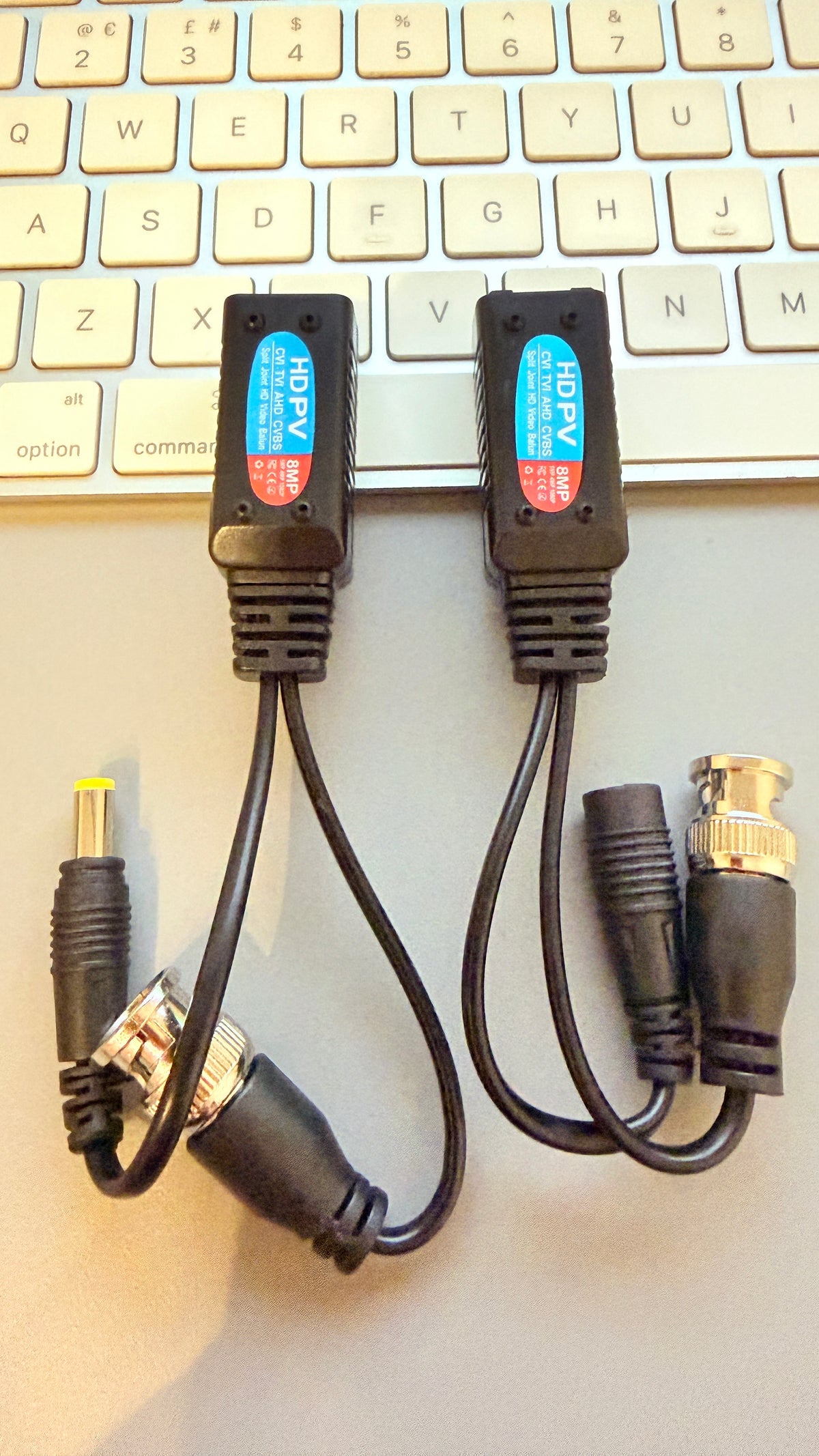

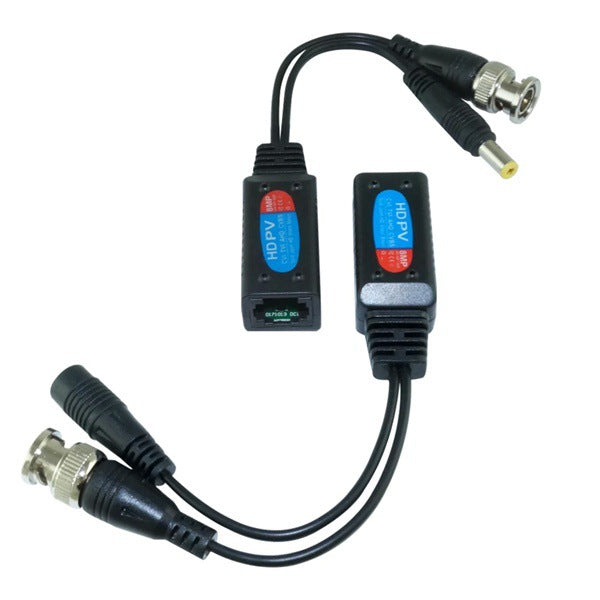

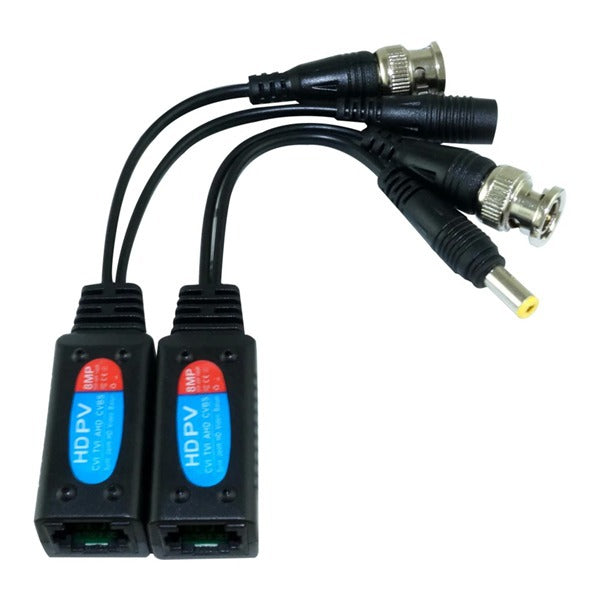

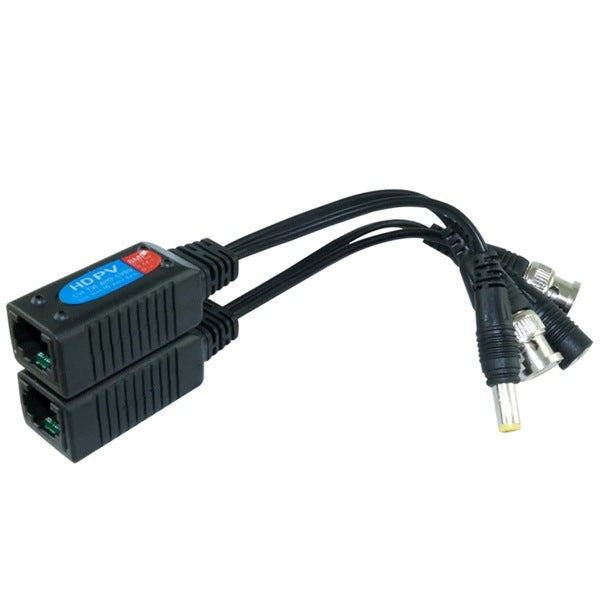

The set includes two passive baluns with RJ45 sockets, BNC video connectors and DC power connections. One end provides a DC power plug and the other a DC power socket, allowing compatible camera power and video to be carried between the camera and DVR side.
Key Features
• 8MP CCTV video and power balun pair
• Supports HD-TVI, HD-CVI, AHD and CVBS video signals
• BNC male connectors for CCTV video

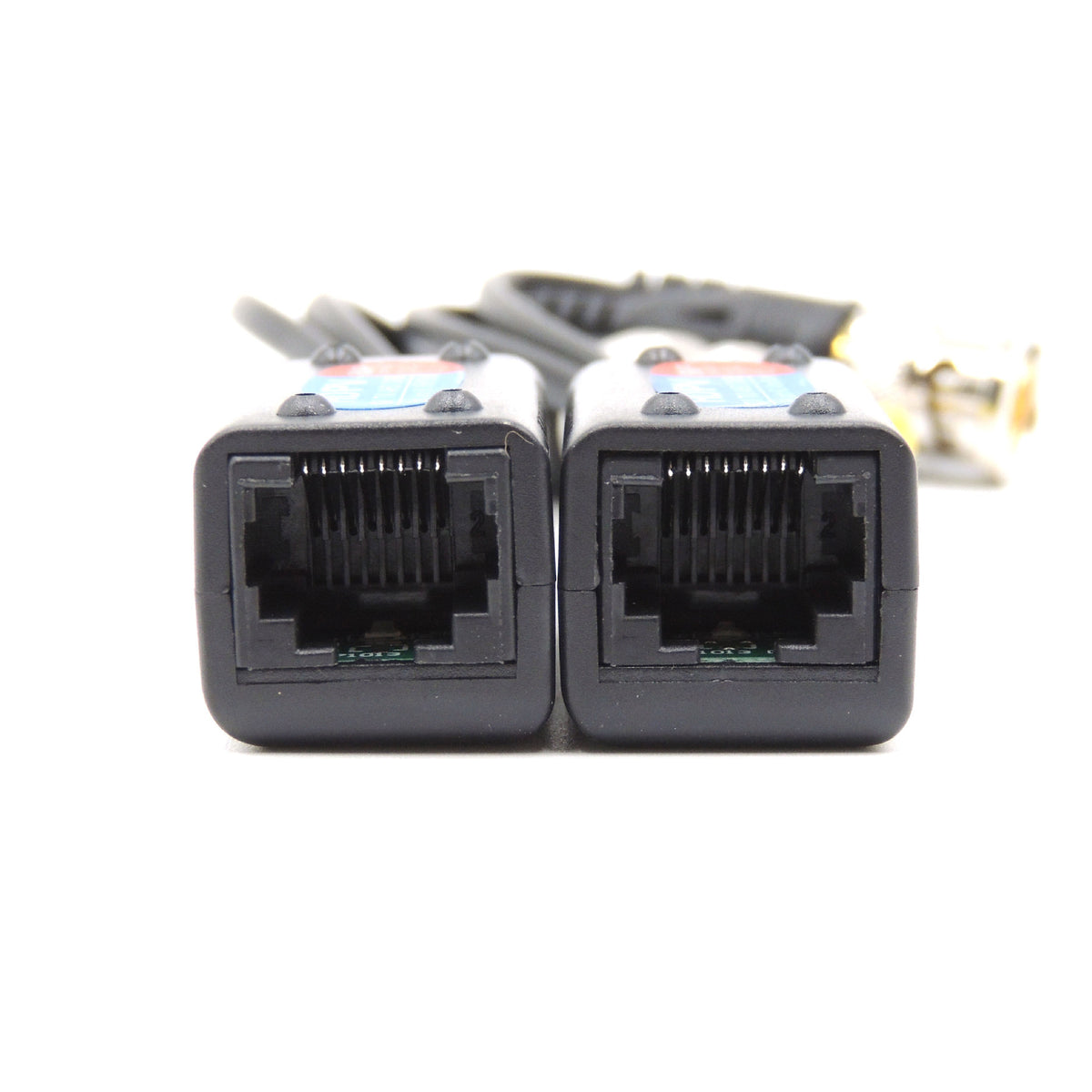

• RJ45 sockets for Cat5e / Cat6 twisted-pair cable
• DC male and female power connections
• Carries CCTV video and DC power over one network cable
• Passive design – baluns require no separate power supply
• Supports analogue HD CCTV cameras up to 8MP according to product specification
• Short flexible leads help reduce strain on camera and DVR ports
• Compact design for professional CCTV installations
Ideal For
• HD-TVI CCTV cameras
• HD-CVI surveillance systems
• AHD security cameras
• CVBS analogue CCTV
• DVR security systems
• CCTV installations using Cat5e or Cat6 cable
• Commercial and industrial surveillance systems
• Retrofit and long cable-run CCTV installations
Specifications
Video Connector: BNC Male
Power Connections: DC Male + DC Female
Cable Connection: RJ45
Video Formats: HD-TVI / HD-CVI / AHD / CVBS
Maximum Rated Resolution: 8MP
Cable Type: Cat5e / Cat6 twisted pair
Type: Passive CCTV Video & Power Balun
Quantity: 1 Pair
Compatibility Note
This product is designed to carry analogue CCTV video and DC power over twisted-pair cable. It is not an Ethernet network adapter and does not convert an analogue camera into an IP camera.
This is also not a PoE converter. Please check the camera power voltage, polarity and current requirements before installation.
Maximum video resolution and transmission distance depend on the CCTV equipment, cable quality, cable length and installation environment.
Package Contents
1 × CCTV Video & Power Balun – Camera Side
1 × CCTV Video & Power Balun – DVR / Power Side
