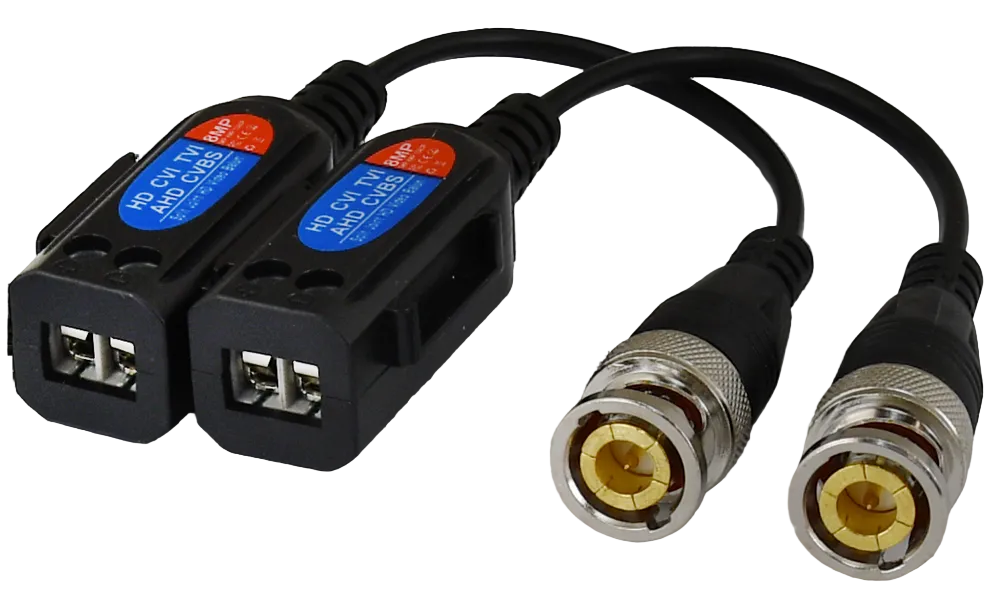

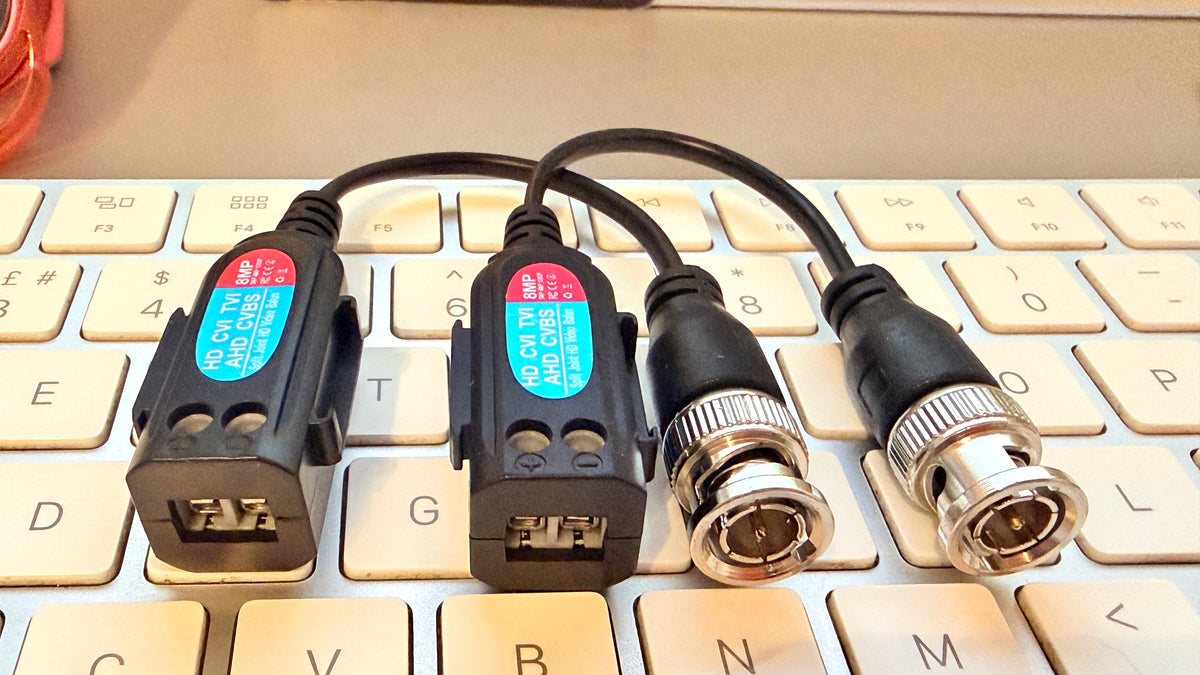

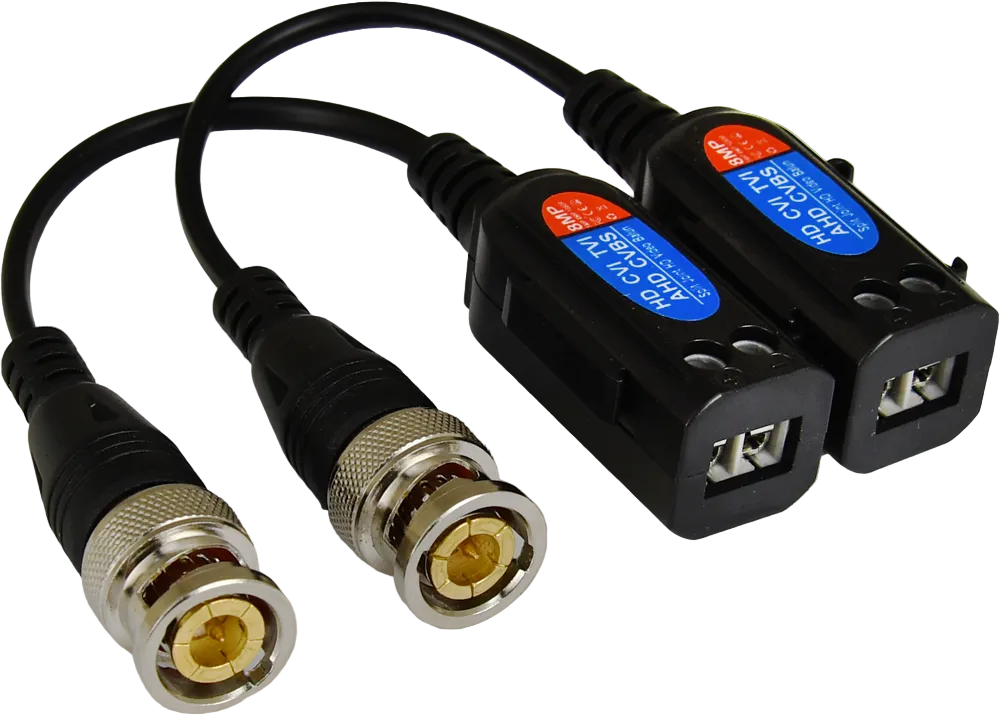

This 8MP CCTV video balun pair is designed to transmit analogue HD CCTV video over twisted-pair cable, providing a convenient alternative to traditional coaxial cabling.

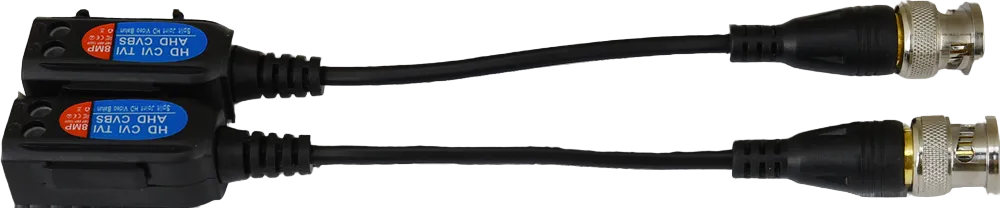

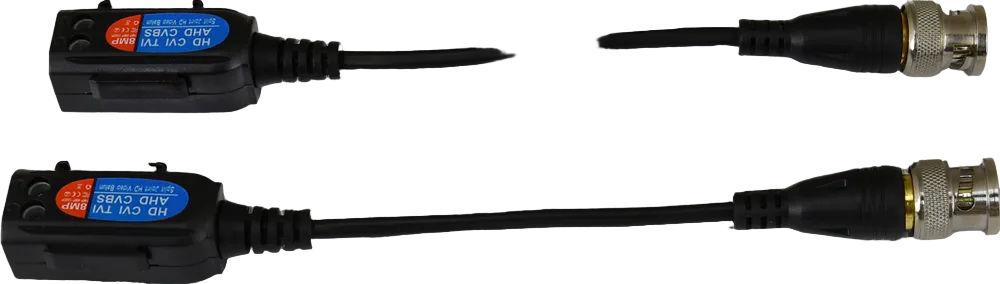

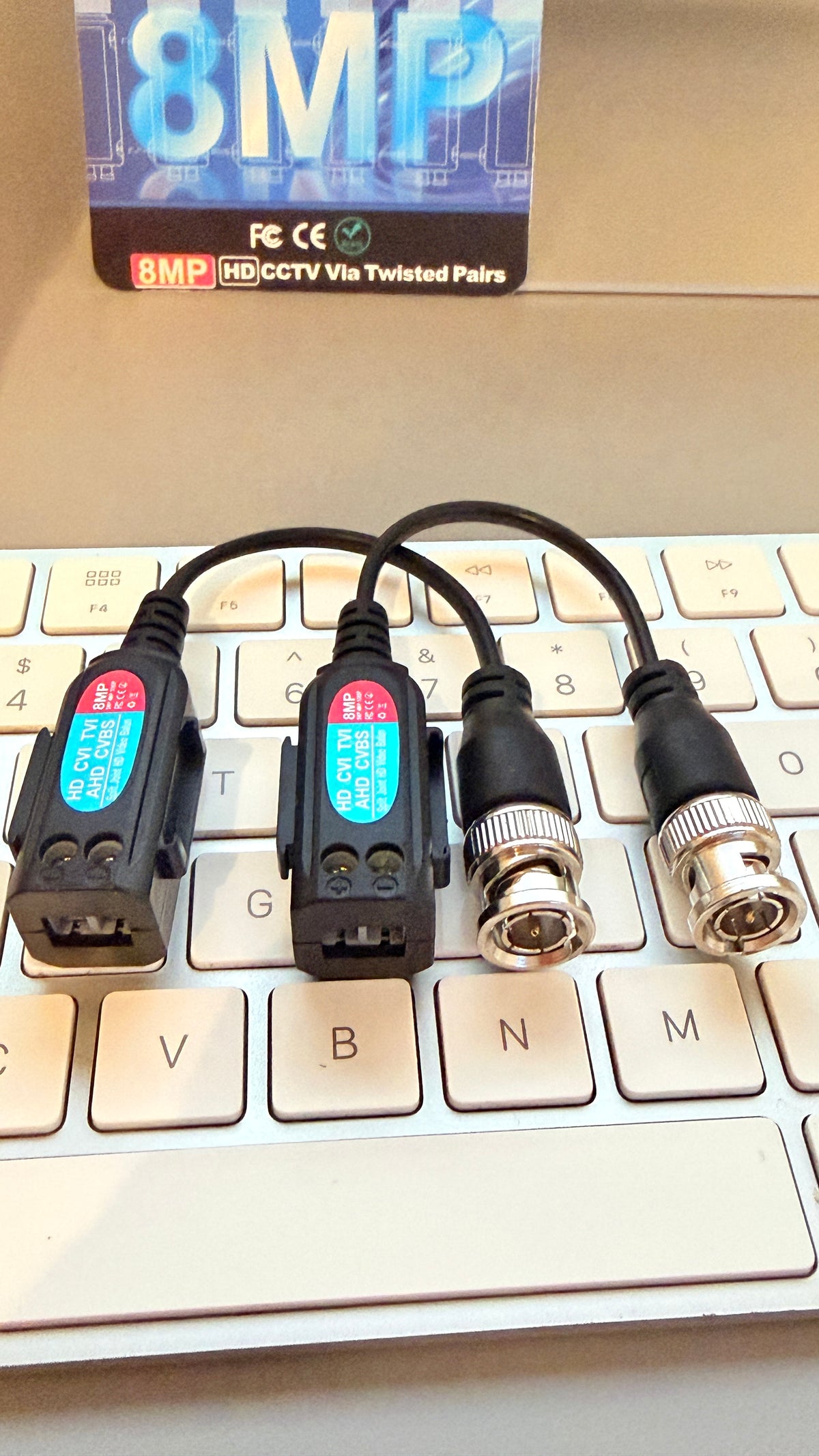

Each passive video balun features a short BNC male lead for connection to a CCTV camera or DVR and a 2-wire terminal connection for twisted-pair cabling. The baluns support HD-TVI, HD-CVI, AHD and CVBS video formats with resolutions up to 8MP according to the product specification.
Key Features
• Pair of passive CCTV video baluns
• Supports video resolutions up to 8MP
• Compatible with HD-TVI, HD-CVI, AHD and CVBS

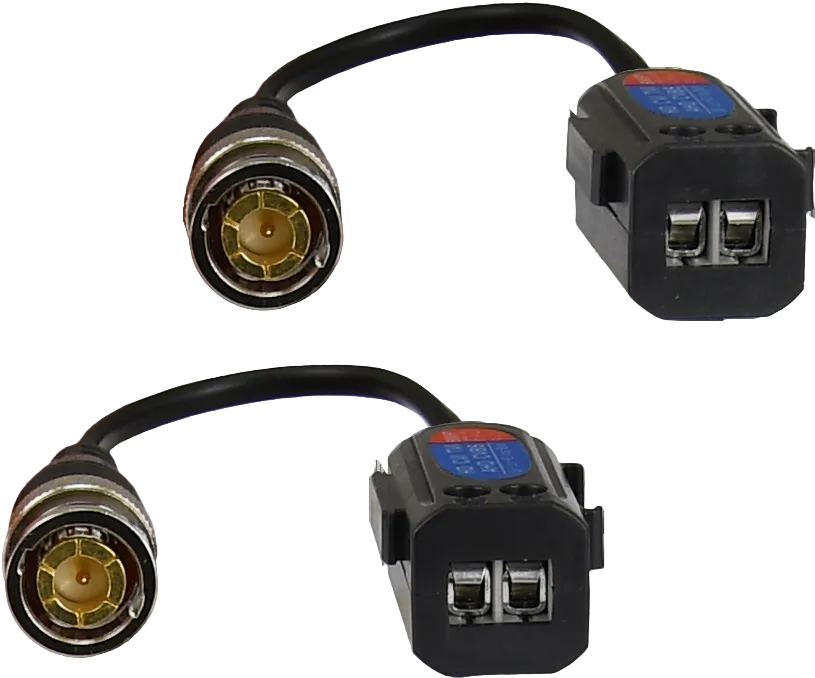

• BNC male connector on short flexible cable
• 2-wire terminal connection for twisted-pair cable
• Designed for CCTV video transmission over Cat5e / Cat6 cabling
• Passive operation – no external power supply required
• Short BNC lead helps reduce strain on camera and DVR ports
• Compact design for CCTV and surveillance installations
• Suitable for commercial, domestic and industrial security systems
Ideal For
• HD-TVI CCTV cameras
• HD-CVI surveillance systems
• AHD security cameras
• CVBS analogue cameras
• DVR installations
• CCTV transmission over Cat5e or Cat6
• Security and surveillance installations
Specifications
Connector: BNC Male
Cable Connection: 2-Wire Terminal
Video Formats: HD-TVI / HD-CVI / AHD / CVBS
Maximum Rated Resolution: 8MP
Type: Passive CCTV Video Balun
Quantity: 1 Pair
Compatibility Note
These baluns are designed for analogue CCTV video transmission over twisted-pair cabling. They are not Ethernet adapters and are not suitable for IP cameras.
Maximum resolution and transmission distance depend on the camera system, DVR, cable quality, cable length and installation environment.
Package Contents
2 × 8MP Passive CCTV Video Baluns
