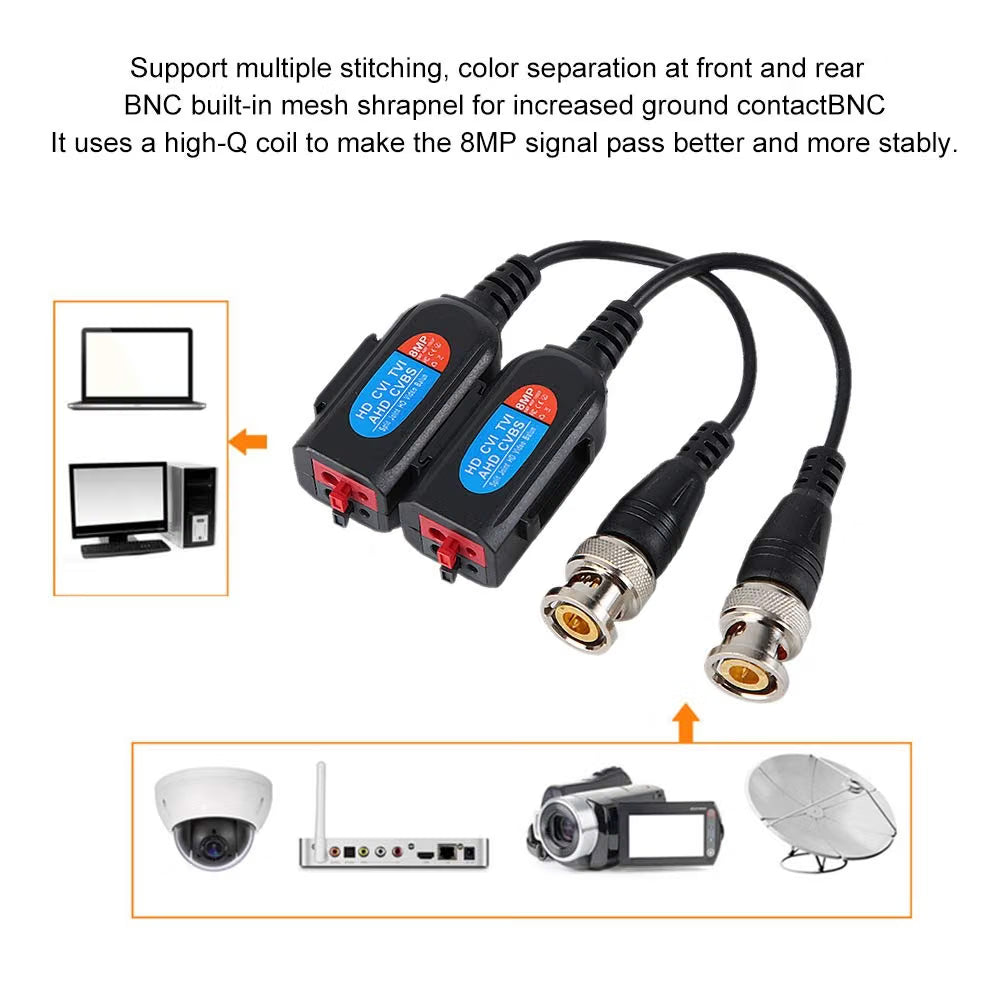

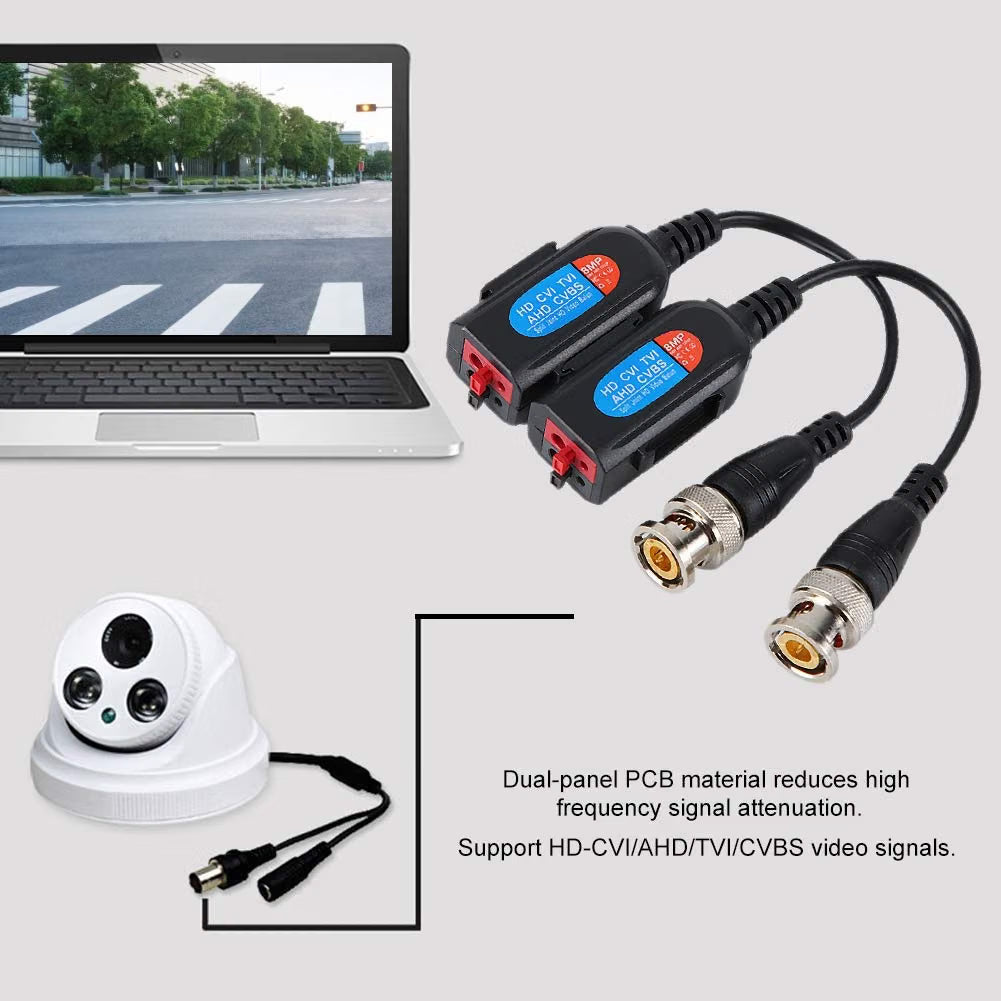

This 8MP CCTV video balun pair is designed to transmit analogue HD CCTV video over twisted-pair cabling, providing a convenient alternative to traditional coaxial cable for security camera installations.

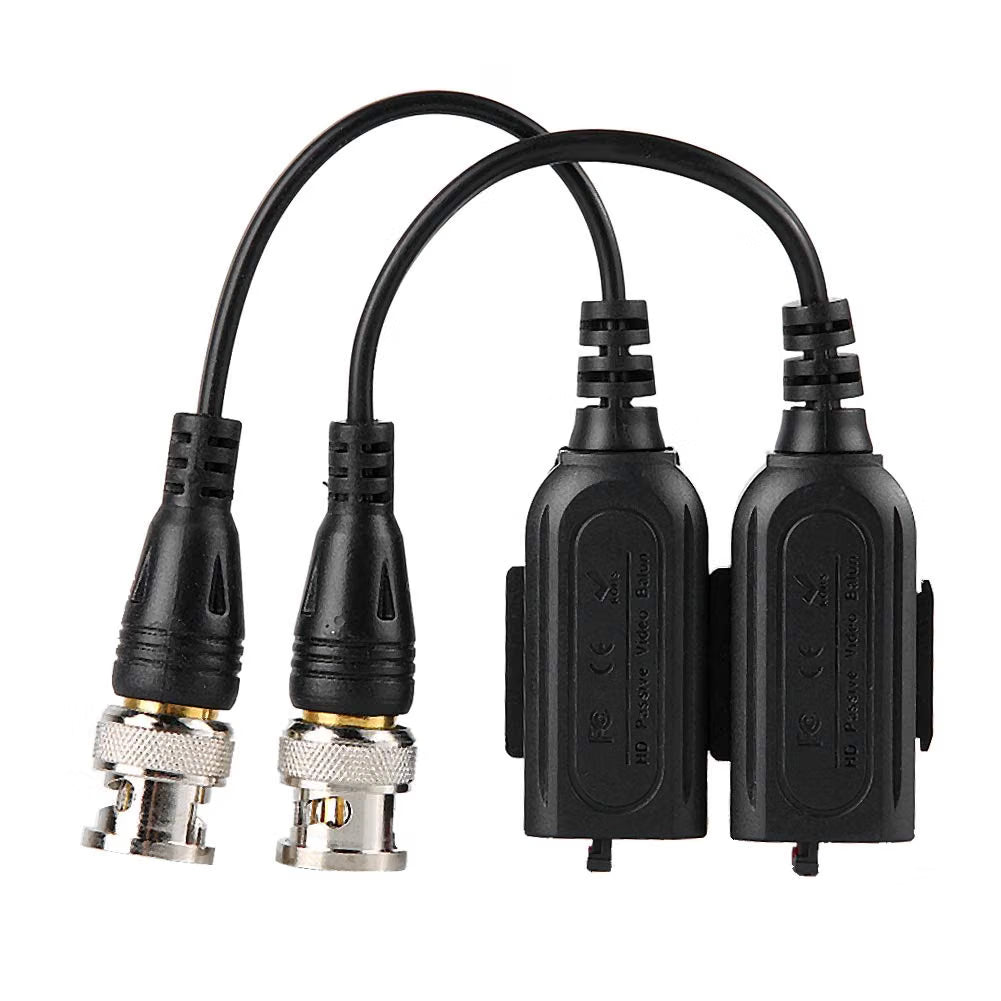

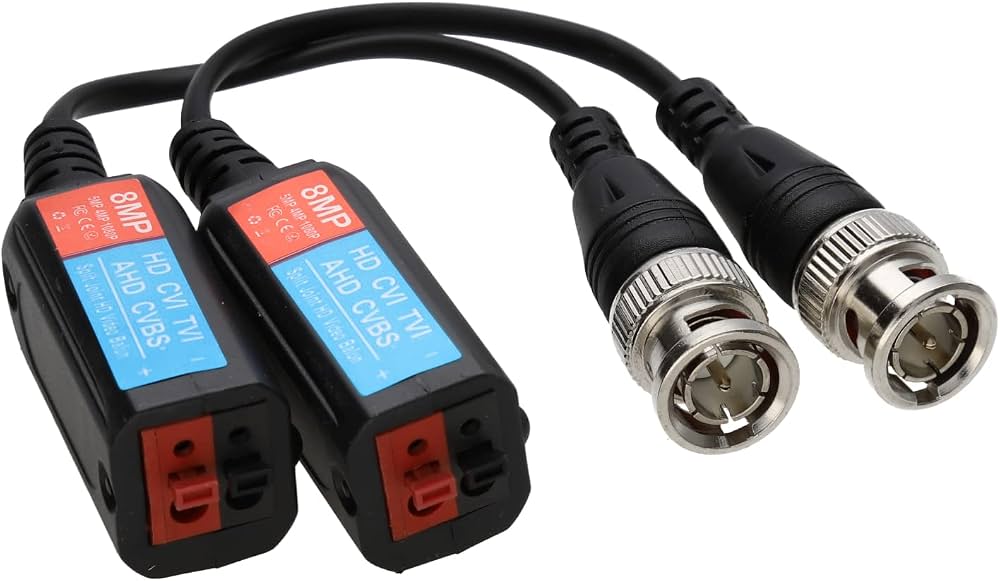

The set includes two passive video baluns with BNC male connectors and tool-free two-wire terminals. It supports HD-TVI, HD-CVI, AHD and CVBS video formats with resolutions up to 8MP, making it suitable for CCTV cameras, DVR systems and professional surveillance installations.
Key Features
• Pair of passive CCTV video baluns
• Supports video resolutions up to 8MP
• Compatible with 720P, 960P, 1080P, 3MP, 4MP, 5MP and 8MP

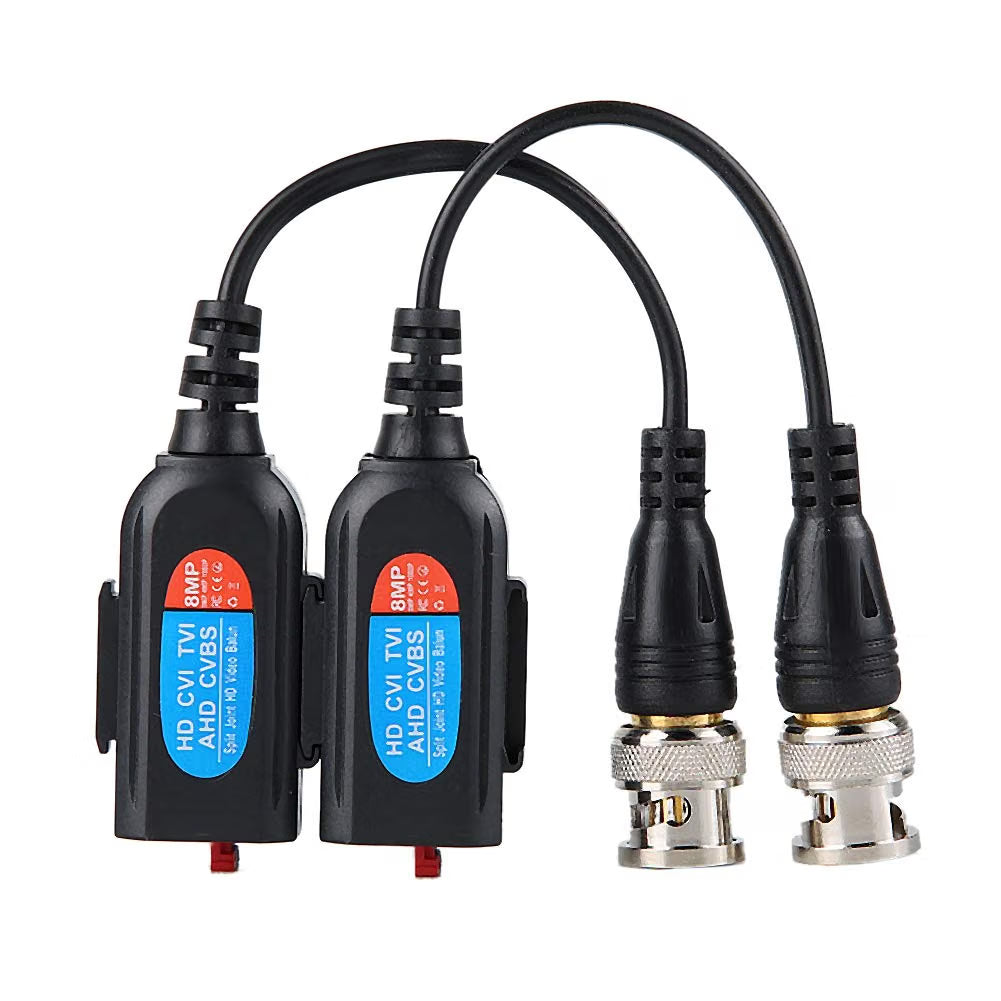

• Supports HD-TVI, HD-CVI, AHD and CVBS video signals
• BNC male connector for camera or DVR connection
• Two-wire push terminals for twisted-pair cable

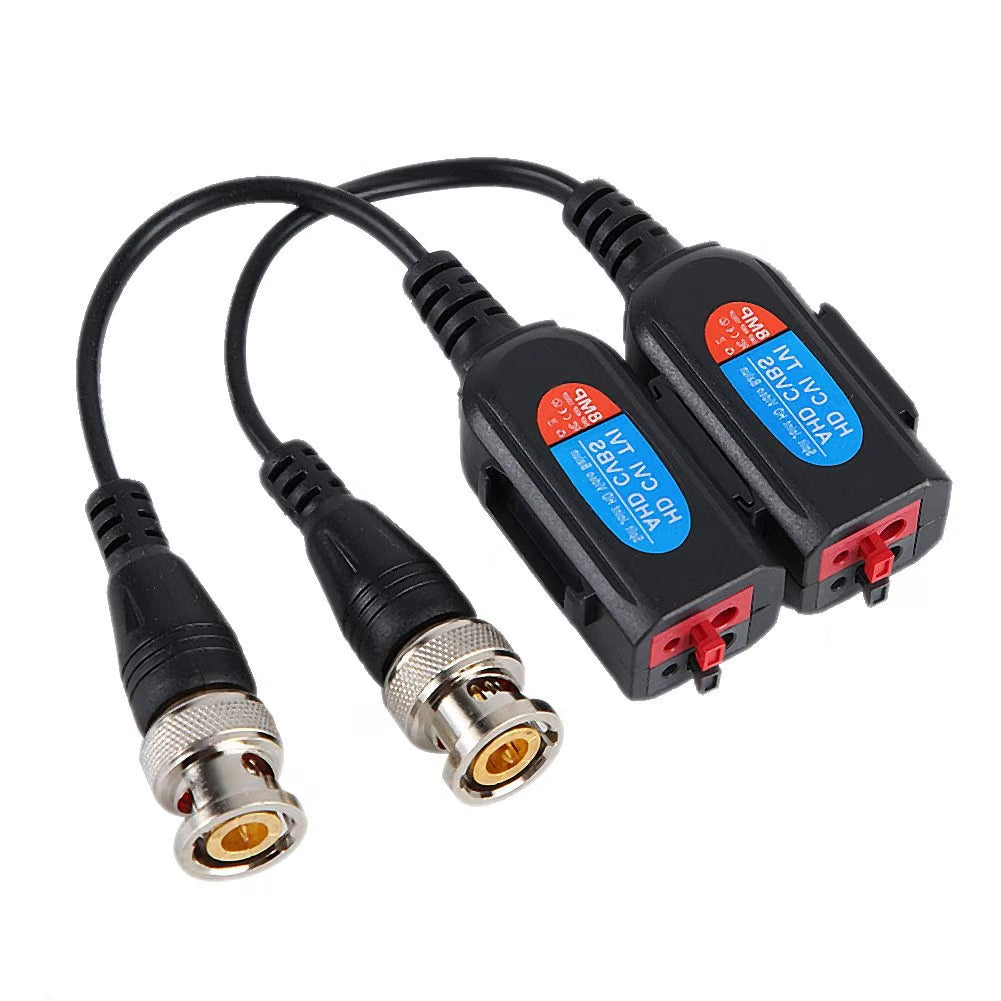

• Tool-free red and black terminal design for quick installation
• Passive operation – no external power supply required
• Short flexible lead helps reduce strain on BNC equipment ports
• Compact design for CCTV and surveillance installations
• Suitable for Cat5e, Cat6 and compatible twisted-pair cabling
Ideal For
• HD-TVI CCTV cameras
• HD-CVI surveillance systems
• AHD security cameras
• CVBS analogue CCTV systems
• DVR installations
• Commercial CCTV systems
• Industrial surveillance installations

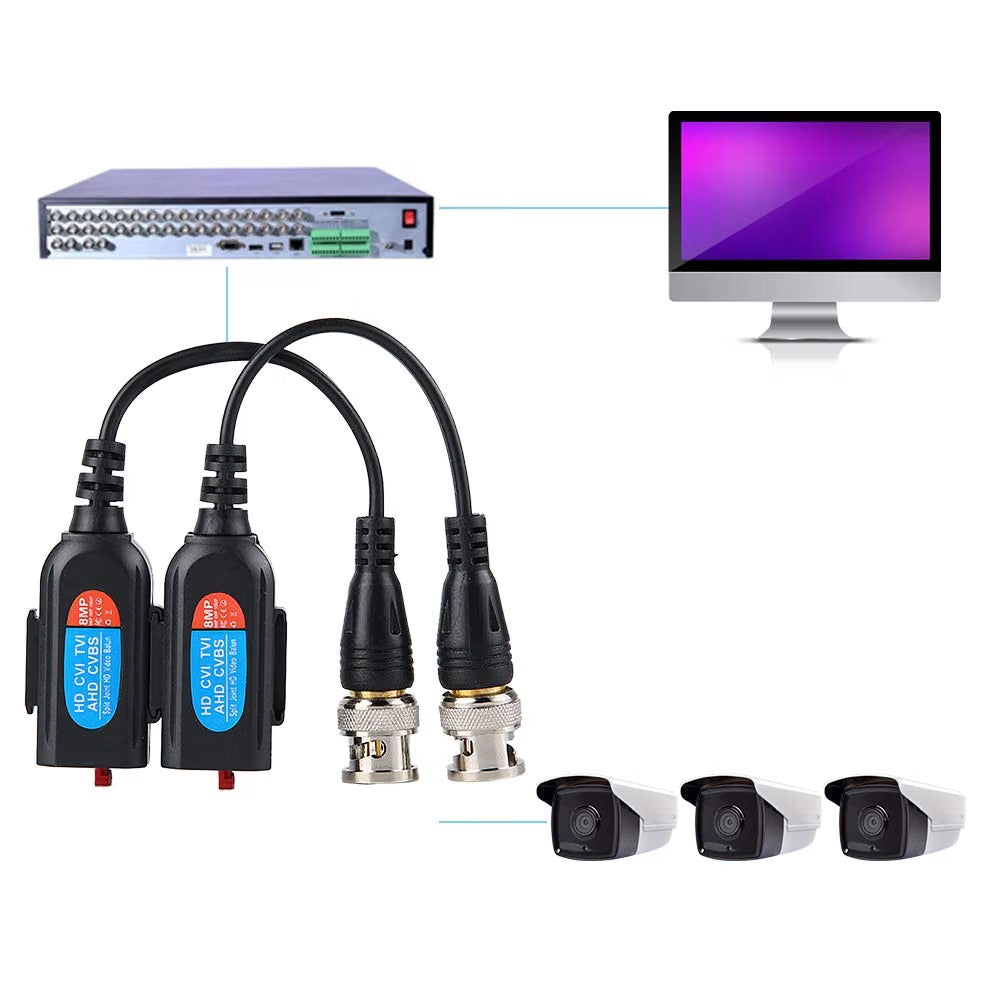

• CCTV video transmission over Cat5e or Cat6 cable
Connection
Camera / DVR Side: BNC Male
Cable Side: 2-Wire Push Terminal
Video Formats: HD-TVI / HD-CVI / AHD / CVBS
Maximum Rated Resolution: 8MP

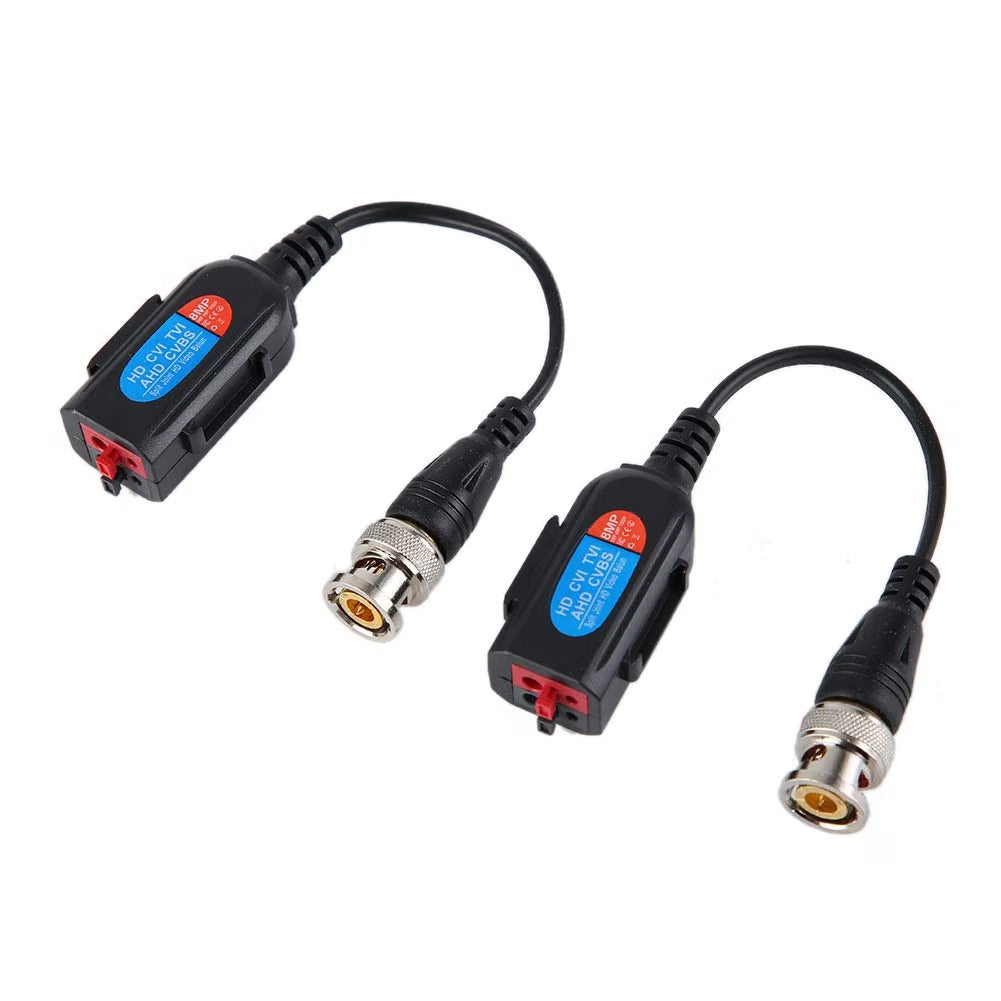

Type: Passive CCTV Video Balun
Quantity: 1 Pair
Compatibility Note
These baluns are designed for analogue CCTV video transmission over twisted-pair cabling. They are not Ethernet network adapters and are not suitable for IP cameras.
Maximum resolution and transmission performance depend on the camera system, DVR, cable quality, cable length and installation environment.

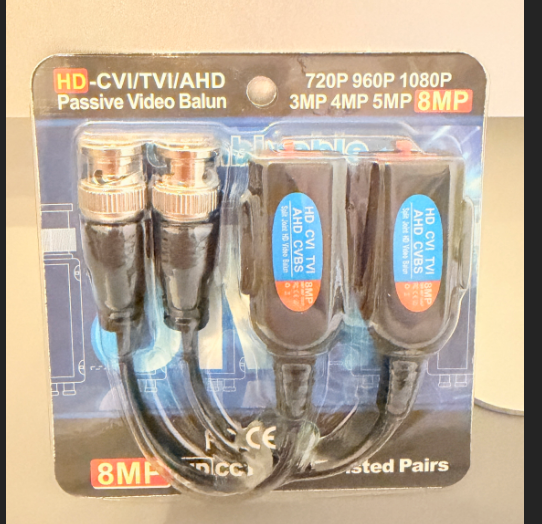

Package Contents
2 × 8MP CCTV passive video baluns
