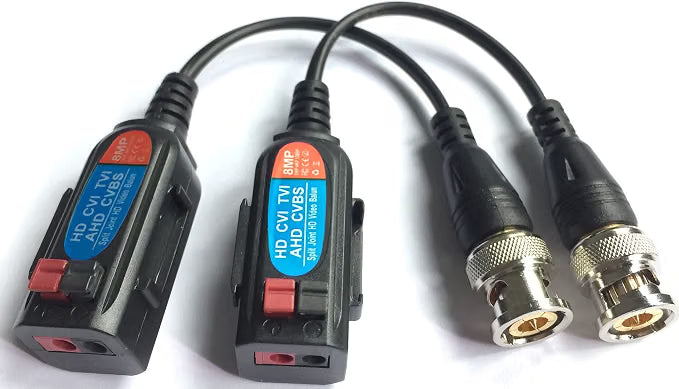

This 8MP passive CCTV video balun pair allows analogue HD CCTV video signals to be transmitted over twisted-pair network cable instead of traditional coaxial cable.

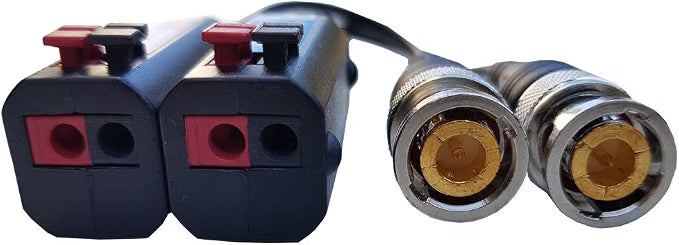

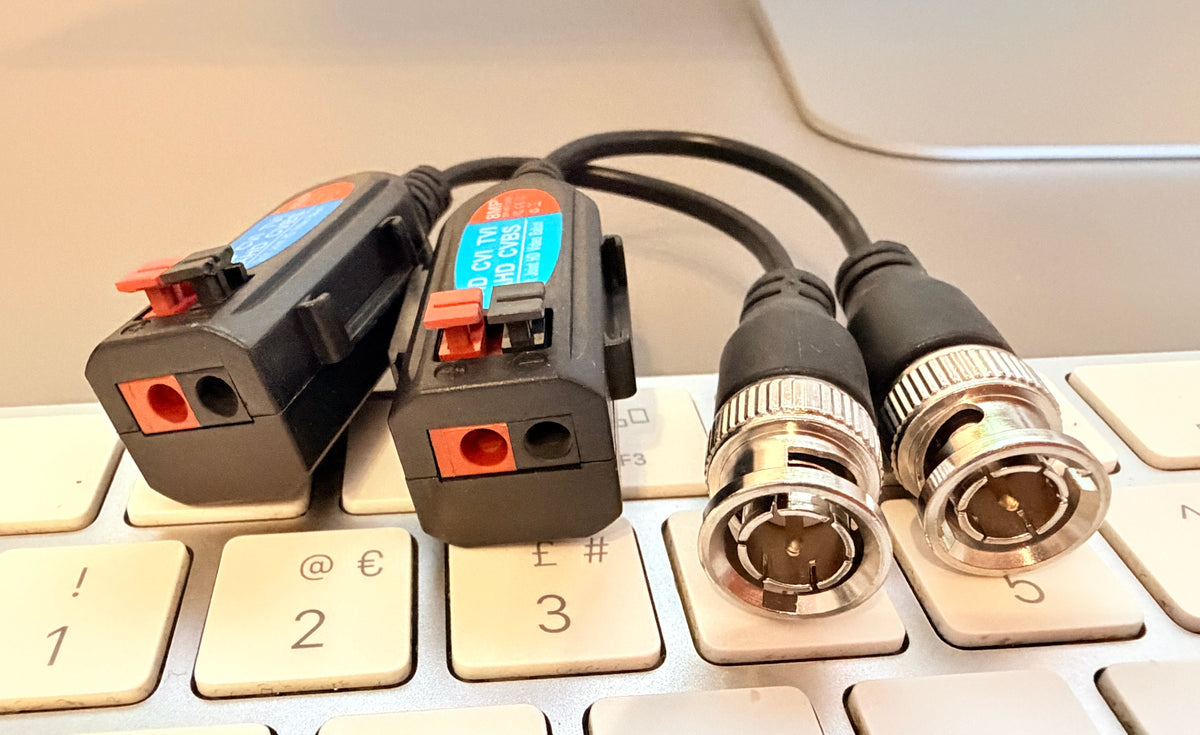

Each balun features a BNC male connector for the camera or DVR and a two-wire push terminal for connection to twisted-pair cable. The pair supports HD-TVI, HD-CVI, AHD and CVBS CCTV systems, making it suitable for Hikvision Turbo HD and other compatible analogue HD surveillance equipment.
Key Features
• Pair of passive CCTV video baluns
• BNC male to 2-wire terminal connection
• Supports video resolutions up to 8MP according to product specification
• Supports 720P, 960P, 1080P, 3MP, 4MP, 5MP and 8MP

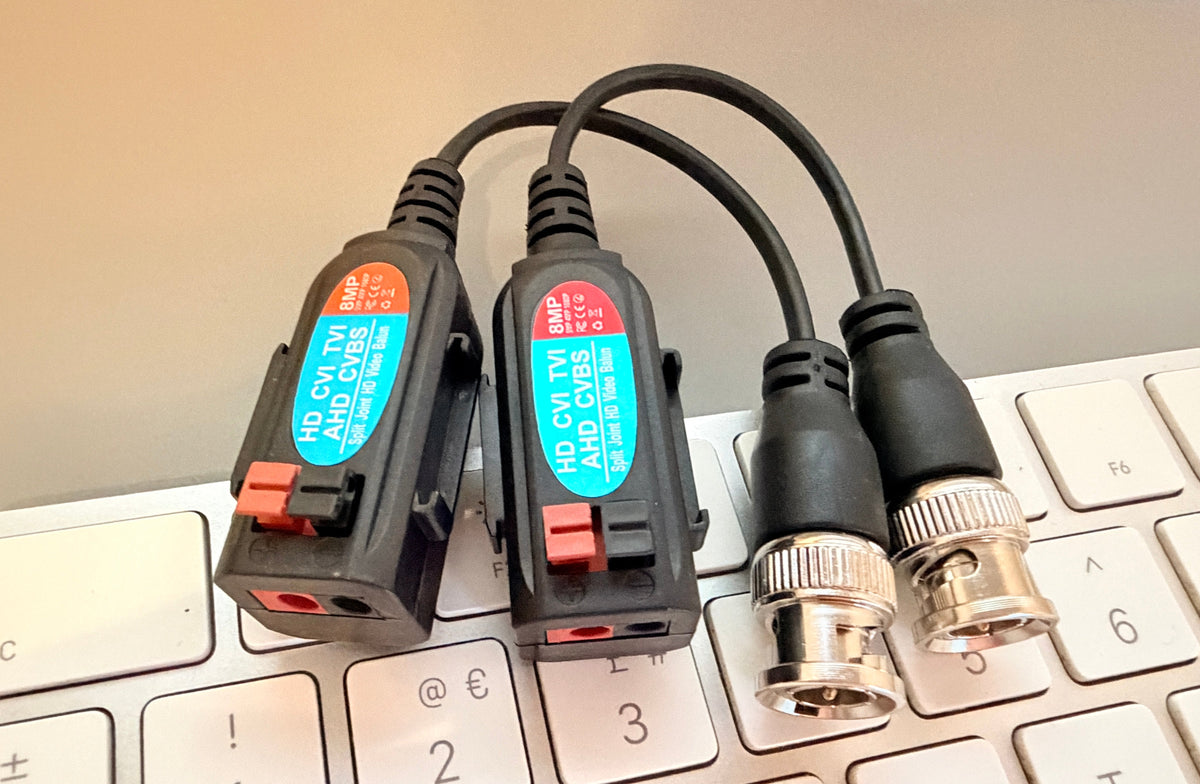

• Compatible with HD-TVI, HD-CVI, AHD and CVBS video formats
• Suitable for Hikvision Turbo HD compatible TVI systems
• Uses twisted-pair cable for CCTV video transmission
• Tool-free red and black push terminals for quick wiring
• Passive design – no external power supply required
• Compact design for camera, DVR and surveillance installations
• Short flexible BNC lead helps reduce strain on equipment connectors
Ideal For
• Hikvision Turbo HD CCTV installations
• HD-TVI security cameras
• HD-CVI camera systems
• AHD surveillance cameras
• CVBS analogue CCTV
• DVR security systems
• CCTV installations using Cat5e / Cat6 twisted-pair cabling
• Commercial and industrial surveillance systems
Connection
Camera / DVR Side: BNC Male
Cable Side: 2-Wire Push Terminal
Video Formats: HD-TVI / HD-CVI / AHD / CVBS
Maximum Rated Resolution: 8MP
Type: Passive Video Balun
Quantity: 1 Pair
Compatibility Note
These baluns are designed for analogue CCTV video transmission over twisted-pair wiring. They are not Ethernet network adapters and are not suitable for IP cameras.
Transmission distance and maximum supported resolution depend on the camera system, cable quality, wiring and installation environment.

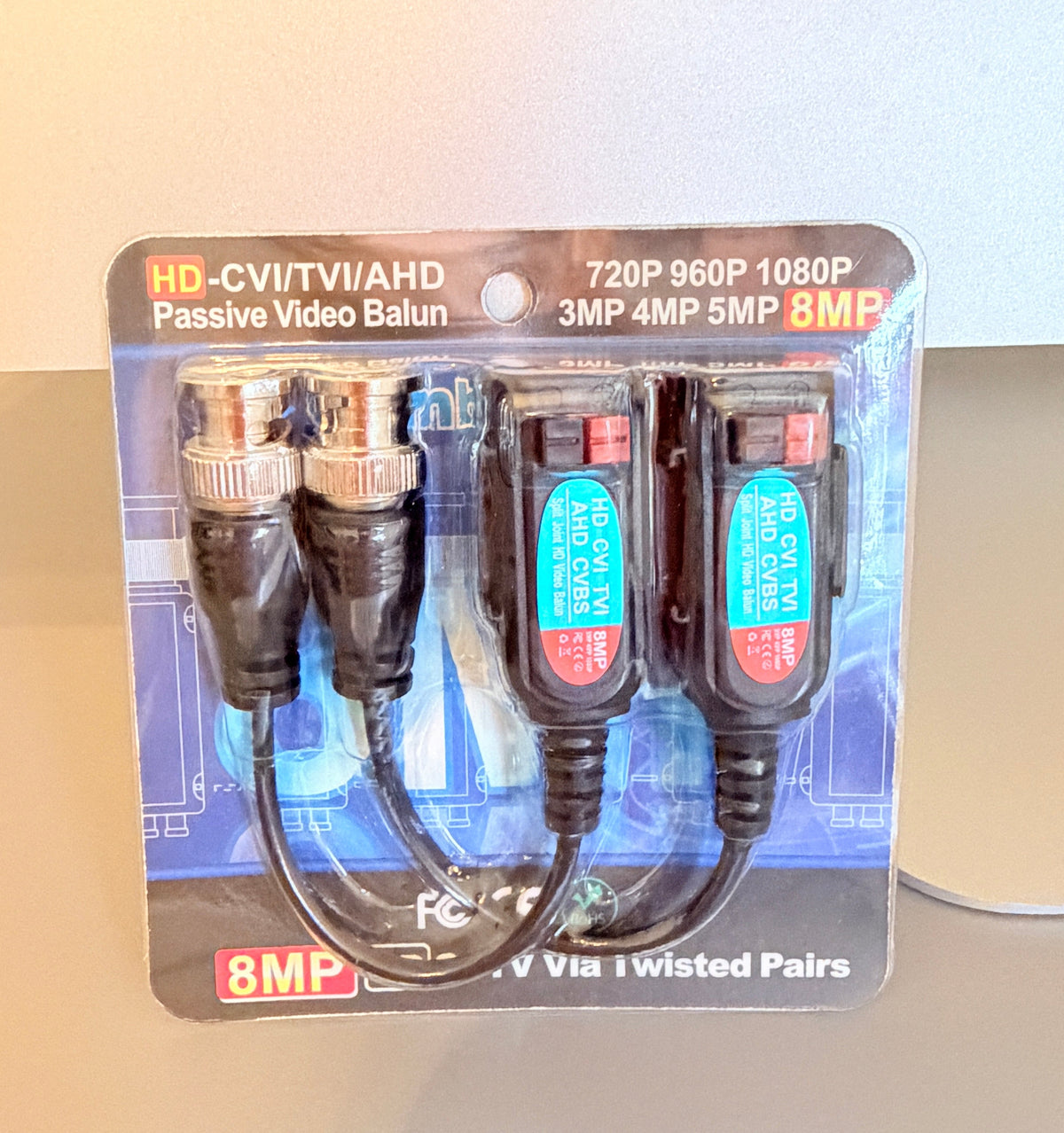

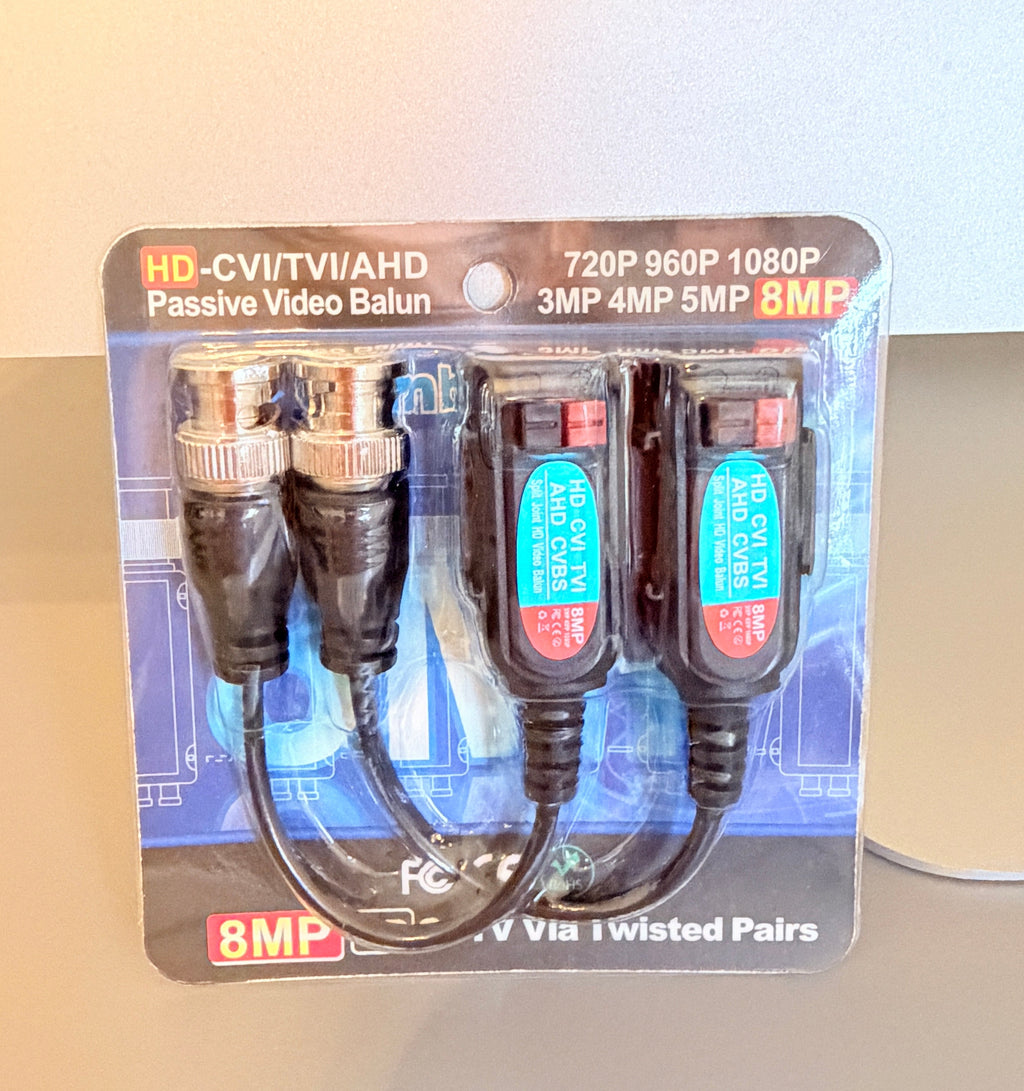

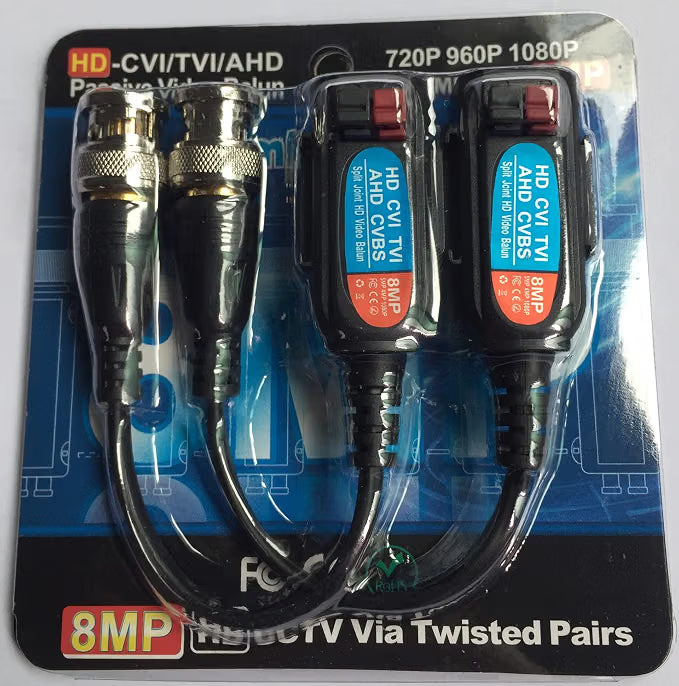

Package Contents
2 × 8MP CCTV passive video baluns
