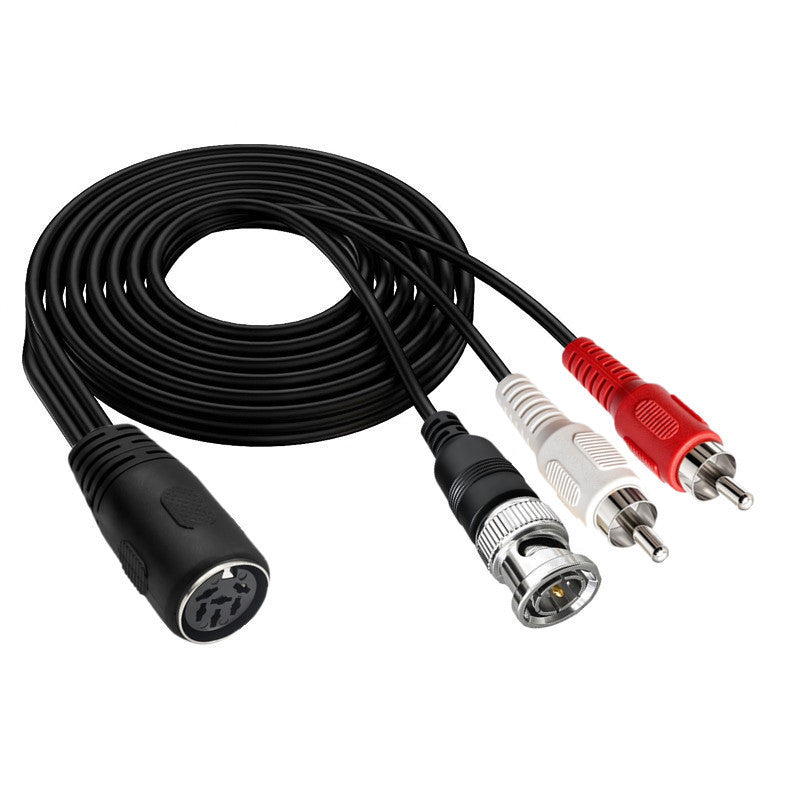

Connect compatible legacy audio equipment with a 6-pin DIN male connection to RCA and BNC audio equipment using this 0.5m 6-pin DIN female audio breakout cable.

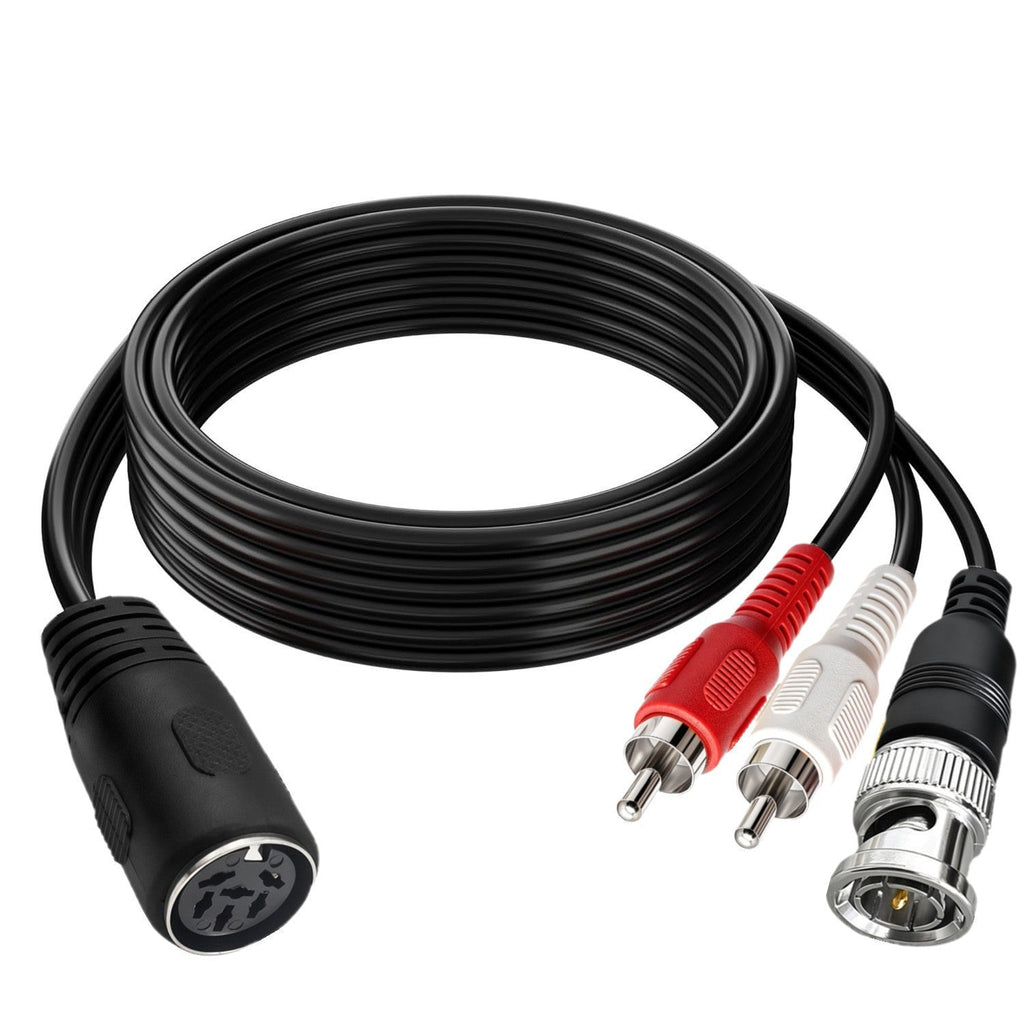

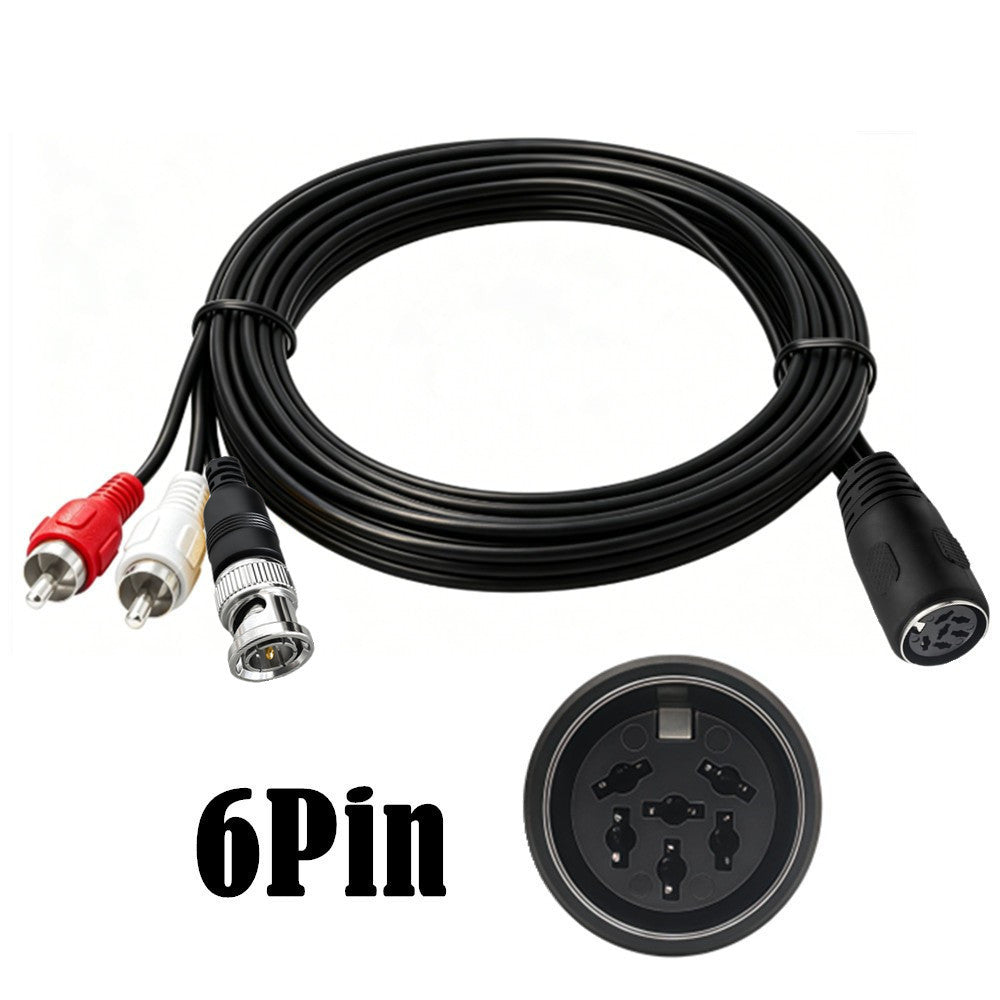

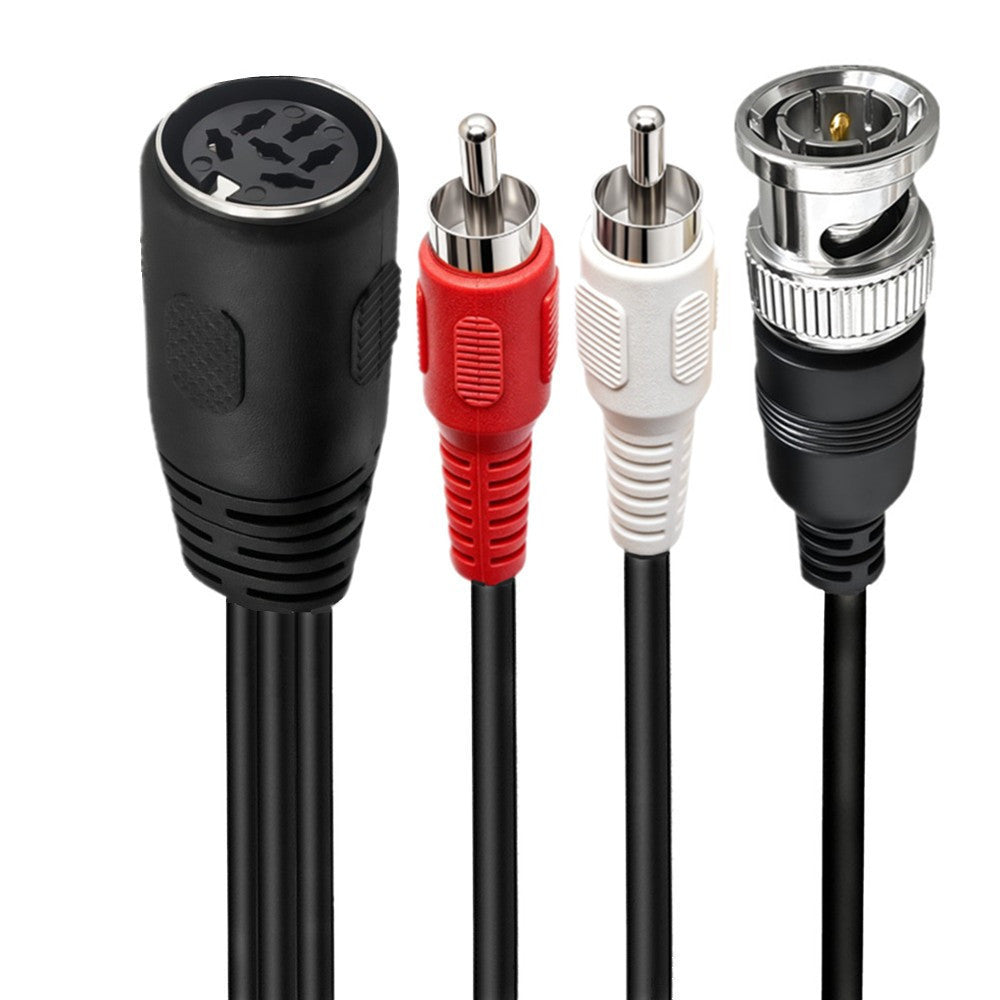

The cable features a 6-pin DIN female socket at one end, two colour-coded RCA male plugs and one BNC male connector at the other. The red and white RCA plugs are intended for right and left analogue audio channels when used with compatible equipment.
The BNC connector provides an additional analogue signal connection for compatible professional audio, monitoring or test equipment.
Key features:
• 6-pin DIN female socket
• Dual RCA male audio plugs
• Red RCA plug for right-channel audio
• White RCA plug for left-channel audio
• BNC male analogue signal connector
• Designed for compatible analogue audio signals
• Audio transmission only
• Black PVC cable jacket
• Moulded connector housings with strain relief
• 0.5m cable length
Typical applications:
• Legacy European audio equipment
• Older amplifiers, tuners and cassette decks
• Open-reel and other recording equipment
• Active speakers and audio amplifiers
• Mixing desks and compatible monitoring equipment
• Oscilloscopes and signal-analysis equipment
• Audio testing and workshop applications
Important compatibility information:
A 6-pin DIN connector does not use one universal audio pinout. The signal allocation can vary between brands, device models and equipment types.
Please confirm the exact DIN pin configuration of the connected equipment before ordering. Matching the connector shape alone does not guarantee compatibility.
The BNC connector is intended for analogue signal transmission only. It should not be described or used as an S/PDIF digital coaxial audio connection unless the wiring and equipment specification have been specifically confirmed.
This is a passive audio cable. It does not convert, amplify, split or process the signal, and it does not support video or power transmission.
