Connect compatible legacy equipment with a 6-pin DIN male audio/video output to a television, monitor, projector or audio system using standard RCA AV inputs.

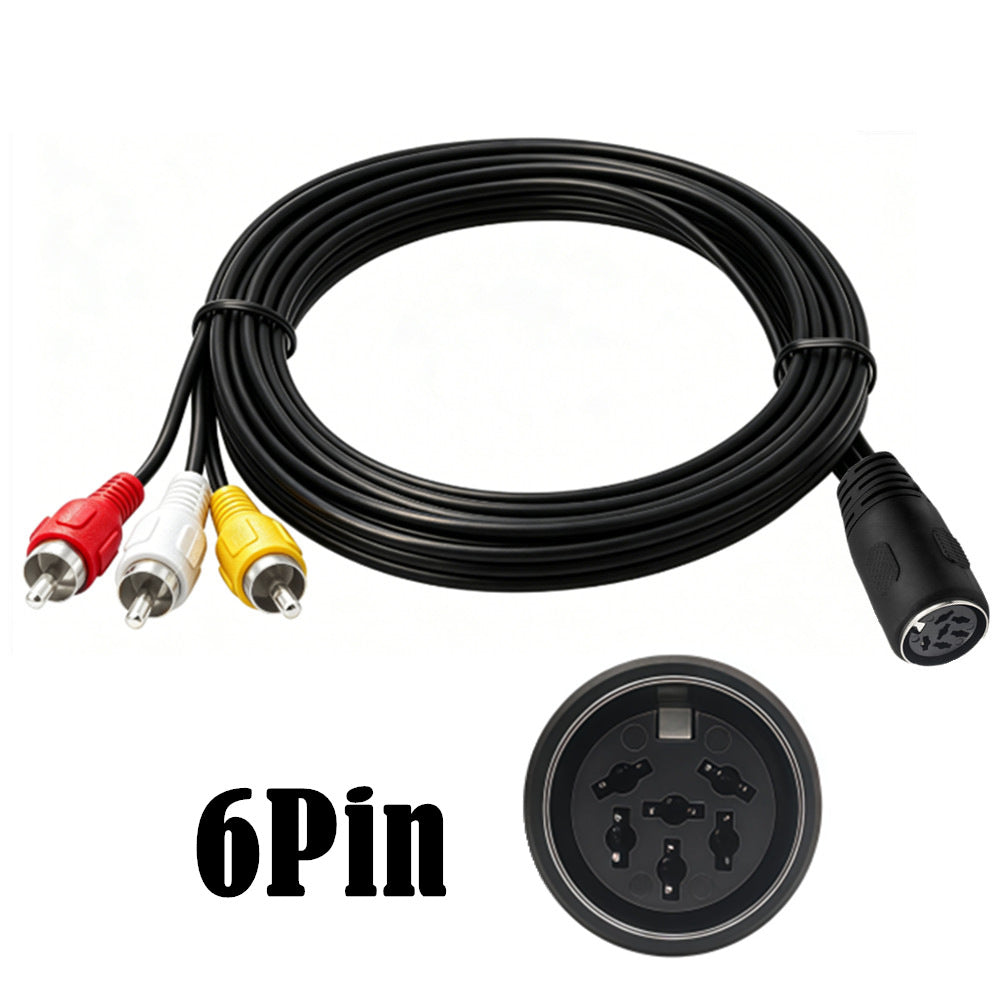

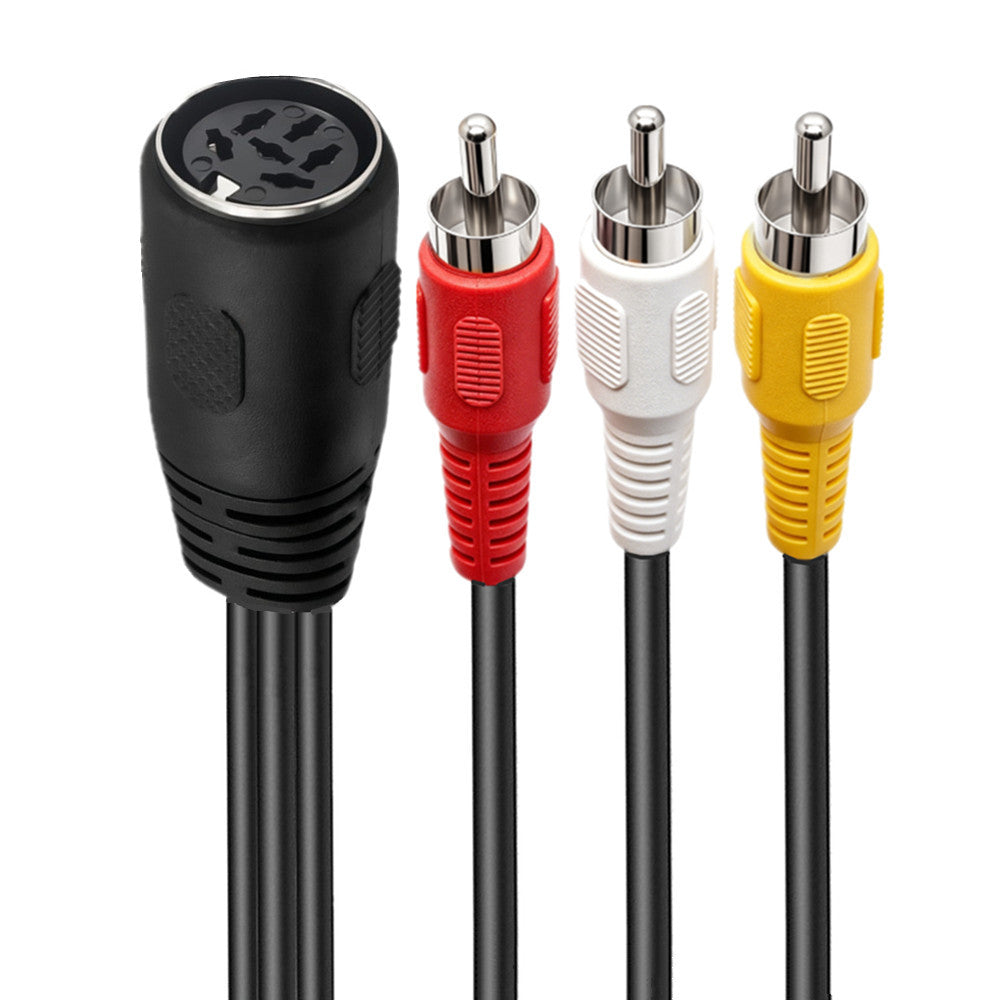

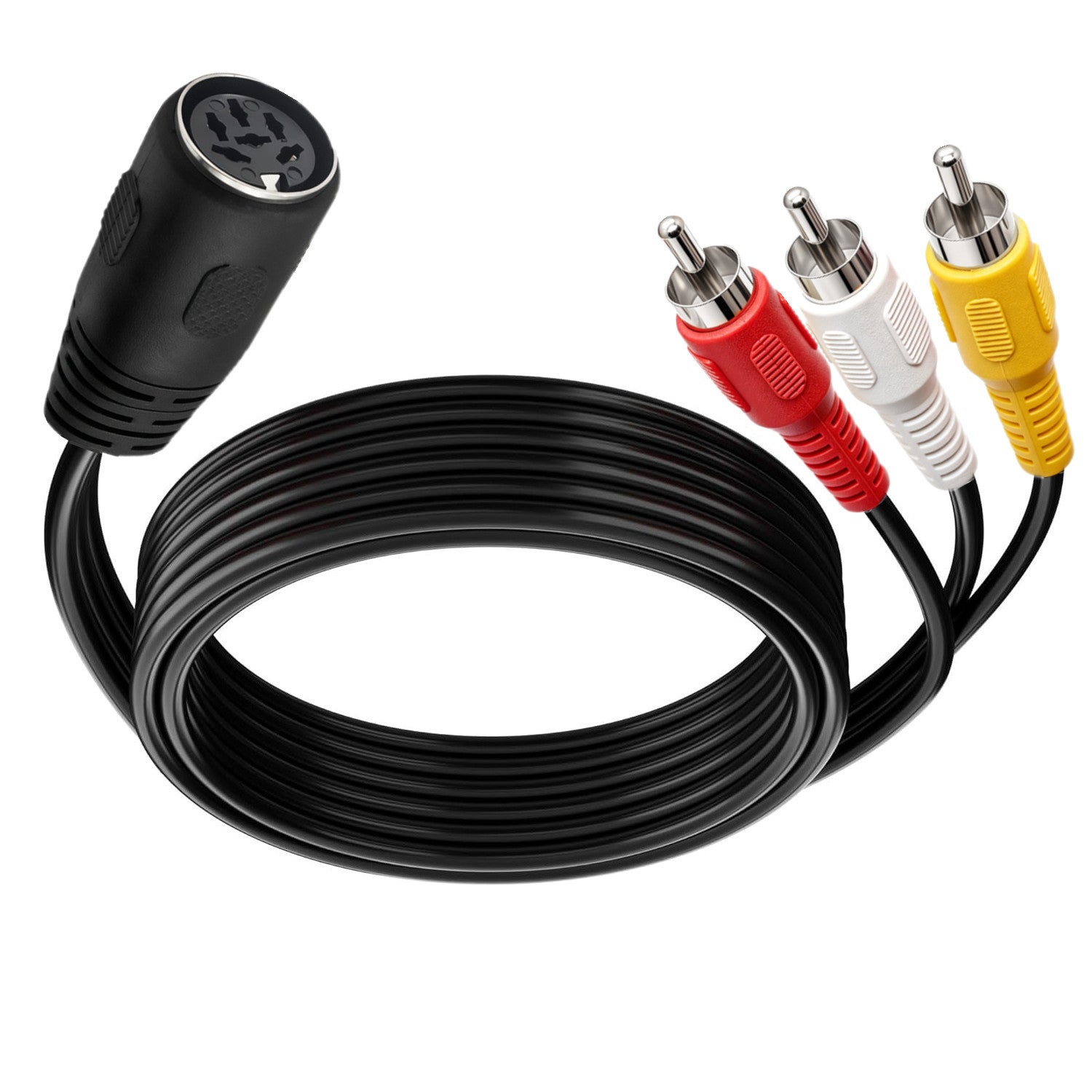

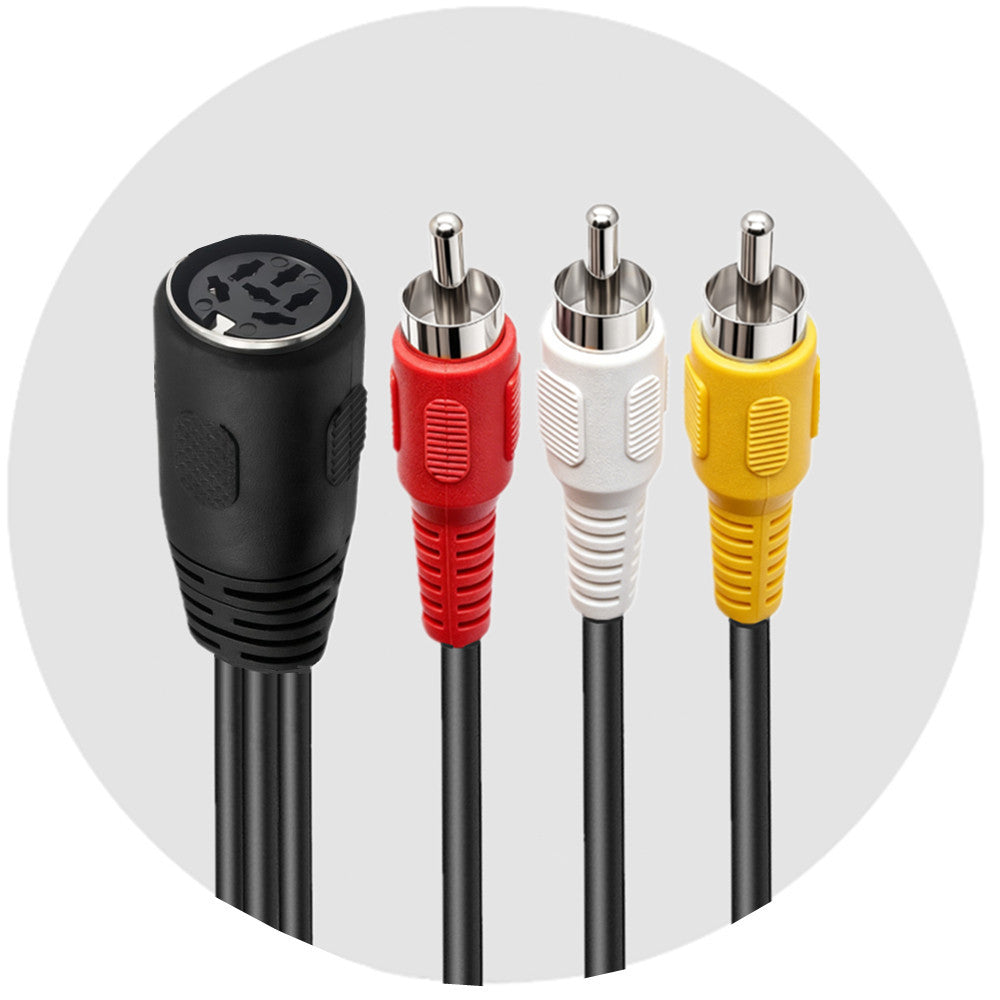

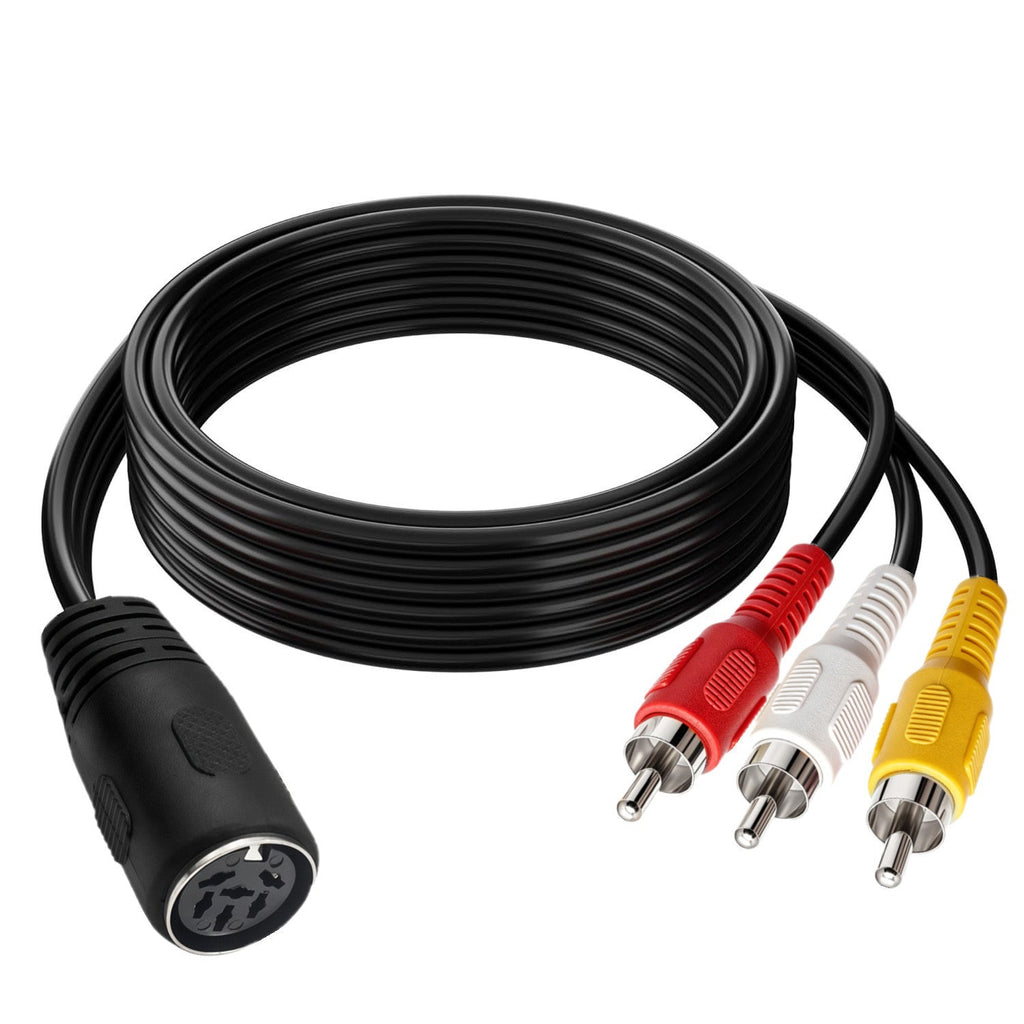

This cable features a 6-pin DIN female socket on one end and three colour-coded RCA male connectors on the other. The yellow RCA plug is intended for composite video, while the white and red RCA plugs are intended for left and right stereo audio when used with compatible equipment.
It is suitable for selected VCRs, VCD and DVD players, older audio systems and retro games consoles that use a matching 6-pin DIN audio/video pin configuration.
Key features:
• 6-pin DIN female to 3 RCA male connection
• Yellow RCA plug for composite video
• White RCA plug for left audio
• Red RCA plug for right audio
• Supports compatible analogue video and stereo audio signals
• Suitable for selected legacy audio/video equipment
• Passive plug-and-play cable
• Flexible black cable
• Reinforced moulded connectors
• Available in 0.5m and 1.5m lengths
Typical applications:
• VHS and VCR players
• Early VCD and DVD players
• Older audio systems and amplifiers
• Cassette and CD systems with compatible DIN connections
• Selected retro games consoles
• Televisions, monitors and projectors with RCA AV inputs
Connection guide:
1. Connect the 6-pin DIN female socket to a compatible 6-pin DIN male connector on the source equipment or extension lead.
2. Connect the yellow RCA plug to the VIDEO IN socket.
3. Connect the white RCA plug to the AUDIO L input.
4. Connect the red RCA plug to the AUDIO R input.
5. Select the correct AV source on the television or display.
For audio-only equipment, the yellow video connector may not be required.
Important compatibility information:
A 6-pin DIN connector does not use one universal pin assignment. Internal wiring can vary between VCRs, DVD players, audio equipment and games consoles.
Please confirm the exact DIN pinout of your equipment before ordering. Matching the connector shape alone does not guarantee compatibility.
This cable is designed for analogue composite video and audio signals only. It does not convert signals to HDMI or any other digital format.
