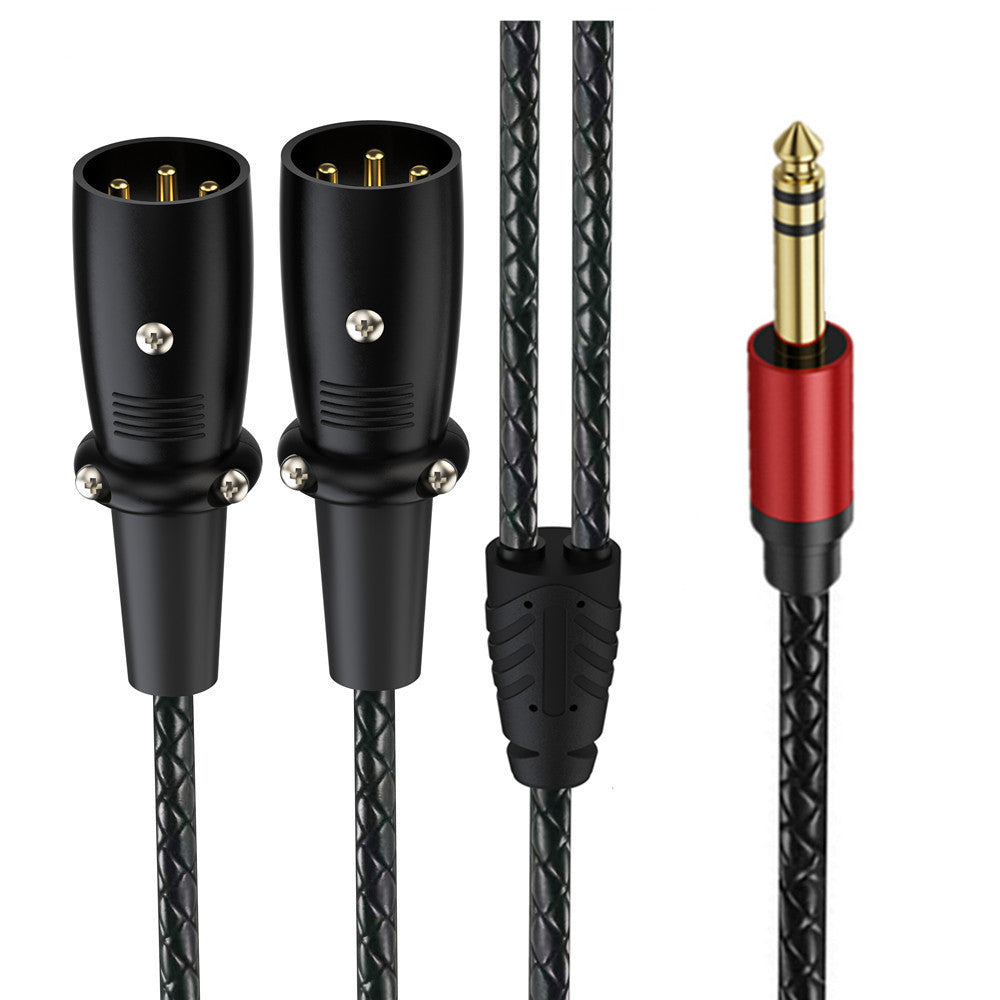

Connect a compatible 6.35mm TRS stereo output to two separate XLR inputs with this 6.35mm TRS male to dual 3-pin XLR male audio breakout cable.

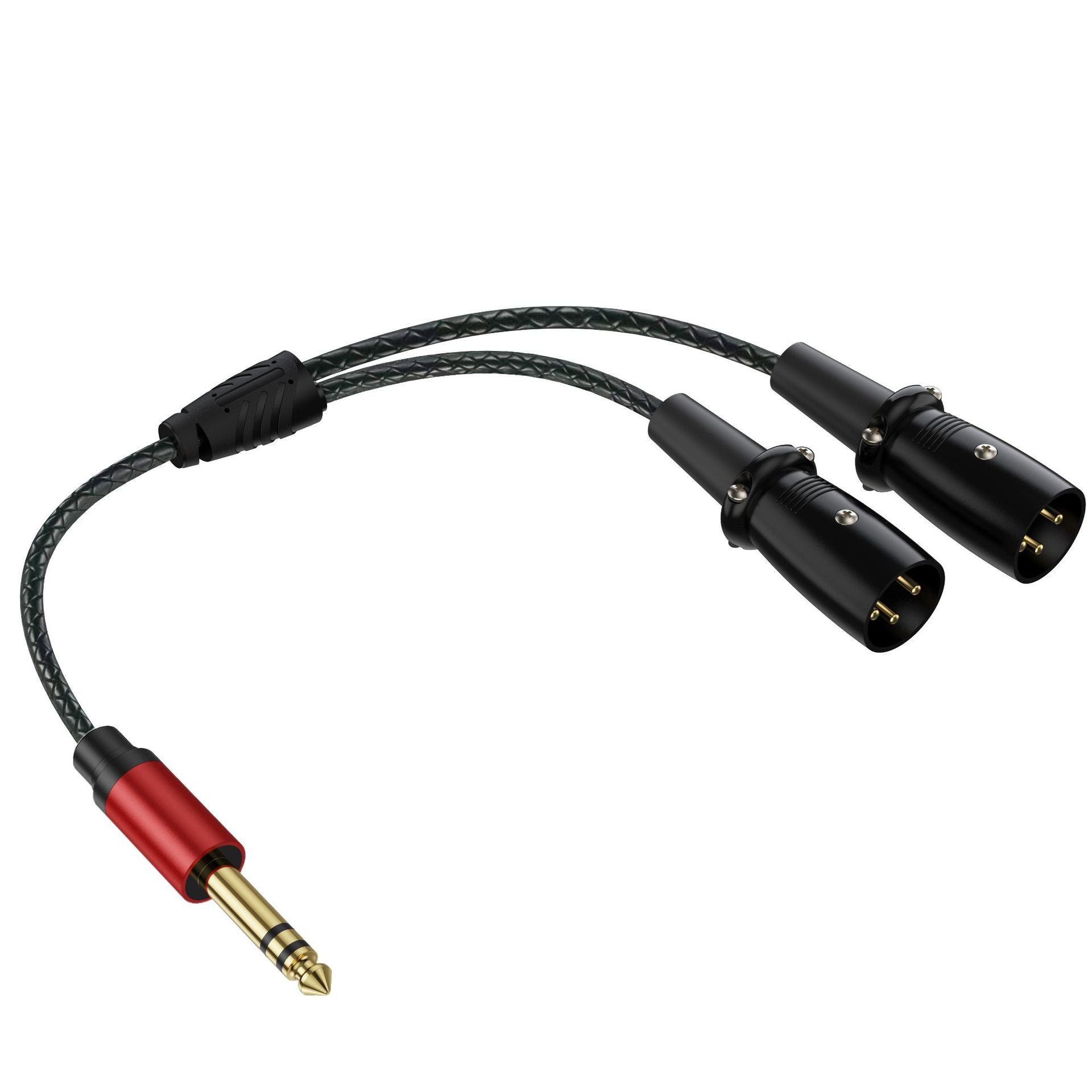

The cable features one straight 6.35mm (1/4-inch) TRS male plug at the source end and two straight 3-pin XLR male connectors at the other. It is designed to separate the left and right channels from a compatible stereo TRS output for connection to powered monitors, mixers, amplifiers and other professional audio equipment.

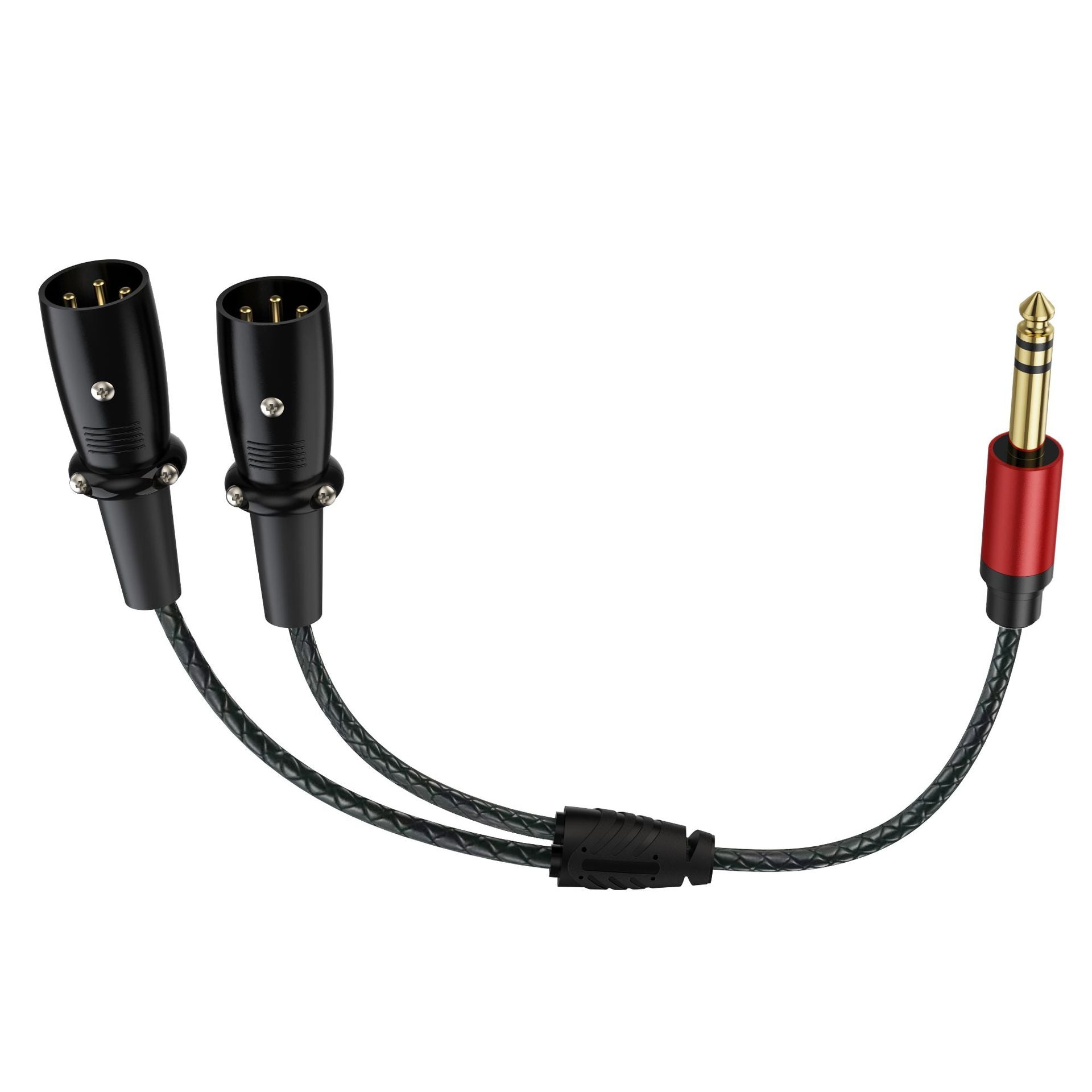

The braided outer jacket helps protect the cable during regular studio, stage and live sound use. A reinforced Y-splitter section and moulded connector housings provide additional strain relief for repeated setup, transport and connection.
Key features:
• Straight 6.35mm TRS stereo male plug
• Dual straight 3-pin XLR male connectors

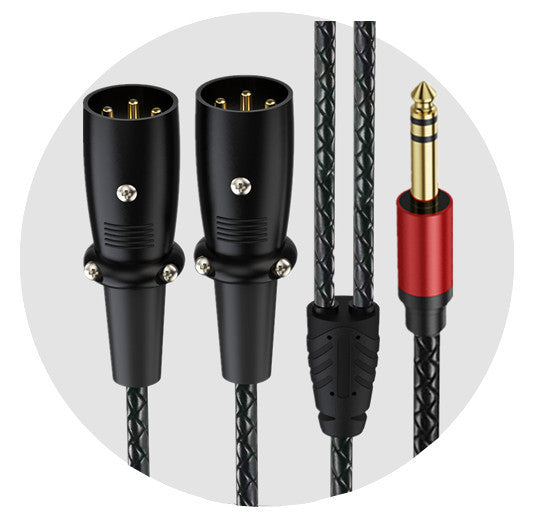

• Separates a compatible stereo signal into left and right mono channels
• Braided outer cable jacket
• Reinforced moulded Y-splitter section
• Durable connector housings
• Passive plug-and-play audio breakout design
• Suitable for compatible studio, stage and professional audio equipment

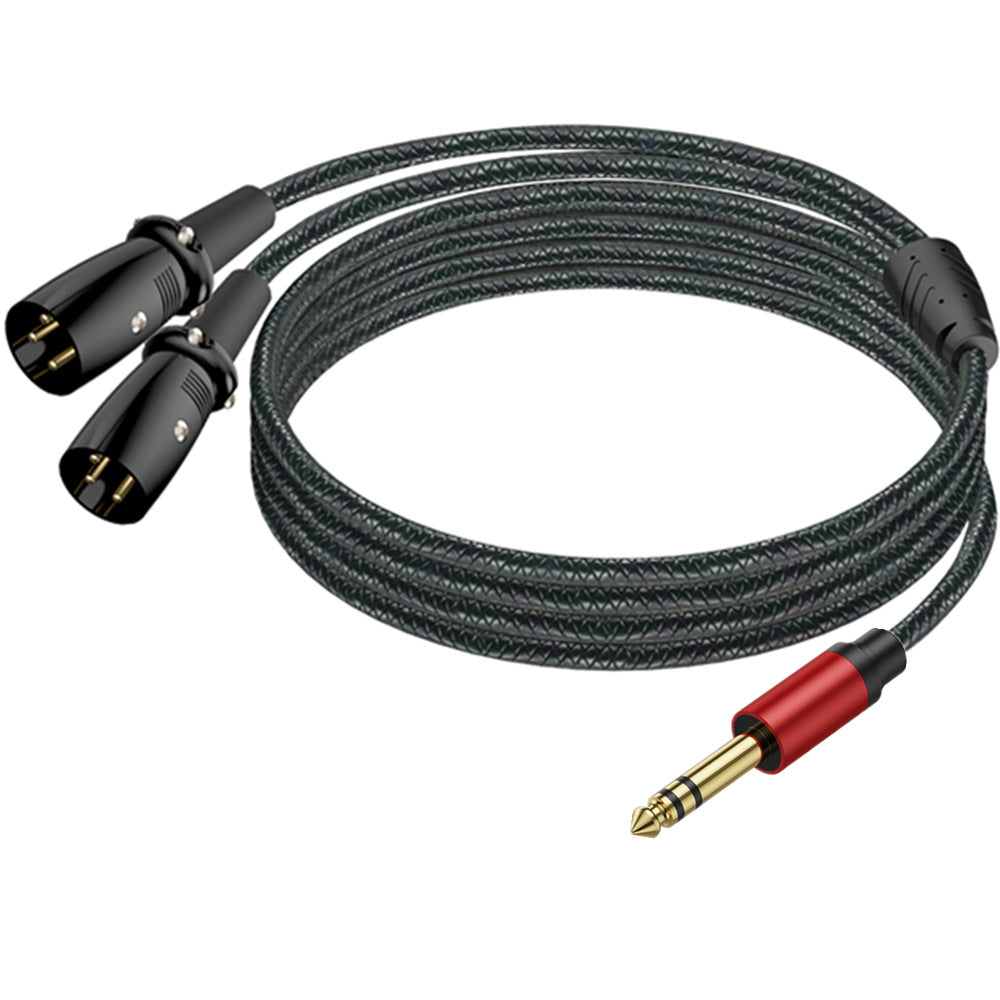

• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Audio interfaces and sound cards
• Electronic keyboards and synthesisers
• Portable mixers and effects processors
• Powered studio monitors
• Professional mixing desks
• Stage amplifiers and audio processors
• Recording, livestreaming and live sound systems
Important compatibility information:
The 6.35mm source connection must provide a standard unbalanced stereo TRS signal:
• Tip: left audio channel
• Ring: right audio channel
• Sleeve: common ground
Each XLR connector carries one unbalanced mono channel. This cable does not create two fully balanced XLR signals from a stereo TRS output.
Do not use it with a balanced mono TRS output unless the required pinout and application have been confirmed. Incorrect use may result in reduced volume, phase cancellation or incorrect signal routing.
This is a passive breakout cable. It does not amplify, balance, isolate or process the audio signal.
