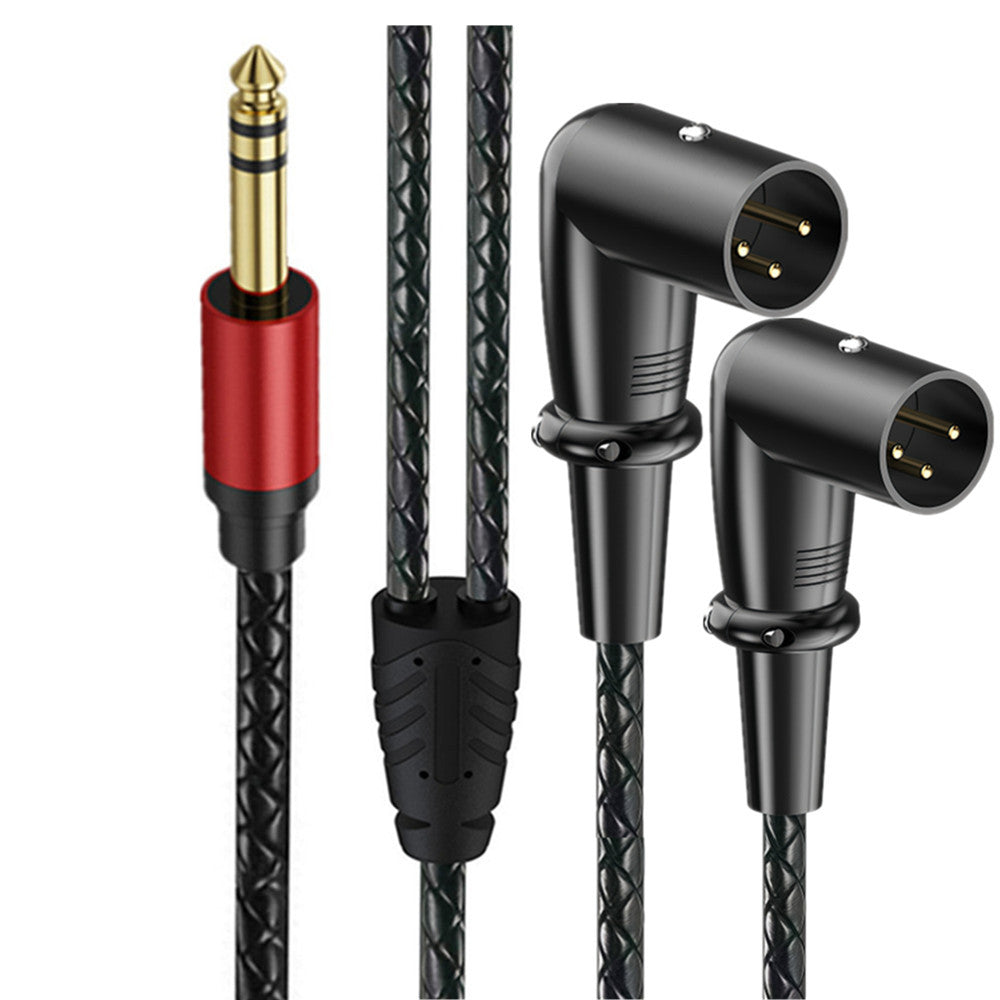

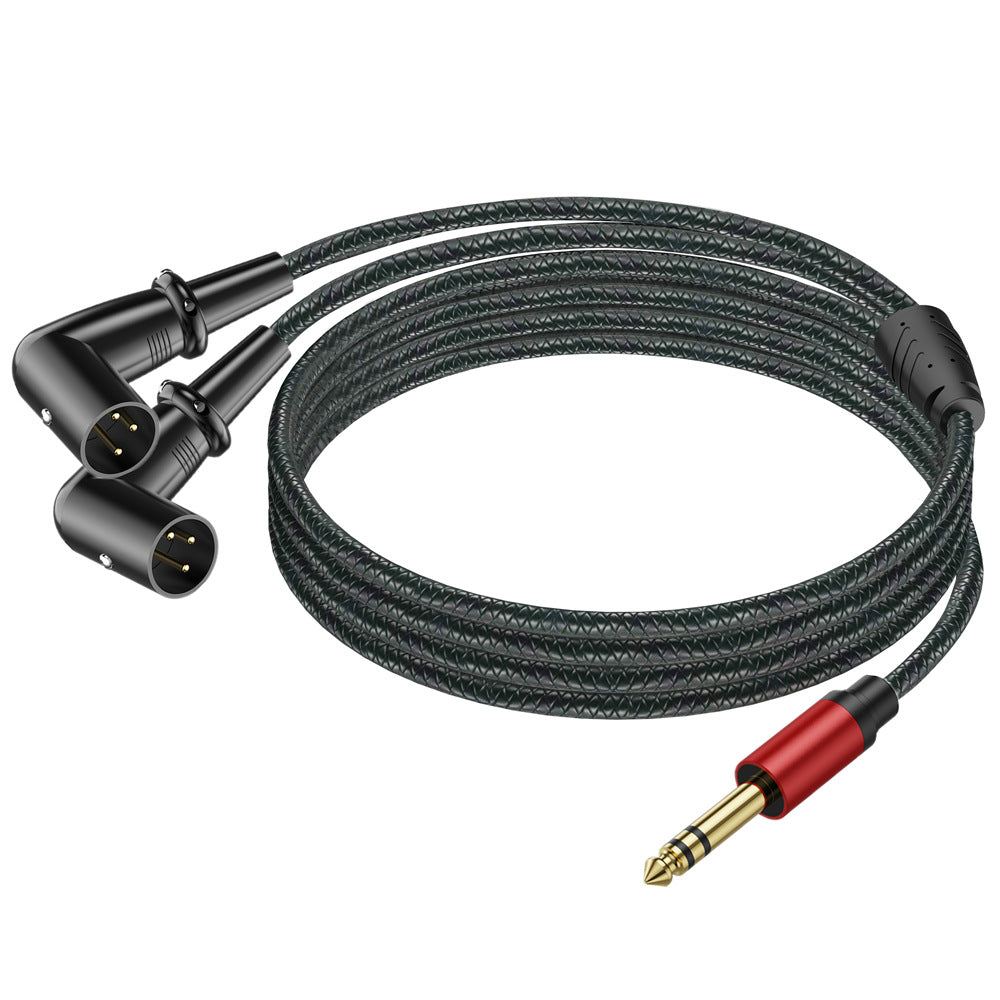

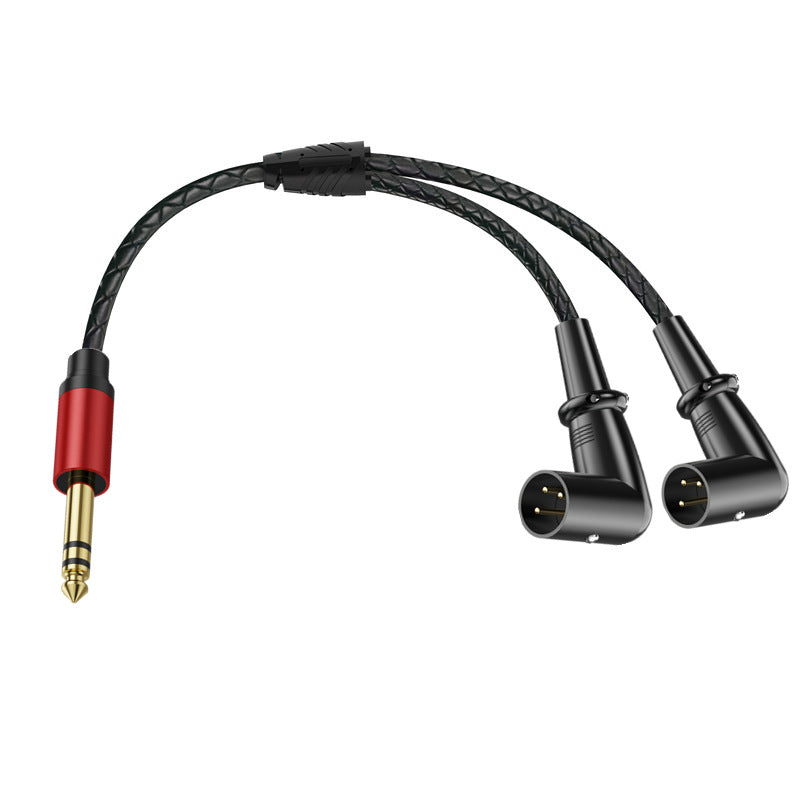

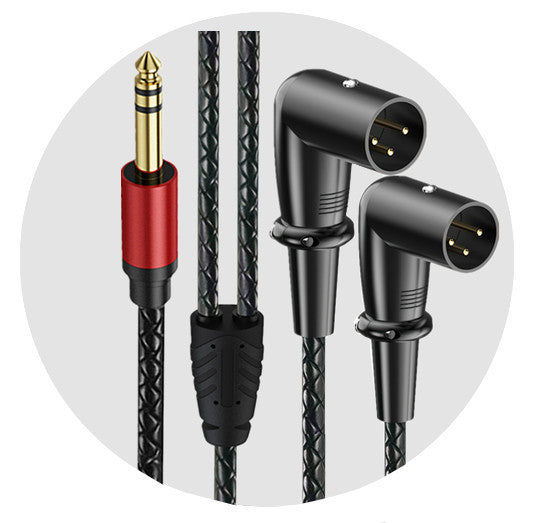

Connect a compatible 6.35mm TRS stereo output to two separate XLR inputs with this 6.35mm TRS male to dual right-angle XLR male audio breakout cable.
The cable features one straight 6.35mm (1/4-inch) TRS male plug at the source end and two space-saving 90-degree 3-pin XLR male connectors at the other. It is designed to separate the left and right channels from a compatible stereo TRS output for connection to mixers, powered monitors, amplifiers and other professional audio equipment.
The right-angle XLR connectors are ideal for equipment installed close to walls, inside racks or in crowded studio and stage environments. A braided outer jacket and reinforced Y-splitter section provide added durability for regular setup, transport and professional audio use.
Key features:
• Straight 6.35mm TRS stereo male plug
• Dual right-angle 3-pin XLR male connectors
• Separates a compatible stereo signal into left and right mono channels
• Space-saving 90-degree XLR connector design
• Braided cable outer jacket
• Reinforced moulded Y-splitter section
• Suitable for compatible mixers, powered monitors and studio equipment
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Audio interfaces and sound cards
• Electronic keyboards and synthesisers
• Portable mixers and effects processors
• Powered studio monitors
• Professional mixing desks
• Stage amplifiers and audio processors
• Recording, livestreaming and live sound systems
Important compatibility information:
The 6.35mm source connection must provide a standard unbalanced stereo TRS signal:
• Tip: left audio channel
• Ring: right audio channel
• Sleeve: common ground
Each XLR connector carries one unbalanced mono channel. This cable does not create two fully balanced XLR signals from a stereo TRS output.
Do not use it with a balanced mono TRS output unless the required pinout has been confirmed. Incorrect use may cause reduced volume, phase cancellation or incorrect signal routing.
This is a passive breakout cable. It does not amplify, balance, isolate or process the audio signal.
