Connect a compatible 6.35mm TRS stereo male output to two separate XLR inputs with this 6.35mm TRS female to dual 3-pin XLR male audio breakout cable.

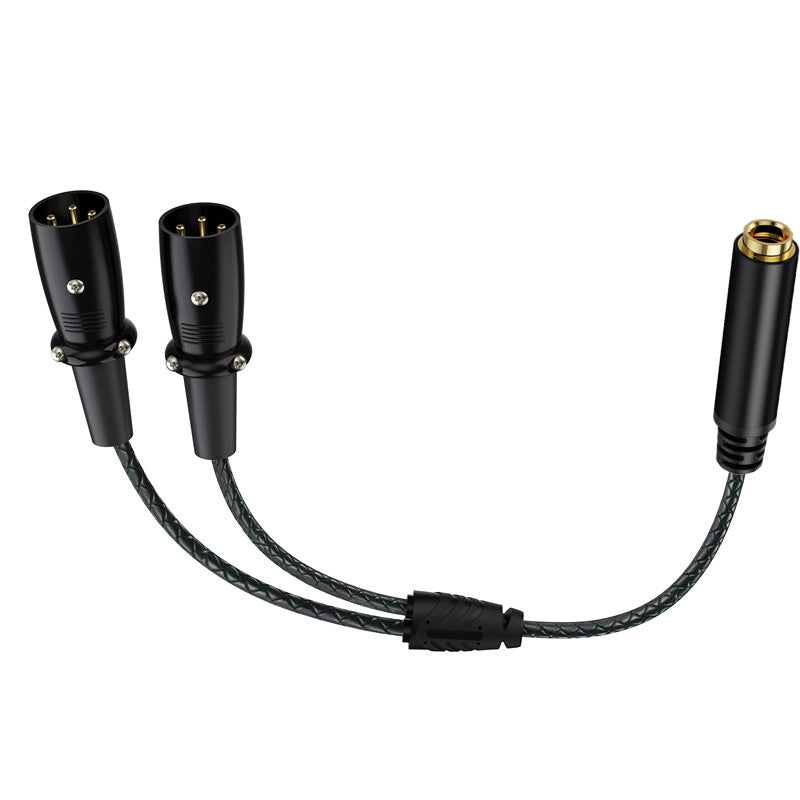

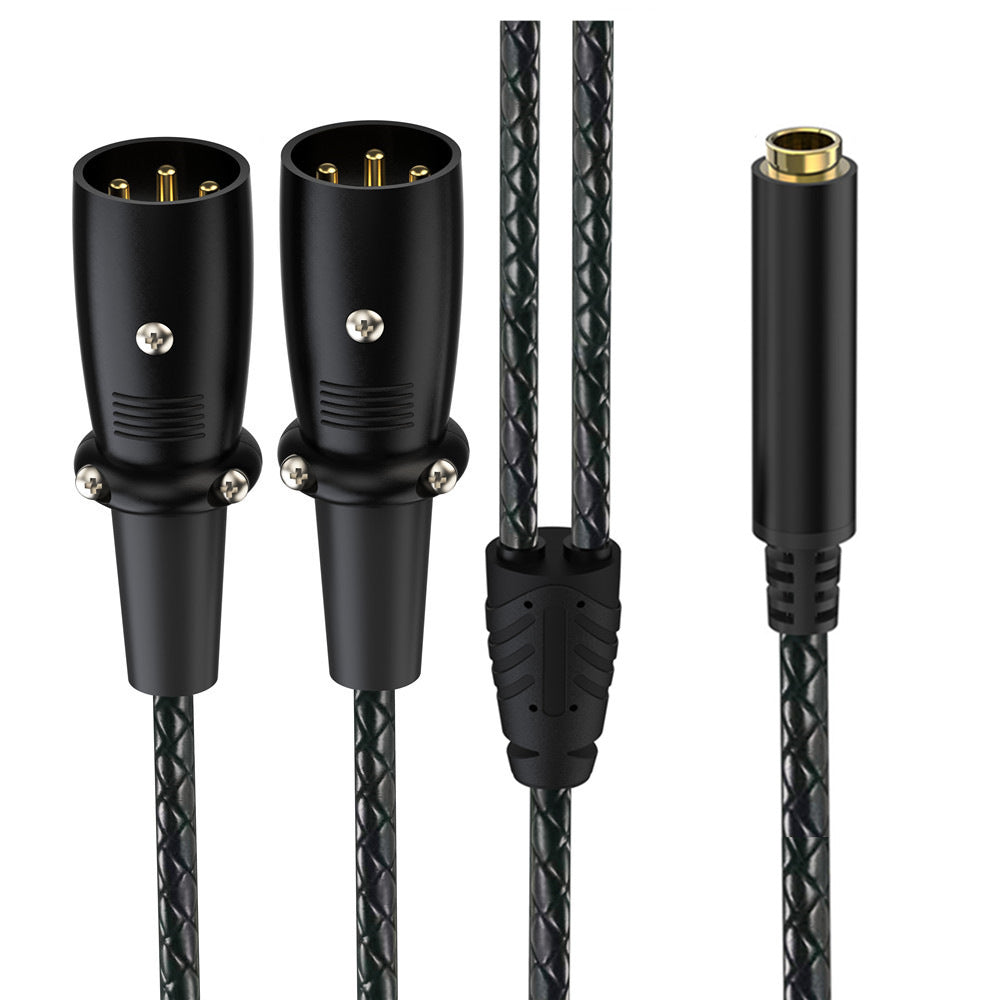

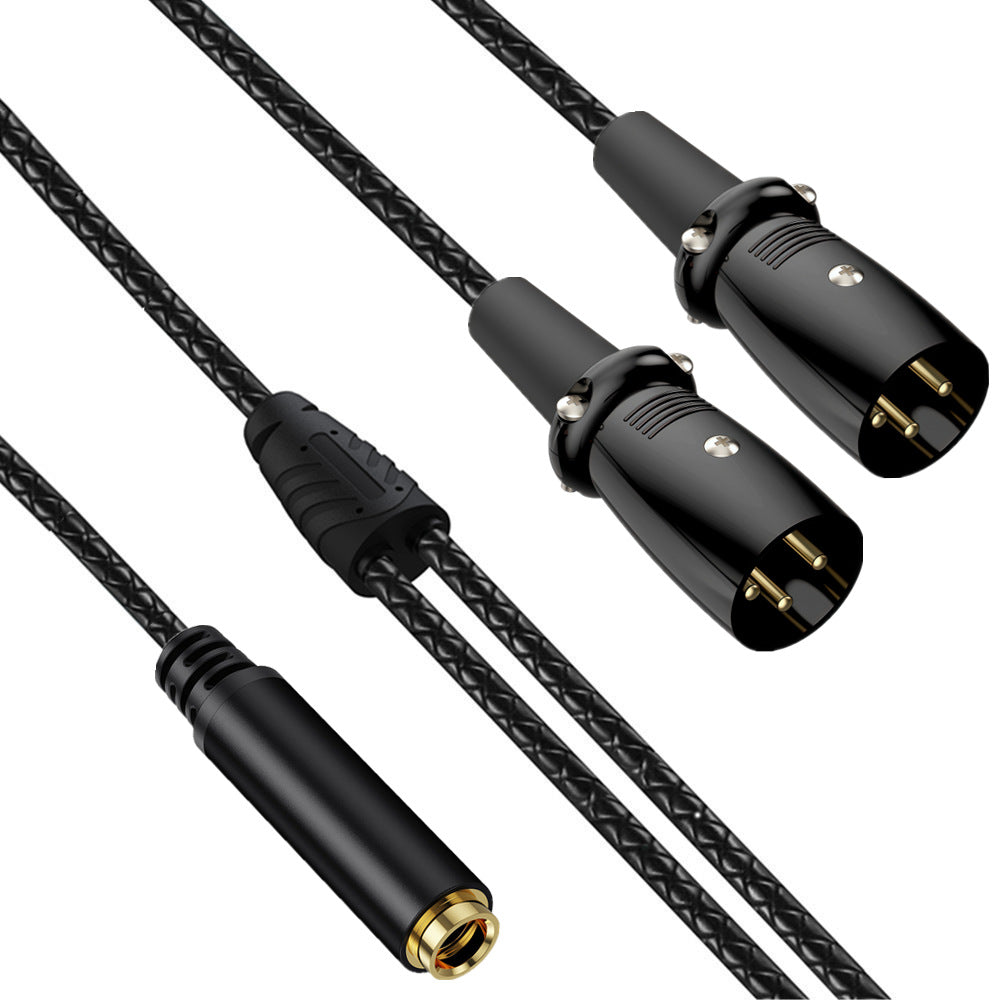

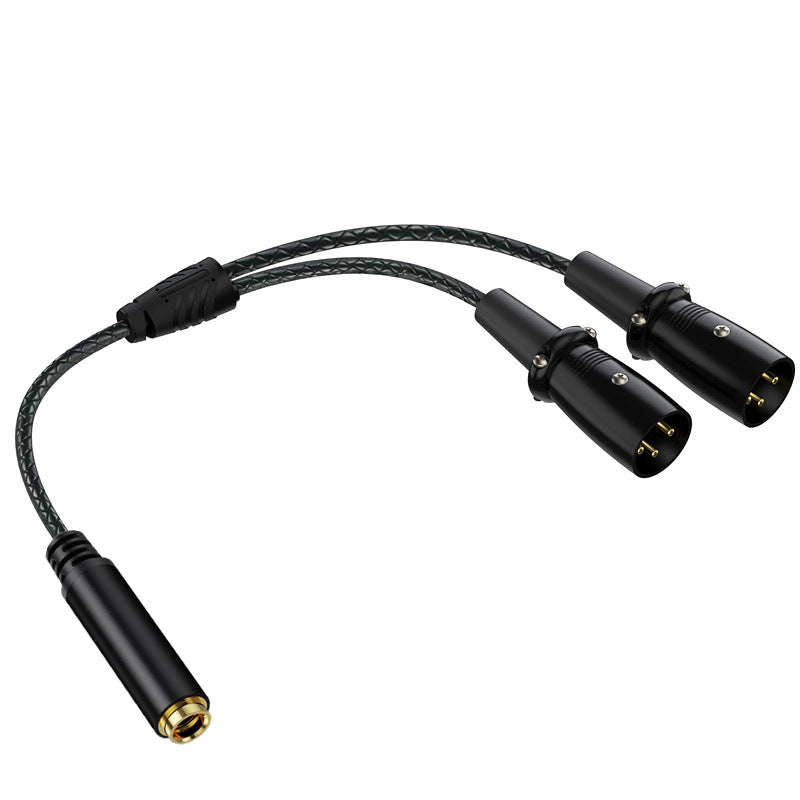

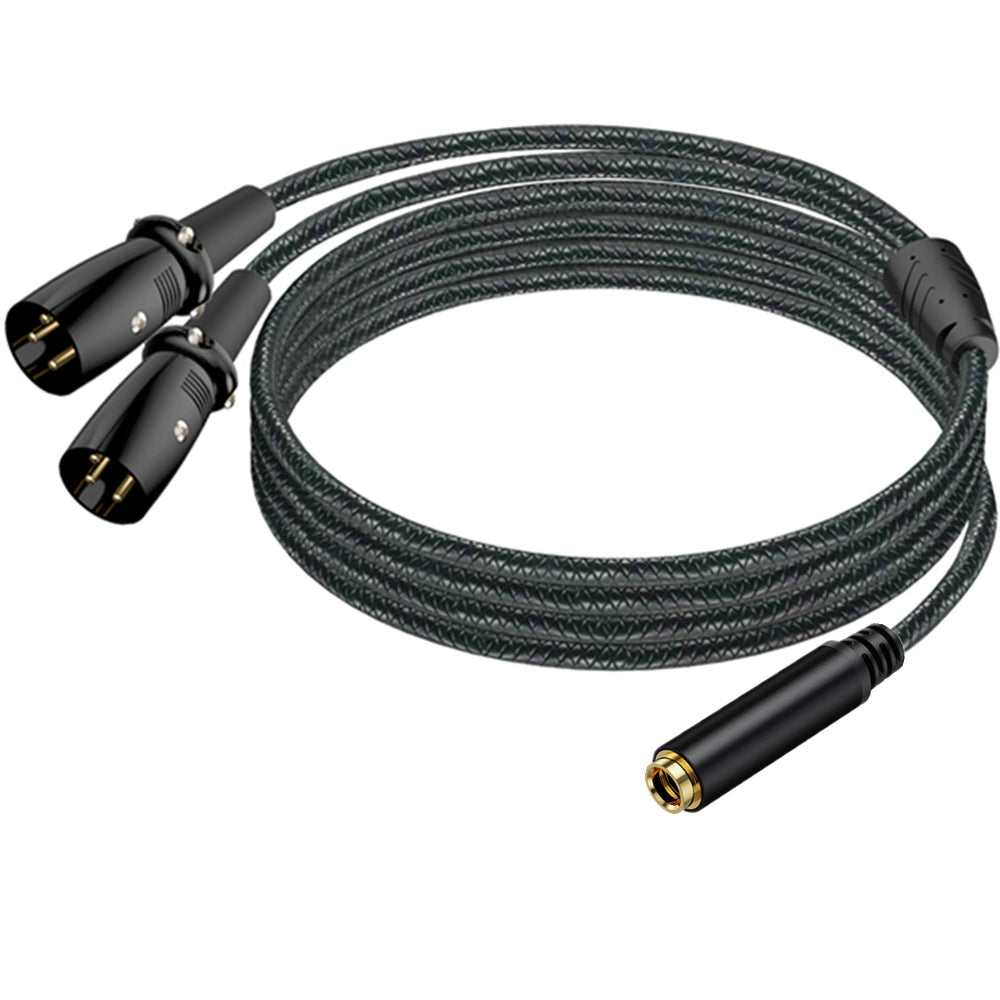

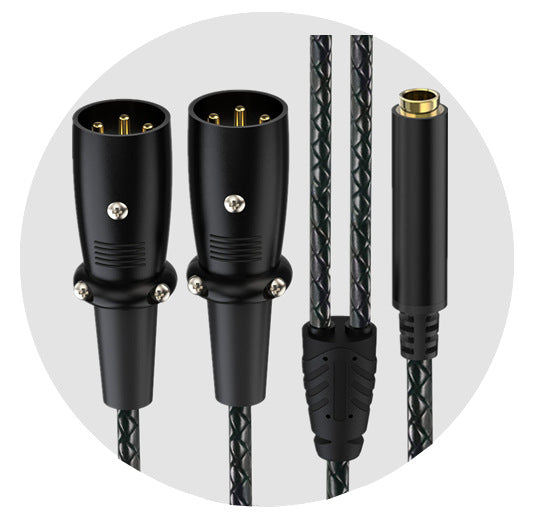

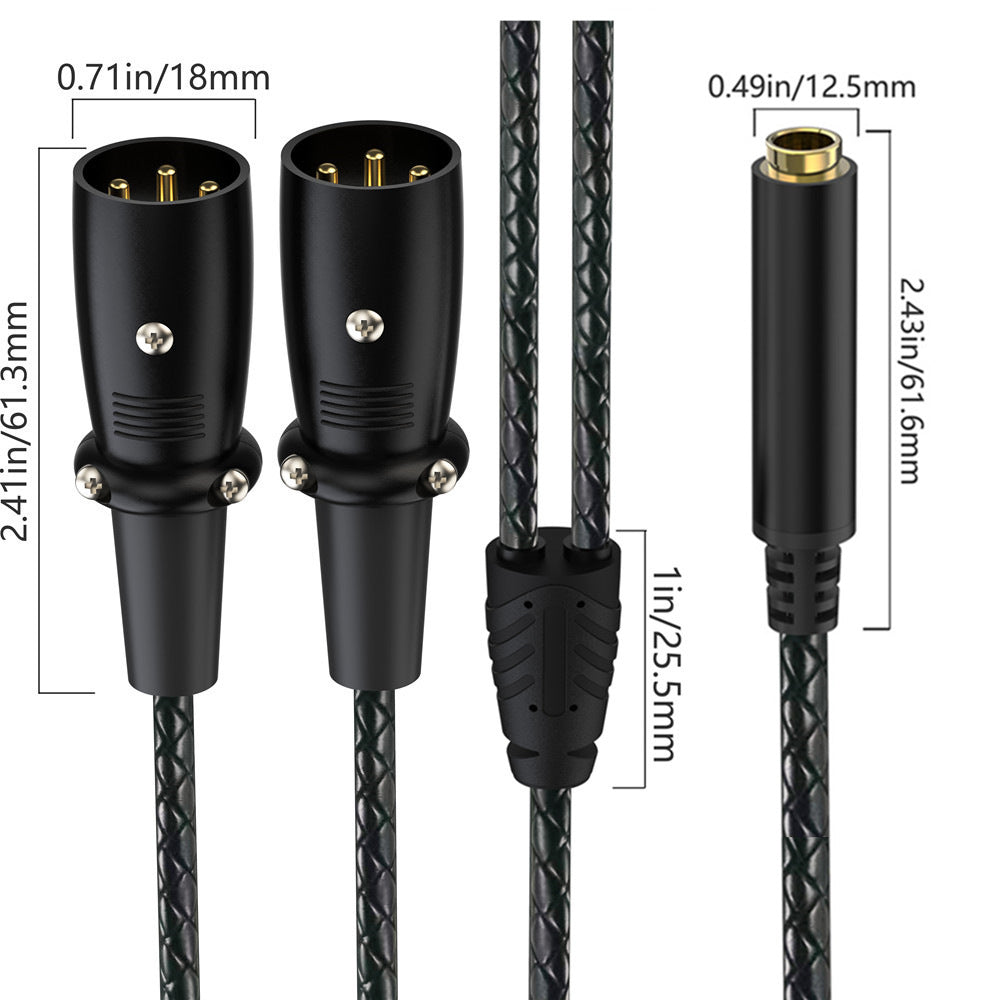

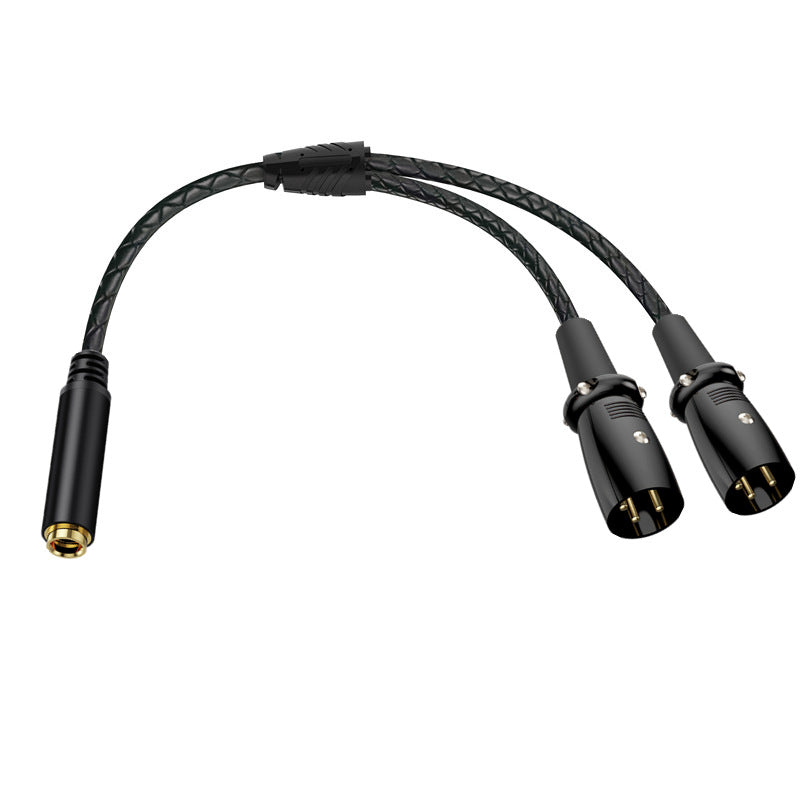

The cable features one 6.35mm (1/4-inch) TRS female socket at the source end and two straight 3-pin XLR male connectors at the other. It is designed to separate the left and right channels from a compatible stereo TRS connection for routing to mixers, powered speakers, amplifiers and other professional audio equipment.
The braided outer jacket helps protect the cable during regular studio, stage and live sound use. A reinforced Y-splitter section and durable connector housings provide additional strain relief for repeated connection, transport and installation.
Key features:
• 6.35mm TRS stereo female socket
• Dual straight 3-pin XLR male connectors
• Separates a compatible stereo signal into left and right mono channels
• Braided outer cable jacket
• Reinforced moulded Y-splitter section
• Durable metal XLR connector housings
• Passive plug-and-play breakout design
• Suitable for compatible studio, stage and professional audio equipment
• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Audio interfaces and external sound cards
• Electronic keyboards and synthesisers
• Digital pianos and audio players
• Portable mixers and effects processors
• Professional mixing desks
• Powered studio monitors and stage amplifiers
• Recording, livestreaming and live sound systems
Important compatibility information:
The connected 6.35mm male source must provide a standard unbalanced stereo TRS signal:
• Tip: left audio channel
• Ring: right audio channel
• Sleeve: common ground
Each XLR male connector carries one unbalanced mono channel. This cable does not convert a stereo TRS signal into two fully balanced XLR signals.
Do not use it with a balanced mono TRS output unless the required pinout and application have been confirmed. Incorrect use may result in reduced volume, phase cancellation or incorrect signal routing.
This is a passive breakout cable. It does not amplify, balance, isolate or process the audio signal.
