Connect a compatible 6.35mm TRS stereo male output to two separate XLR connections with this 6.35mm TRS female to dual 3-pin XLR female audio breakout cable.

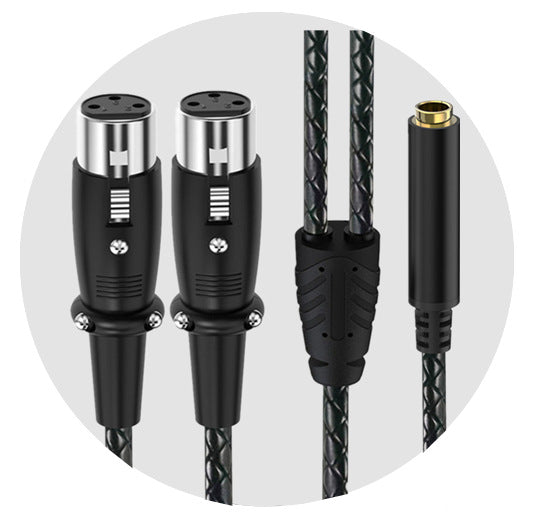

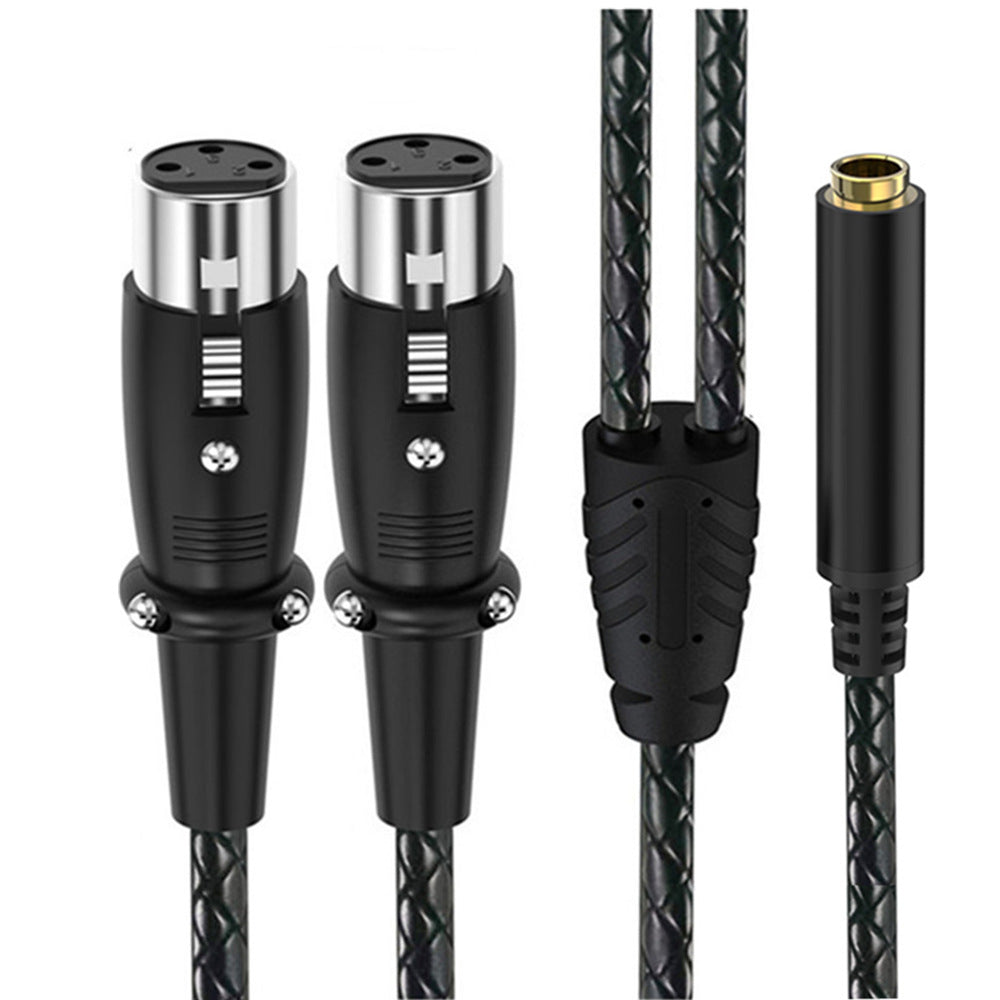

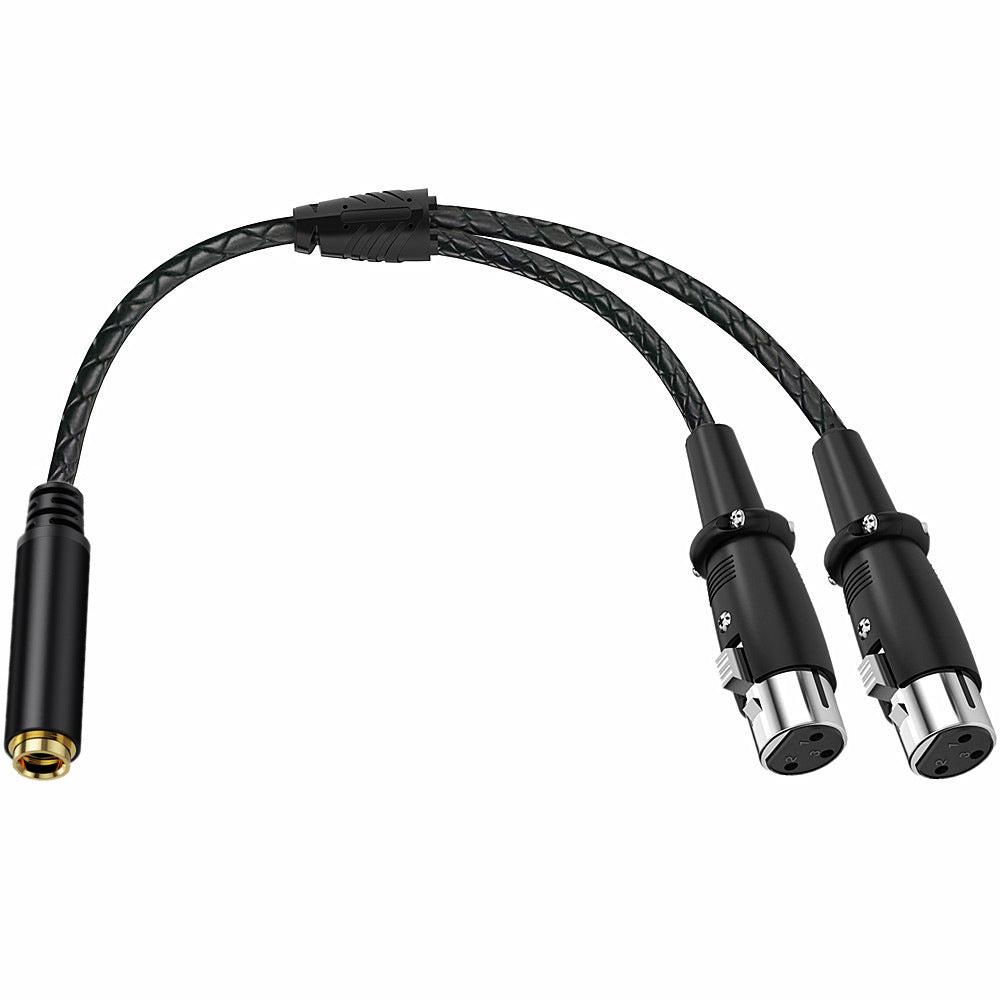

The cable features one 6.35mm (1/4-inch) TRS female socket at the source end and two straight 3-pin XLR female connectors at the split end. It is designed for compatible audio breakout and signal-routing applications involving mixers, audio interfaces, powered monitors, amplifiers and other professional audio equipment.
The braided outer jacket helps protect the cable during regular studio, stage and live sound use. A reinforced Y-splitter section, locking XLR connectors and moulded strain relief provide added durability for repeated connection, transport and installation.
Key features:
• 6.35mm TRS stereo female socket
• Dual straight 3-pin XLR female connectors
• Locking XLR connections

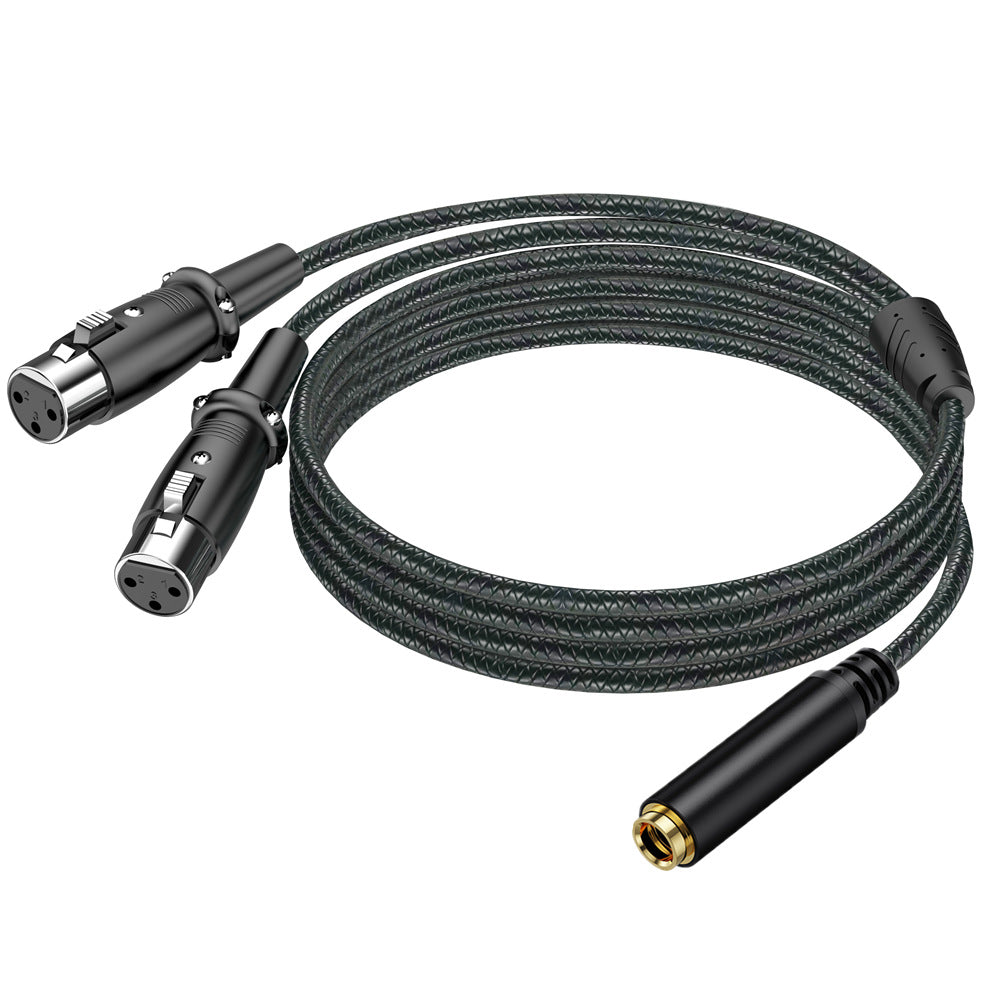

• Braided outer cable jacket
• Reinforced moulded Y-splitter section
• Durable connector housings and strain relief
• Passive plug-and-play breakout design
• Suitable for compatible studio, stage and professional audio equipment

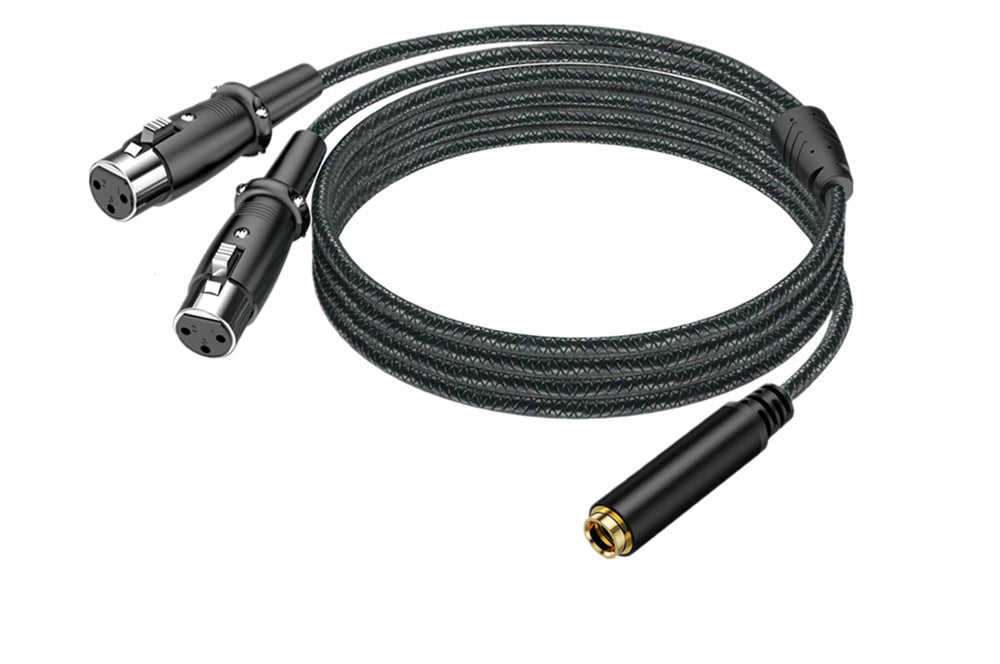

• Available in 0.5m, 1.8m and 3m lengths
Typical applications:
• Audio interfaces and external sound cards
• Electronic keyboards and synthesisers
• Digital pianos and audio players
• Portable mixers and effects processors
• Professional mixing desks
• Powered studio monitors and stage equipment
• Recording, livestreaming and live sound systems
Important compatibility information:
The connected 6.35mm male source must provide the signal configuration required by the cable’s internal wiring.
Where the cable is wired as a stereo breakout, the standard TRS connection is:
• Tip: left audio channel
• Ring: right audio channel
• Sleeve: common ground
Each XLR female connector would then carry one unbalanced mono channel. This cable does not automatically convert a stereo TRS connection into two fully balanced XLR signals.
Do not use it with a balanced mono TRS output unless the pinout and intended application have been confirmed. Incorrect compatibility may result in reduced volume, phase cancellation, noise or incorrect signal routing.
This is a passive cable. It does not amplify, balance, isolate or process the audio signal.
